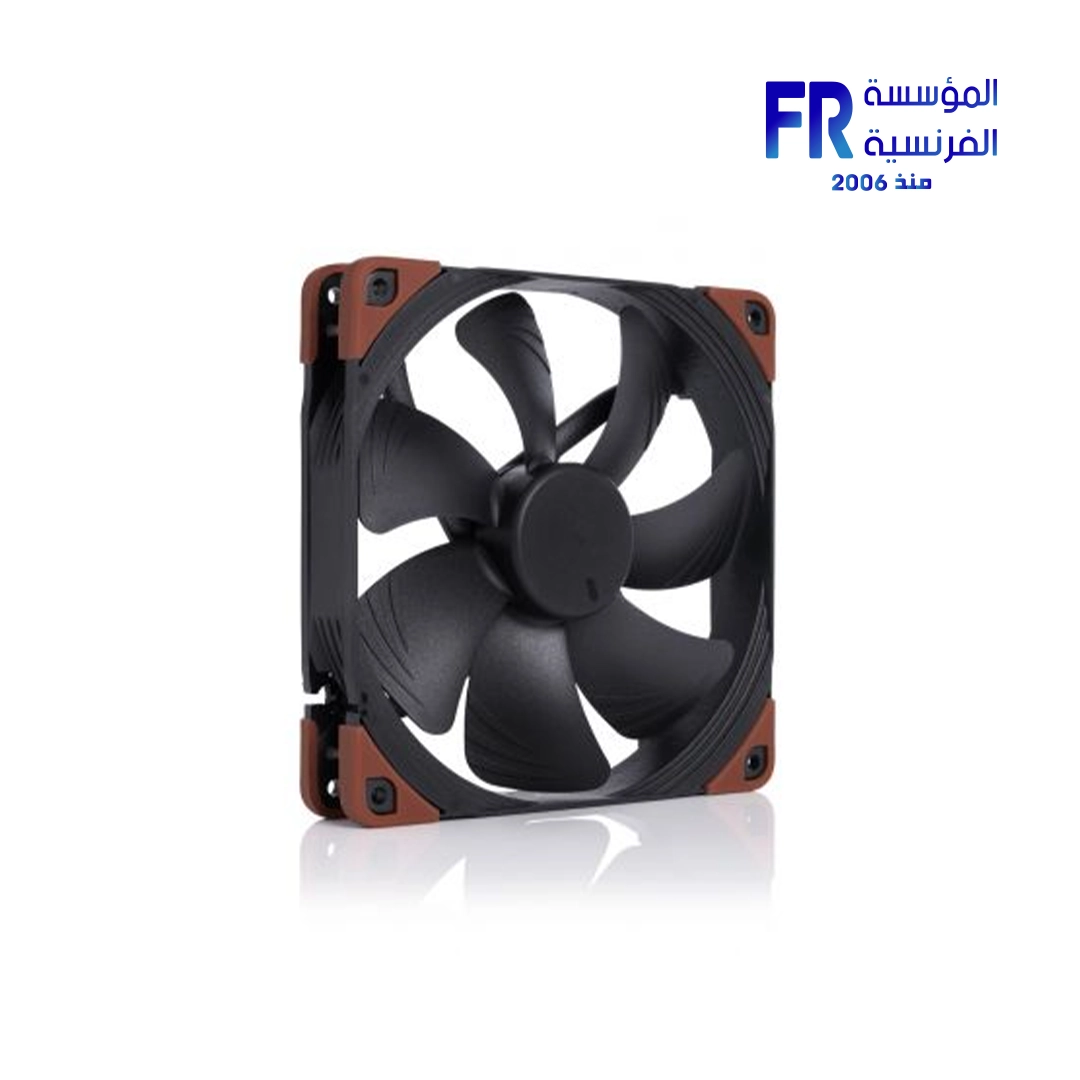

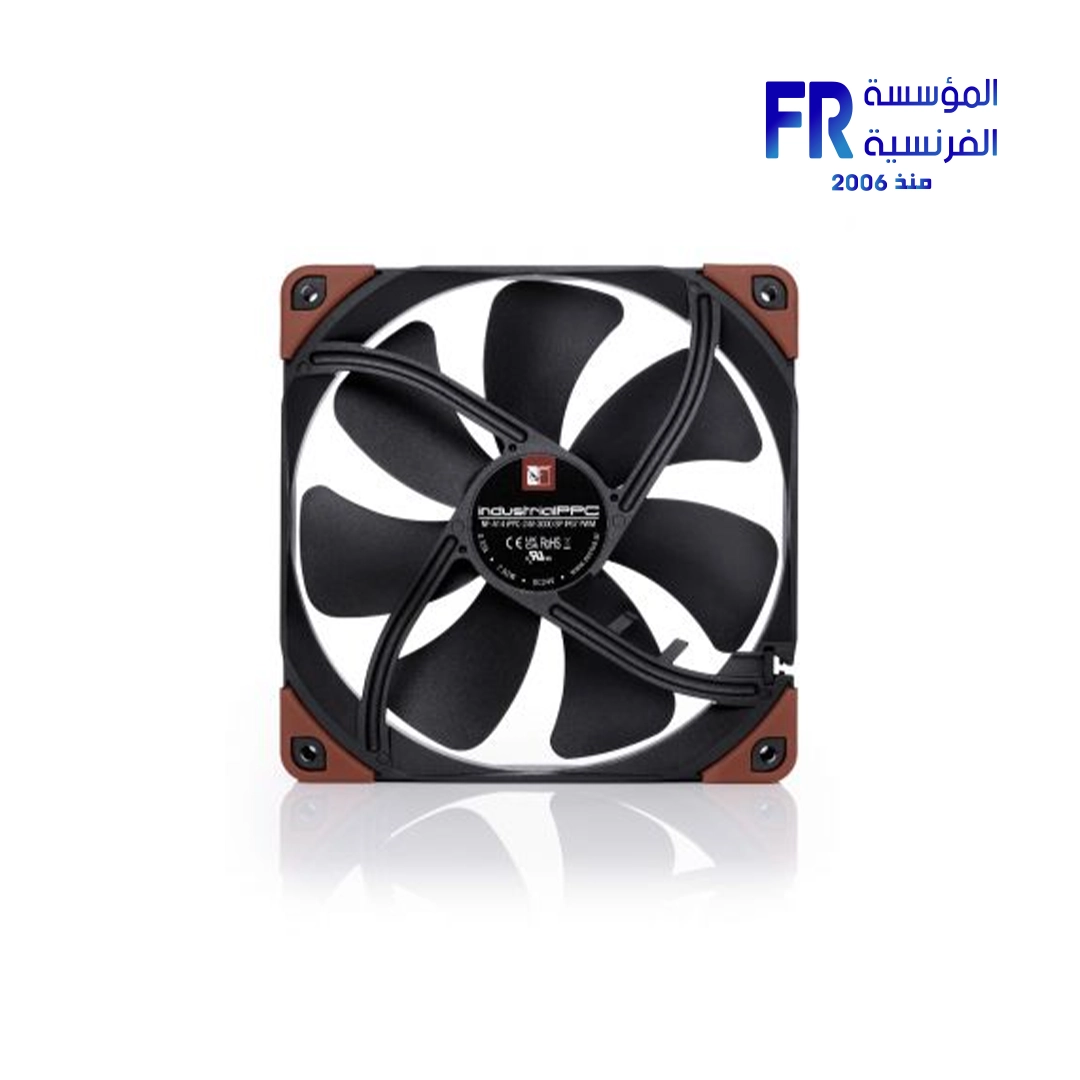

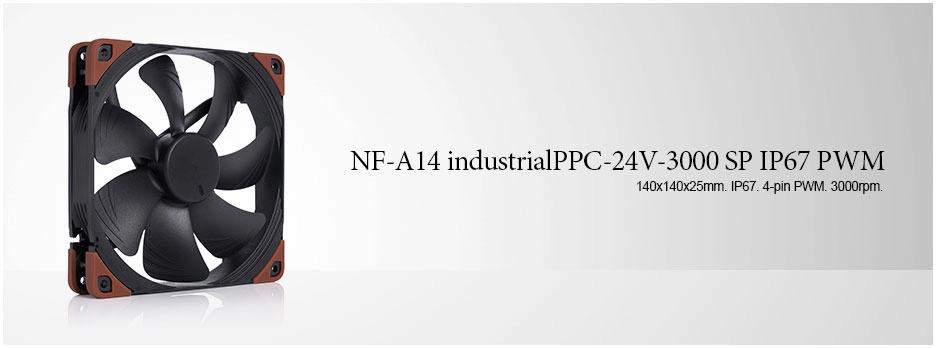

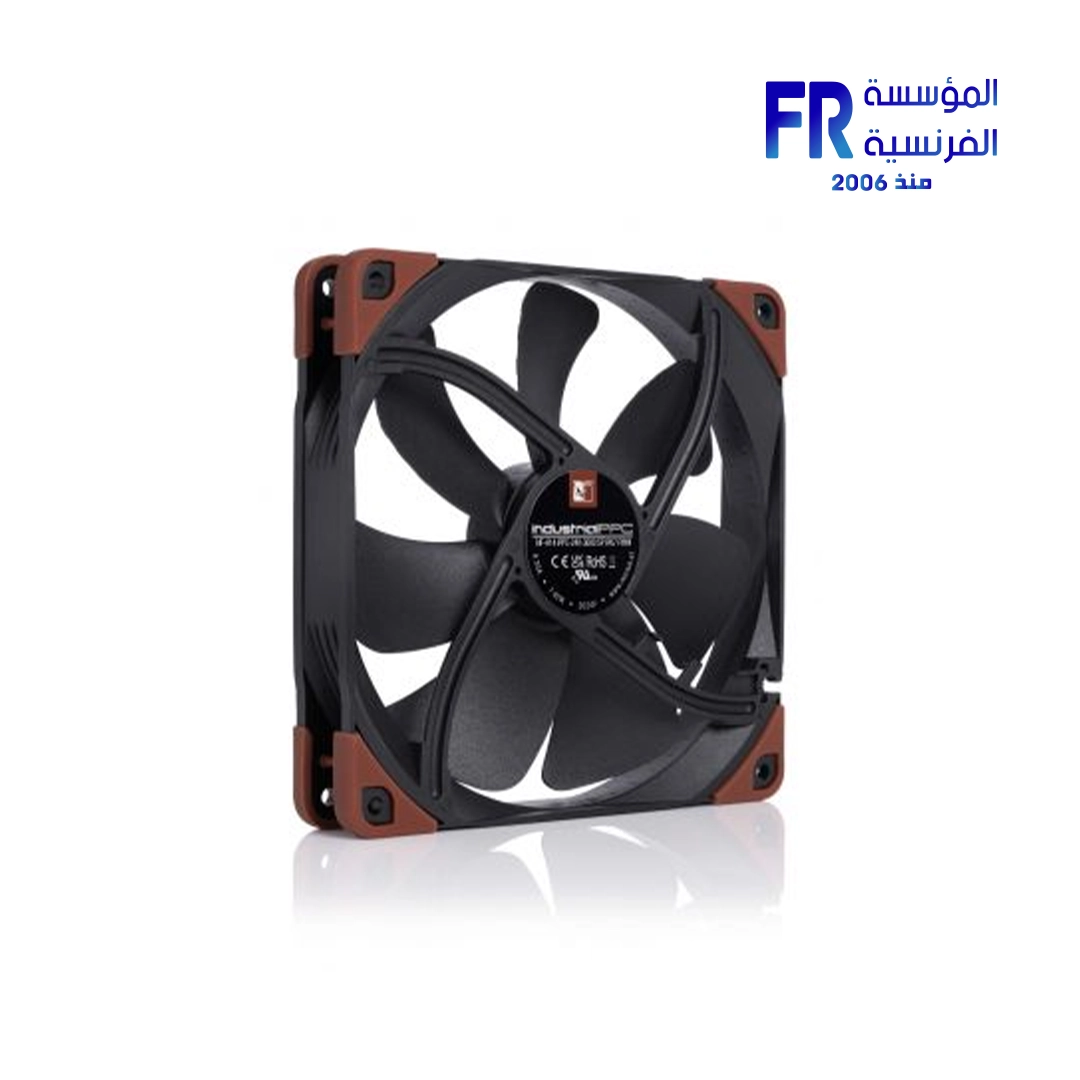

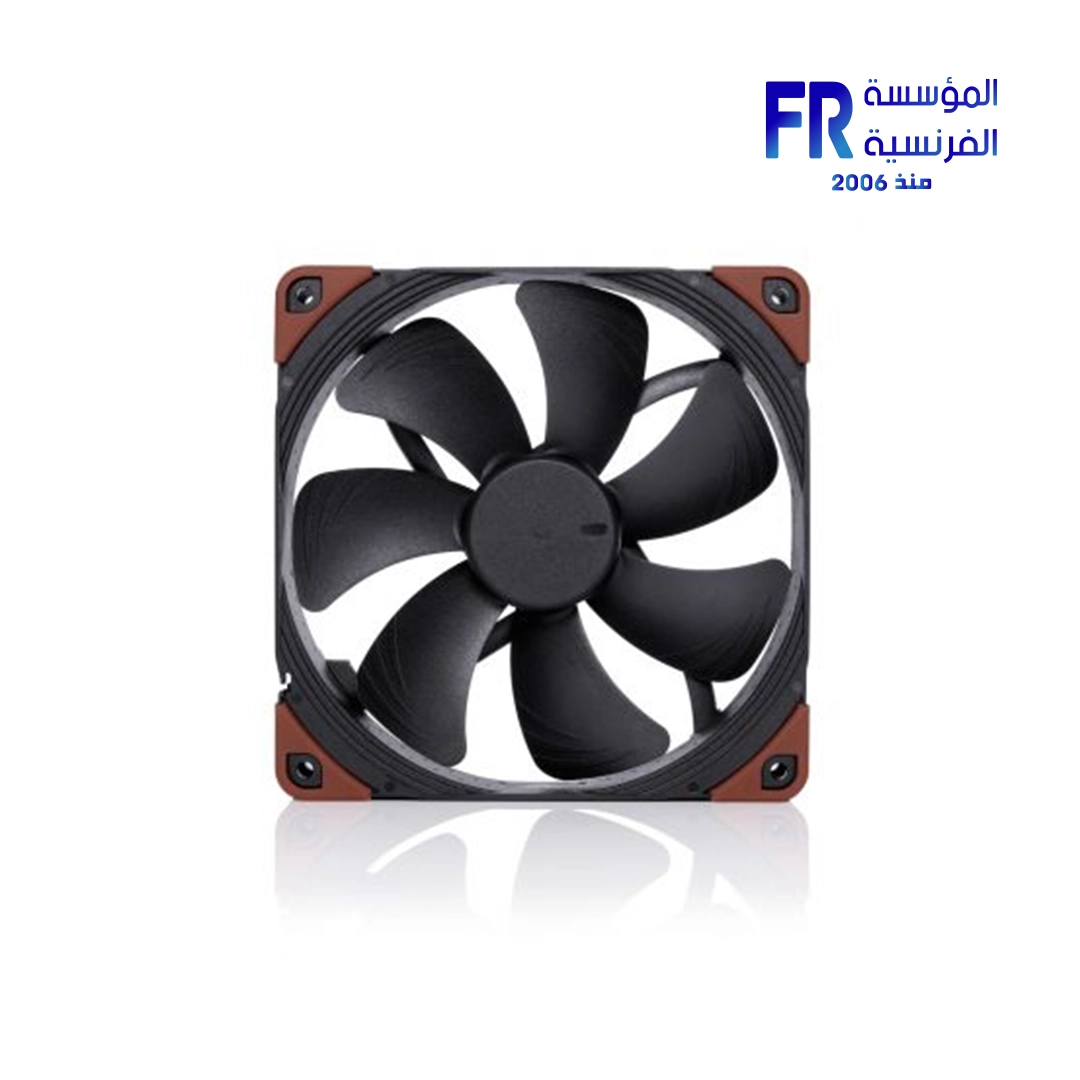

Noctua NF A14 industrialPPC 24V 3000 SP IP67 PWM 140mm Fan

Noctua NF-A14 industrialPPC 24V 3000 SP IP67 PWM 140mm Fan

The Noctua NF-A14 industrialPPC 24V 3000 SP IP67 PWM is a rugged 140mm fan. It is designed for demanding industrial applications. This fan delivers extreme performance, superior durability, and advanced ingress protection, ensuring reliable cooling in harsh environments.

Extreme Performance for Demanding Environments:

The Noctua NF-A14 industrialPPC 24V 3000 SP IP67 PWM operates at a blistering 3000 RPM. This delivers an exceptional airflow of 269.3 m³/h. It generates a high static pressure of 6.58 mm H₂O. This makes it ideal for applications requiring immense cooling power. Its single-phase motor type ensures reliable operation. Therefore, it is perfect for industrial settings where performance cannot be compromised.

Superior Durability with IP67 Protection:

This fan is built to withstand the toughest conditions. It features IP67 ingress protection. This means it is dust-tight and protected against immersion in water. The fan is constructed from fibre-glass reinforced polyamide. This material provides exceptional robustness. Furthermore, the advanced SSO2-Bearing ensures long-term stability. It boasts an MTTF (Mean Time To Failure) of over 150,000 hours. Consequently, you get a fan that offers extreme durability and reliability in challenging environments.

Advanced Control and Broad Compatibility:

The NF-A14 industrialPPC features a 4-pin PWM connector. This allows for precise speed control. You can adjust the rotational speed from 800 RPM (at 20% PWM) up to 3000 RPM. It operates on a 24V operating voltage. This makes it suitable for industrial systems. The fan’s A-Series blade geometry with Flow Acceleration Channels optimizes airflow. The AAO (Advanced Acoustic Optimisation) frame technology further enhances performance. Therefore, you get a fan that is both powerful and controllable.

Easy Installation and Long-Term Assurance:

The fan measures 140x140x25 mm. Its mounting hole spacing is 124.5×124.5 mm. This ensures compatibility with standard 140mm fan mounts. The 40cm cable length provides flexibility for installation. Four fan screws are included in the scope of delivery. This simplifies the setup process. Furthermore, a 6-year warranty provides long-term assurance. Thus, you can invest with confidence in this high-quality industrial fan.

Key Features:

• Size: 140x140x25 mm.
• Connector: 4-pin PWM.
• Bearing: SSO2-Bearing.
• Ingress Protection: IP67 (dust-tight and protected against water immersion).
• Rotational Speed: 3000 RPM (Max), 800 RPM (Min @ 20% PWM).
• Airflow: 269.3 m³/h.
• Acoustical Noise: 41.3 dB(A).
• Static Pressure: 6.58 mm H₂O.
• Operating Voltage: 24 V.
• MTTF: > 150,000 hours.
• Material: Fibre-glass reinforced polyamide.
• Warranty: 6 years.

Technical Details:

• Product Name: Noctua NF A14 industrialPPC 24V 3000 SP IP67 PWM 140mm Fan
• Model: NF-A14 industrialPPC-24V-3000 SP IP67 PWM
• Mounting Hole Spacing: 124.5×124.5 mm
• Cable Length: 40cm
• Input Power (typical): 7.58 W
• Input Power (max.): 7.92 W
• Input Current (typical): 0.32 A
• Max. Input Current: 0.33 A
• Voltage PWM signal: 5 V
• Blade Geometry: A-Series with Flow Acceleration Channels.
• Frame Technology: AAO.
• Motor Type: Single-phase.
