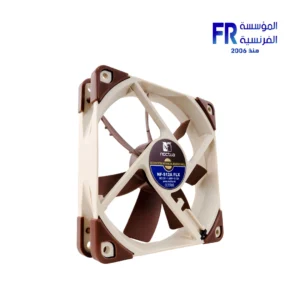

Noctua NF S12A FLX 120mm Fan

Noctua NF S12A FLX 120mm Fan:

The Noctua NF S12A FLX 120mm Fan is a highly optimized, premium-quality fan renowned for its exceptional quietness and superior airflow performance. This **Noctua NF-S12A FLX Fan** features an S-Series blade geometry with Anti-Stall Knobs, ensuring excellent efficiency even at low fan speeds. Built with AAO (Advanced Acoustic Optimisation) frame technology, it delivers outstanding airflow while maintaining minimal noise levels. Furthermore, its SSO2 bearing ensures excellent long-term stability.

Noctua NF-S12A FLX Fan: Optimized Airflow & Ultra-Quiet Operation:

This **Noctua NF-S12A FLX Fan** is engineered for optimal airflow. It achieves a rotational speed of up to 1200 RPM, delivering an impressive airflow of 107.5 m³/h. Despite its powerful performance, it maintains an exceptionally low acoustical noise level of 17.8 dB(A). With the included Ultra-Low-Noise Adaptor (U.L.N.A.), the speed can be reduced to 700 RPM, further minimizing noise to just 7.4 dB(A). This is thanks to its S-Series blade geometry with Anti-Stall Knobs and AAO frame technology.

Noctua NF-S12A FLX Fan: Durable Bearing & Versatile Adaptors:

The **Noctua NF-S12A FLX Fan** utilizes an SSO2 bearing. This contributes to its long lifespan and reliable operation, with an MTTF (Mean Time To Failure) of over 150,000 hours. The fan comes with both a Low-Noise Adaptor (L.N.A.) and an Ultra-Low-Noise Adaptor (U.L.N.A.). These allow users to fine-tune the fan speed and noise levels according to their preferences.

Noctua NF-S12A FLX Fan: Comprehensive Accessories & Compatibility:

This **Noctua NF-S12A FLX Fan** comes with a comprehensive scope of delivery. This includes a 3:4-Pin Adaptor, a 30cm Extension Cable, 4 Vibration-Compensators, and 4 Fan Screws. It connects via a 3-pin connector. Its robust construction and included accessories ensure straightforward installation and long-lasting performance.

Explore compatible Case Fans or check Noctua Products for other options. Find full details on the official Noctua NF-S12A FLX product page.

Specifications:

Fan Specifications:

• Model: NF-S12A FLX
• Size: 120x120x25 mm
• Mounting Hole Spacing: 105×105 mm
• Connector & Pin-configuration: 3-pin
• Cable Length: 20cm + 30cm NA-EC1 extension cable
• Bearing: SSO2
• Blade Geometry: S-Series with Anti-Stall Knobs
• Frame Technology: AAO (Advanced Acoustic Optimisation)
• Rotational Speed (+/- 10%): 1200 RPM
• Rotational Speed with L.N.A. (+/- 10%): 900 RPM
• Rotational Speed with U.L.N.A. (+/- 10%): 700 RPM
• Airflow: 107.5 m³/h
• Airflow with L.N.A.: 83.2 m³/h
• Airflow with U.L.N.A.: 65.8 m³/h
• Acoustical Noise: 17.8 dB(A)
• Acoustical Noise with L.N.A.: 10.7 dB(A)
• Acoustical Noise with U.L.N.A.: 7.4 dB(A)
• Static Pressure: 1.19 mm H₂O
• Static Pressure with L.N.A.: 0.73 mm H₂O
• Static Pressure with U.L.N.A.: 0.51 mm H₂O
• Input Power (typical): 1.19 W
• Input Power (max.): 1.44 W
• Input Current (typical): 0.1 A
• Max. Input Current: 0.12 A
• Operating Voltage: 12 V
• MTTF: > 150.000 h

Included Accessories:

• Low-Noise Adaptor (L.N.A.)
• Ultra-Low-Noise Adaptor (U.L.N.A.)
• 3:4-Pin Adaptor
• 30cm Extension Cable
• 4 Vibration-Compensators
• 4 Fan Screws
