Thermal Grizzly AMD AM5 High Performance Heatspreader

Thermal Grizzly AMD AM5 High Performance Heatspreader

---

Thermal Grizzly AMD AM5 High Performance Heatspreader SPECIFICATIONS:

---

• Color: Silver nickel-plated
• Material: Nickel-plated copper
• Socket Manufacturer: AMD
• Socket Type: AM5

---

Overview

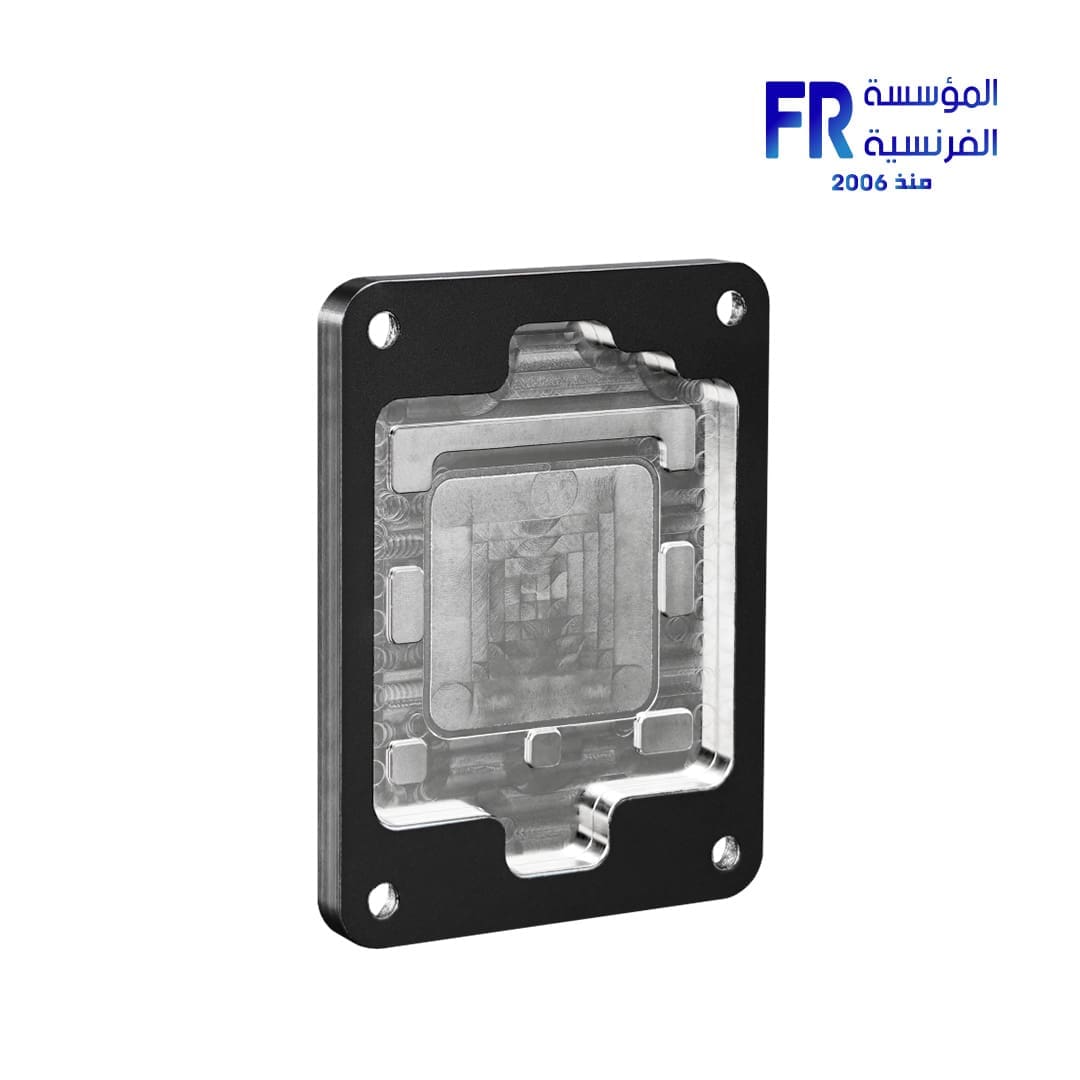

The AM5 High Performance Heatspreader (HPHS) is an advanced upgrade heatspreader designed for AMD Ryzen 7000 processors. Featuring a 240% larger surface area and a diamond-milled precision finish , this nickel-plated copper heatspreader maximizes heat dissipation for both air and water cooling systems. Its ultra-smooth surface ensures optimal thermal contact with the CPU cooler, improving cooling efficiency and lowering operating temperatures.

---

Key Features

• Upgraded Design : Replaces the stock Socket Actuation Mechanism (SAM) and heatspreader for enhanced cooling performance.
• Surface Area : 240% larger surface area (22 cm²) compared to the original heatspreader, enabling superior heat transfer.
• Material : Constructed from nickel-plated copper , combining excellent thermal conductivity with corrosion resistance.
• Precision Surface : Diamond-milled for extremely low surface roughness, ensuring optimal contact with the CPU cooler.
• Compatibility : Works seamlessly with both air coolers and water coolers .

---

Technical Specifications

• Material : Nickel-plated copper
• Surface Finish : Diamond-milled precision surface
• Surface Area Increase : 240% larger than the stock heatspreader (22 cm² total surface area)
• Thermal Interface Compatibility : Compatible with traditional thermal pastes, gallium-based liquid metals, and KryoSheet graphene thermal pads .
• Nickel Barrier Layer : Prevents liquid metal diffusion into the copper, minimizing alloy formation and reducing the need for frequent reapplication.
• Thickness : Thinner than the stock AMD heatspreader, resulting in a 2 mm lower Z-height .

---

Scope of Delivery

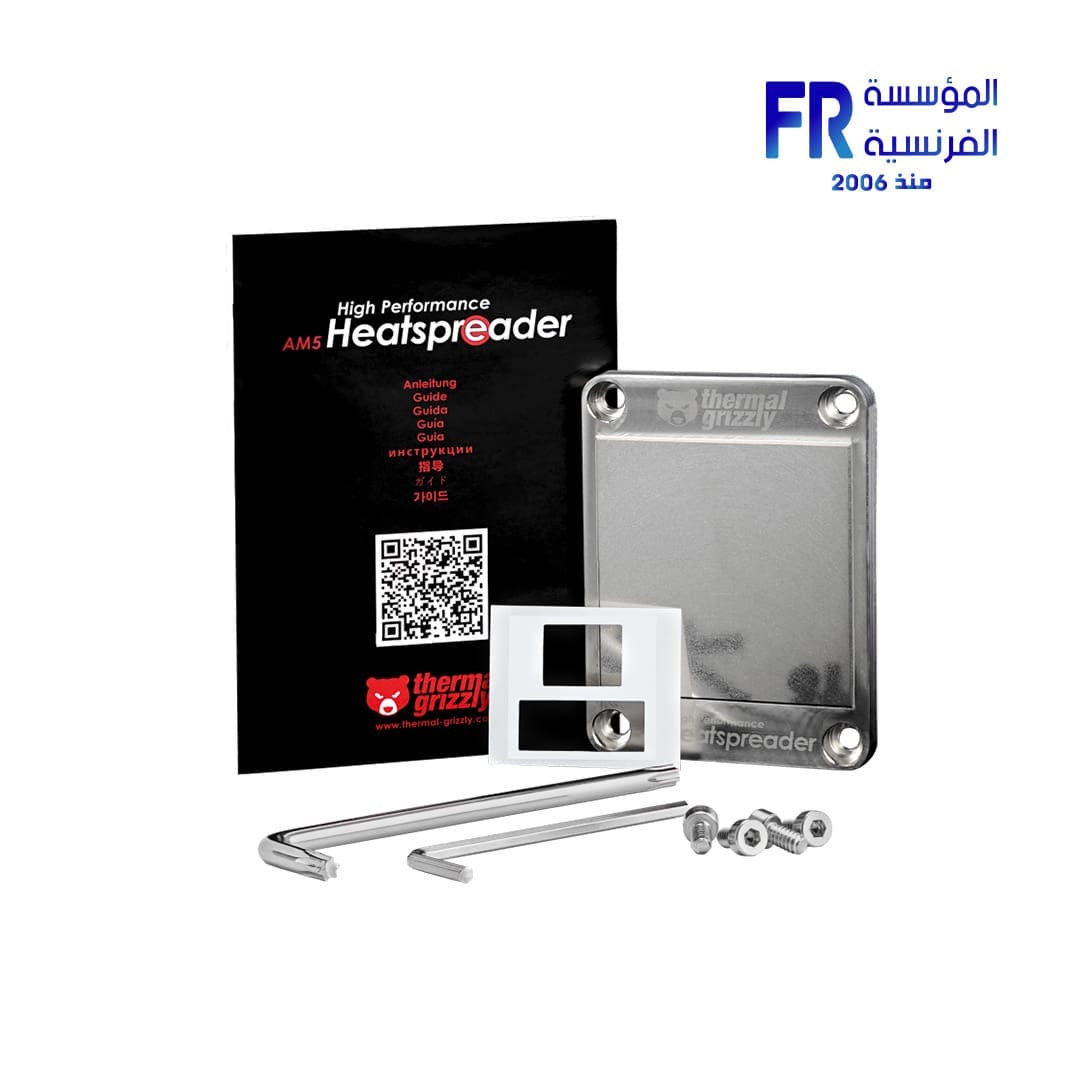

• 1x AM5 High Performance Heatspreader
• 1x Insulation Sheet
• 4x Pan-head screws (UNC thread 1/4″)
• 1x Hexagon socket wrench (5/64″)
• 1x Angle wrench (Torx T20)

---

Benefits

• Improved Cooling Efficiency : The 240% larger surface area and precision-milled finish ensure maximum heat dissipation, lowering CPU temperatures during demanding tasks.

• Versatility : Compatible with both air and water cooling systems, making it suitable for a wide range of builds.

• Liquid Metal Support : The nickel-plated surface acts as a barrier layer, preventing gallium-based liquid metals from diffusing into the copper and maintaining long-term stability.

• Graphene Thermal Pad Option : Includes an insulation sheet for use with KryoSheet graphene thermal pads , providing a maintenance-free solution while protecting electronic components on the CPU package.

---

Compatibility

• Supported Processors :

  • AMD Ryzen 7000 Series

  • AMD Ryzen 9000 Series (as of November 2024)

  • AMD Ryzen 9000X3D Series (as of November 2024)

• Incompatible Processors :

  • Ryzen 8000G Series APUs (e.g., Ryzen 5 8500G, Ryzen 5 8600G, Ryzen 7 8700G). For more details, refer to the video: “AMD Ryzen 8000 Delidded – Liquid Metal Changes Everything!”

---

Important Notes on Usage

• Cooler Compatibility :

  • The AM5 High Performance Heatspreader is 2 mm thinner than the stock heatspreader. Ensure that your CPU cooler’s mounting kit allows for a deeper installation.

  • If adjustments are needed, consider using the AM5 Adapter & Offset Mounting Kit for compatibility.

• Nickel Plating Update (Post-August 2024) :

  • The nickel plating process was updated in August 2024. New units may appear slightly duller, with visible copper due to a thinner nickel layer. However, this improves thermal conductivity by up to 5°C .

---

Warranty and Risk Disclaimer

• Delidding Risks : Removing the heatspreader (“delidding”) is performed at your own risk and voids the manufacturer’s warranty . Any damage caused by delidding is not covered by the manufacturer.

• SAM Removal : Removing the Socket Actuation Mechanism (SAM) may also invalidate the motherboard manufacturer’s warranty. Proceed with caution.

---

Use Cases

• Enthusiast Builds : Ideal for overclockers and enthusiasts seeking to maximize thermal performance for higher sustained clock speeds.

• Custom Cooling Loops : Perfect for users building custom water-cooling setups with improved heat dissipation.

• High-Performance Workstations : Suitable for professionals running intensive workloads, such as video editing, 3D rendering, and scientific simulations.

---

Safety and Warranty Disclaimer

• Warning : Installation of the heatspreader requires technical expertise. Mishandling may result in permanent damage to the processor.

• Warranty Void : Delidding and replacing the heatspreader invalidates the manufacturer’s warranty. Proceed at your own risk.

• Disclaimer : Always follow the provided instructions carefully and ensure proper safety precautions are taken.
