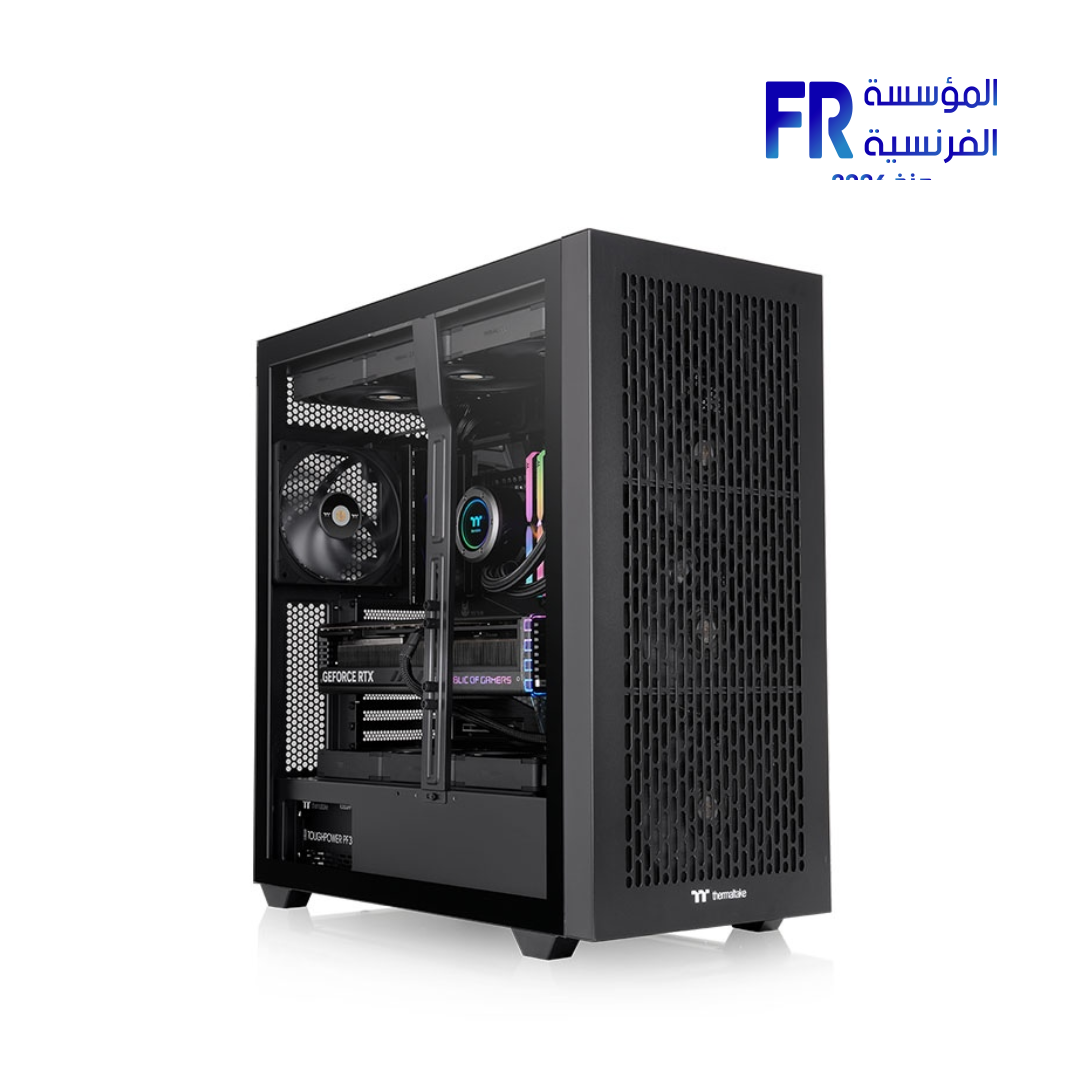

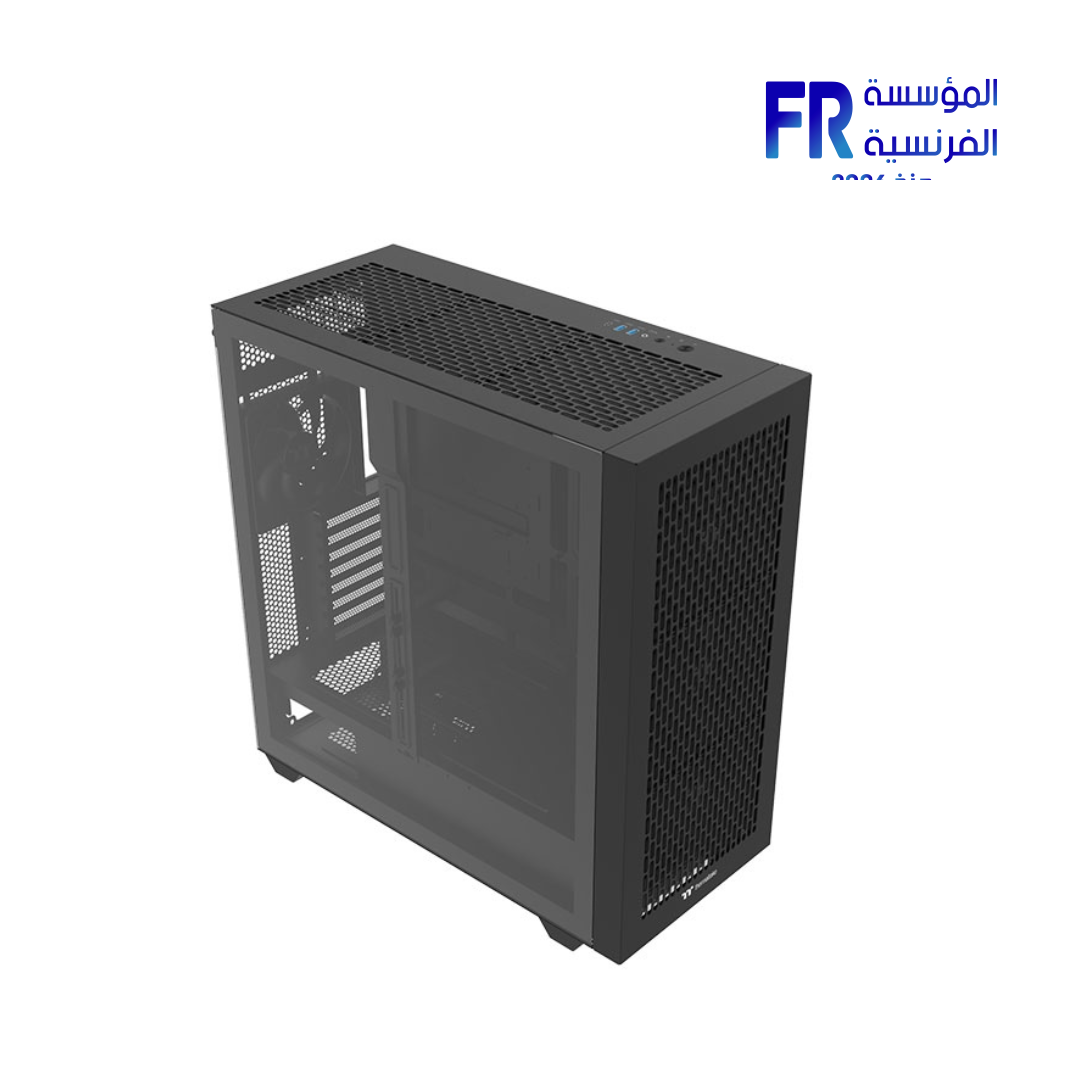

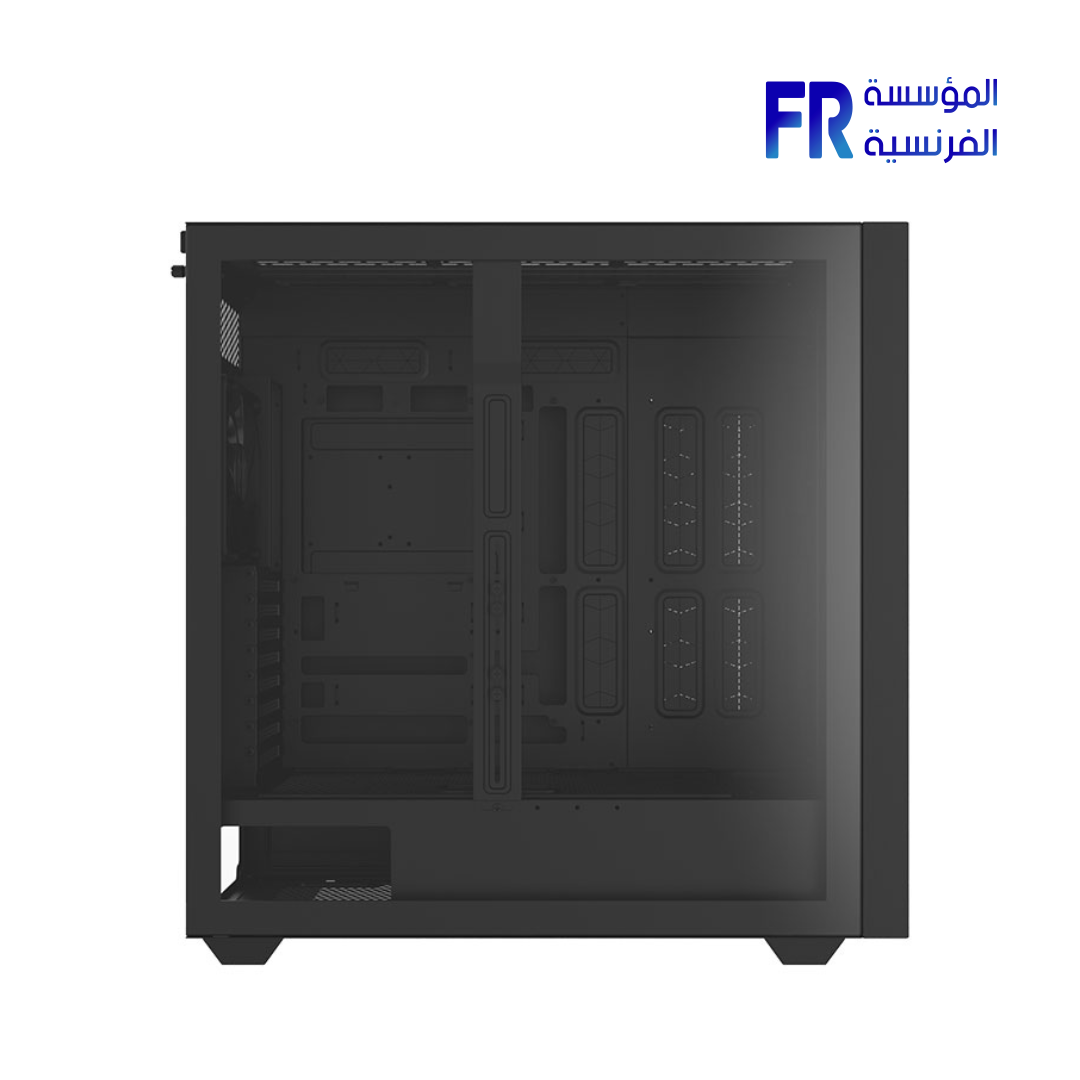

Thermaltake AX500 Full Tower Case

Thermaltake AX500 Full Tower Case

The Thermaltake AX500 Full Tower Case is designed for high-performance workstations or gaming setups. It supports E-ATX/SSI-EEB motherboards and extensive cooling solutions. This chassis offers optimal airflow and features to prevent component sagging.

Key Features:

Superior Cooling & Airflow:

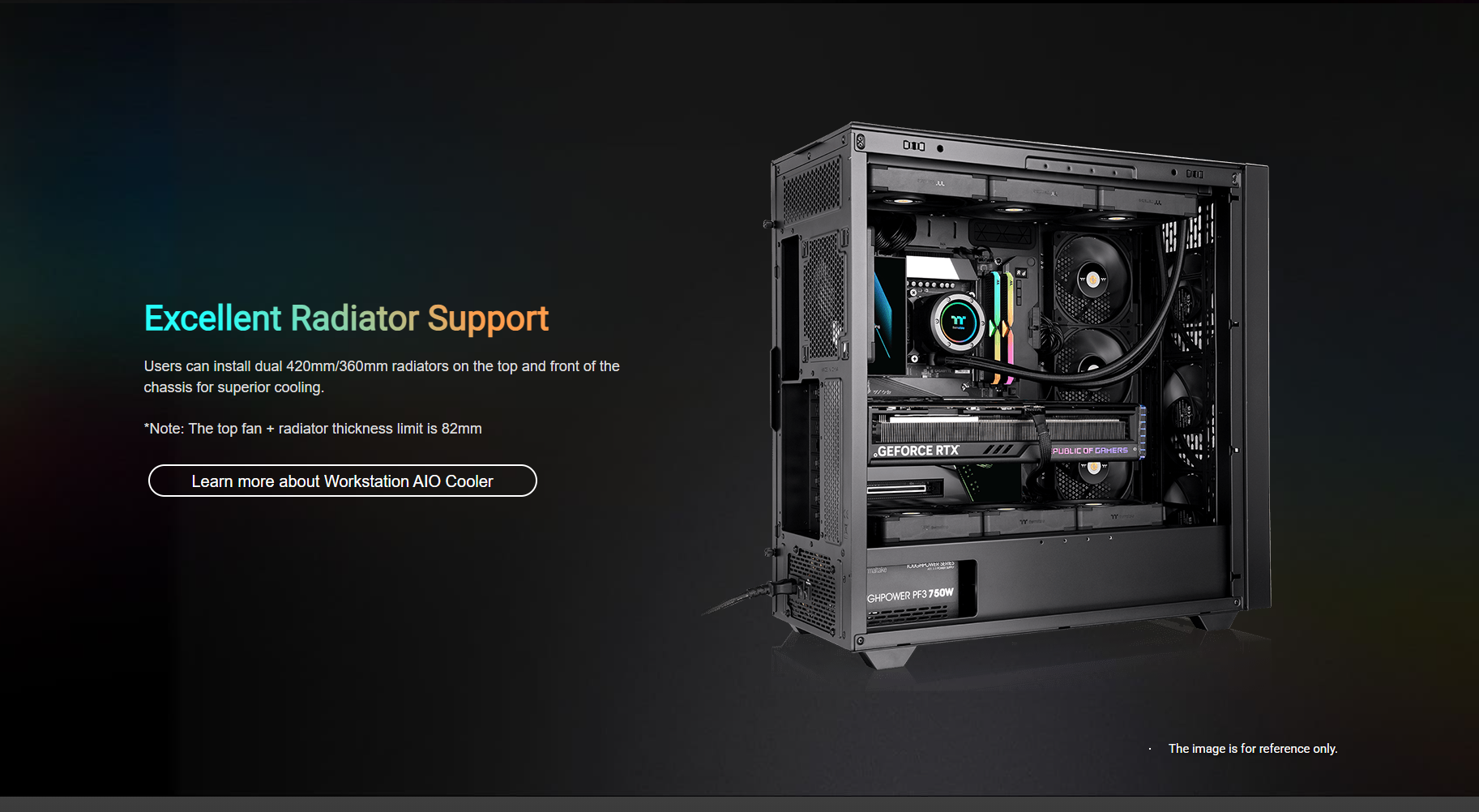

• Supports dual 420mm radiators on the top and front. This provides superior liquid cooling capabilities.

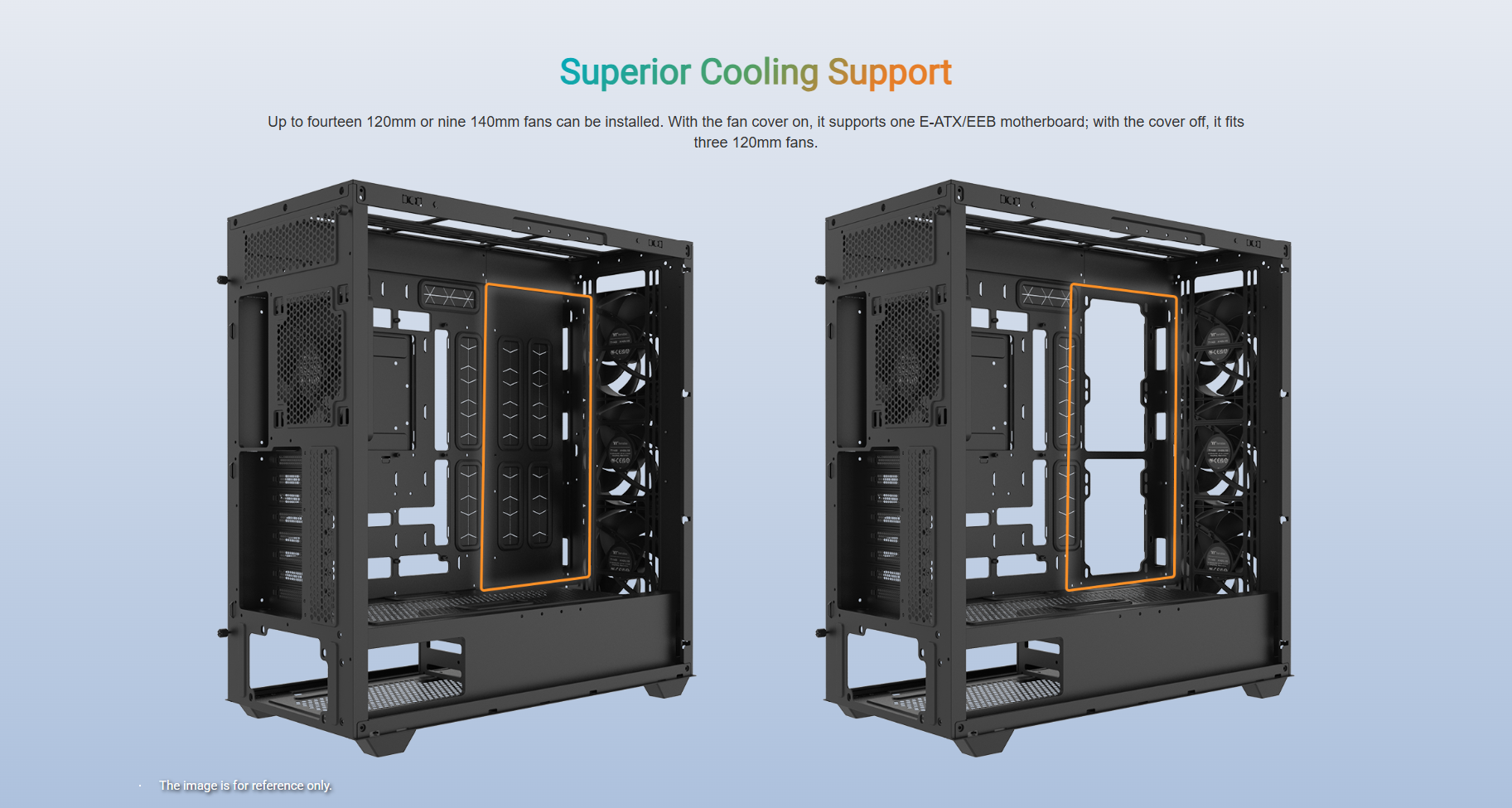

• Accommodates up to fourteen 120mm fans or nine 140mm fans for optimal airflow.

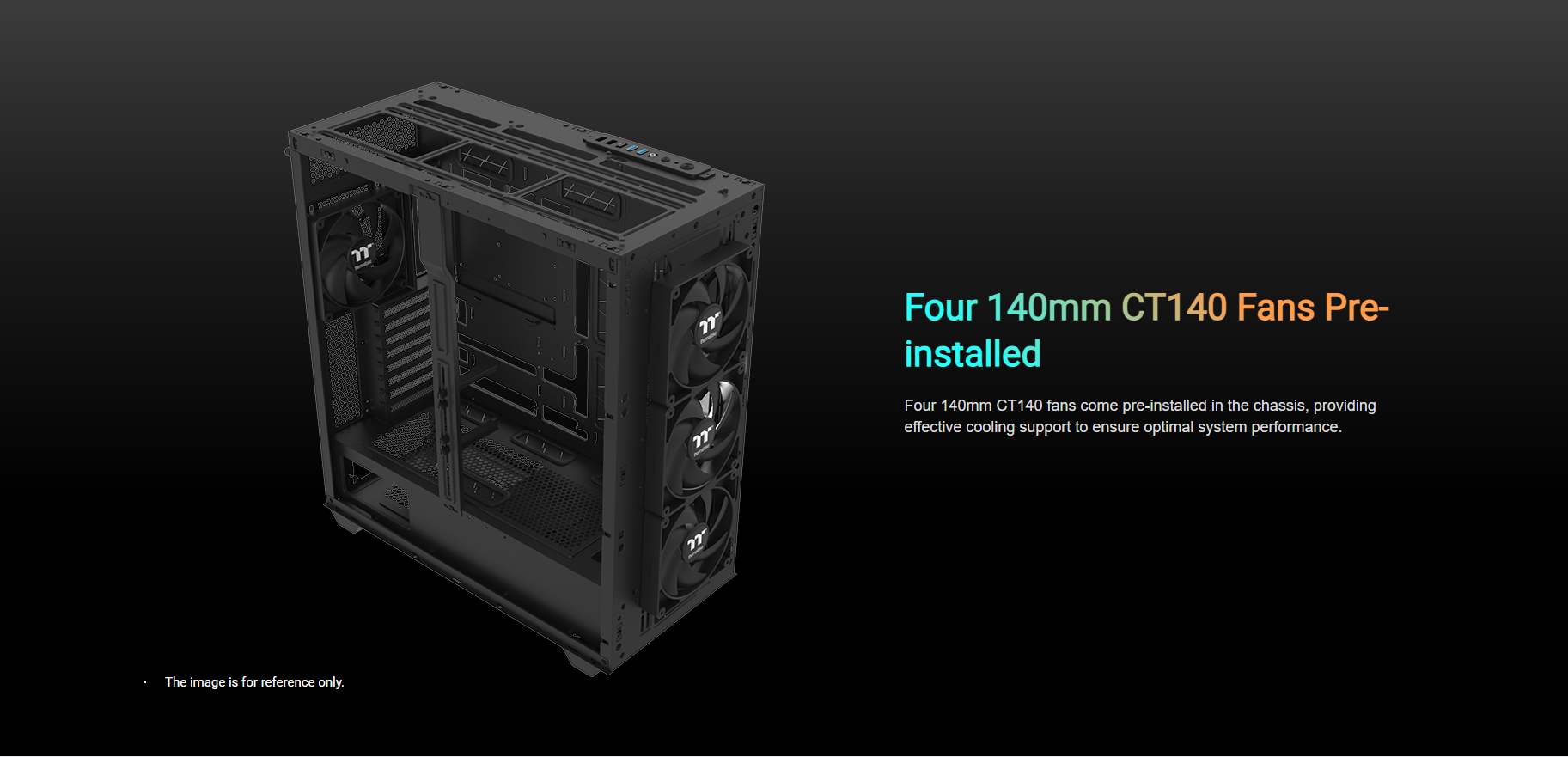

• Comes with four pre-installed 140mm CT140 fans (1500rpm, 30.5 dBA). These ensure effective cooling right out of the box.

Extensive Compatibility & Hardware Support:

• Supports a wide range of motherboards, including Mini ITX, Micro ATX, ATX, E-ATX (up to 12” x 13”), SSI-CEB, and SSI-EEB.

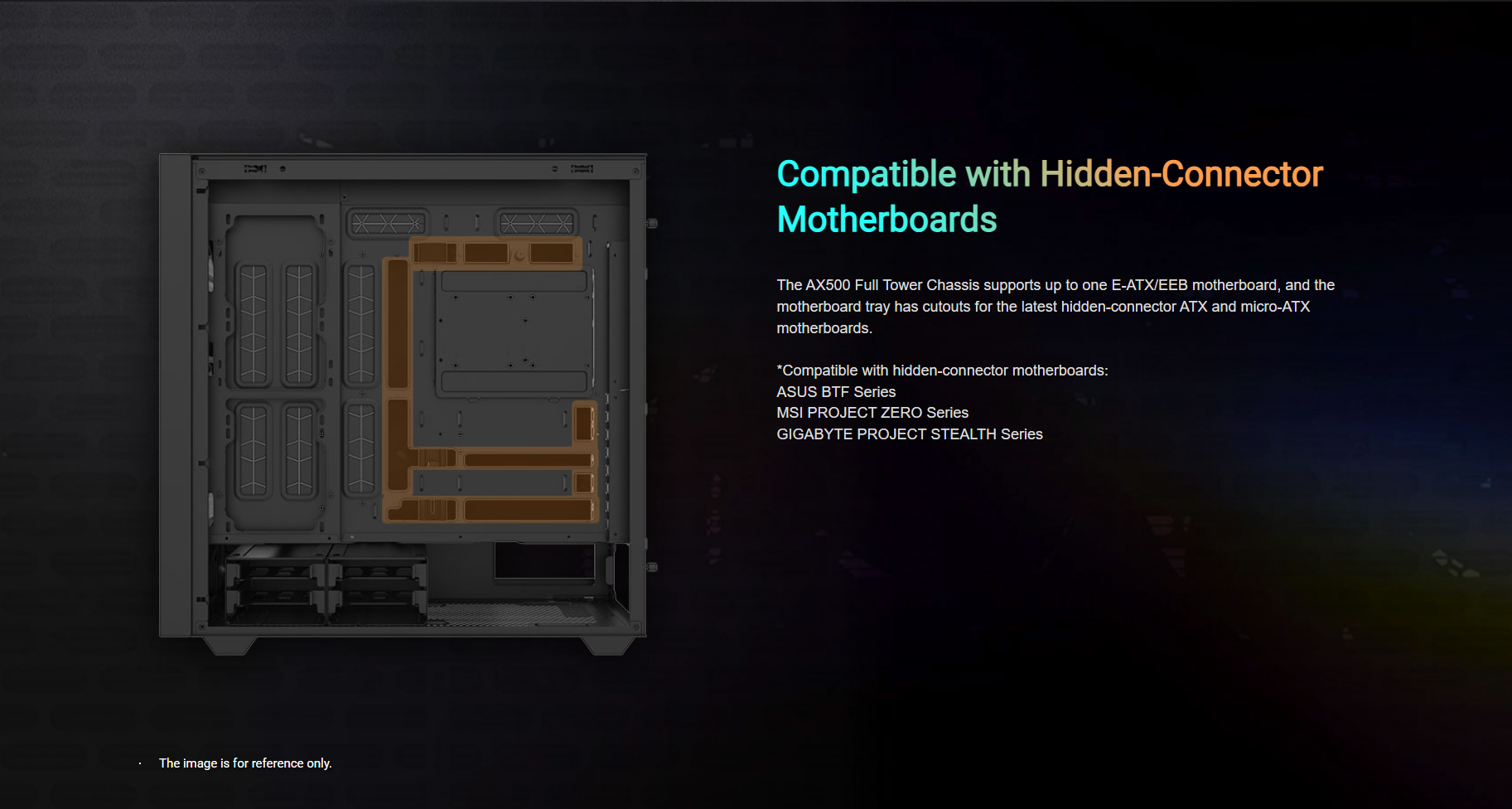

• Compatible with hidden-connector motherboards (ASUS BTF, MSI PROJECT ZERO, GIGABYTE PROJECT STEALTH Series).

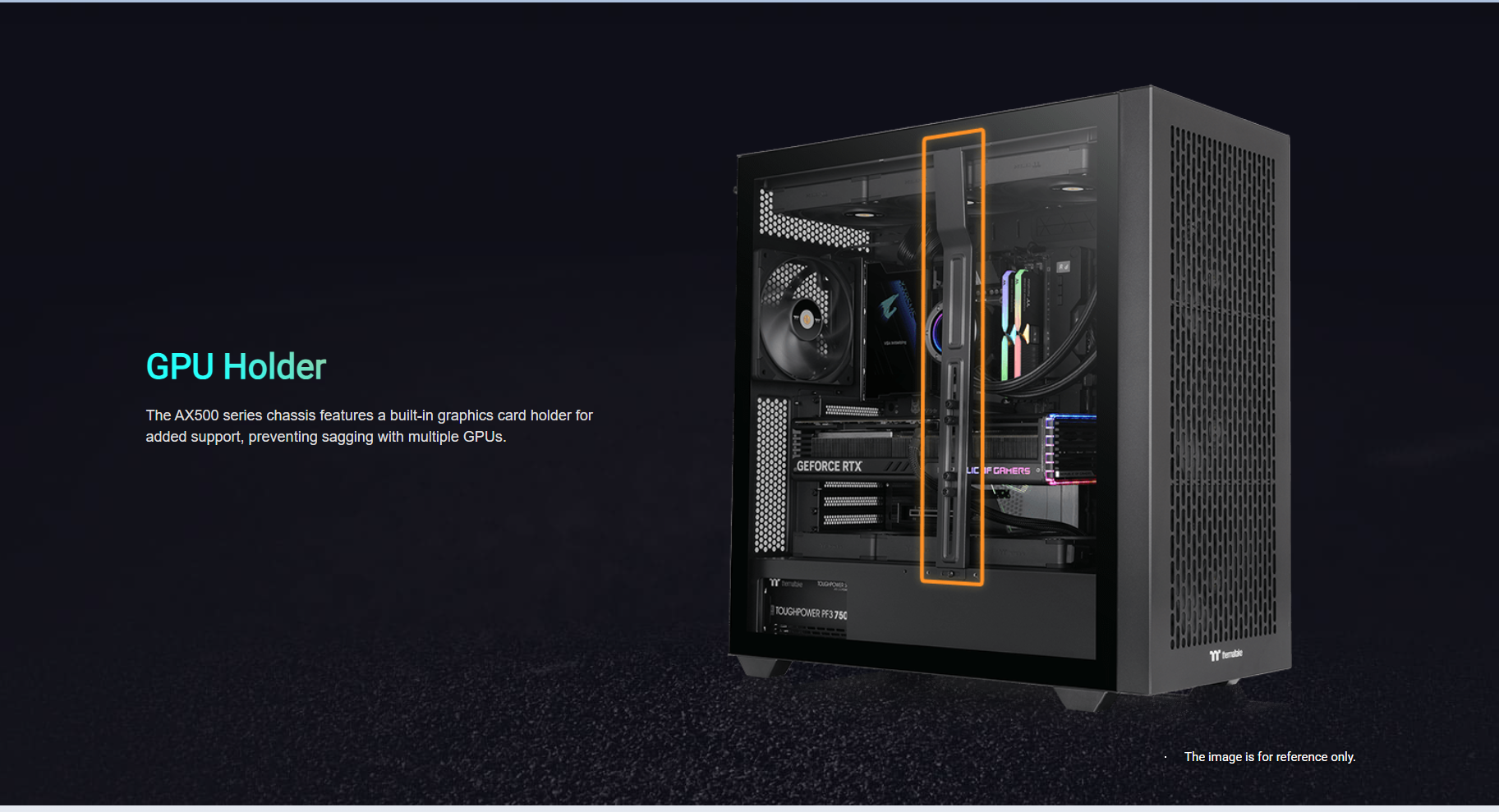

• Features a built-in graphics card holder. This prevents sagging with multiple GPUs.
• Supports CPU coolers up to 185mm, VGA cards up to 460mm, and PSUs up to 200mm.

Flexible Storage & Convenient I/O:

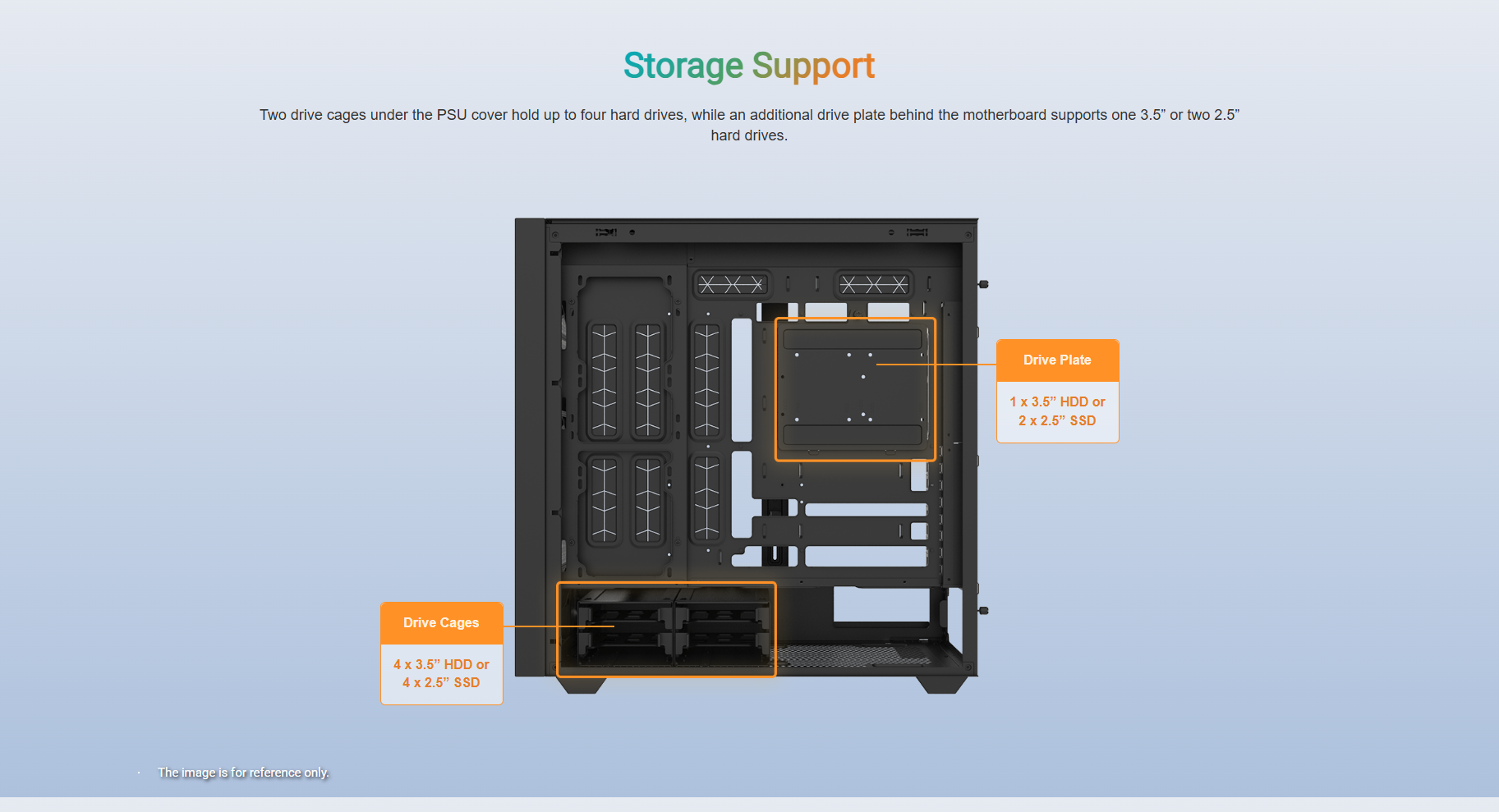

• Offers versatile storage options: 5 x 3.5” drives, 1 x 2.5” drive, or 6 x 2.5” drives. Two drive cages are located beneath the PSU cover.

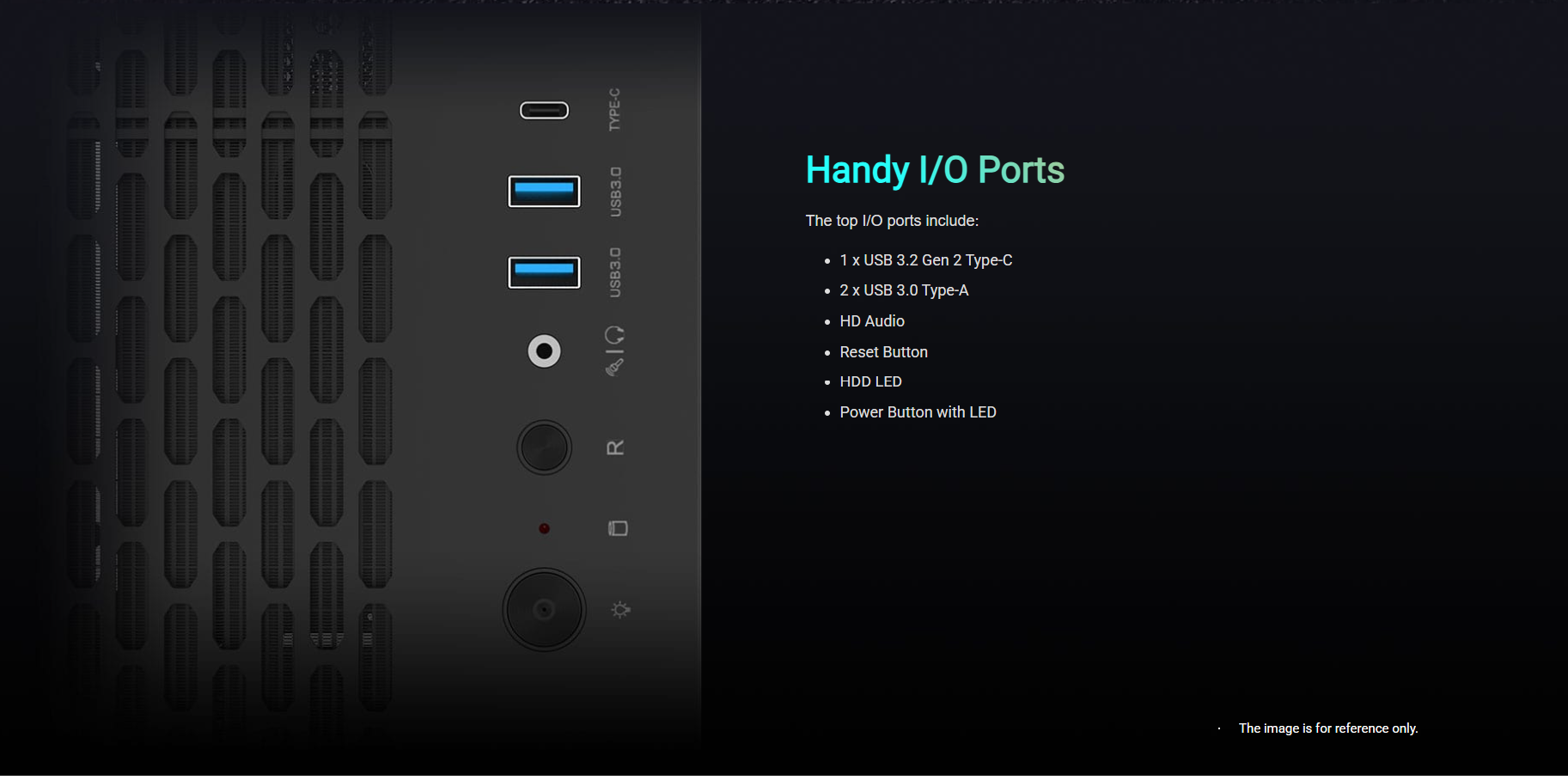

• The top I/O panel includes 1 x USB 3.2 Gen 2 Type-C, 2 x USB 3.0, and HD Audio.

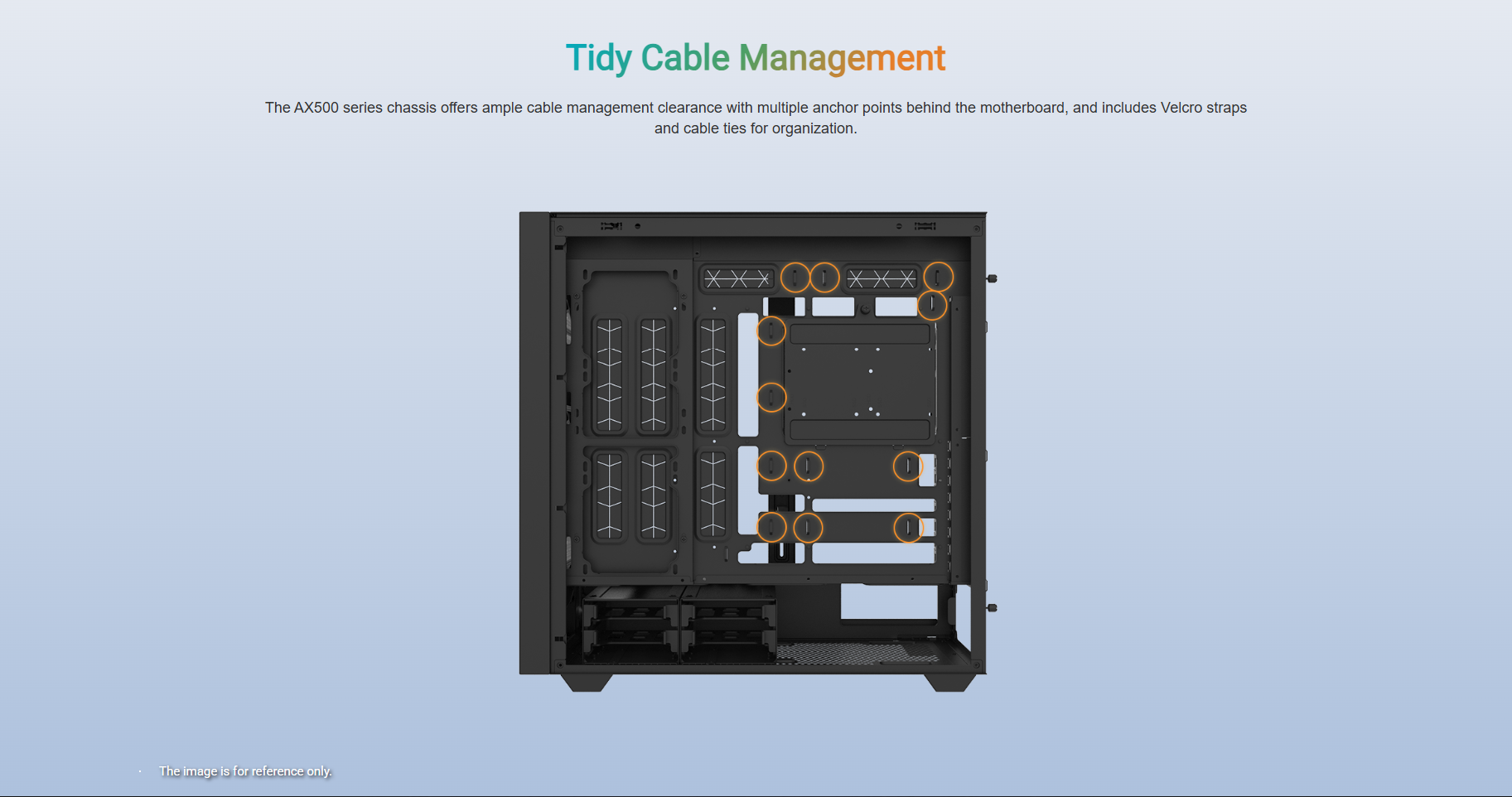

• Ample cable management clearance is provided with multiple anchor points and included Velcro straps.

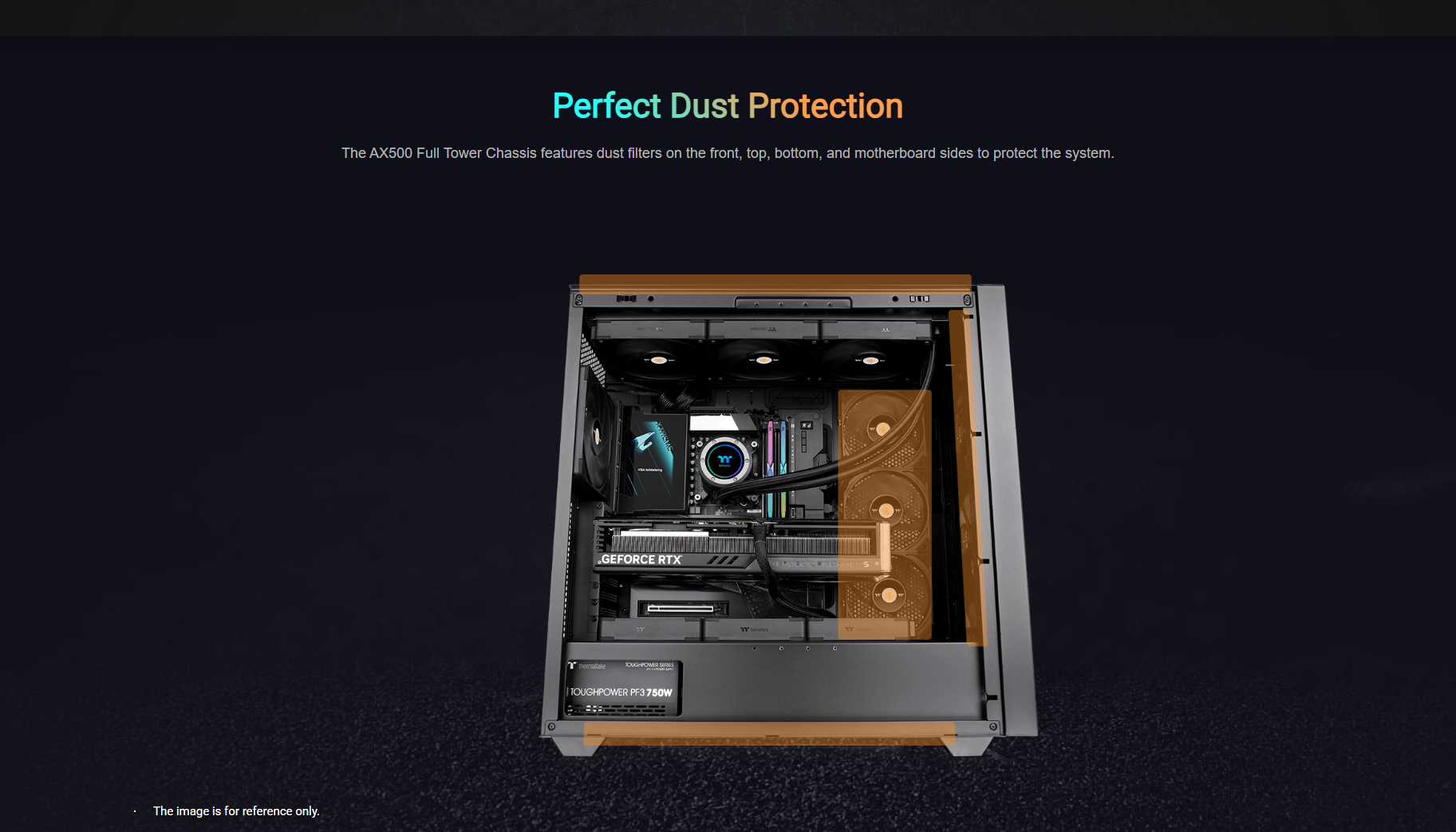

• Features dust filters on the front, top, bottom, and motherboard sides for comprehensive system protection.

Explore compatible Cases or check Thermaltake Products for other options. Find full details on the official Thermaltake AX500 Full Tower Chassis product page.

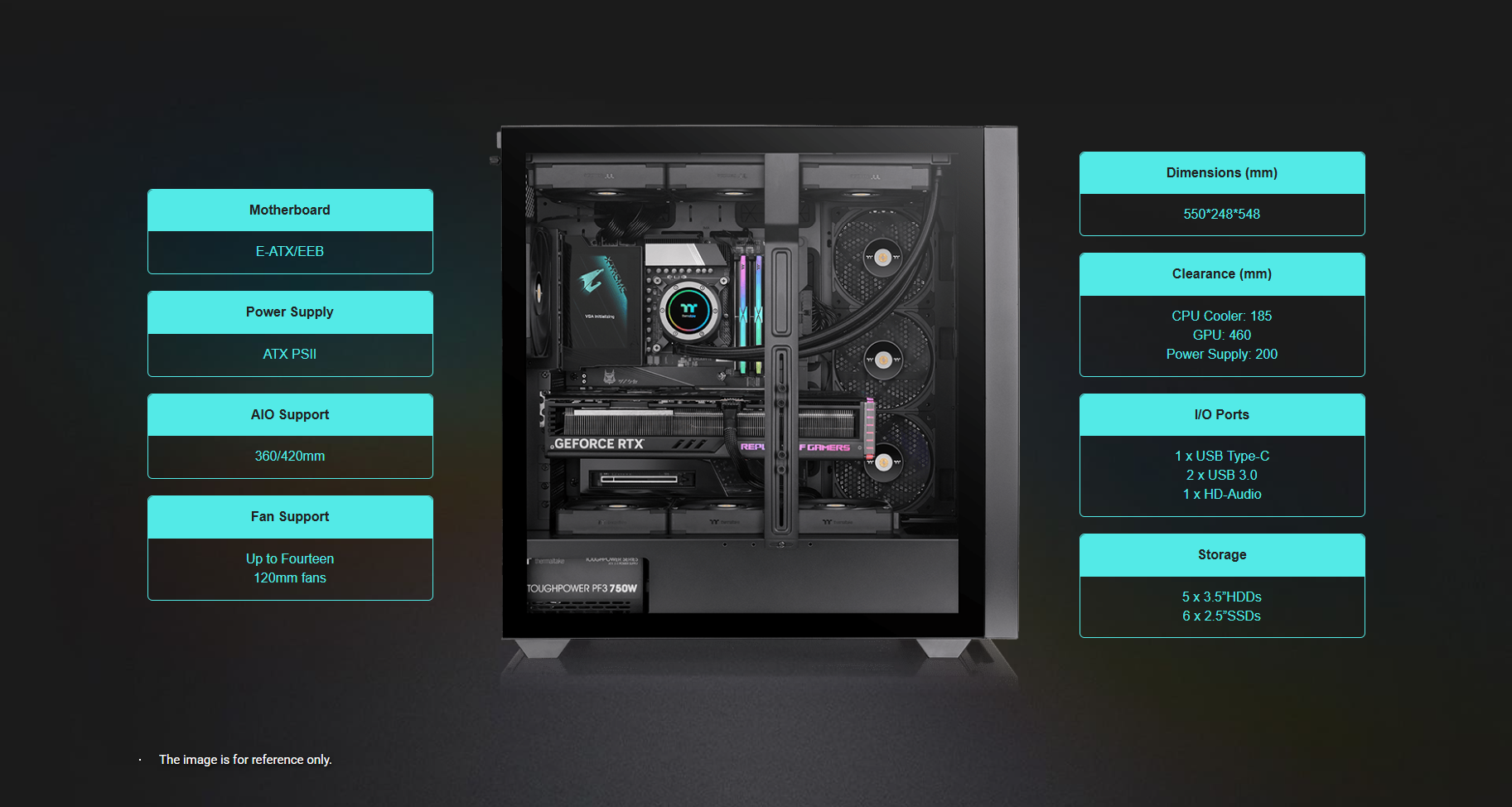

Specifications:

• Model: AX500
• Case Type: Full Tower
• Dimensions (H x W x D): 550 x 248 x 548 mm (21.7 x 9.8 x 21.6 inch)
• Panel: Steel + Tempered Glass (TG)
• Color: Black
• Material: SPCC
• Cooling System: 4x 140mm CT140 fans (1500rpm, 30.5 dBA) pre-installed
• Drive Bays: 5x 3.5” / 1x 2.5” or 6x 2.5”
• Expansion Slots: 8
• Motherboard Support: Mini ITX, Micro ATX, ATX, E-ATX (12” x 13”), SSI-CEB, SSI-EEB
• I/O Port: 1x USB 3.2 (Gen 2) Type-C, 2x USB 3.0, 1x HD Audio

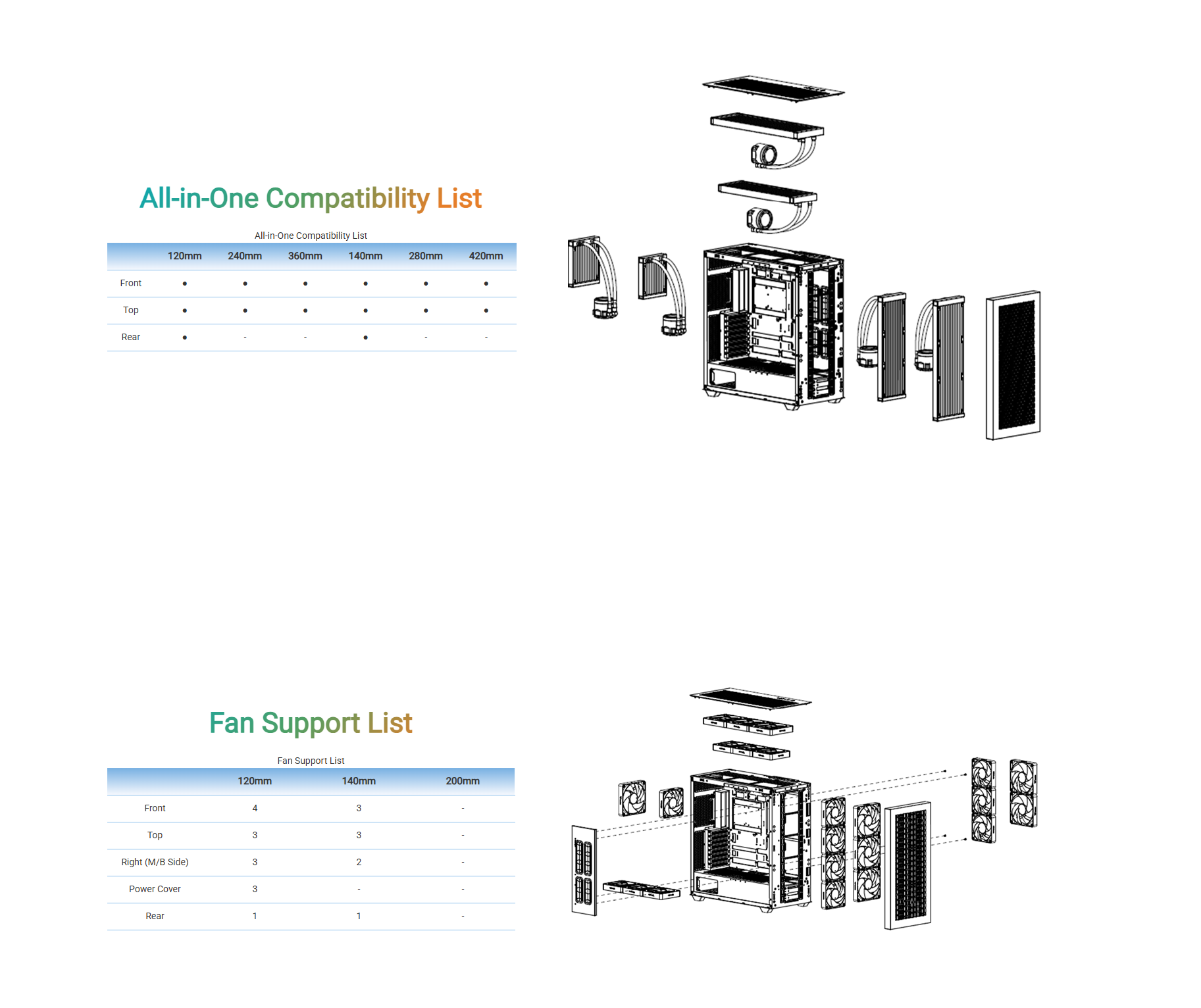

• Fan Support:
  • Front: 4x 120mm / 3x 140mm
  • Top: 3x 120mm / 3x 140mm
  • Rear: 1x 120mm / 1x 140mm
  • Right: 3x 120mm / 2x 140mm
  • Power Cover: 3x 120mm
• Radiator Support (AIO):
  • Front: 1x 360mm / 1x 240mm / 1x 120mm OR 1x 420mm / 1x 280mm / 1x 140mm
  • Top: 1x 360mm / 1x 240mm / 1x 120mm OR 1x 420mm / 1x 280mm / 1x 140mm
  • Rear: 1x 120mm / 1x 140mm
• Clearance:
  • CPU Cooler Height: 185mm (Max)
  • VGA Length: 460mm (Max)
  • PSU Length: 200mm (Max)
• Part Number: CA-11D-00F1WN-00
• UPC: 841163098431
