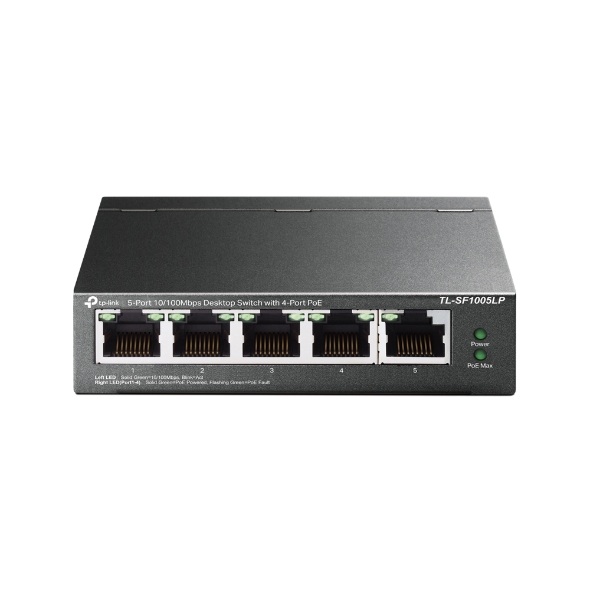

Front view of the TP-Link TL-SF1005LP desktop switch.

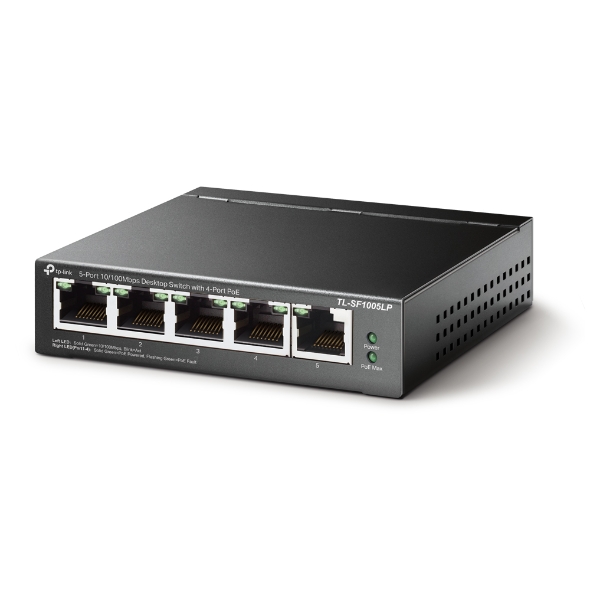

Angled view of the TP-Link TL-SF1005LP desktop switch.

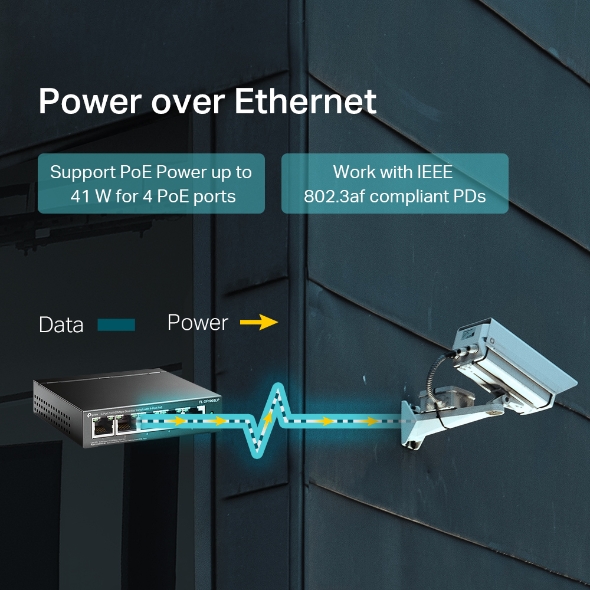

TP-Link TL-SF1005LP PoE feature graphic.

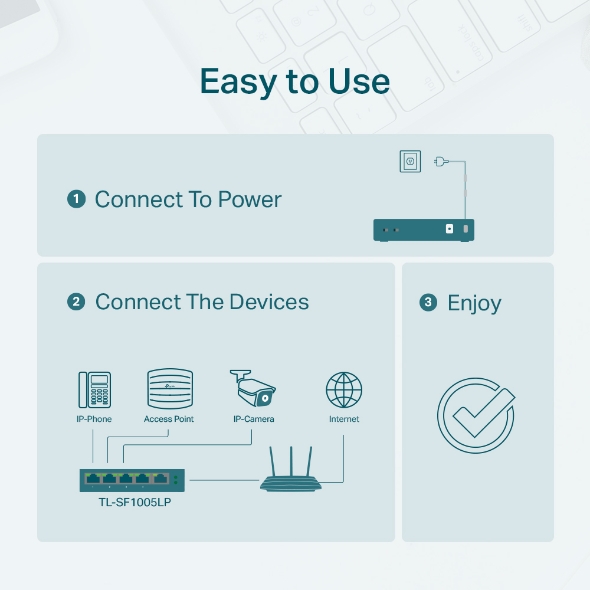

TP-Link TL-SF1005LP setup diagram

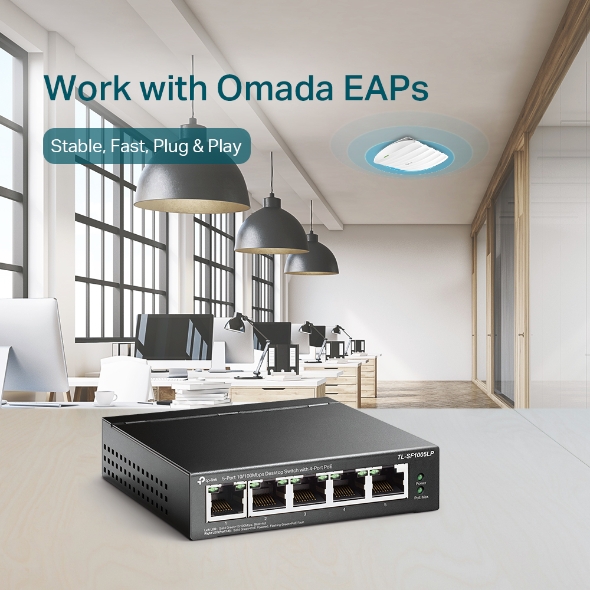

TP-Link TL-SF1005LP office setup

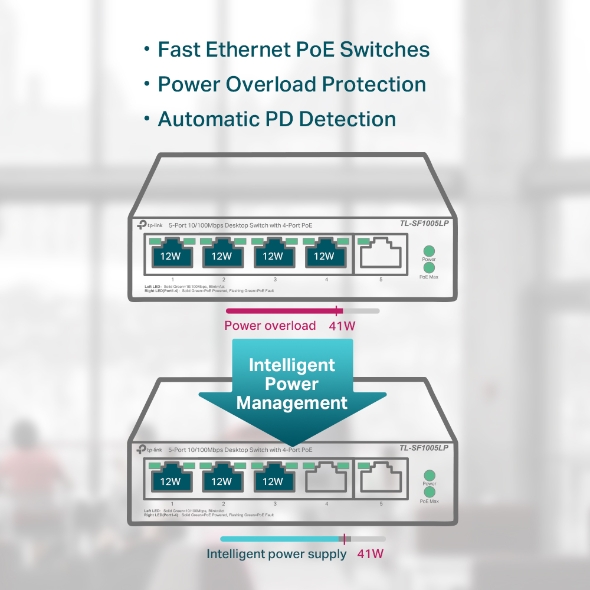

TP-Link TL-SF1005LP PoE power management
TP-Link TL-SF1005LP application scenarios
Front view of the TP-Link TL-SF1005LP desktop switch.
Angled view of the TP-Link TL-SF1005LP desktop switch.
TP-Link TL-SF1005LP PoE feature graphic.
TP-Link TL-SF1005LP setup diagram
TP-Link TL-SF1005LP office setup
TP-Link TL-SF1005LP PoE power management
TP-Link TL-SF1005LP application scenarios
TPLINK

Tplink Tl Sf1005Lp 5Port Desktop Switch

105 EGP

The TP-Link TL-SF1005LP is a five-port Fast Ethernet desktop switch with four PoE ports for compatible powered devices, such as IP cameras and access points.

  • 5 × 10/100 Mbps RJ45 ports
  • 4 × IEEE 802.3af PoE ports
  • 41 W total PoE budget
  • Plug-and-play setup and fanless metal housing

Out Of Stock.

SKU: 502607010 Categories: , Brand:

The TP-Link TL-SF1005LP is a five-port Fast Ethernet desktop switch that combines standard network connectivity with Power over Ethernet for compatible devices. Four ports provide PoE, allowing data and power to travel over one Ethernet cable.

Key Features

  • Five 10/100 Mbps RJ45 ports.
  • Four PoE ports compliant with IEEE 802.3af.
  • Up to 41 W total PoE power budget.
  • Plug-and-play operation with no configuration required.
  • Extend Mode can increase PoE transmission distance up to 250 m; link speed in this mode drops to 10 Mbps and actual range depends on cable and powered device.
  • Priority Mode gives ports 1–2 higher priority.
  • Fanless design and metal casing.

Technical Specifications

Model Name TL-SF1005LP
Port Count 5 × RJ45
Ethernet Speed 10/100 Mbps
PoE Ports 4
PoE Standard IEEE 802.3af
Total PoE Budget 41 W
Switching Capacity 1 Gbps
Dimensions 100 × 98 × 25 mm
Housing Metal, fanless
Warranty 1 Year

Installation

Connect the switch to the network and attach compatible powered devices to PoE ports 1–4. Confirm that the total PoE demand stays within the 41 W budget. Use Extend Mode only when the longer cable run is needed.

Frequently Asked Questions

Does every port provide PoE?

No. Ports 1–4 support PoE; port 5 is a standard network port.

Is configuration software required?

No. The switch is designed for plug-and-play use.

Model Name

TL-SF1005LP
Ethernet Ports

5 × 10/100 Mbps RJ45
PoE Ports

4
PoE Standard

IEEE 802.3af
PoE Budget

41 W
Warranty

1 Year
