Xigmatek Aero DGT 240 Reverse Digital LCD 2 Fan ARGB and PWM Infinity Ring Four Side 240mm Standard Fan Blade
975 EGP
- Model Name: Xigmatek Aero DGT 240 Reverse
- Part Number: EN90267
- Fan Specs: Dual 120mm Reverse Blade, PWM Control (600-1500 RPM), 42.74 CFM Airflow, <30.85 dBA Noise
- Lighting & Display: Digital LCD Screen, 4-Side Infinity ARGB Ring
- Lifespan: 40,000 Hours
- Warranty: 1 Year
Want to be notified when this product is back in stock?
✅ Authorized Xigmatek Partner in Egypt | Official Local Warranty | Expert Build Consultation Available | Business Invoices Available
Xigmatek Aero DGT 240 Reverse Dual Fan Pack with Digital LCD & ARGB
Redefine your PC’s airflow and aesthetics with the Xigmatek Aero DGT 240 Reverse. This premium dual 120mm fan pack is specifically engineered with a reverse blade design, allowing you to mount the fans as intake on radiators or the bottom of your case while keeping the beautiful, unobstructed aesthetic side facing outward.
Featuring a built-in digital LCD display, a mesmerizing 4-side infinity mirror LED effect, and independent PWM/ARGB control, this 240mm fan pack delivers 42.74 CFM of airflow and 1.20 mmH2O of static pressure, making it the ultimate visual and thermal upgrade for custom liquid cooling loops and showcase builds.
Why Choose the Xigmatek Aero DGT 240 Reverse?
Designed to pull air through the front (pretty) side. Perfect for bottom intake or radiator intake mounts where you want maximum airflow without the visual obstruction of the plastic frame struts.
The hub features a high-resolution digital screen that displays real-time system telemetry or custom graphics, adding a futuristic, functional layer to your build.
Unlike standard single-ring ARGB fans, the Aero DGT features an infinity mirror effect on all four sides of the fan frame, creating a deep, continuous tunnel of light.
With a 244mm length and 1.20 mmH2O static pressure, this dual-fan pack is perfectly sized to mount directly onto 240mm AIO liquid coolers, pushing or pulling air efficiently through dense fins.
Ideal For Your Build
- 💧 240mm AIO Liquid Coolers: Use as intake fans on your radiator to keep coolant temperatures low while showcasing the infinity ARGB effect through the glass.
- 🌬️ Bottom Case Intake: Mount at the bottom of your chassis to feed fresh, cool air directly to the GPU. The reverse blade design ensures the aesthetic side faces up toward the tempered glass.
- 🖥️ Showcase & Modding Rigs: The combination of the Digital LCD and 4-side infinity lighting makes this the ultimate focal point for open-air test benches or glass-panel showcases.
- 🎬 Streaming Setups: The dynamic digital display and deep RGB tunnel provide a premium, high-tech background that looks incredible on camera.
Xigmatek Aero DGT 240 Reverse vs. Standard 120mm ARGB Fans
| Feature | Xigmatek Aero DGT 240 Reverse | Standard 120mm ARGB Fan |
|---|---|---|
| Blade Direction | Reverse (Intake on Aesthetic Side) | Standard (Exhaust on Aesthetic Side) |
| Lighting Effect | 4-Side Infinity Mirror | Single-Side RGB Halo |
| Digital Display | Integrated LCD Telemetry Screen | None |
| Form Factor | Dual-Pack (244mm for 240mm mounts) | Single 120mm Unit |
| Static Pressure | 1.20 mmH2O (Radiator Optimized) | ~0.5 – 1.0 mmH2O |
Technical Specifications
| Model Name | AERO DGT 240 Reverse |
| Part Number (MPN) | EN90267 |
| SKU | EN90267 |
| Dimensions (L x W x H) | 244 x 124 x 28.5 mm (Dual 120mm Pack) |
| Fan Blade Type | Reverse (Intake on Frame Side) |
| Fan Speed (RPM) | 600 – 1500 RPM (±10%) PWM Controlled |
| Noise Level | < 30.85 dBA |
| Airflow | 42.74 CFM |
| Air Pressure | 1.20 mmH20 |
| Lifespan | 40,000 Hours |
| LED Display | Digital LCD & Four-Side Infinity LED |
| Power Draw (Fan) | 12V 0.4A (4.8W) |
| Power Draw (ARGB LED) | 5V 0.69A (3.45W) |
| Power Draw (Digital LCD) | 12V 0.2A (2.4W) |

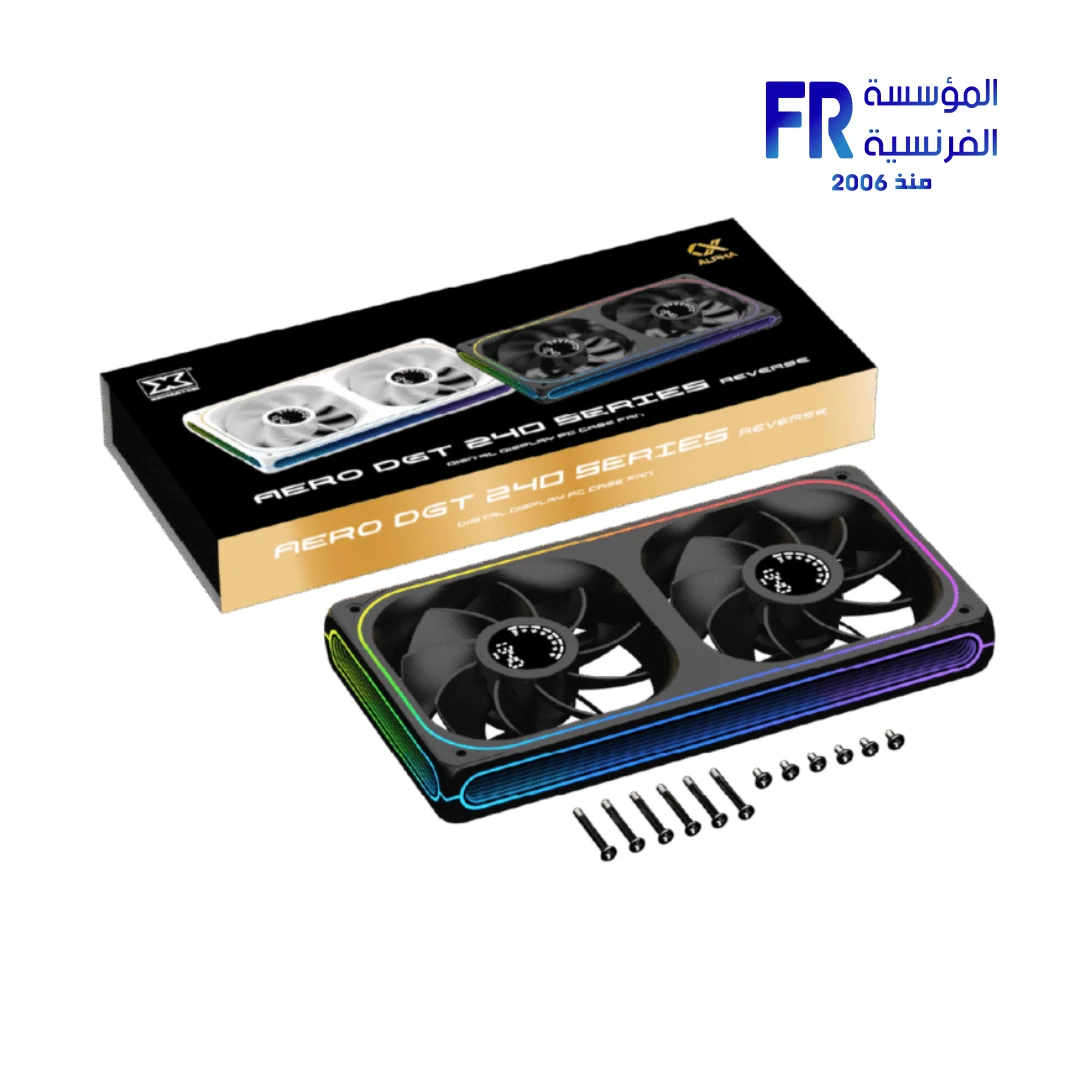

| Included Accessories | Fan Mounting Screws |
| Warranty | 1 Year Local Warranty |
💡 Pro Tip: Understanding Reverse Blade Fans
Standard fans pull air from the front (pretty side) and exhaust it out the back (side with the plastic struts). Reverse blade fans do the exact opposite: they pull air from the back (strut side) and exhaust it out the front (pretty side). This means you can mount them at the bottom or side of your case as intake fans, and the beautiful infinity mirror side will be facing inward toward your components and outward toward the tempered glass, with zero visual obstruction from the frame struts.
Frequently Asked Questions
Can I use this dual fan pack on a 240mm AIO liquid cooler?
Yes, absolutely. The 244mm length is specifically designed to align perfectly with standard 240mm radiator mounting holes. With 1.20 mmH2O of static pressure, it will efficiently pull cool air through the radiator fins. Mounting them as intake (pulling air through the radiator) is highly recommended to showcase the reverse blade aesthetic.
How many cables do I need to connect for each fan?
To unlock all features, each fan requires three connections: a 4-pin PWM header for speed control, a 5V 3-pin ARGB header for the infinity lighting, and a connection for the Digital LCD display (typically via a proprietary hub or USB 2.0 header, depending on the included controller). Ensure your motherboard has the necessary headers or use a compatible fan controller hub.
What does the digital LCD display show?
The integrated digital LED display provides real-time visual feedback. Depending on the controller setup, it can cycle through system telemetry like CPU/GPU temperatures, fan RPM, or display custom animated graphics, adding a highly functional, futuristic element to your PC’s interior.
Ready to upgrade your PC’s cooling and aesthetics?
Speak with our hardware specialists for fan compatibility checks, AIO mounting advice, and ARGB synchronization guidance.
