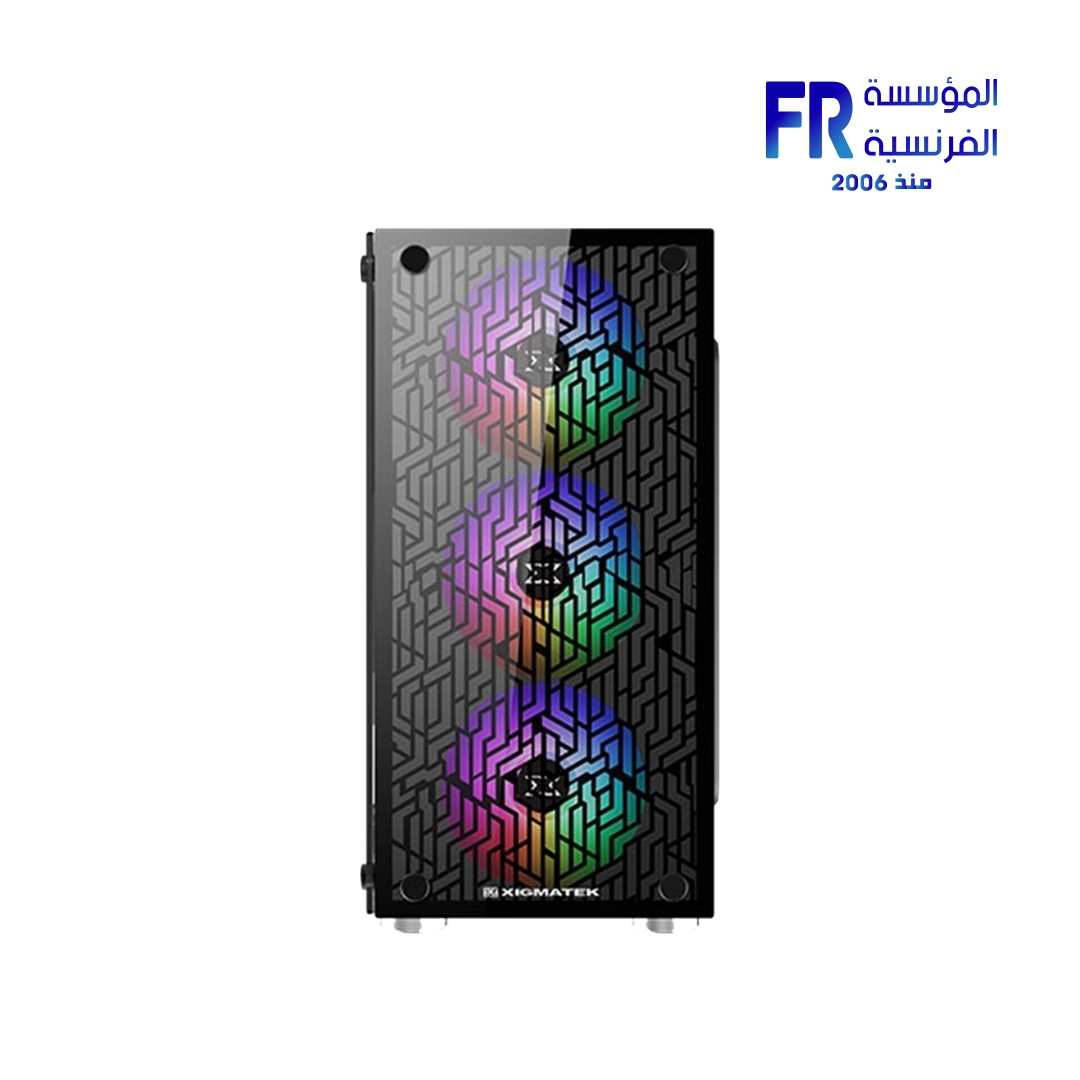

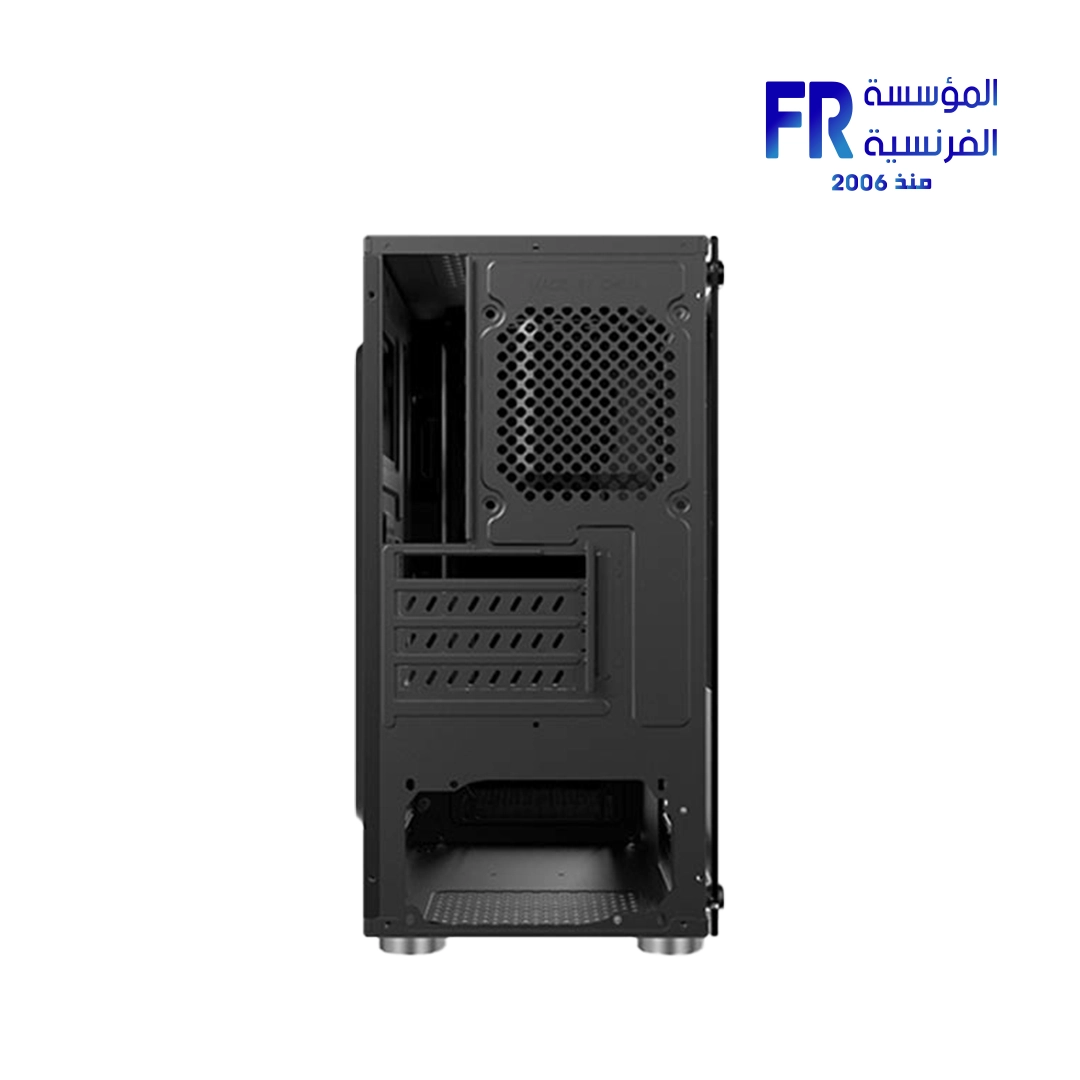

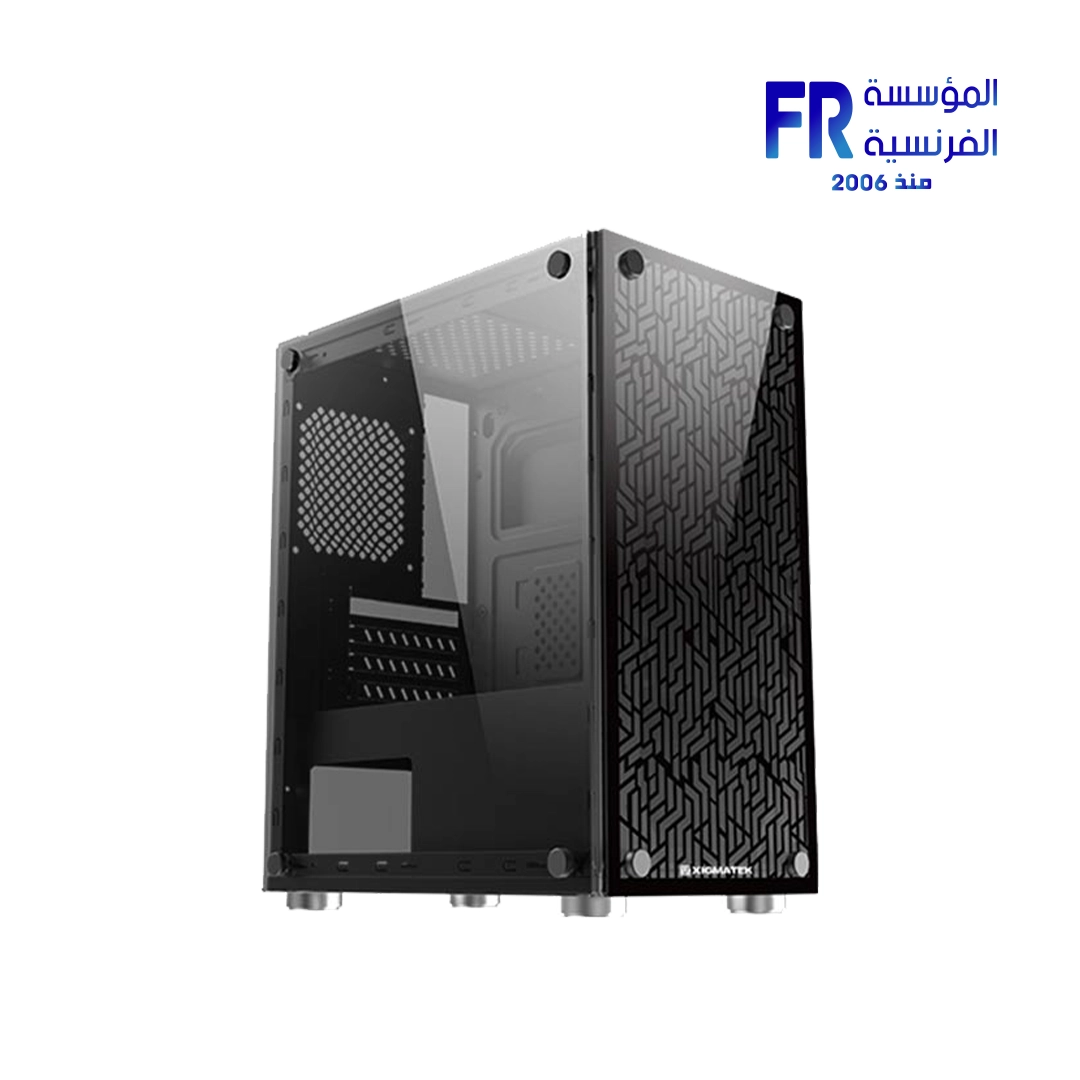

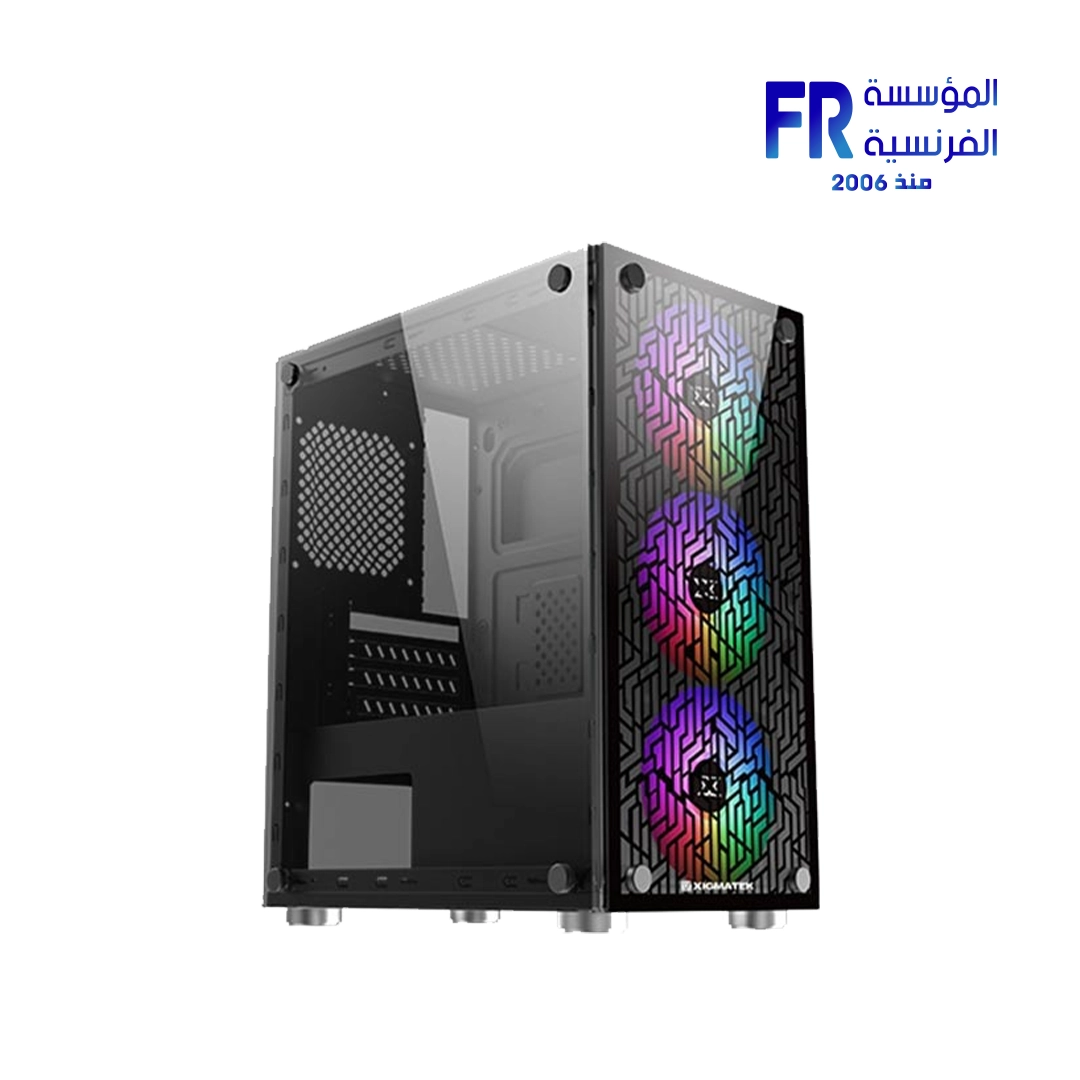

Xigmatek Nyx 3F Micro Tower Case

The Xigmatek Nyx 3F is a micro-tower case for compact PC builds using Micro-ATX or Mini-ITX motherboards. It features front and side glass panels and three pre-installed X22F fans.

Key Specifications

• Model Name: Nyx 3F
• Warranty: 1 Year
• Case Type: Micro Tower
• Motherboard Support: Micro-ATX, Mini-ITX

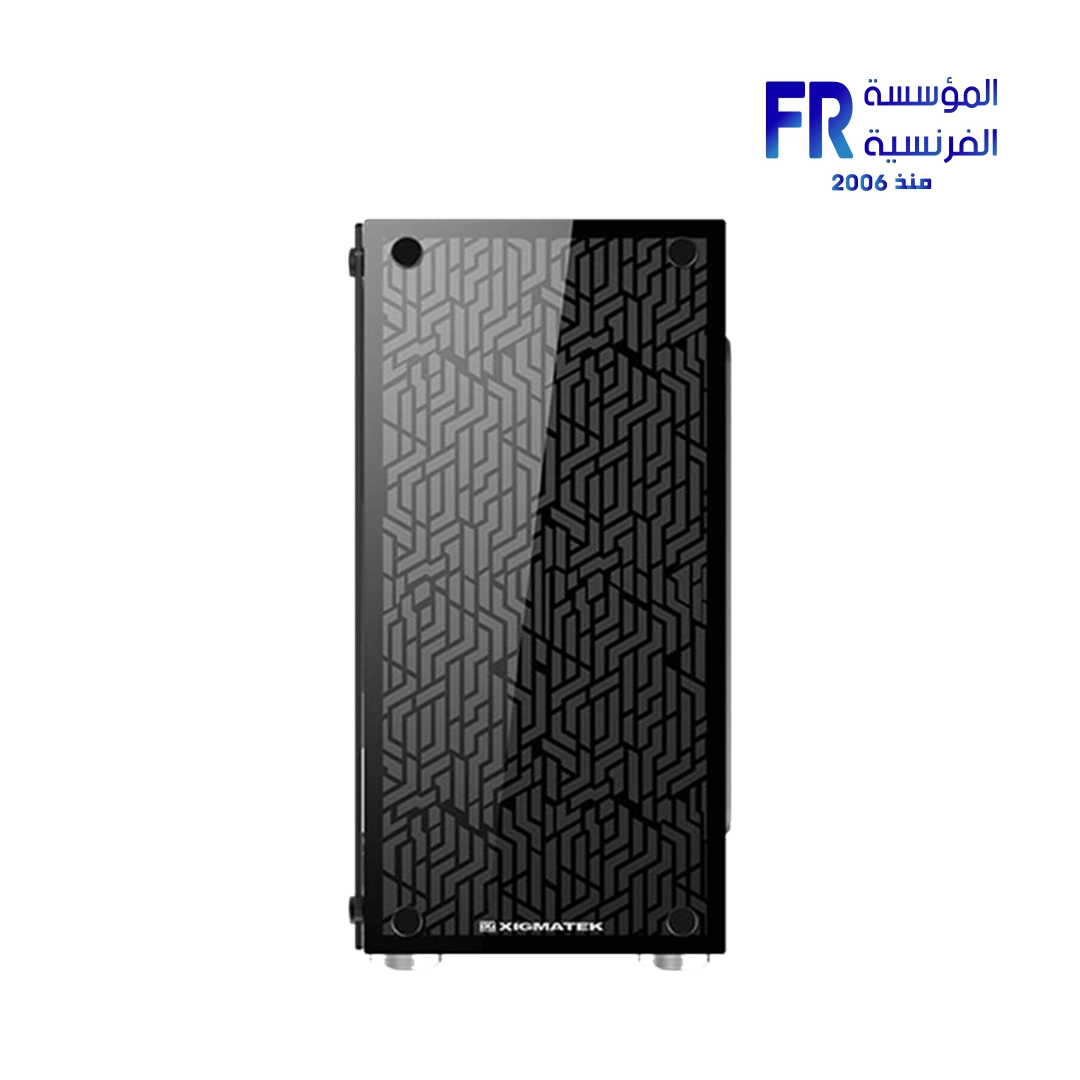

• Panels: Tempered glass front and left side
• Pre-installed Fans: 3 × X22F front fans
• CPU Cooler Clearance: Up to 160mm
• GPU Clearance: Up to 280mm
• Radiator Support: Up to 120mm at the rear
• Expansion Slots: 4
• Storage: 2 × 2.5-inch and 2 × 3.5-inch bays

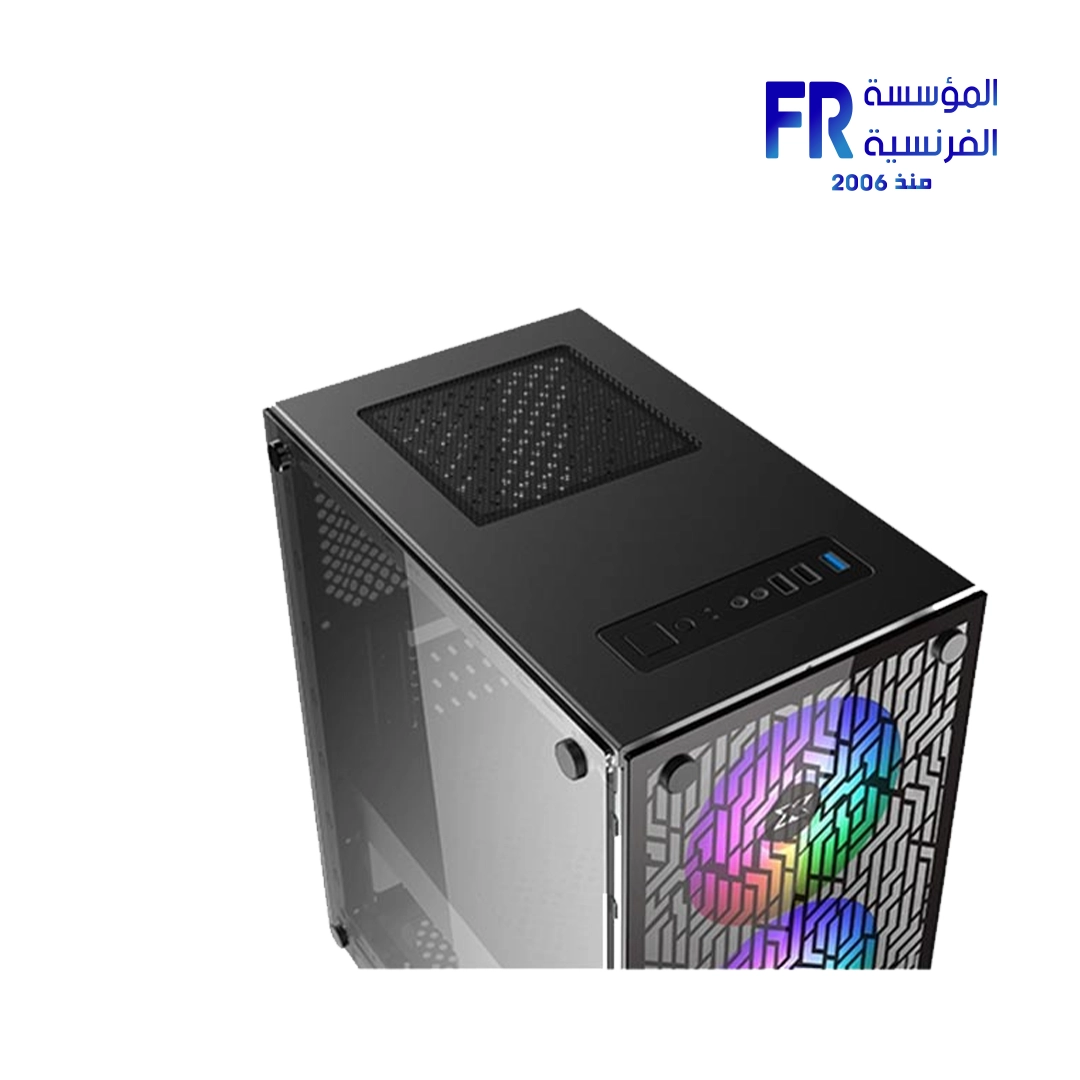

• Front I/O: 1 × USB 3.0, 2 × USB 2.0 and HD Audio
• PSU Support: Standard ATX PSU; not included
• Dimensions: 325 × 205 × 398mm
• Part Number: EN43057

Compatibility Notes

• Check GPU length and CPU cooler height against the components you plan to install.
• Confirm radiator clearance and motherboard dimensions before building.
