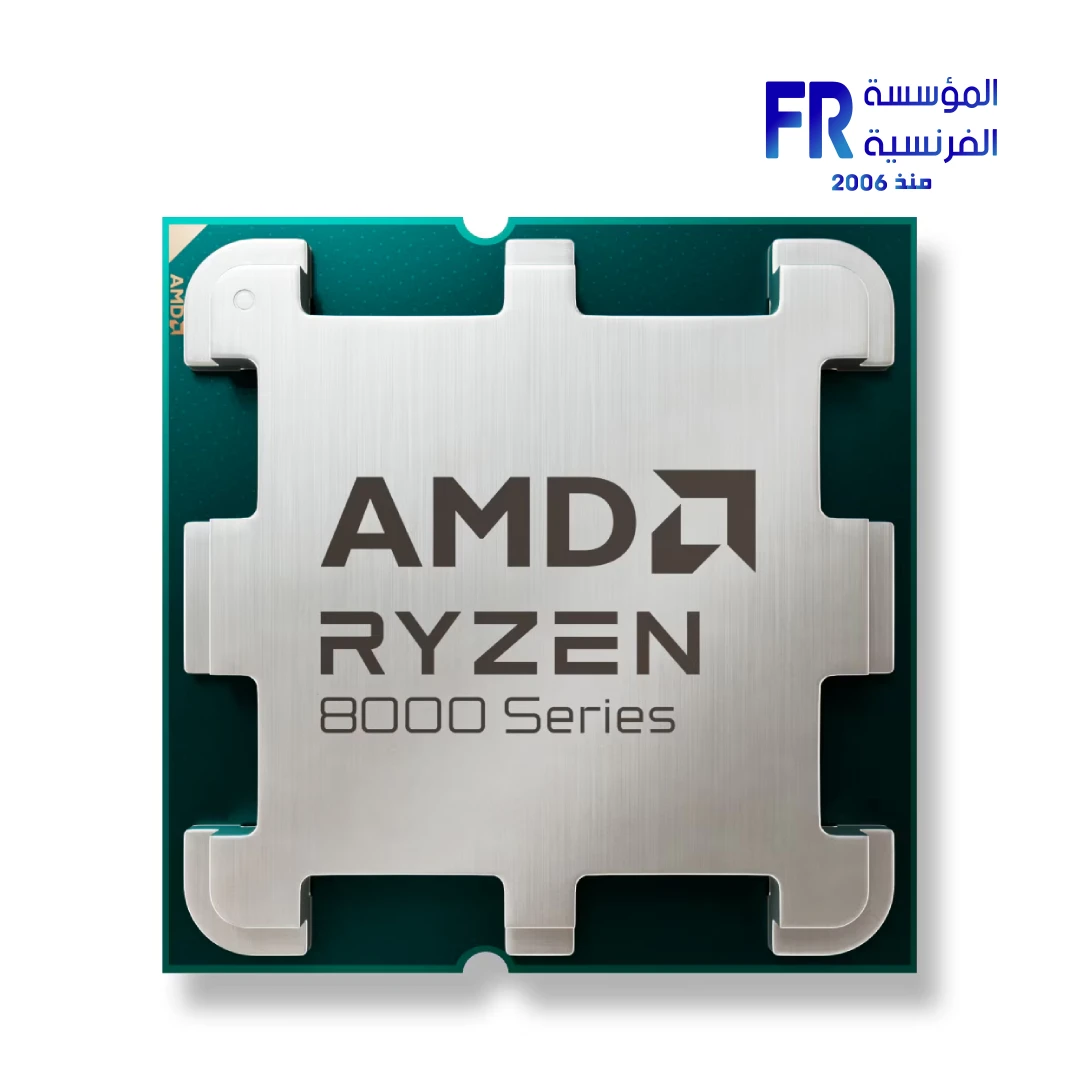

AMD Ryzen 5 8400F 6 Core 12 Thread 4.7GHz AM5 65W Tray Processor
5839 EGP
- Model: AMD Ryzen™ 5 8400F Desktop Processor (Tray Version | Product ID: 100-000001591)
- Cores & Threads: 6 CPU Cores | 12 Threads (SMT enabled)
- Clock Speeds: 4.2 GHz Base Clock | Up to 4.7 GHz Max Boost Clock
- Cache: 6 MB L2 Cache | 16 MB L3 Cache (22 MB Total)
- Architecture & Platform: Zen 4 Architecture (TSMC 4nm FinFET) | AMD AM5 Socket | 65W Default TDP (Configurable 45-65W) | Unlocked for overclocking
- Memory & Connectivity: DDR5 Support (up to 5200 MT/s) | PCIe® 4.0 (20 total lanes) | Native USB 4 & USB 3.2 Gen 2 support
- Graphics: Discrete Graphics Card Required (The “F” suffix indicates this processor does not have integrated graphics)
- Compatible Chipsets: A620, B650, B650E, X670, X670E, X870, X870E, B840, B850
- Warranty: Confirm tray-specific coverage with Alfrensia; do not assume boxed-processor warranty
In stock
Price Match Guarantee{“@context”:”https://schema.org/”,”@type”:”BreadcrumbList”,”itemListElement”:[{“@type”:”ListItem”,”position”:1,”name”:”Home”,”item”:”https://alfrensia.com/en/”},{“@type”:”ListItem”,”position”:2,”name”:”Processors”,”item”:”https://alfrensia.com/en/product-category/processors/”},{“@type”:”ListItem”,”position”:3,”name”:”AMD Ryzen 5 8400F 6 Core 12 Thread 4.7GHz AM5 65W Tray Processor”}]}
✅ Authorized AMD Partner in Egypt | Tray Version (Cooler Not Included) | Expert PC Building Consultation Available
AMD Ryzen 5 8400F 6 Core 12 Thread 4.7GHz AM5 65W Tray Processor
AMD Ryzen 5 8400F is a 6-core, 12-thread desktop processor built on the Zen 4 architecture with a 4.2 GHz base clock, up to 4.7 GHz boost, 16 MB L3 cache, and a 65W default TDP on the AM5 socket. This is the tray version, which does not include a stock cooler, making it suitable for builders who already have an AM5-compatible cooling solution.
⚡ Engineering Highlights at a Glance:
- 6 Zen 4 Cores / 12 Threads: Handles gaming, multitasking, and general productivity workloads.
- Up to 4.7 GHz Boost: Precision Boost 2 raises clocks dynamically under load; base clock is 4.2 GHz.
- 16 MB L3 + 6 MB L2 Cache: Reduces memory latency for games and applications.
- 65W Default TDP: Configurable TDP range of 45–65W for lower power draw and easier cooling.
- AM5 Socket: Supports A620, B650, B650E, X670, X670E, X870, X870E, B840, and B850 chipsets.
- PCIe 4.0 + DDR5: 20 native PCIe 4.0 lanes (16 usable) and dual-channel DDR5 up to 256 GB.
Who is the Ryzen 5 8400F For?
Expert Advice & Build Considerations
No Integrated Graphics
The Ryzen 5 8400F does not include integrated graphics. A discrete graphics card is required for display output. Builds planning to use the motherboard’s video outputs will not POST with this CPU alone.
📐 Tray Version — Cooler Not Included
This listing is the tray version (Product ID 100-000001591). It ships without an AMD stock cooler and without retail packaging. You must supply an AM5-compatible air or liquid cooler. The 65W TDP is manageable with a modest tower cooler, but the 95°C Tjmax means adequate mounting pressure and thermal paste are important.
🧠 Memory and Chipset Notes
Two DIMMs run at DDR5-5200; four DIMMs drop to DDR5-3600. AMD EXPO memory overclocking is supported, and the CPU is unlocked for overclocking with Precision Boost Overdrive and Curve Optimizer voltage offsets available on compatible motherboards.
Technical Specifications
| Model Name | AMD Ryzen 5 8400F |
| Brand | AMD |
| Product ID (Tray) | 100-000001591 |
| Family / Series | Ryzen / Ryzen 8000 Series |
| Architecture | Zen 4 (TSMC 4nm FinFET, Phoenix) |
| Cores / Threads | 6 Cores / 12 Threads (SMT Yes) |
| Base Clock | 4.2 GHz |
| Max Boost Clock | Up to 4.7 GHz |
| L2 Cache | 6 MB |
| L3 Cache | 16 MB |
| Default TDP | 65W (Configurable 45–65W) |
| Max Operating Temperature | 95°C (Tjmax) |
| CPU Socket | AM5 |
| Supporting Chipsets | A620, B650, B650E, X670, X670E, X870, X870E, B840, B850 |
| Memory Type | DDR5, Dual Channel, UDIMM |
| Max Memory | 256 GB |
| Max Memory Speed | 2x1R / 2x2R: DDR5-5200 | 4x1R / 4x2R: DDR5-3600 |
| PCI Express Version | PCIe 4.0 (20 lanes total, 16 usable) |
| NVMe Support | Boot, RAID0, RAID1 |
| Native USB | 2x USB 4 (40Gbps), 2x USB 3.2 Gen 2 (10Gbps), 1x USB 2.0 |
| Integrated Graphics | None — Discrete GPU Required |
| Overclocking | Unlocked | PBO, Curve Optimizer, AMD EXPO Supported |
| OS Support | Windows 11 / 10 64-bit, RHEL x86 64-bit, Ubuntu x86 64-bit |
| Included Cooler | Not Included (Tray Version) |
Expert Recommendation: Building Around the 8400F
Pair the Ryzen 5 8400F with a B650 or B850 motherboard to access DDR5 and PCIe 4.0 without paying for chipset features you will not use. Install two DDR5 DIMMs rather than four so memory runs at DDR5-5200 instead of dropping to DDR5-3600. Since there is no integrated GPU, plan a discrete graphics card from the start. Choose a tower air cooler or a 240mm AIO; the 65W TDP does not require a large cooler, but the 95°C Tjmax means you should confirm the cooler is rated for AM5 mounting. Enable EXPO in BIOS, and if you want lower power draw, set cTDP to 45W in the motherboard firmware. Before purchase, confirm your case and motherboard are AM5-ready and that you have a compatible cooler on hand.
Frequently Asked Questions
Does the AMD Ryzen 5 8400F include a CPU cooler?
No. This is the tray version (Product ID 100-000001591), which ships without a stock cooler and without retail packaging. You will need to supply an AM5-compatible air or liquid cooler.
Does the Ryzen 5 8400F have integrated graphics?
No. The 8400F does not include integrated graphics. A discrete graphics card is required for display output.
Which motherboards and chipsets support the Ryzen 5 8400F?
The processor uses the AM5 socket and supports A620, B650, B650E, X670, X670E, X870, X870E, B840, and B850 chipsets.
What memory speed does the Ryzen 5 8400F support?
With two single-rank or dual-rank DIMMs, the 8400F runs DDR5-5200. With four DIMMs populated, memory speed drops to DDR5-3600. Maximum supported memory is 256 GB, and AMD EXPO overclocking is supported.
Is the Ryzen 5 8400F unlocked for overclocking?
Yes. The CPU is unlocked and supports Precision Boost Overdrive, Curve Optimizer voltage offsets, and AMD Ryzen Master on compatible motherboards.
