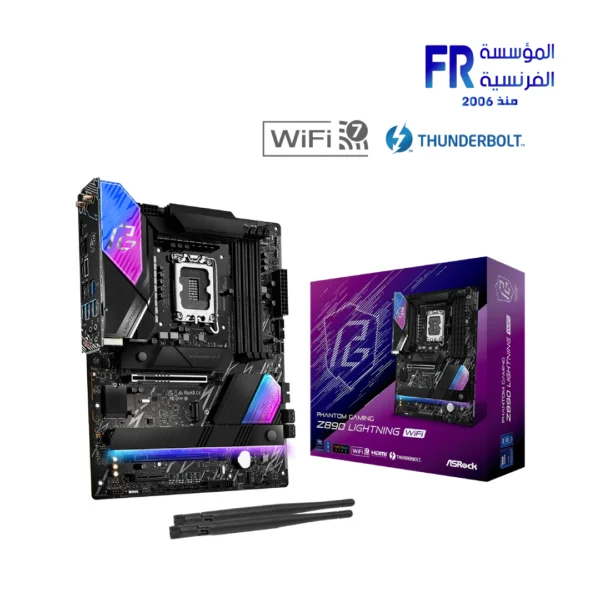

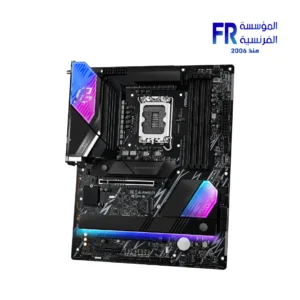

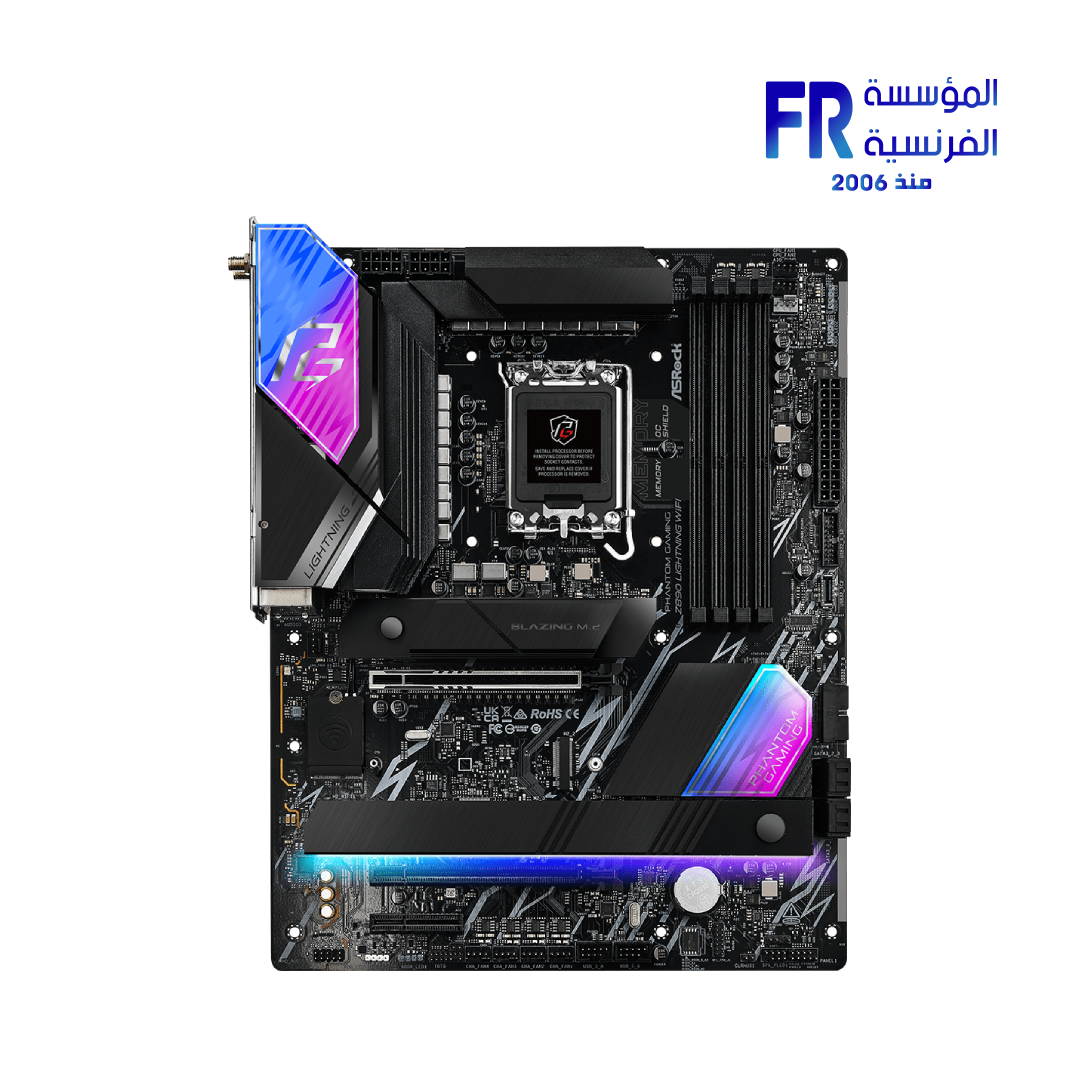

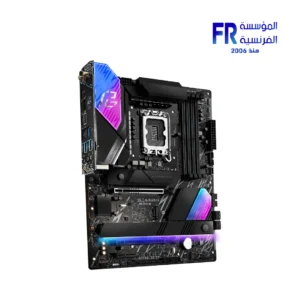

Asrock Z890 Lightning WiFi Motherboard

Asrock Z890 Lightning WiFi Motherboard:

The Asrock Z890 Lightning WiFi Motherboard symbolizes speed and power. It embodies lightning’s raw energy and breathtaking speed through its linear and angular design elements. This Asrock Z890 Lightning WiFi Motherboard is specifically designed for Intel® Core™ Ultra Processors (Series 2). It uses the LGA1851RL-ILM socket. It offers superb productivity with PCIe Gen5 for graphics and M.2 storage. Dual-channel DDR5 memory support is also included. Ultra-fast Thunderbolt™ 4 Type-C ports provide superior connectivity. Furthermore, its rock-solid durability and ultrafast gaming capabilities make it an ideal choice for demanding users.

Key Features of the Asrock Z890 Lightning WiFi Motherboard:

Superb Productivity and Advanced Performance:

This Asrock Z890 Lightning WiFi Motherboard offers unparalleled productivity. It features PCIe Gen5 for both graphics cards and M.2 storage. This delivers up to 128 Gb/s transfer speeds for future ultrafast SSDs. Dual Channel DDR5 memory technology supports speeds up to an astounding 9466MHz+ (OC). It also boasts a maximum capacity of 256GB. Additionally, it supports Clocked Unbuffered DIMM (CUDIMM) and Intel® Extreme Memory Profile (XMP) 3.0x.

The motherboard supports Intel® Core™ Ultra Processors (Series 2). This includes Intel® Hybrid Technology, Turbo Boost Max 3.0, and Thermal Velocity Boost (TVB). It also supports Adaptive Boost Technology (ABT). An integrated NPU provides dedicated AI acceleration. For graphics output, it offers HDMI 2.1 (4K 120Hz). Furthermore, two Intel® Thunderbolt™ 4 ports (8K 60Hz / 5K 120Hz) support two 4K displays or one 8K display.

Rock-Solid Durability and Enhanced Reliability:

The Asrock Z890 Lightning WiFi Motherboard prioritizes durability. It features a Server-Grade Low-Loss PCB. This ensures stable signal traces and power delivery. The robust 18+1+1+1+1 Power Phase design uses 80A SPS (Smart Power Stage) for VCore+GT+SA. This provides completely smooth power to the CPU. It supports unmatched overclocking capabilities. Enlarged heatsink armor further ensures efficient heat dissipation.

Memory OC Shield technology reduces electromagnetic interference (EMI). This enables stable memory overclocking. A flexible Integrated I/O Shield simplifies installation. High-quality and conductive polymer 20K Long-lasting Black Caps extend the motherboard’s lifespan to 20,000 hours. Therefore, this ensures long-term reliability and stability.

Ultrafast Gaming and Connectivity:

For gaming, the Asrock Z890 Lightning WiFi Motherboard offers ultrafast connectivity. It features Killer 2.5G LAN. This provides speeds of 10/100/1000/2500 Mb/s for low-latency online gaming. The 802.11be Wi-Fi 7 Module supports 2×2 diversity technology. This spans 2.4GHz/5GHz/6GHz frequency bands. It includes 320MHz channel bandwidth with 6GHz for extreme wireless speeds. Bluetooth 5.4 ensures seamless peripheral connections. ASRock Lightning Gaming Ports optimize mouse and keyboard performance.

Storage options are plentiful with this motherboard. It includes one Blazing M.2 (PCIe Gen5x4) socket. Two Hyper M.2 (PCIe Gen4x4) sockets and one Hyper M.2 (PCIe Gen4x4 & SATA3) socket are also present. Additionally, four SATA3 6.0 Gb/s connectors provide flexible storage configurations. It supports RAID 0, 1, 5, and 10 for both SATA and M.2 NVMe storage devices. This ensures data redundancy and performance.

USB connectivity is extensive. It offers two Thunderbolt™ 4 Type-C (Rear) ports. One USB 3.2 Gen2x2 Type-C (Front) port, two USB 3.2 Gen2 Type-A (Rear) ports, eight USB 3.2 Gen1 (four Rear, four Front) ports, and six USB 2.0 ports (two Rear, four Front) are available. All USB ports feature ESD Protection. The motherboard includes various fan connectors (CPU, Chassis, AIO Pump) with Smart Fan Speed Control. This ensures optimal cooling.

User-Friendly Features and Comprehensive Support:

This Asrock Z890 Lightning WiFi Motherboard offers EZ Update features. These include a BIOS Flashback Button and ASRock Auto Driver Installer for convenient updates. EZ Troubleshooter also features ASRock Post Status Checker for easy diagnostics. Software like ASRock Motherboard Utility (Phantom Gaming Tuning), Killer Control Center, and ASRock Polychrome SYNC provide comprehensive control and customization.

The UEFI BIOS offers ASRock EZ Mode, Full HD UEFI, and My Favorites for intuitive navigation. It supports Microsoft Windows® 11 64-bit. Furthermore, it comes with essential accessories. These include SATA cables, WiFi antennas, and an ARGB Splitter Cable. The ATX form factor and 2oz Copper PCB ensure robust construction.

Explore compatible Motherboards or check ASRock Products for other options. Find full details on the official Asrock Z890 Lightning WiFi Motherboard product page. For more information on Intel’s new processors, visit Intel Core Ultra Processors.

Specifications of the Asrock Z890 Lightning WiFi Motherboard:

• Model: Z890 Lightning WiFi
• CPU Support: Intel® Core™ Ultra Processors (Series 2) (LGA1851RL-ILM)
• Chipset: Intel® Z890
• Memory: Dual Channel DDR5, 4 x DIMM Slots, up to 9466MHz+(OC), Max 256GB, Supports XMP 3.0x
• Graphics: 1 x HDMI 2.1 (4K 120Hz), 2 x Intel® Thunderbolt™ 4 (8K 60Hz / 5K 120Hz) (CPU integrated graphics required)
• Audio: 7.1 CH HD Audio (Realtek ALC1220), Nahimic Audio
• LAN: Killer 2.5G LAN (10/100/1000/2500 Mb/s)
• Wireless LAN: 802.11be 2×2 Wi-Fi 7 Module, Bluetooth 5.4
• PCIe Slots (CPU): 1 x PCIe 5.0 x16 Slot (PCIE1)
• PCIe Slots (Chipset): 1 x PCIe 4.0 x16 Slot (PCIE2), 1 x PCIe 4.0 x4 Slot (PCIE3), 1 x M.2 Socket (Key E) for WiFi/BT
• M.2 Storage (CPU): 1 x Blazing M.2 Socket (M2_1) Gen5x4 (128 Gb/s), 1 x Hyper M.2 Socket (M2_2) Gen4x4 (64 Gb/s)
• M.2 Storage (Chipset): 1 x Hyper M.2 Socket (M2_3) Gen4x4 / SATA3 (64 Gb/s), 1 x Hyper M.2 Socket (M2_4) Gen4x4 (64 Gb/s)
• SATA Connectors: 4 x SATA3 6.0 Gb/s
• RAID Support: RAID 0, 1, 5, 10 for SATA and M.2 NVMe storage

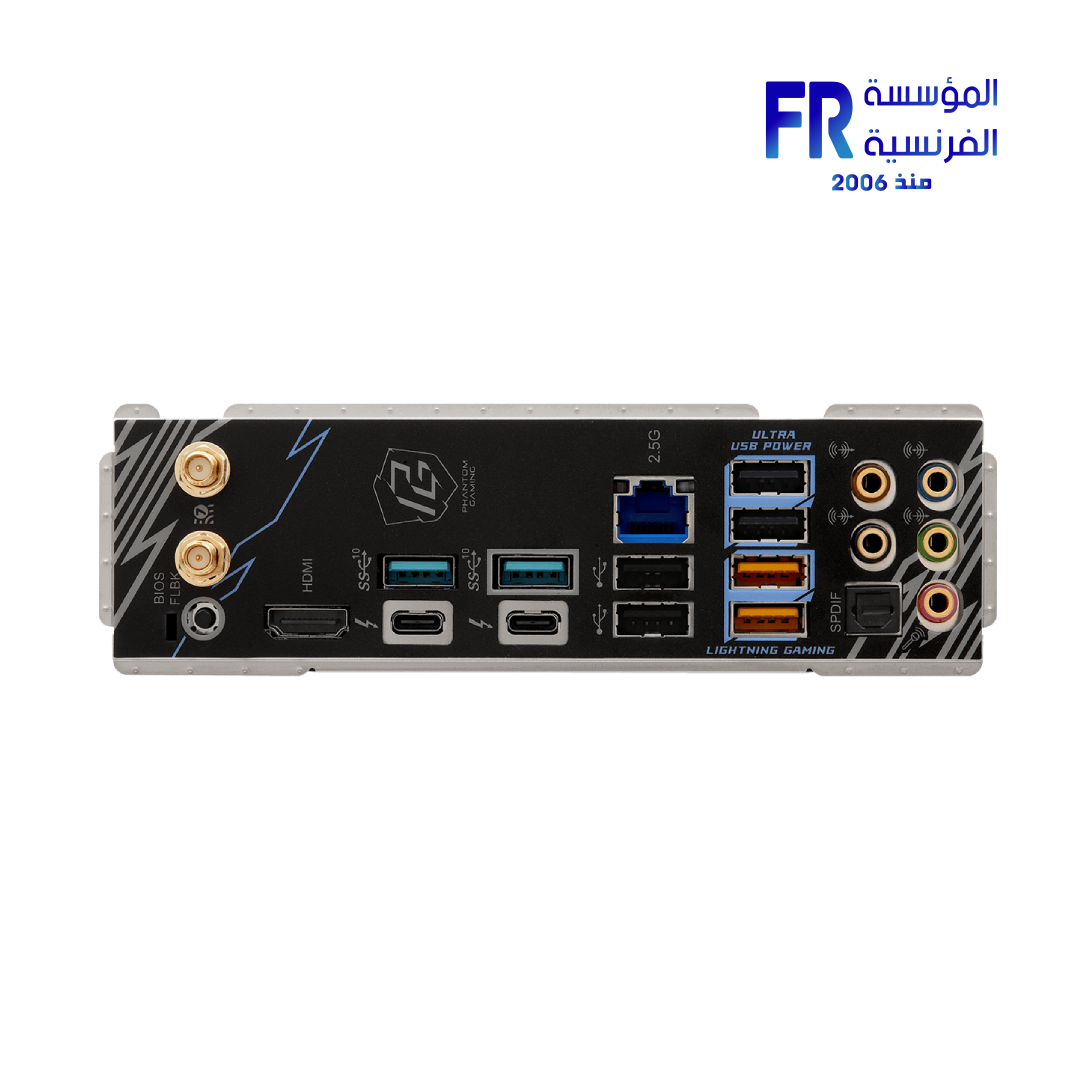

• USB (Rear Panel): 2 x Thunderbolt™ 4 Type-C, 2 x USB 3.2 Gen2 Type-A, 4 x USB 3.2 Gen1, 2 x USB 2.0
• USB (Front Headers): 1 x USB 3.2 Gen2x2 Type-C, 2 x USB 3.2 Gen1 (4 ports), 2 x USB 2.0 (4 ports)
• Power Connectors: 1 x 24 pin ATX, 2 x 8 pin 12V (Hi-Density)
• Fan Connectors: 2 x CPU Fan, 5 x Chassis Fan, 1 x AIO Pump Fan
• LED Headers: 1 x RGB LED Header, 3 x Addressable LED Headers
• Form Factor: ATX (30.5 cm x 24.4 cm), 2oz Copper PCB
• OS Support: Microsoft Windows® 11 64-bit
• Certifications: FCC, CE, ErP/EuP ready
• Model Number/SKU: 90-MXBPG0-A0UAYZ
• EAN/UPC: 4710483947513
