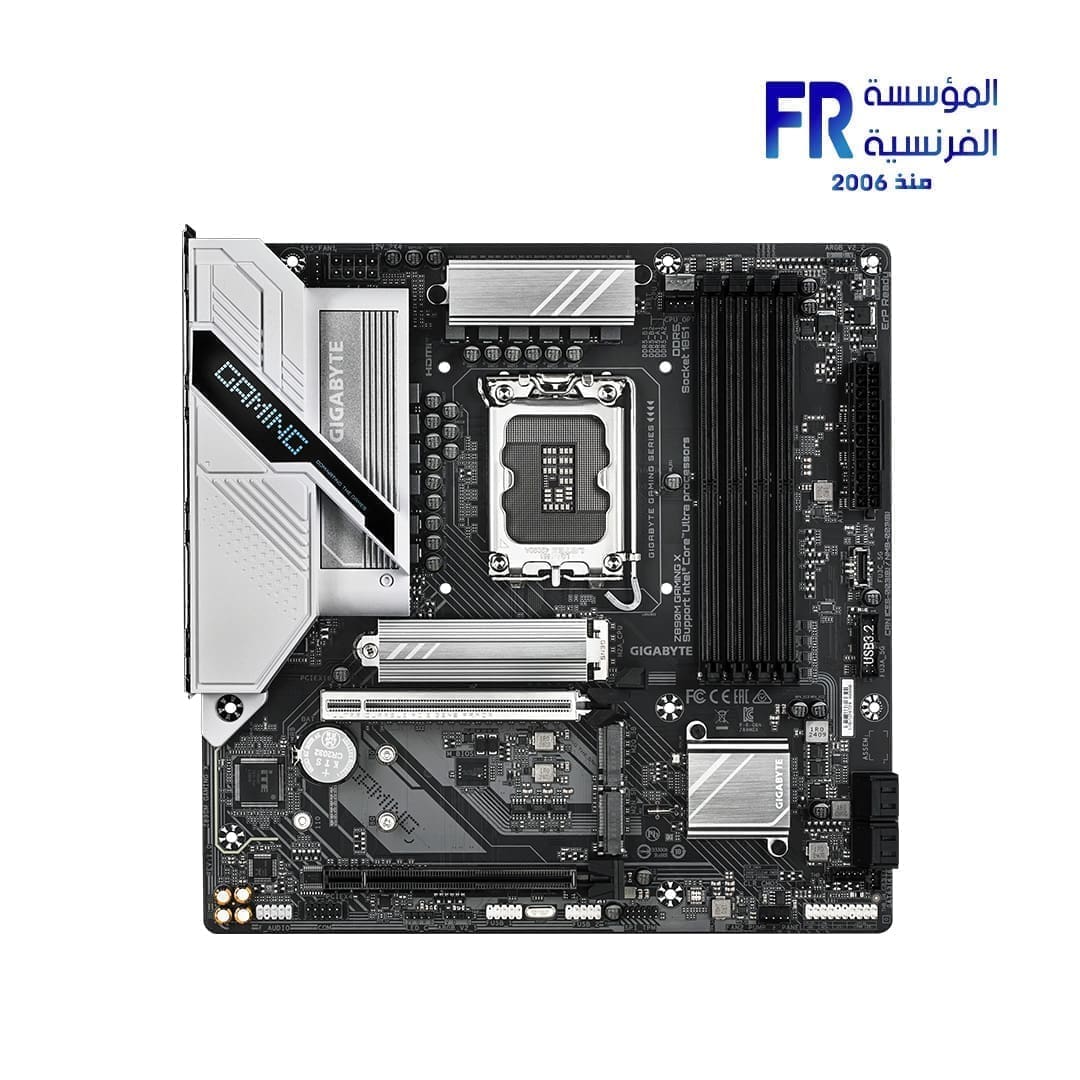

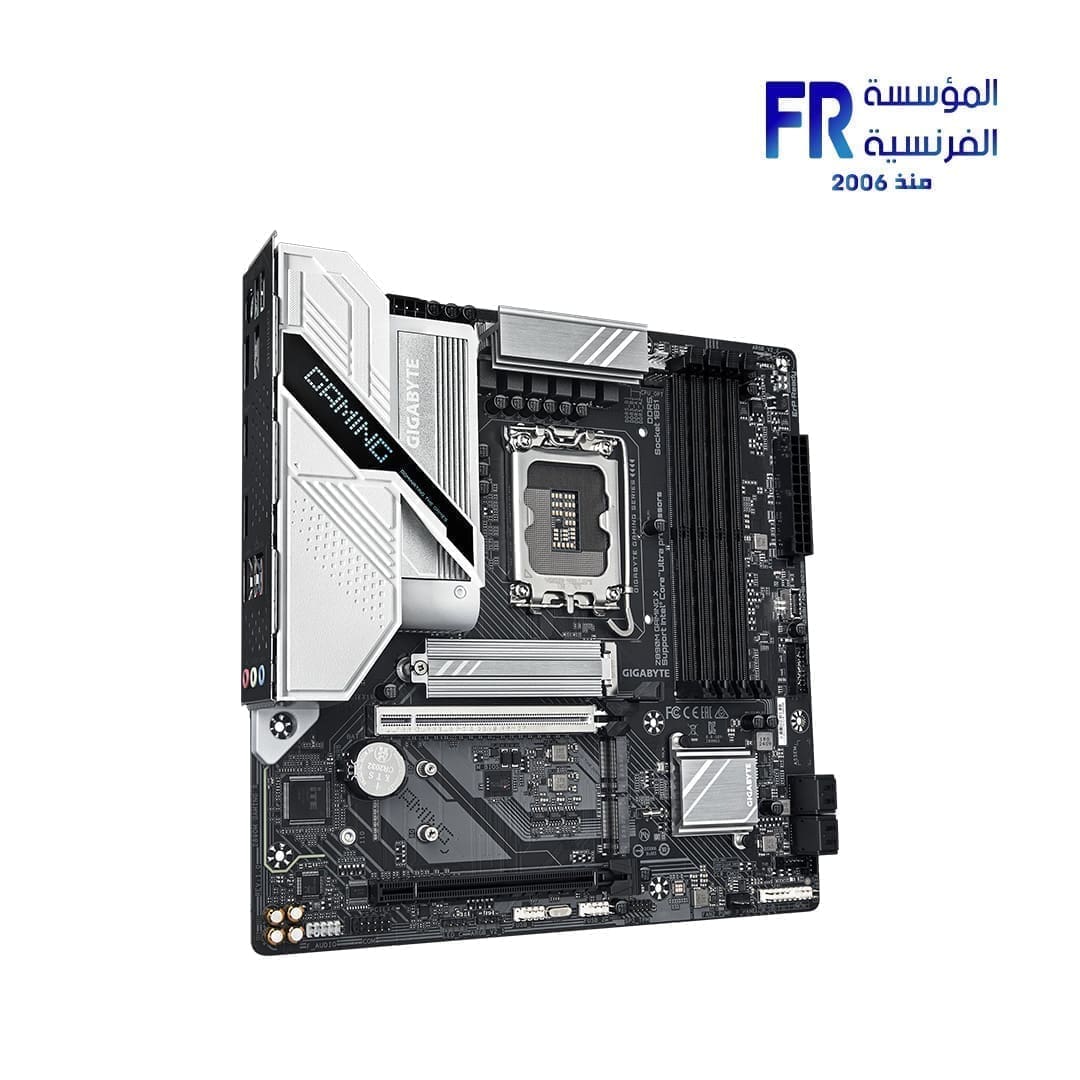

Gigabyte Z890M Gaming X Motherboard

Gigabyte Z890M Gaming X Motherboard

---

Gigabyte Z890M Gaming X Motherboard Specification :

CPU

• Socket: LGA1851, supports Intel® Core™ Ultra Processors
• L3 Cache: Varies with CPU
• Note: Refer to “CPU Support List” for more details

Chipset

• Intel® Z890 Express Chipset

Memory

• Supports DDR5 memory modules up to 9066MT/s (O.C.)
• 4 x DDR5 DIMM slots, supporting up to 256GB (64GB per DIMM)
• Dual-channel memory architecture
• Supports:
  • ECC Un-buffered DIMM 1Rx8/2Rx8 (operates in non-ECC mode)
  • Non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16
  • Extreme Memory Profile (XMP)
  • CUDIMM memory modules
• Note: CPU and memory configuration may affect supported memory types, speeds, and module count

Onboard Graphics

• Integrated Intel® HD Graphics (varies by CPU)
• Video Outputs:
  • 1 x HDMI (4096×2160 @ 60Hz, HDMI 2.1, HDCP 2.3)
  • 2 x DisplayPort (4096×2304 @ 60Hz, DisplayPort 2.1)
• Triple-display support

Audio

• Realtek® Audio CODEC (High Definition Audio)
• Configurable Channels: 2/4/5.1/7.1
• Note: 7.1-channel audio requires software configuration

LAN

• Realtek® 2.5GbE LAN (Supports 2.5Gbps, 1Gbps, 100Mbps)

Expansion Slots

• CPU:
  • 1 x PCIe 5.0 x16 slot (PCIEX16)
  • Supports graphics card or NVMe SSD only
• Chipset:
  • 1 x PCIe 4.0 x4 slot (PCIEX4)

Storage Interface

• CPU:
  • 1 x M.2 (PCIe 5.0 x4/x2) – Type 2580/2280 (M2A_CPU)
• Chipset:
  • 1 x M.2 (PCIe 4.0 x4/x2) – Type 2280 (M2Q_SB)
  • 1 x M.2 (PCIe 4.0 x4/x2) – Type 25110/22110/2580/2280 (M2N_SB)
  • 4 x SATA 6Gb/s connectors
• RAID Support:
  • NVMe SSD: RAID 0, 1, 5, 10
  • SATA: RAID 0, 1, 5, 10

USB Ports

• Chipset:
  • 1 x USB Type-C® (USB 3.2 Gen 1) (internal header)
  • 5 x USB 3.2 Gen 1 (3 rear, 2 internal header)
  • 2 x USB 2.0/1.1 (rear)
• Chipset + USB Hubs:
  • 4 x USB 2.0/1.1 (internal headers)

Internal I/O Connectors

• Power:
  • 1 x 24-pin ATX main power
  • 1 x 8-pin ATX 12V
• Cooling & RGB:
  • 1 x CPU fan header
  • 1 x CPU fan/water pump header
  • 1 x system fan header
  • 1 x system fan/water pump header
  • 2 x addressable RGB Gen2 headers
  • 1 x RGB LED strip header
• Storage & USB:
  • 3 x M.2 slots
  • 4 x SATA 6Gb/s
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x USB Type-C® (USB 3.2 Gen 1) header
  • 1 x USB 3.2 Gen 1 header
  • 2 x USB 2.0/1.1 headers
• Other:
  • 2 x Thunderbolt™ add-in card connectors
  • 1 x TPM header (for GC-TPM2.0 SPI module)
  • 1 x Serial port header
  • 1 x Clear CMOS jumper

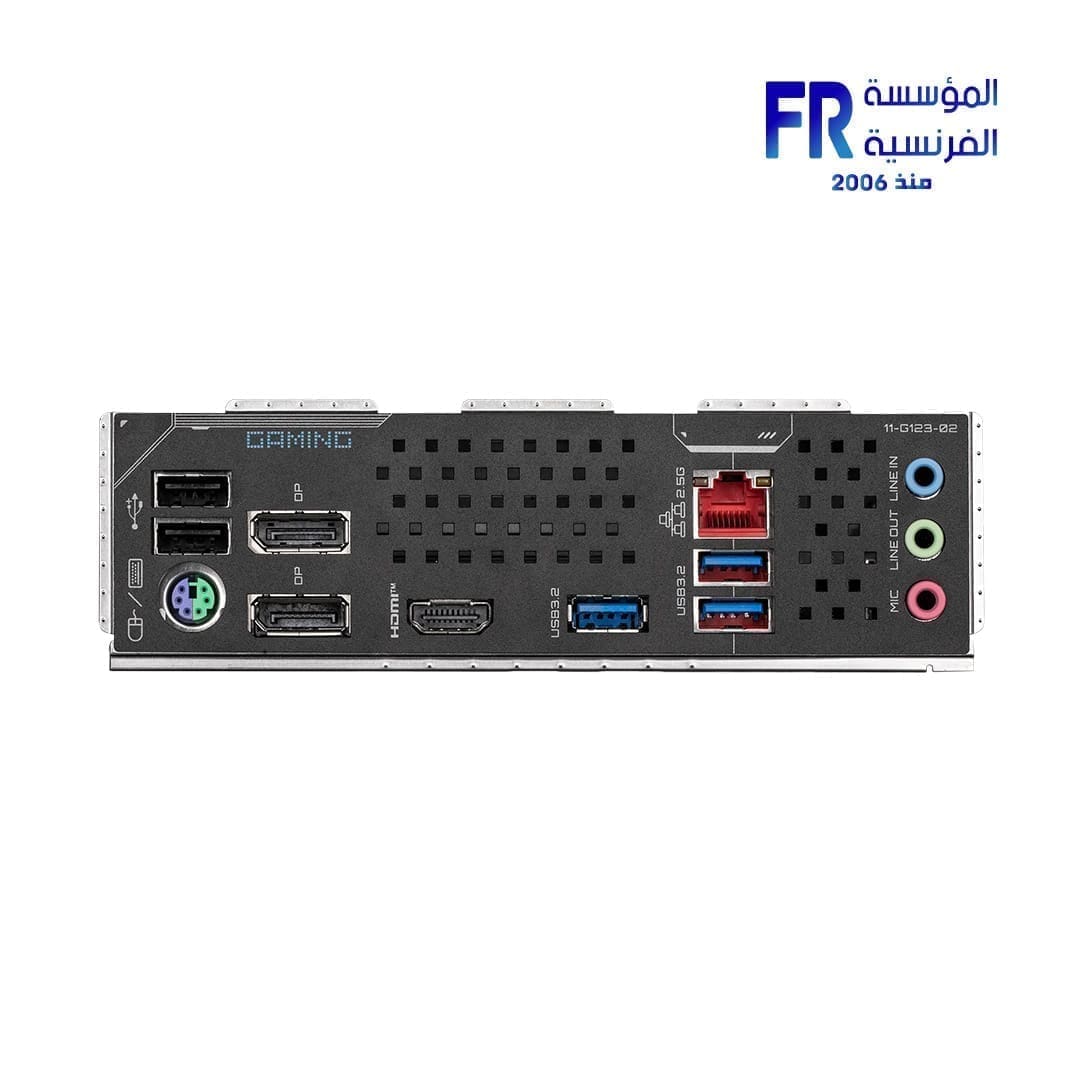

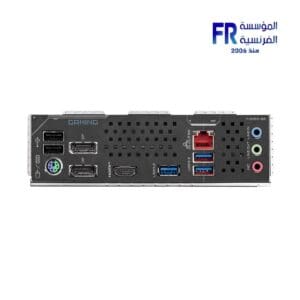

Back Panel Connectors

• 1 x PS/2 keyboard/mouse port
• 3 x USB 3.2 Gen 1
• 2 x USB 2.0/1.1
• 1 x HDMI
• 2 x DisplayPort
• 1 x RJ-45 LAN port
• 3 x Audio jacks

I/O Controller

• iTE® I/O Controller Chip

H/W Monitoring

• Voltage, temperature, fan speed, and water cooling flow rate detection
• Fan fail warning
• Fan speed control (dependent on fan/pump model)

BIOS

• 1 x 256Mbit flash
• AMI UEFI BIOS
• Supports:
  • PnP 1.0a, DMI 2.7, WfM 2.0
  • SM BIOS 2.7, ACPI 5.0

Unique Features

• GIGABYTE Control Center (GCC)
• Q-Flash
• Smart Backup

Bundled Software

• Norton® Internet Security (OEM version)
• LAN bandwidth management software

Operating System Support

• Windows 11 64-bit
• Windows 10 64-bit

Form Factor

• Micro ATX (24.4cm x 24.4cm)

---
