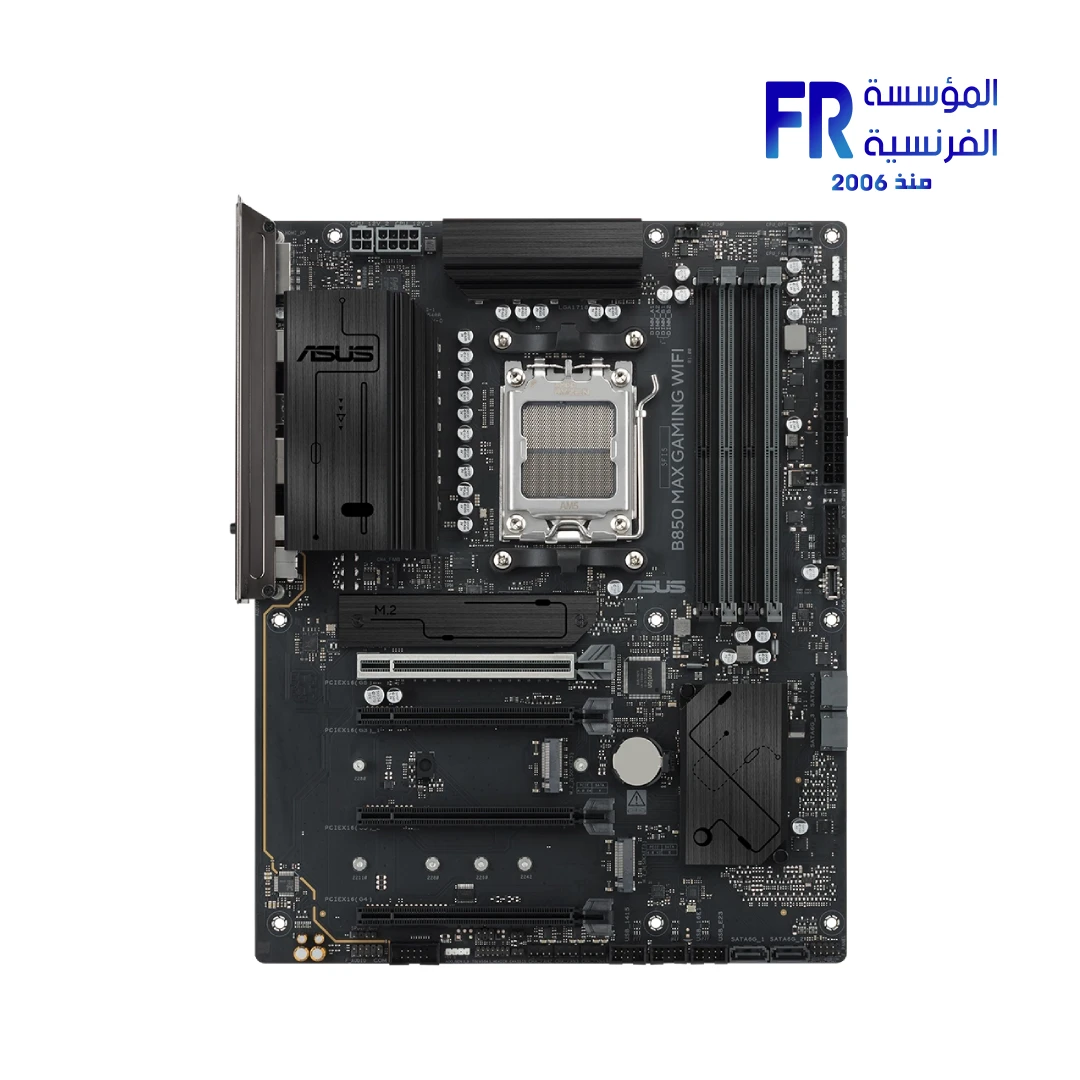

ASUS B850 MAX GAMING WIFI Socket AM5 DDR5 ATX Motherboard
9499 EGP
- Form Factor & Socket: ATX | AMD AM5 Socket (Supports Ryzen 9000 / 8000 / 7000 Series)
- Memory & Storage: 4x DDR5 DIMM Slots (up to 8400+ MT/s OC) | 3x M.2 Slots (1x PCIe 5.0, 2x PCIe 4.0) | 4x SATA 6Gb/s
- Expansion: 1x PCIe 5.0 x16 SafeSlot | 1x PCIe 4.0 x16 (x4 mode) | 2x PCIe 3.0 x1 (x1 mode)
- Networking & Connectivity: Wi-Fi 6E | Bluetooth 5.4 | Realtek 2.5Gb Ethernet | USB 10Gbps Type-C | BIOS FlashBack™
- Features: 8+2+1 Phase Digital Power Design | Aura Sync RGB Headers | Pre-mounted I/O Shield | Q-Antenna
- warranty: 3 years
Want to be notified when this product is back in stock?
ASUS B850 MAX GAMING WIFI Socket AM5 DDR5 ATX Motherboard
AMD B850 · AM5 Socket · DDR5 8400+ MT/s · PCIe 5.0 · Wi-Fi 6E · 2.5Gb Ethernet · AI PC Ready
Ryzen 9000/8000/7000
DDR5 8400+ MT/s
PCIe 5.0 x16
3× M.2
Wi-Fi 6E
✓ In Stock
Key Highlights
8+2+1 Phase Power
Digital power design
DDR5 8400+ MT/s
AEMP & EXPO support
3× M.2 Slots
PCIe 5.0 · 128 Gbps
Wi-Fi 6E
2.4/5/6 GHz band
2.5Gb Ethernet
Realtek® LAN
EZ DIY Features
BIOS FlashBack · Q-Antenna
What’s Included
Everything you need to build your next-gen AMD gaming PC.
B850 Motherboard
ATX · AM5
WiFi Q-Antenna
ASUS Q-Antenna
SATA Cables
2× SATA 6Gb/s
M.2 Accessories
Rubber & screw packages
Quick Start Guide
Installation manual

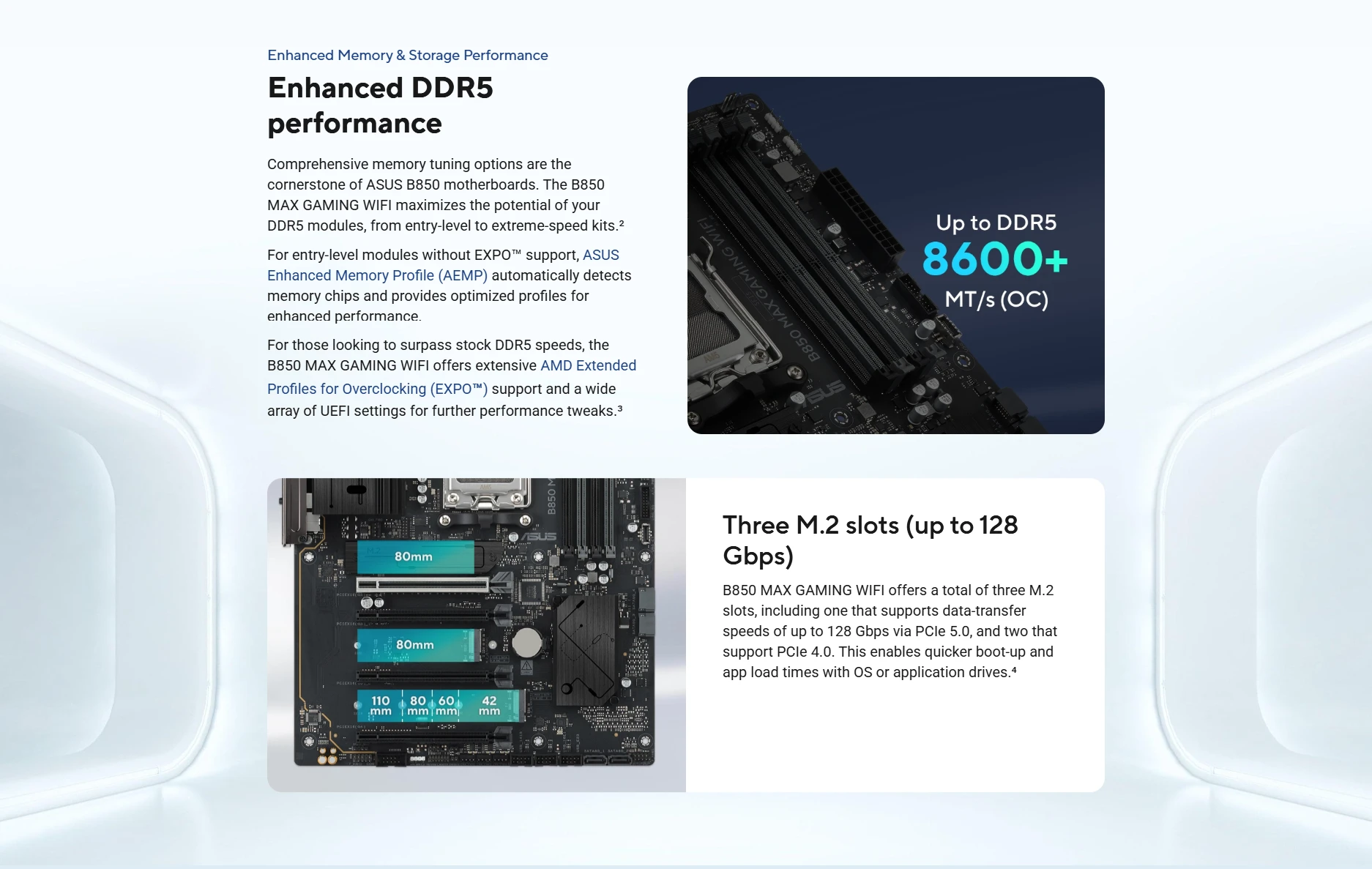

Enhanced DDR5 Performance
Comprehensive memory tuning options are the cornerstone of ASUS B850 motherboards. The B850 MAX GAMING WIFI maximizes the potential of your DDR5 modules, from entry-level to extreme-speed kits. Supports up to 8400+ MT/s with Ryzen 9000 Series processors.
Cooler by Design
The B850 MAX GAMING WIFI is engineered with multiple onboard heatsinks and an array of hybrid fan headers to help ensure your rig stays cool and stable under intense workloads. VRM heatsinks, thermal pads, AIO Pump header, and passive chipset heatsink included.
Maximize Your B850 Build
Enable AI Cache Boost in the BIOS to supercharge your large language model (LLM) workflows — delivering up to 29% faster local LLM performance with high-speed memory tuning. Use ASUS Fan Xpert 2+ for intelligent fan control and Armoury Crate for full Aura Sync RGB control.
Smart Cooling Precision
ASUS Fan Xpert 2+ software provides comprehensive control over fans. An Auto-Tuning mode intelligently configures all parameters with a single click. Extreme Quiet mode reduces chassis fan speeds below the default minimum for whisper-quiet operation during light tasks.
Empowering Connections
This motherboard offers a versatile range of connectivity, including Wi-Fi 6E, PCIe 5.0, 2.5Gb Ethernet, and an arsenal of USB ports including USB 10Gbps Type-C. Built-in Wi-Fi 6E takes advantage of the 6 GHz band for ultrafast wireless networking.
Best For & Considerations
✅ Best For
- ✔ Gamers building high-performance AMD Ryzen 9000 systems
- ✔ Users who want Advanced AI PC-ready hardware
- ✔ Builders needing PCIe 5.0 for next-gen GPUs and SSDs
- ✔ Those who value DDR5 overclocking with EXPO/AEMP support
- ✔ Users who appreciate Wi-Fi 6E and 2.5Gb Ethernet connectivity
❌ Considerations
- ✗ Users on a strict budget (premium B850 motherboard)
- ✗ Those who prefer Intel platforms (AMD AM5 only)
- ✗ Users needing more than 3 M.2 slots
- ✗ Builders wanting built-in Thunderbolt (header available)
Technical Specifications
Compatibility
ℹ️ Technical Information
PCIe 5.0 Support: The B850 MAX GAMING WIFI features a PCIe 5.0 x16 slot that supports x16 mode with AMD Ryzen 9000 and 7000 Series processors. With Ryzen 8000 Series processors, this slot operates at PCIe 4.0 x8/x4 mode.
M.2 Slot Notes: M.2_1 supports PCIe 5.0 x4 with Ryzen 9000/7000 CPUs. With Ryzen 8000 CPUs, it operates at PCIe 4.0 x4. PCIEX16(G3)_1/2 share bandwidth with SATA6G_1/2 — SATA ports will be disabled when those PCIe slots are used.
Memory Overclocking: Max memory speeds vary by CPU — Ryzen 9000: 8400+ MT/s, Ryzen 8000: 9000+ MT/s, Ryzen 7000: 8000+ MT/s. Enabling EXPO/AEMP profiles in BIOS is required for rated speeds.
Frequently Asked Questions
| MODEL | |
|---|---|
| CHIPSET MANUFACTURERS | |
| CPU Socket | |
| Motherboard Chipset | |
| Motherboard Type | |
| CPU SERIES | AMD Ryzen 7000 Series & Ryzen 8000 & Ryzen 9000 Series Processors |
| Technology | |
| Memory Speed | |
| Max Memory Size | |
| Memory Slot | |
| PCI-E X16 | |
| PCI-E GEN | PCIe 4.0, PCIe 3.0, PCIe 5.0 |
| PCI-E Slots (M.2) | |
| SATAIII | |
| Communication module | |
| Part Number | |
| Warranty |
Only logged in customers who have purchased this product may leave a review.
Reviews
There are no reviews yet.
