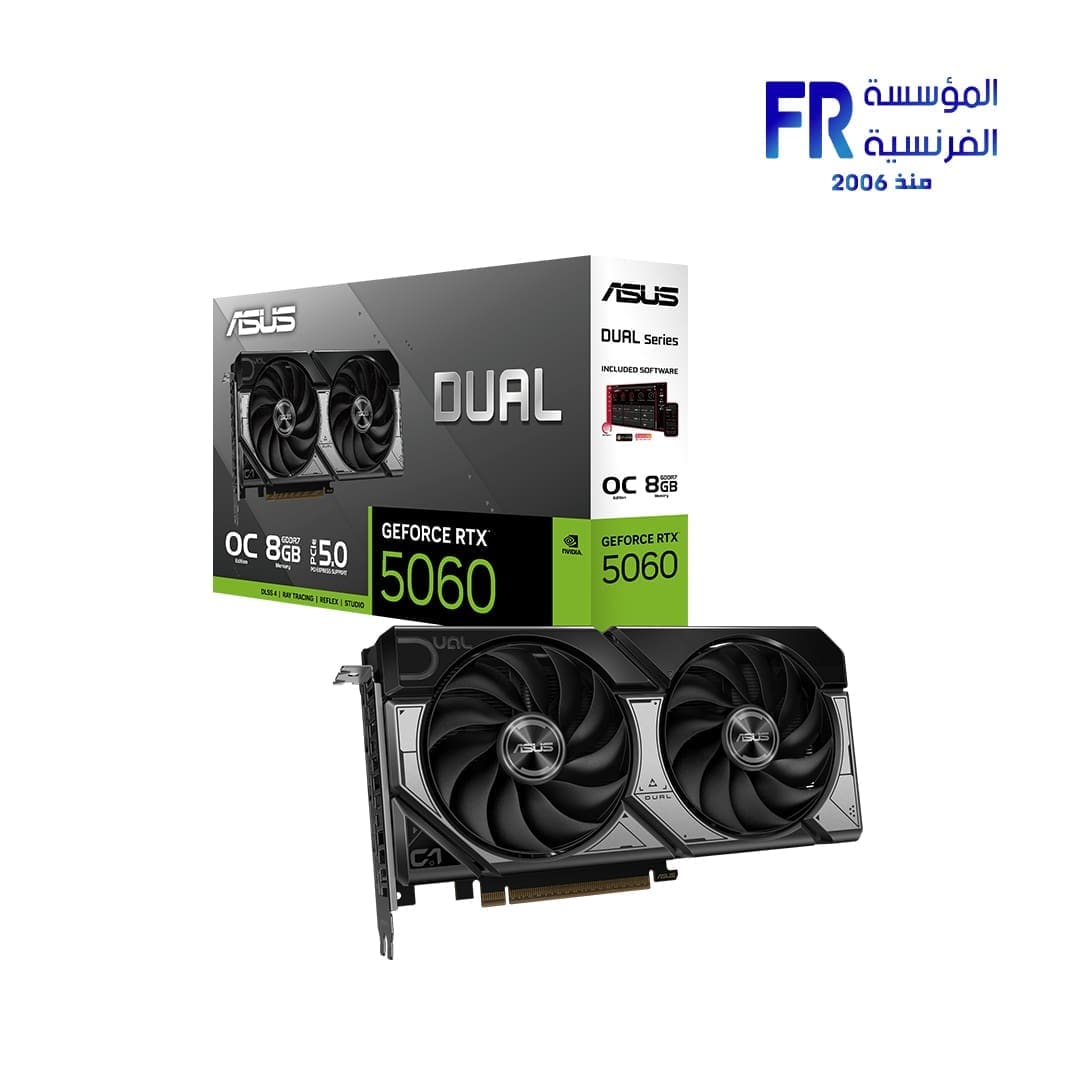

Asus GeForce RTX 5060 Dual 8GB GDDR7 OC Edition Graphic Card
21273 EGP
- Part Number: 90YV0N12-M0NA00
- Graphic Engine: NVIDIA GeForce RTX 5060
- Video Memory: 8GB GDDR7 / 128 bit
- Core Clock (OC): Up to 2565MHz
- CUDA Cores: 3840
- Bus Standard: PCI Express 5.0
- Warranty: 3 Years
Asus GeForce RTX 5060 Dual 8GB GDDR7 OC Edition Graphic Card
The Asus GeForce RTX 5060 Dual delivers outstanding performance with 8GB GDDR7 memory. The NVIDIA GeForce RTX 50 Series ushers in a new era of gaming and AI.
Official Asus Product Page
Next-Gen Power and Efficiency in the RTX 5060

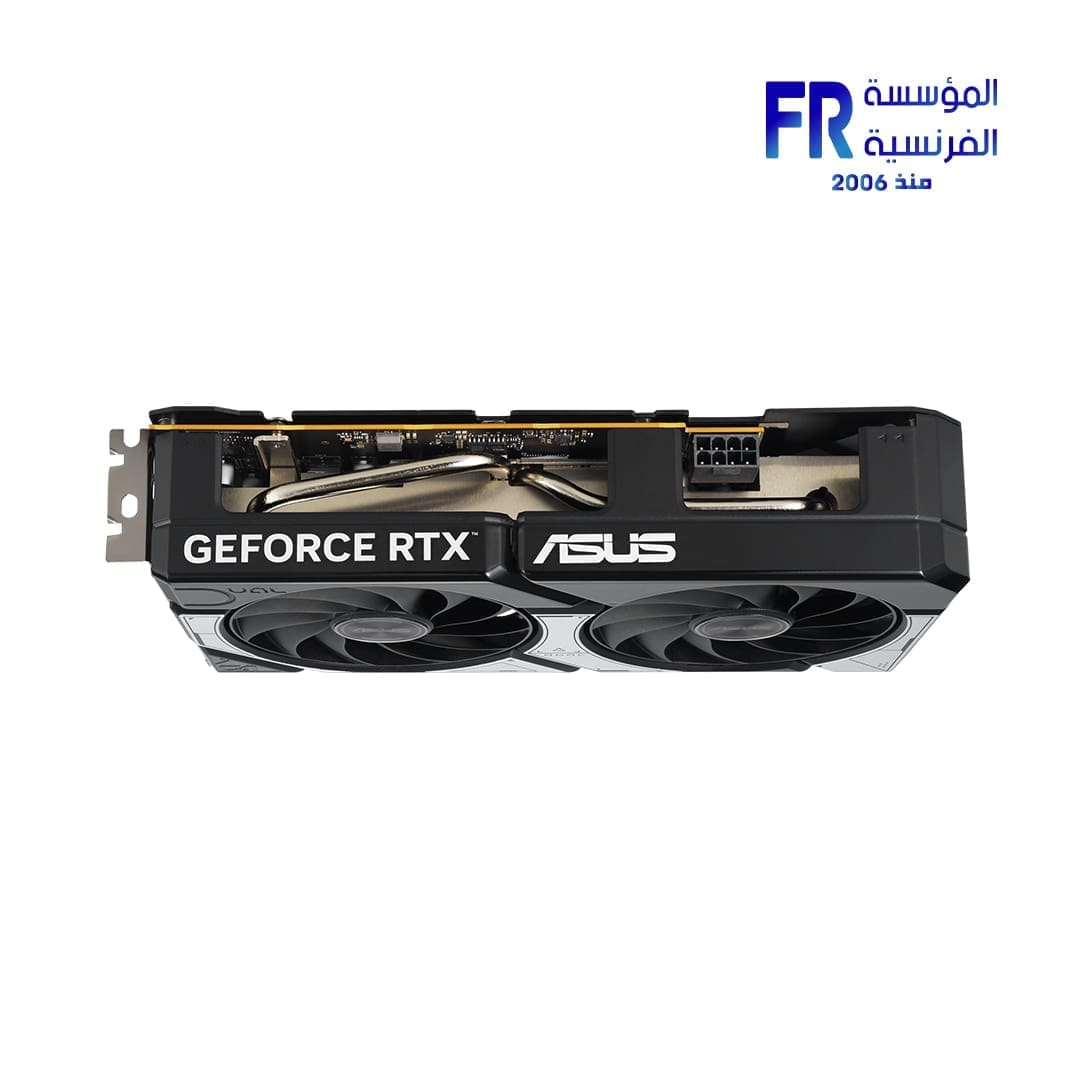

Dual Fan Cooling and Compact Design
The Asus GeForce RTX 5060 Dual is designed with a powerful dual-fan configuration to maintain optimal thermal performance within a compact 2.5-slot form factor. This makes it suitable for a wide variety of PC cases, including smaller builds. Furthermore, its efficient cooling ensures reliable performance under extended gaming sessions.
PCIe 5.0 and GDDR7 Memory Advantage
Leveraging the cutting-edge PCI Express 5.0 standard, this GPU offers unprecedented bandwidth. Coupled with 8GB GDDR7 memory running at 28 Gbps, the card is primed for future high-resolution graphics and AI performance.
Technical Specifications: Asus Dual GeForce RTX 5060
| Specification | Detail |
|---|---|
| SKU | 90YV0N12-M0NA00 |
| Model Name | DUAL-RTX5060-O8G |
| UPC/EAN | 199291057890 |
| Graphics Engine | NVIDIA GeForce RTX 5060 |
| Video Memory | 8GB GDDR7 |
| CUDA Cores | 3840 |
| Engine Clock (Boost) | OC Mode: 2565MHz / Default Mode: 2535MHz |
| Memory Speed | 28 Gbps |
| Bus Standard | PCI Express 5.0 |
| Recommended PSU | 550W |
| Power Connectors | 1 x 8-pin |

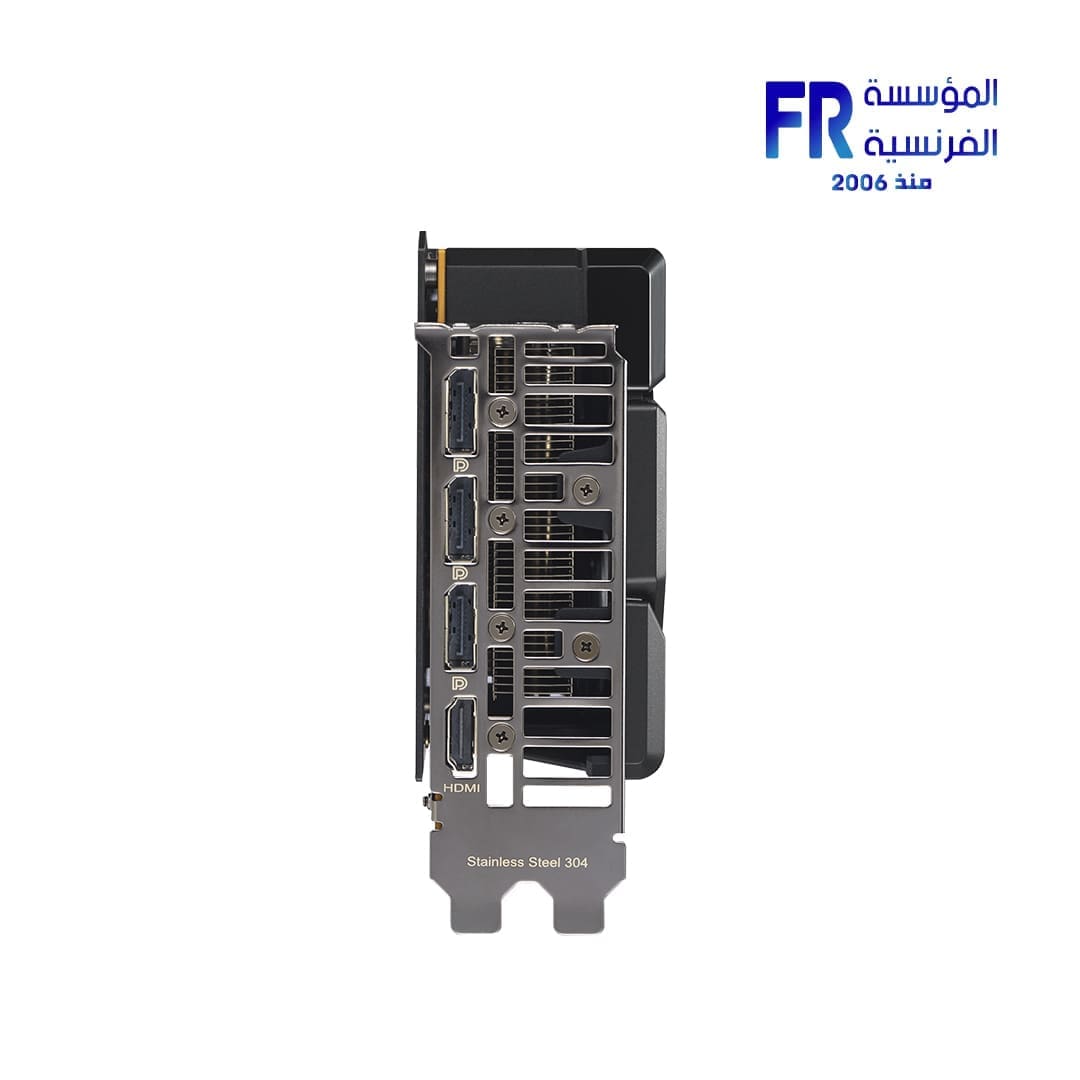

| Output | HDMI 2.1b x1, DisplayPort 2.1b x3 |
| Slot Size | 2.5 Slot |
💡 Pro Tip:
To maximize the performance of this RTX 5060, ensure your motherboard uses the PCIe 5.0 slot to guarantee maximum bandwidth. Also, utilize the ASUS GPU Tweak III software to activate the full OC Mode (2565MHz) for better frame rates.
