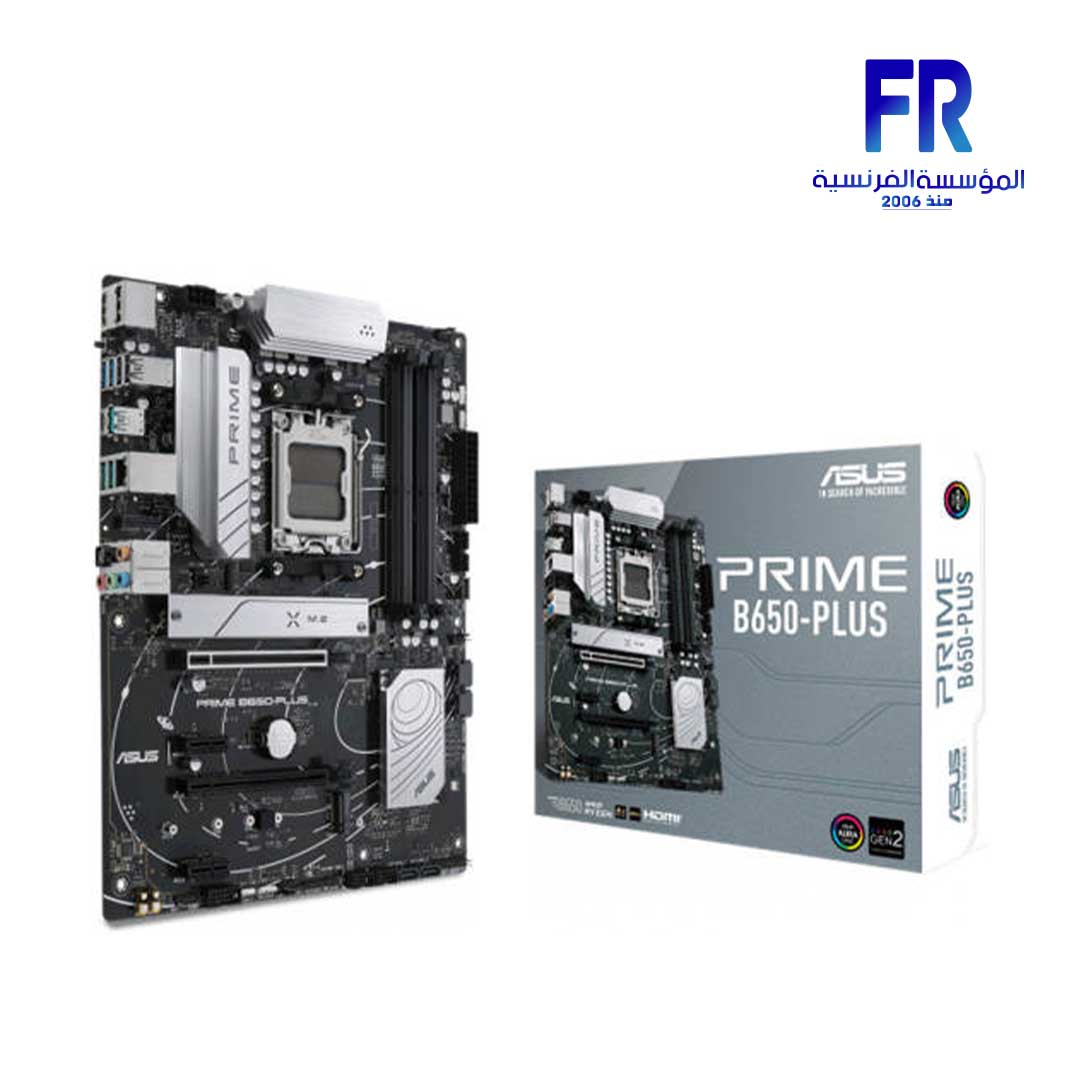

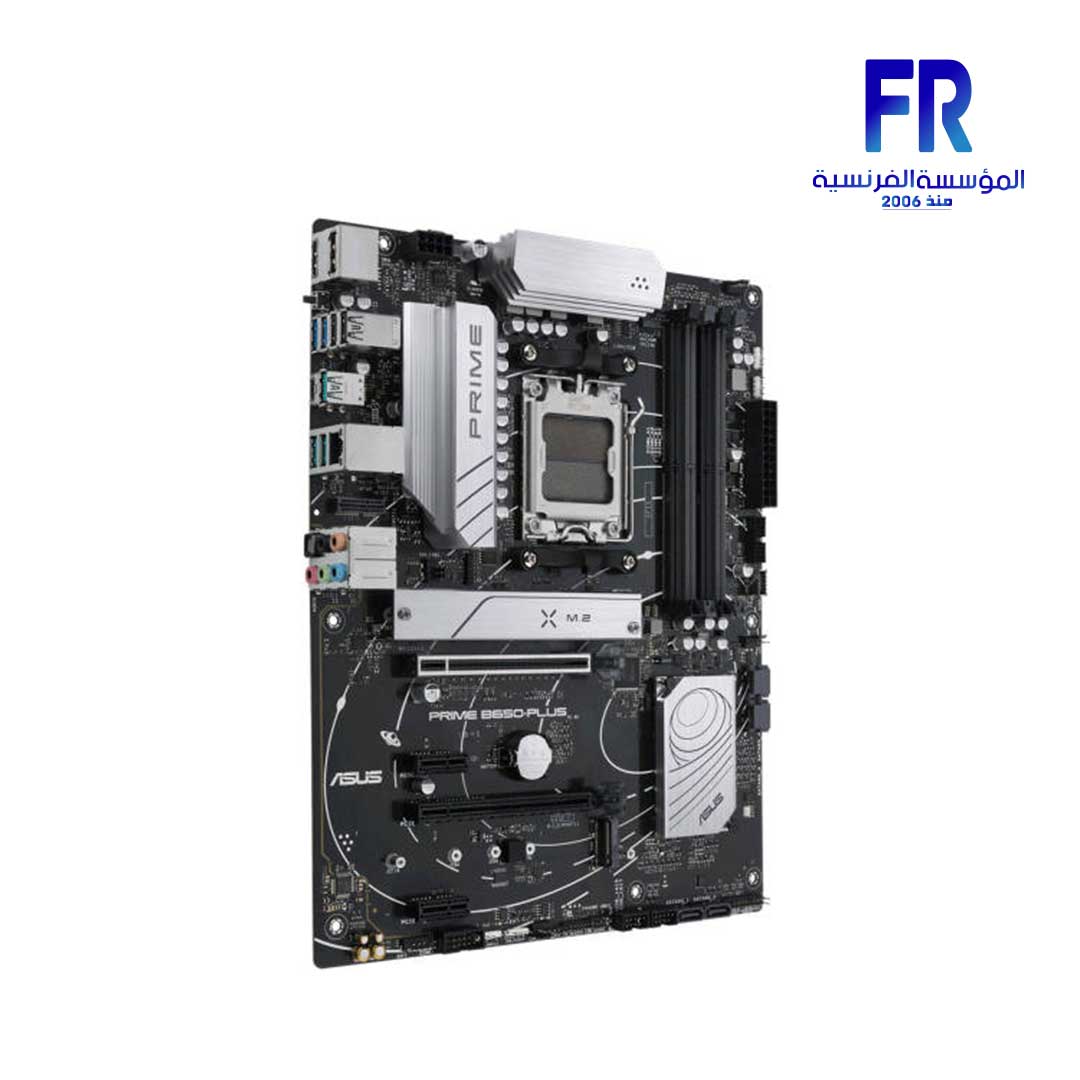

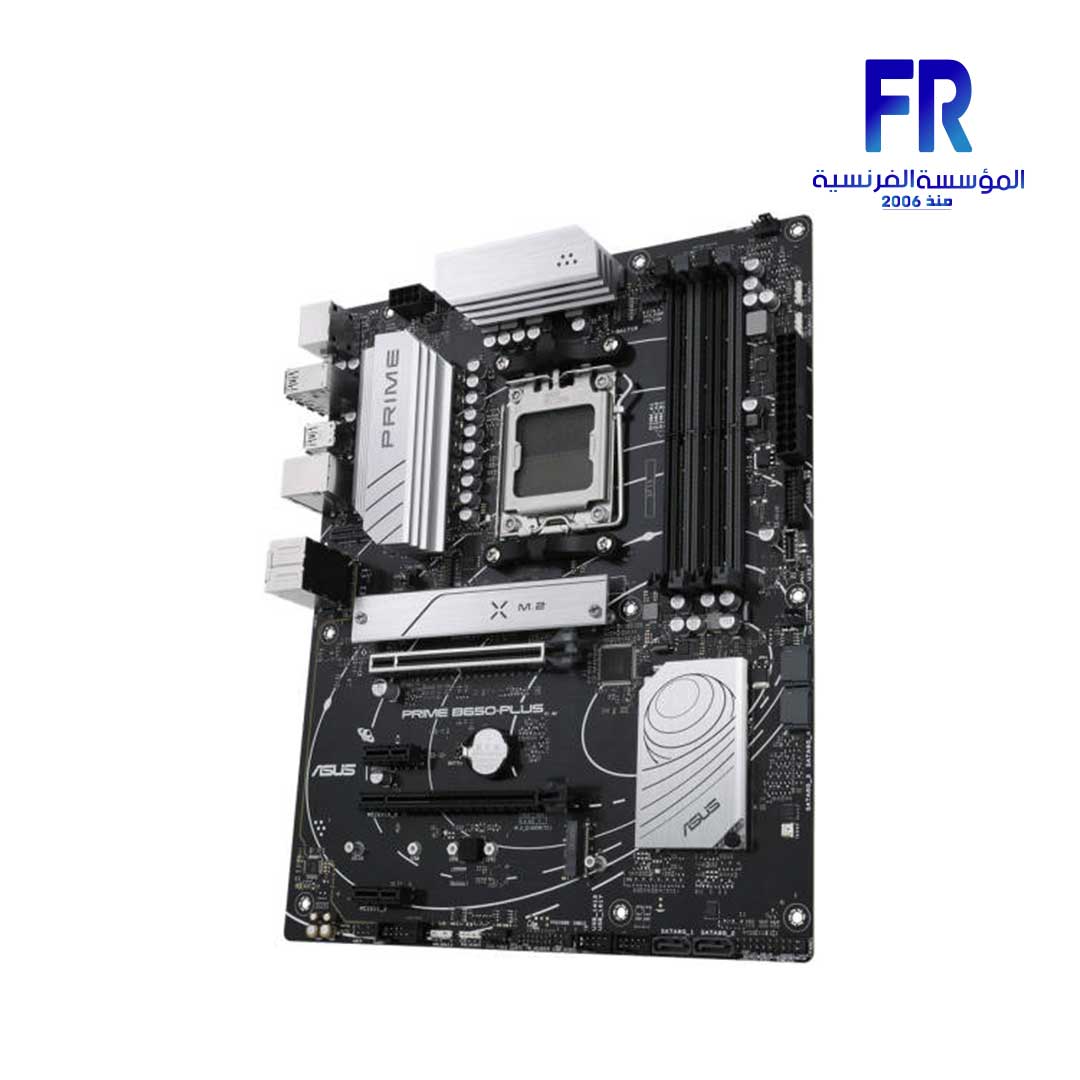

Asus Prime B650 PLUS DDR5 Motherboard
12000 EGP
- ATX Form Factor
- AMD B650 Chipset
- AM5 Socket
- 4 x Dual-Channel DDR5 Slots
- 4 x SATA, 2 x M.2 PCIe
- 1 x PCIe 4.0 x16 | 1 x PCIe 4.0 x16 (x4)
- 2 x PCIe 4.0 x1
- USB 2.0, 3.2 Gen 1 and Gen 2 Ports
- 2.5 Gigabit Ethernet Port
- For Windows 10 & 11
Not available right now, but we have the alternative
Our sales team will match you with an in-stock alternative at the same level or better, at the best price, right on WhatsApp.
Talk to our sales team for an alternativeOut of stock
Want to be notified when this product is back in stock?
In-stock alternatives
Asus Prime B650 PLUS DDR5 Motherboard
-
Model
PRIME B650-PLUS -
CPU
AMD Socket AM5 for AMD Ryzen™ 7000 Series/ 8000 Series Desktop Processors*
* Refer to www.asus.com for CPU support list. -
Chipset
AMD B650 Chipset -
Memory
4 x DIMM, Max. 192GB, DDR5 7600+(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 ECC and Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports AMD Extended Profiles for Overclocking (EXPO™)
OptiMem II
* Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function. -
Graphics
1 x DisplayPort**
1 x HDMI® port***
* Graphics specifications may vary between CPU types.
** Supports max. 8K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI® 2.1. -
Expansion Slots
AMD Ryzen™ 7000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x16 mode)
AMD Ryzen™ 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
AMD B650 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
2 x PCIe 4.0 x1 slots
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
** Specifications vary by CPU types. -
Storage
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
AMD Ryzen™ 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
AMD Ryzen™ 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4/x2 mode)**
AMD B650 Chipset
4 x SATA 6Gb/s ports
* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.
** Specifications vary by CPU types. -
Ethernet
1 x Realtek 2.5Gb Ethernet -
Wireless & Bluetooth
Vertical M.2 slot only (Key E, PCIe)*
* Wi-Fi module is sold separately. -
USB
Rear USB (Total 8 ports)
4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C®)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports -
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– Supports up to 24-Bit/192 kHz playback
Audio Features
– Audio Shielding
– Premium audio capacitors
– Dedicated audio PCB layers -

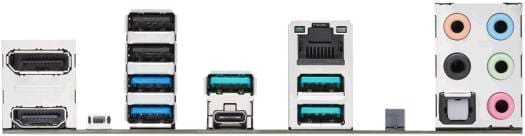

Back Panel I/O Ports
4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C®)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI® port
1 x Vertical M.2 slot (Key E)
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button -
Internal I/O Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 connector (supports USB Type-C® )
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x SPI TPM header (14-1pin)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thunderbolt™ (USB4®) header -
Special Features
ASUS 5X PROTECTION III
– DIGI+ VRM
– LANGuard
– Overvoltage Protection
– Safeslot Core+
– Stainless-Steel Back I/O
ASUS Q-Design
– Q-DIMM
– Q-LED Core
– Q-Slot
ASUS Thermal Solution
– Flexible M.2 heatsink
– VRM heatsink design
ASUS EZ DIY
– BIOS FlashBack™ button
– BIOS FlashBack™ LED
– ProCool
Aura Sync
– Aura RGB header
– Addressable Gen 2 headers -
Software Features
ASUS Exclusive Software
Armoury Crate
– Aura Creator
– Aura Sync
– Fan Xpert 2+
– Power Saving
AI Suite 3
– TurboV EVO
– DIGI+ VRM
– PC Cleaner
ASUS CPU-Z
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode -
BIOS
256 Mb Flash ROM, UEFI AMI BIOS -
Manageability
WOL by PME, PXE -
Accessories
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O Shield
1 x M.2 Rubber Package
1 x Screw package for M.2 SSD
Documentation
1 x User guide -
Operating System
Windows® 11, Windows® 10 64-bit -
Form Factor
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )Asus Prime B650 PLUS DDR5 Motherboard
| MODEL | |
|---|---|
| CHIPSET MANUFACTURERS | |
| CPU Socket | |
| Motherboard Chipset | |
| Motherboard Type | |
| CPU SERIES | |
| Technology | |
| Memory Speed | 4800 MHz, 4866 MHz, 5200 MHz, 5600 MHz, 6000 MHz, 6200 MHz, 6400 MHz, 6800 MHz, 7000 MHz, 7200 MHz, 7400 MHz, 7600 MHz |
| Max Memory Size | |
| Memory Slot | |
| PCI-E X16 | |
| PCI-E GEN | PCIe 4.0 |
| PCI-E Slots (M.2) | |
| SATAIII | |
| Communication module | |
| Part Number | |
| Warranty |
