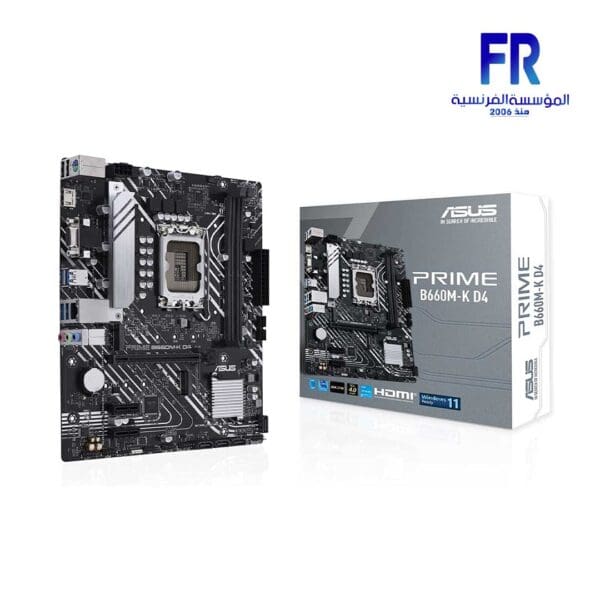

Asus Prime B660M-K DDR4 Motherboard
3950 EGP
- Intel® LGA 1700 socket: Ready for 13th & 12th gen Intel® processors
- Enhanced power solution: 8-pin ProCool connector, alloy chokes and durable capacitors for stable power delivery
- Comprehensive cooling: VRM heatsink, PCH heatsink, hybrid fan headers and Fan Xpert
- Ultrafast connectivity: PCIe® 4.0, two M.2 slots and front USB 3.2 Gen 1
Not available right now, but we have the alternative
Our sales team will match you with an in-stock alternative at the same level or better, at the best price, right on WhatsApp.
Talk to our sales team for an alternativeOut of stock
Want to be notified when this product is back in stock?
In-stock alternatives
ASUS PRIME B660M-K DDR4 Motherboard
Model
PRIME B660M-K D4
CPU
Intel® Socket LGA1700 for 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Memory
2x DIMM, Max. 64GB, DDR4 5333(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for memory support list.
Graphics
1 x D-Sub port
1 x HDMI® port**
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Support 4K@60Hz as specified in HDMI® 2.1.
Expansion Slots
Intel® 13th & 12th Gen Processors
1 x PCIe 4.0/3.0 x16 slot
Intel® B660 Chipset
2 x PCIe 3.0 x1 slots
Storage
Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
Intel® 13th & 12th Gen Processors*
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4)
Intel® B660 Chipset**
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4)
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots.
Ethernet
1 x Realtek 1Gb Ethernet
ASUS LANGuard
USB
Rear USB:Total 6 ports
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A）
Front USB:Total 6 ports
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC*
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– Supports up to 24-Bit/192 kHz playback”
Audio Features
– Audio Shielding
– Premium audio capacitors
– Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Back Panel I/O Ports
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x D-Sub port
1 x HDMI® port
1 x Realtek 1Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo port
Internal I/O Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin Chassis Fan header
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
1 x RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin System Panel header
Special Features
ASUS 5X PROTECTION III
– DIGI+ VRM
– LANGuard
– Overvoltage Protection
– SafeSlot Core
– Stainless-Steel Back I/O
ASUS Q-Design
– Q-DIMM
– Q-Slot
ASUS EZ DIY
– ProCool
ASUS Thermal Solution
– VRM heatsink design
ASUS Lighting Control
-RGB header
Software Features
ASUS Exclusive Software
Armoury Crate
AI Suite 3
– Performance And Power Saving Utility
TurboV EVO
EPU
DIGI+ VRM
Fan Xpert
ASUS CPU-Z
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
BIOS
128 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Accessories
Cables
2x SATA 6Gb/s cables
Miscellaneous
1 x I/O Shield
2 x M.2 anchors
Installation Media
1 x Support DVD
Documentation
1 x User manual
Operating System
Windows® 11, Windows® 10 64-bit
Form Factor
microATX
24.4cm x 21.1cm
ASUS PRIME B660M-K DDR4 Motherboard
