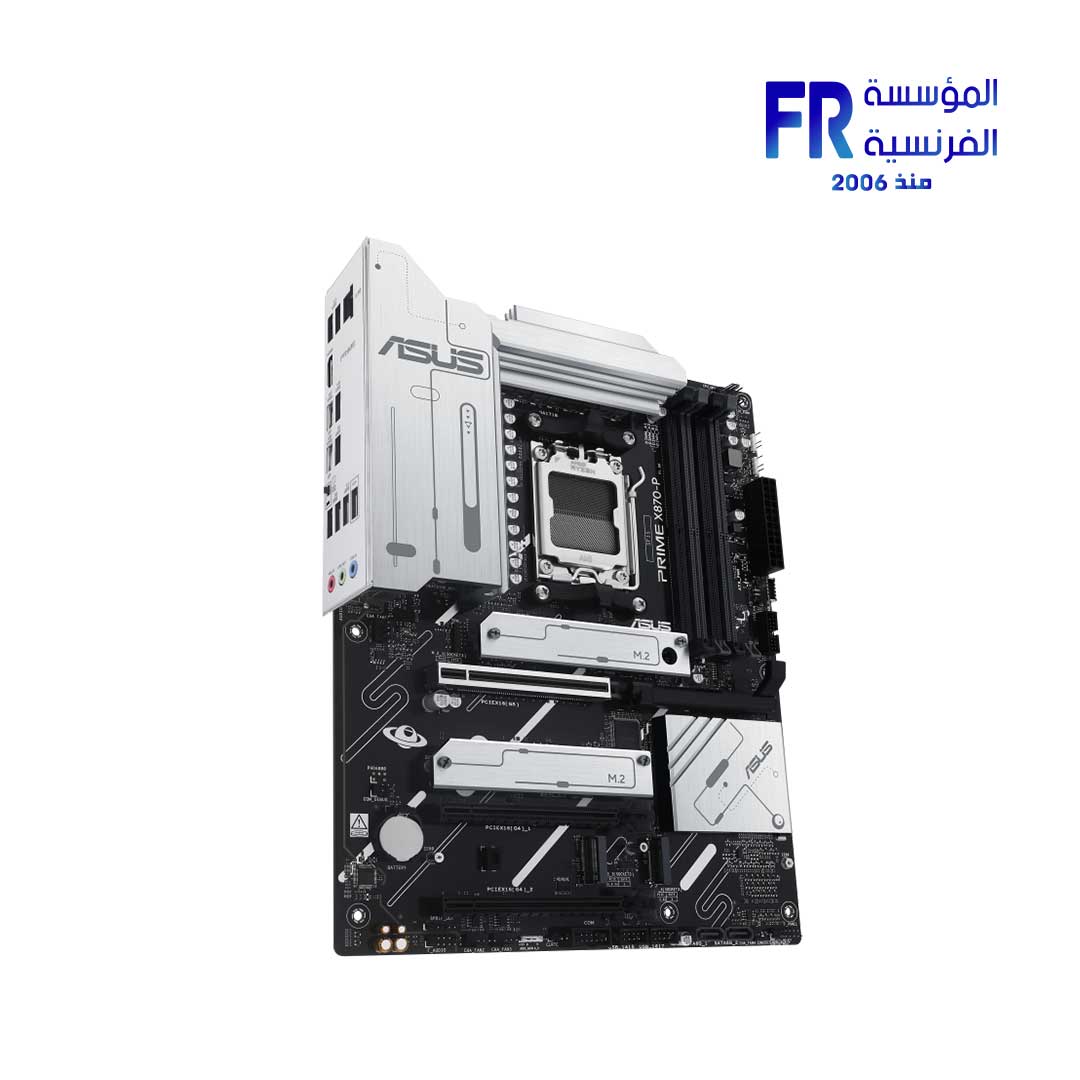

Asus Prime X870 P Motherboard
Asus Prime X870 P Motherboard specs:
CPU |
AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors |
Chipset |
AMD X870 Chipset |
Memory |
4 x DIMM slots, max. 256GB, DDR5 Supports up to 8000+MT/s(OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors ECC and Non-ECC, Un-buffered DIMM Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO™) ASUS Enhanced Memory Profile (AEMP) |
Graphics |
1 x HDMI™ port (4K@60Hz) 2 x USB4® (40Gbps) Type-C® display outputs (4K@60Hz) |
Expansion Slots |
1 x PCIe 5.0 x16 slot (Ryzen 9000 & 7000) 1 x PCIe 4.0 x16 slot (Ryzen 8000) 2 x PCIe 4.0 x16 slots (x1 mode) |
Storage |
4 x M.2 slots, 2 x SATA 6Gb/s ports M.2_1 supports PCIe 5.0 x4 (9000 & 7000), PCIe 4.0 x4 (8000) |
RAID |
RAID 0/1/5/10 (9000), RAID 0/1 (8000), RAID 0/1/10 (7000) |
Ethernet |
1 x Realtek 2.5Gb Ethernet, ASUS LANGuard |
Rear USB |
2 x USB4® (40Gbps) Type-C®, 1 x USB 10Gbps Type-A, 3 x USB 5Gbps Type-A, 4 x USB 2.0 |
Front USB |
1 x USB 10Gbps Type-C®, 1 x USB 5Gbps header (2 ports), 2 x USB 2.0 headers (4 ports) |
Audio |
Realtek 7.1 Surround Sound High Definition Audio CODEC, Audio Shielding, Premium capacitors |
Back Panel I/O |
USB4®, USB 10Gbps, USB 5Gbps, USB 2.0, HDMI, Ethernet, Audio jacks, BIOS FlashBack™ button |
Internal I/O |
4-pin CPU Fan header, AIO Pump header, Chassis Fan headers, 24-pin Main Power, 2 x 8-pin +12V CPU Power |
Special Features |
ASUS 5X PROTECTION III, Q-Design, Thermal Solution, EZ DIY, Aura Sync |
Software |
Armoury Crate, ASUS DriverHub, TurboV Core, Norton 360 Deluxe (60 Days), WinRAR (40 Days) |
BIOS |
256 Mb Flash ROM, UEFI AMI BIOS |
Accessories |
2 x SATA 6Gb/s cables, M.2 rubber package, M.2 screw packages, Quick start guide |
OS Support |
Windows 11, Windows 10 64-bit |
Form Factor |
ATX (30.5 cm x 24.4 cm) |
