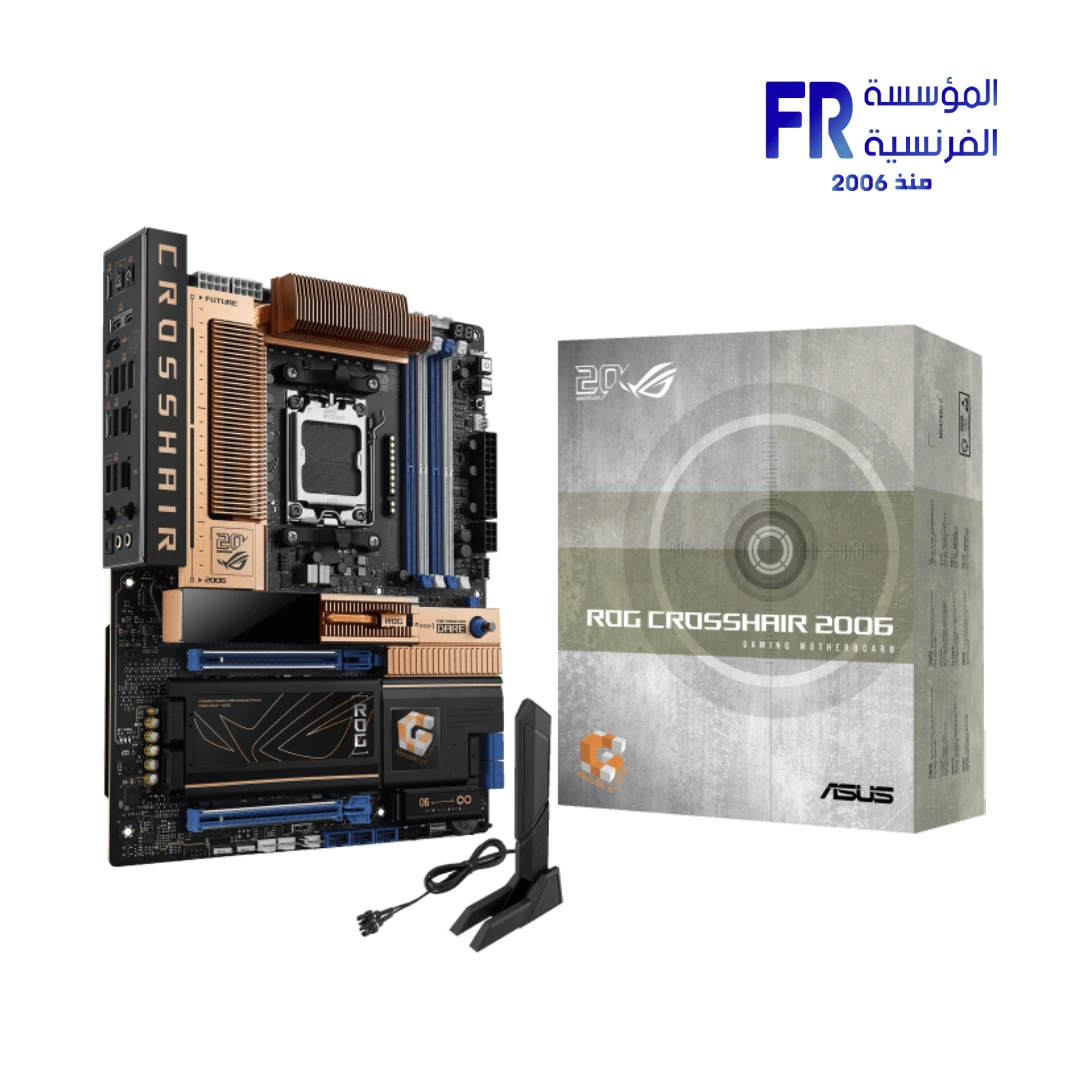

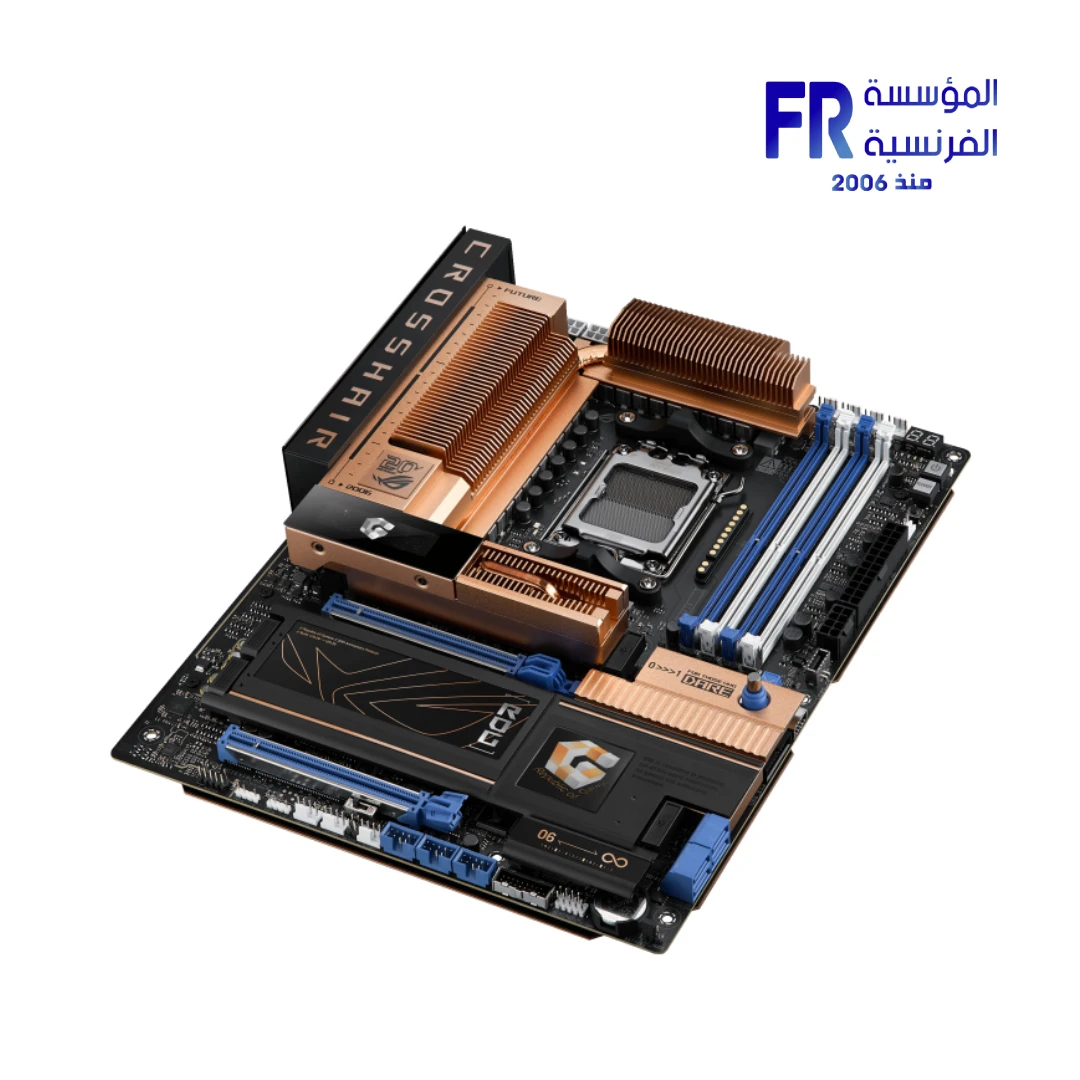

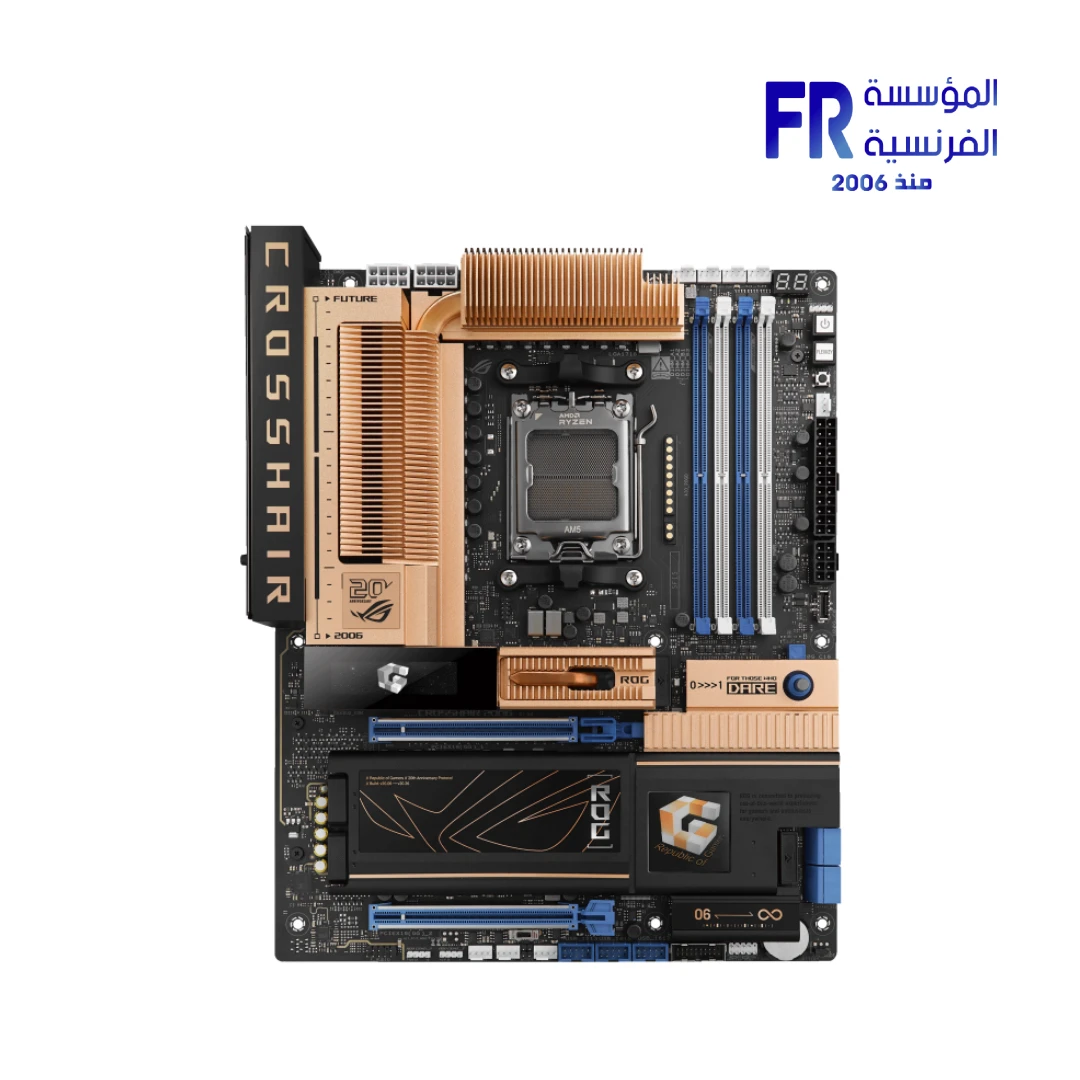

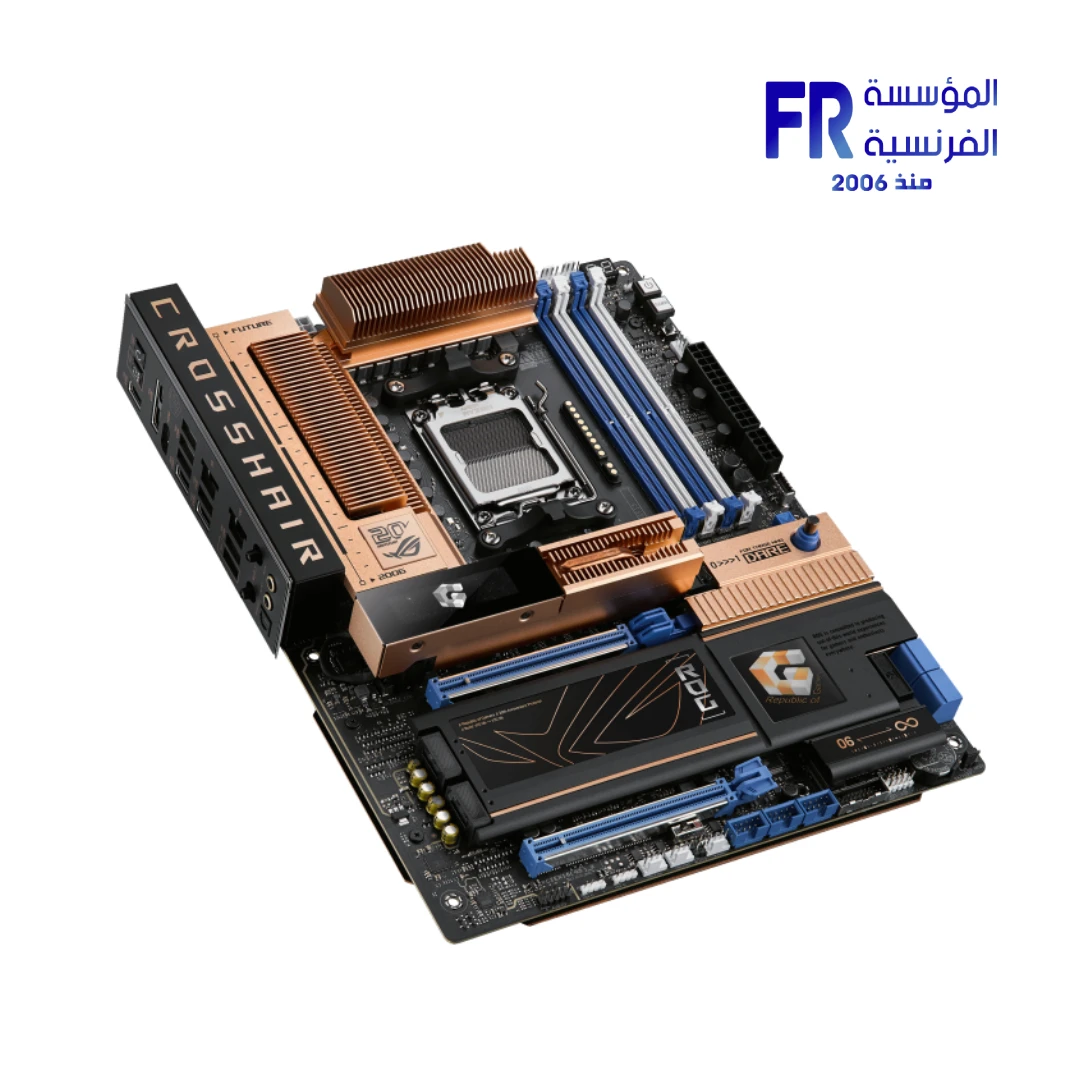

ASUS ROG Crosshair 2006 2 Inch OLED X870E Socket AM5 Motherboard
- Model Name: ASUS ROG Crosshair 2006
- Part Number: ROG-CROSSHAIR-2006
- Socket & Chipset: AMD AM5, X870E Chipset
- Memory & Storage: 4x DDR5 (up to 9600+ MT/s OC), 5x M.2 (2x PCIe 5.0, 3x PCIe 4.0), 4x SATA 6Gb/s
- Connectivity & Features: Wi-Fi 7, 10Gb + 5Gb Ethernet, 2x USB4 (40Gbps), 2-inch OLED Display, 60W USB-C PD
- Warranty: 3 Years
Not available right now, but we have the alternative
Our sales team will match you with an in-stock alternative at the same level or better, at the best price, right on WhatsApp.
Talk to our sales team for an alternativeWant to be notified when this product is back in stock?
In-stock alternatives
ASUS ROG Crosshair 2006 2 Inch OLED X870E Socket AM5 Motherboard
The Ultimate Extreme Overclocking & Enthusiast Foundation.
The ASUS ROG Crosshair 2006 is the pinnacle of the AMD AM5 platform, featuring a stunning 2-inch OLED display, Wi-Fi 7, Dual 10Gb/5Gb LAN, and dual USB4 ports. Engineered for record-breaking builds, this X870E ATX motherboard delivers unparalleled connectivity, elite SupremeFX audio, and a comprehensive Extreme OC Kit for serious enthusiasts.
Designed for the latest AMD Ryzen 9000, 8000, and 7000 series processors, the Crosshair 2006 supports blistering DDR5 memory speeds up to 8600+ MT/s (OC). It offers massive storage expansion with five M.2 slots—including two PCIe 5.0 x4 directly from the CPU—and dual PCIe 5.0 x16 slots for next-generation graphics. The integrated 2-inch OLED screen allows for real-time system monitoring and custom GIFs, elevating the aesthetic of any high-end showcase.
💡 Alfrensia Tech Note: 60W Front USB-C & Bandwidth Sharing
To unlock the full 60W Power Delivery (PD 3.0/QC4+) on the front panel USB 20Gbps Type-C connector, you must connect the motherboard’s included 8-pin PCIe power cable. Without it, the port is limited to 27W. Additionally, note that the USB4® 40Gbps ports and the M.2_2 slot share bandwidth; running M.2_2 at full x4 mode will disable the rear USB4 ports. Plan your storage and peripheral layout accordingly!
Frequently Asked Questions
Q: Does the ROG Crosshair 2006 support Wi-Fi 7?
A: Yes, it features the latest Wi-Fi 7 (802.11be) via a MediaTek MT7927 module, supporting the 6GHz band, 320MHz bandwidth, and Bluetooth 5.4 for ultra-low latency wireless connectivity.
Q: What audio codec does this motherboard use?
A: It utilizes the ROG SupremeFX 7.1 Surround Sound Audio CODEC ALC4082, paired with an ESS® ES9219 QUAD DAC for audiophile-grade playback and recording.
Q: How many M.2 slots does it have?
A: It features a massive 5x M.2 slots. Two are driven directly by the CPU (supporting PCIe 5.0 x4), and three are driven by the X870E chipset (supporting PCIe 4.0).
Technical Specifications
| Model Name | ROG CROSSHAIR 2006 |
| Warranty | 3 Years Local Warranty |
| Chipset | AMD X870E |
| CPU Support | AMD Ryzen™ 9000/8000/7000 Series (Socket AM5) |
| Form Factor | ATX (12 inch x 9.6 inch) |
| Memory | 4x DDR5 DIMM, Max 256GB, up to 8600+ MT/s (OC) |
| PCIe Slots | 2x PCIe 5.0 x16 (supports x16 or x8/x8 modes) |
| Storage | 5x M.2 (2x PCIe 5.0, 3x PCIe 4.0), 4x SATA 6Gb/s |
| Networking | Wi-Fi 7, 1x 10Gb LAN, 1x 5Gb LAN |
| Special Features | 2″ OLED Display, Extreme OC Kit, USB4 (40Gbps) |
