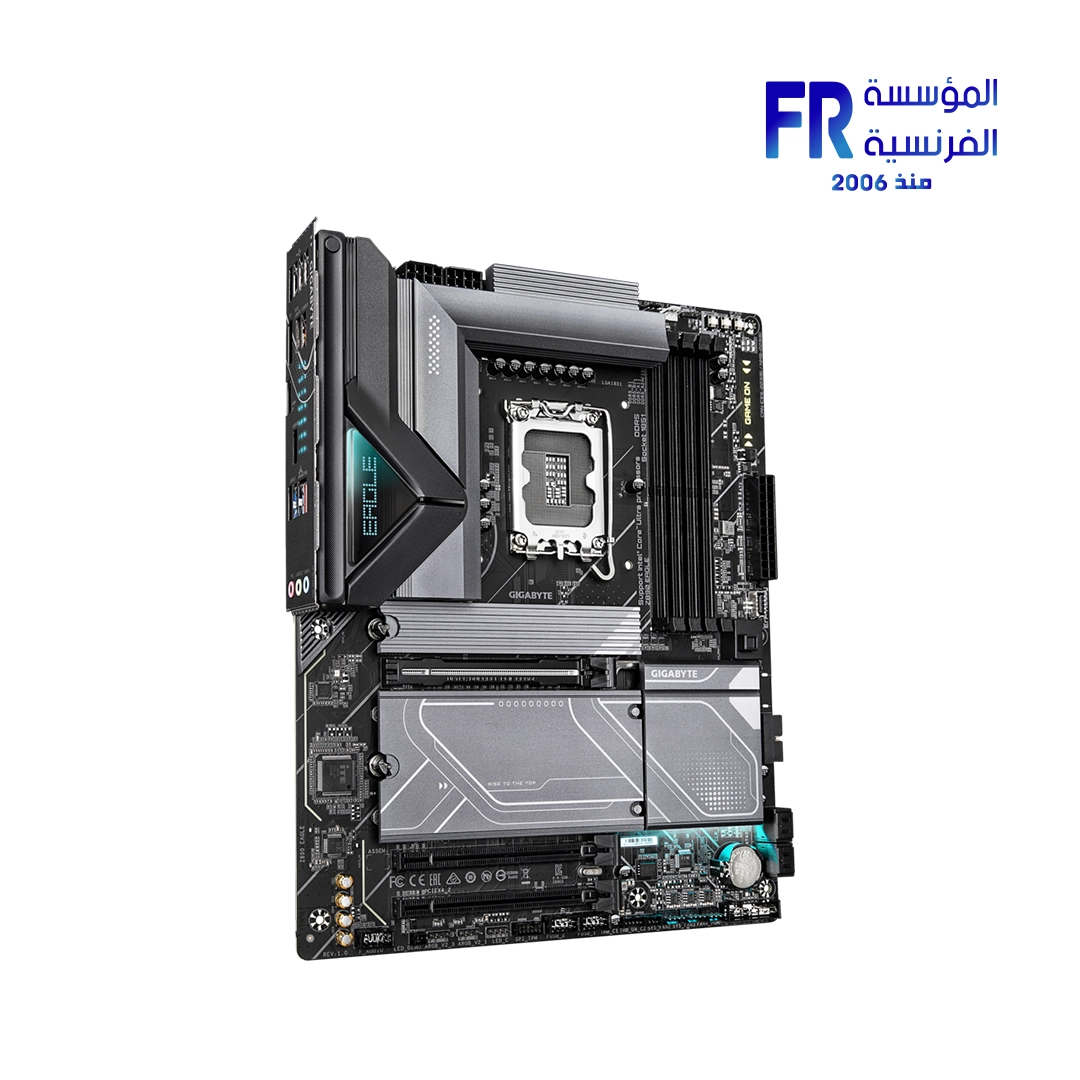

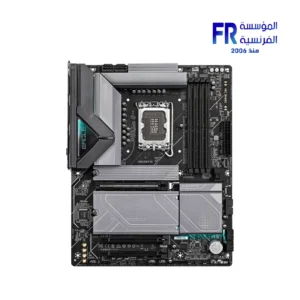

Gigabyte Z890 Eagle LGA1851 Gaming Motherboard

Gigabyte Z890 Eagle LGA1851 Gaming Motherboard:

The Gigabyte Z890 Eagle LGA1851 Gaming Motherboard provides a robust and cutting-edge foundation for your high-performance PC. It supports Intel® Core™ Ultra Processors, ensuring compatibility with the latest generation of CPUs. This motherboard features support for ultra-fast DDR5 memory up to 8800(O.C) MT/s and a PCIe 5.0 x16 slot, delivering blazing-fast performance for demanding components. Furthermore, its comprehensive connectivity, including USB4® and multiple M.2 slots, makes it an excellent choice for building a powerful and reliable gaming system.

---

Unleashed Performance with Intel® Core™ Ultra & DDR5:

The Gigabyte Z890 Eagle Motherboard is engineered for peak performance. It supports the latest Intel® Core™ Ultra Processors, ensuring compatibility with current and future high-end CPUs. The motherboard features a dedicated PCI Express 5.0 x16 slot, integrated into the CPU. This slot provides extreme bandwidth for the newest graphics cards and maximizing gaming and content creation capabilities.

For memory, this motherboard boasts four DDR5 DIMM sockets. These support up to 256 GB of system memory. It features a dual-channel memory architecture. This allows for high-speed data transfer. Specifically, it supports DDR5 memory modules with speeds up to 8800(O.C) MT/s. Furthermore, it supports Extreme Memory Profile (XMP) memory modules. This enables easy overclocking for enhanced memory performance.

---

Advanced Connectivity & Storage:

The Gigabyte Z890 Eagle ensures robust and future-proof connectivity. It features a Realtek® 2.5GbE LAN chip. This delivers fast transfer speeds, ensuring a stable network environment for online gaming and data transfer. For display outputs, it includes one USB4® USB Type-C® port and one DisplayPort, both supporting a maximum resolution of 3840×2160@144 Hz with DisplayPort 2.1 version.

Storage options are comprehensive. The motherboard includes four M.2 connectors. Two are integrated into the CPU, supporting PCIe 5.0 x4/x2 SSDs and PCIe 4.0 x4/x2 SSDs respectively. Two more are on the chipset, supporting PCIe 4.0 x4/x2 SSDs and SATA/PCIe 4.0 x4/x2 SSDs. This ensures lightning-fast boot times and application loading. Additionally, four SATA 6Gb/s connectors provide ample space for traditional storage devices, with RAID 0, 1, 5, and 10 support for both NVMe SSDs and SATA devices. USB connectivity is extensive, featuring a rear USB4® USB Type-C® port, multiple USB 3.2 Gen 2 Type-A, USB 3.2 Gen 1, and USB 2.0/1.1 ports, ensuring compatibility with a wide range of peripherals.

---

Premium Audio & User-Friendly Features:

Experience immersive audio with the Realtek® Audio CODEC. This provides High Definition Audio with 2/4/5.1/7.1-channel support. This ensures crystal-clear sound for gaming and multimedia. The motherboard also includes convenient internal I/O connectors for easy system assembly and expansion.

The Gigabyte Z890 Eagle incorporates several user-friendly features. It supports GIGABYTE Control Center (GCC) for unified software management. Q-Flash and Q-Flash Plus functionalities allow for easy BIOS updates without needing to install the CPU, memory, or graphics card. Hardware monitoring features like voltage, temperature, and fan speed detection ensure your system operates optimally. This motherboard runs on a licensed AMI UEFI BIOS, providing a robust and reliable foundation for your system.

Explore compatible Intel Motherboards or check Gigabyte Products for other options. Find full details on the official Gigabyte Z890 Eagle product page.

---

Specifications:

CPU & Chipset:

• CPU Socket: LGA1851 (Support for Intel® Core™ Ultra Processors)
• Chipset: Intel® Z890 Express Chipset

Memory:

• Memory Slots: 4 x DDR5 DIMM sockets, supporting up to 256 GB (64 GB single DIMM capacity)
• Memory Type: DDR5 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s
• Memory Architecture: Dual channel
• ECC Support: ECC Un-buffered DIMM 1Rx8/2Rx8 (operates in non-ECC mode)
• Non-ECC Support: Non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16
• XMP Support: Yes

Onboard Graphics:

• Graphics Processor: Integrated Graphics Processor-Intel® HD Graphics support
• USB4® USB Type-C® Port: 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs, max resolution 3840×2160@144 Hz (DisplayPort 2.1)
• DisplayPort: 1 x DisplayPort, max resolution 3840×2160@144 Hz (DisplayPort 2.1)

Audio & LAN:

• Audio Chip: Realtek® Audio CODEC
• Audio Channels: High Definition Audio, 2/4/5.1/7.1-channel
• LAN Chip: Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Expansion Slots:

• PCI Express x16 Slot (CPU): 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
• PCI Express x16 Slots (Chipset): 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1/2)

Storage Interface:

• M.2 Connector (CPU – M2A_CPU): 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support)
• M.2 Connector (CPU – M2B_CPU): 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support)
• M.2 Connector (Chipset – M2Q_SB): 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support)
• M.2 Connector (Chipset – M2M_SB): 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4/x2 SSD support)
• SATA Connectors: 4 x SATA 6Gb/s connectors
• RAID Support (NVMe SSD): RAID 0, RAID 1, RAID 5, and RAID 10
• RAID Support (SATA): RAID 0, RAID 1, RAID 5, and RAID 10

USB Ports:

• Rear USB4® USB Type-C® (CPU): 1 x USB4® USB Type-C® port on the back panel
• Internal USB Type-C (Chipset): 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
• Rear USB 3.2 Gen 2 Type-A (Chipset): 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
• Rear USB 3.2 Gen 1 (Chipset): 3 x USB 3.2 Gen 1 ports on the back panel
• Internal USB 3.2 Gen 1 (Chipset): 2 x USB 3.2 Gen 1 ports available through the internal USB header
• Rear USB 2.0/1.1 (Chipset+Hub): 4 x USB 2.0/1.1 ports on the back panel
• Internal USB 2.0/1.1 (Chipset+Hub): 4 x USB 2.0/1.1 ports available through the internal USB headers

Internal I/O Connectors:

• 1 x 24-pin ATX main power connector
• 2 x 8-pin ATX 12V power connectors
• 1 x CPU fan header
• 1 x CPU fan/water cooling pump header
• 3 x system fan headers
• 1 x system fan/water cooling pump header
• 3 x addressable RGB Gen2 LED strip headers
• 1 x RGB LED strip header
• 4 x M.2 Socket 3 connectors
• 4 x SATA 6Gb/s connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x USB Type-C® header, with USB 3.2 Gen 2 support
• 1 x USB 3.2 Gen 1 header
• 2 x USB 2.0/1.1 headers
• 2 x Thunderbolt™ add-in card connectors (For GIGABYTE Thunderbolt™ 5 add-in card only)
• 1 x Trusted Platform Module header
• 1 x power button
• 1 x Q-Flash Plus button
• 1 x reset button
• 1 x reset jumper
• 1 x Clear CMOS jumper

Back Panel Connectors:

• 1 x USB4® USB Type-C® port (DisplayPort)
• 2 x USB 3.2 Gen 2 Type-A ports (red)
• 3 x USB 3.2 Gen 1 ports
• 4 x USB 2.0/1.1 ports
• 1 x DisplayPort
• 2 x antenna connectors (2T2R)
• 1 x RJ-45 port
• 3 x audio jacks

I/O Controller & BIOS:

• I/O Controller: iTE® I/O Controller Chip
• BIOS: 1 x 256 Mbit flash, licensed AMI UEFI BIOS
• BIOS Features: PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Hardware Monitoring:

• Monitoring: Voltage detection, Temperature detection, Fan speed detection, Water cooling flow rate detection
• Warnings: Fan fail warning
• Control: Fan speed control (depends on fan/pump installed)

Unique Features & Software:

• GIGABYTE Control Center (GCC) Support: Yes
• Q-Flash Support: Yes
• Q-Flash Plus Support: Yes
• Smart Backup Support: Yes
• Bundled Software: Norton® Internet Security (OEM version), LAN bandwidth management software

Operating System & Form Factor:

• OS Support: Windows 11 64-bit
• Form Factor: ATX Form Factor; 30.5cm x 24.4cm

Product Identifiers:

• Part Number/SKU: 9MZ89EG-00-G10
• EAN/UPC: 889523045350
