Cooler Master Elite Gold 750W 80 Plus Gold Fully Modular Atx 3.1 Power Supply
0 EGP
- Model Name: Cooler Master Elite Gold 750W
- Part Number: MPX-7505-AFAG-BEU
- Power & Efficiency: 750W, 80 Plus Gold, ATX 3.1 Standard
- Key Features: Fully Modular, Embossed Flat Black Cables, 120mm Rifle Bearing Fan, PCIe Gen 5.1 Ready, High-Temperature Resilience (up to 40°C), Compact 140mm Depth

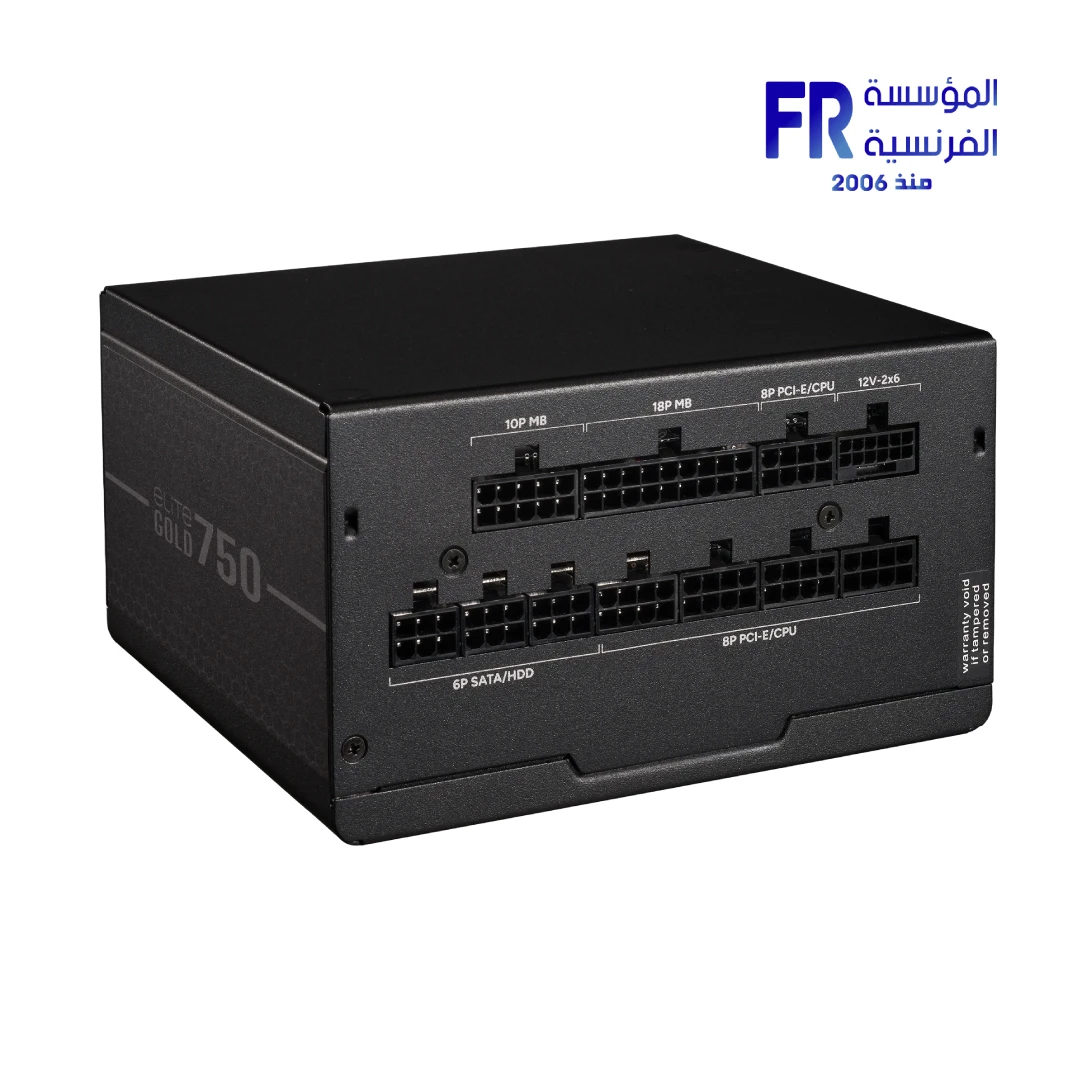

- Connectivity: 1x 12+4 Pin (12V-2×6), 2x PCIe 6+2 Pin, 2x EPS 4+4/8 Pin, 4x SATA + 2x Peripheral
- Warranty: 10 Years
✅ Authorized Cooler Master Retailer in Egypt | 10 Years Local Warranty | 100% Original Products

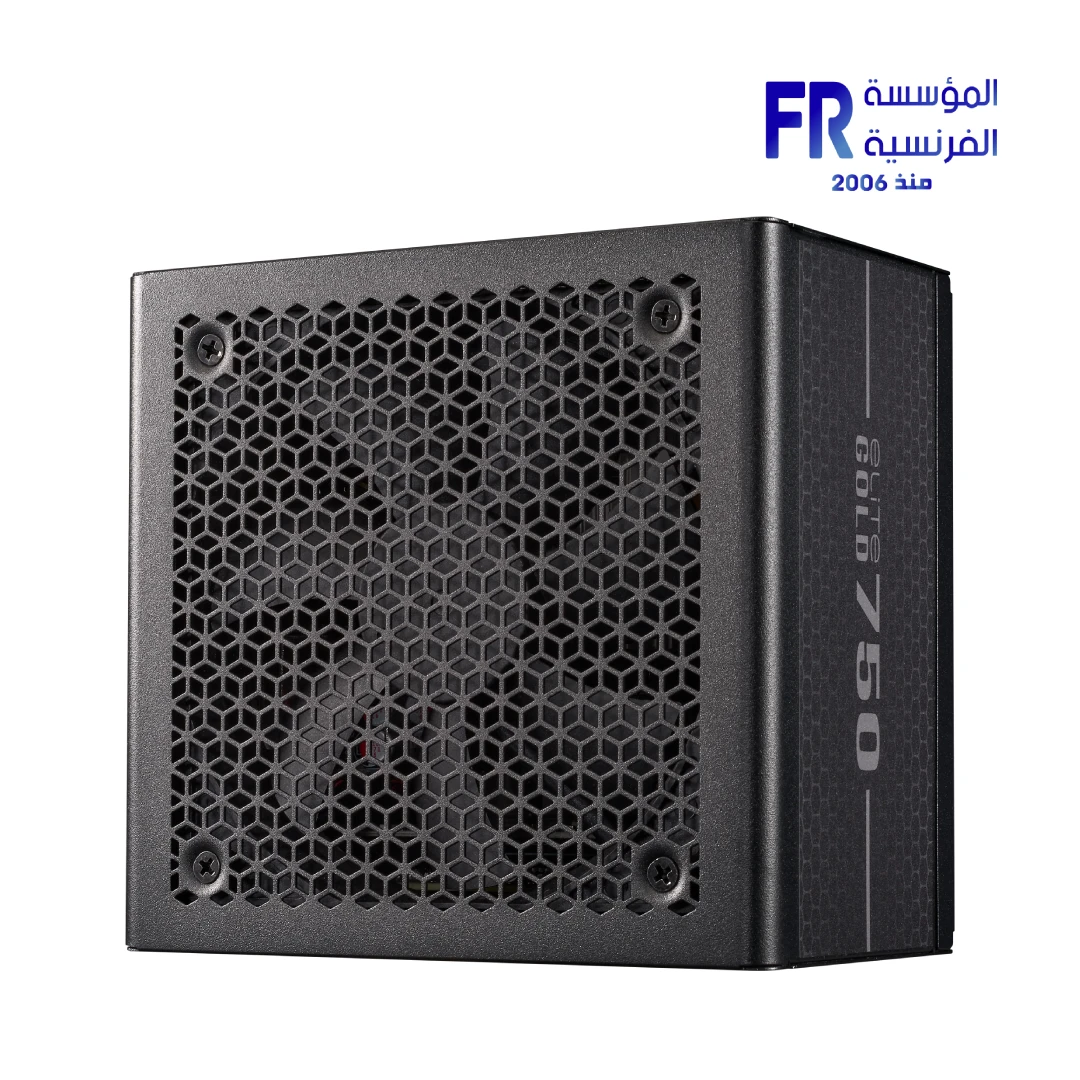

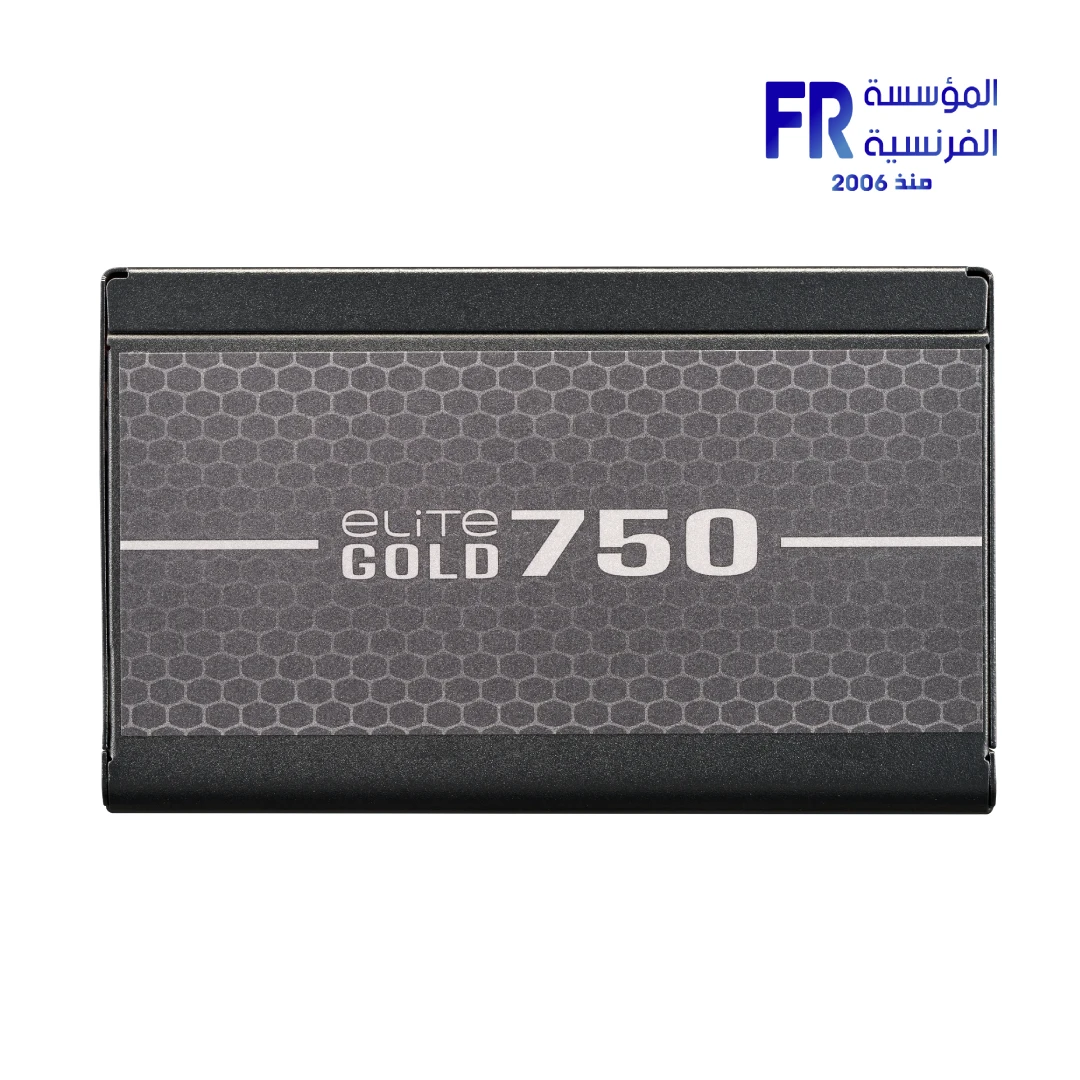

Cooler Master Elite Gold 750W ATX 3.1 Power Supply
Power your next-gen build with confidence using the Cooler Master Elite Gold 750W. Engineered for reliable everyday gaming excellence, this power supply combines full ATX 3.1 compliance with a native 12V-2×6 connector for seamless RTX 50 series compatibility. Furthermore, the Cooler Master Elite Gold 750W features a compact 140mm chassis and fully modular embossed cables, ensuring effortless installation and pristine cable management in any modern case.
Native 12+4 pin connector delivers stable power up to 200% peak load, future-proofing your rig for RTX 50 GPUs.
Ultra-short depth ensures compatibility with ITX and mid-tower cases where standard PSUs won’t fit.
Engineered for longevity and whisper-quiet operation, keeping your system cool without distracting noise.
Why Choose the Cooler Master Elite Gold 750W?
The Cooler Master Elite Gold 750W isn’t just about raw wattage; it is about intelligent design for modern builders. Additionally, the 80 PLUS Gold certification guarantees over 90% efficiency at typical loads, reducing heat output and electricity costs. Moreover, the fully modular embossed cable design provides enhanced grip and a premium aesthetic that simplifies routing. Ultimately, whether you are upgrading to an RTX 5070 or building a compact powerhouse, this Cooler Master unit delivers reliable performance backed by a decade-long warranty.

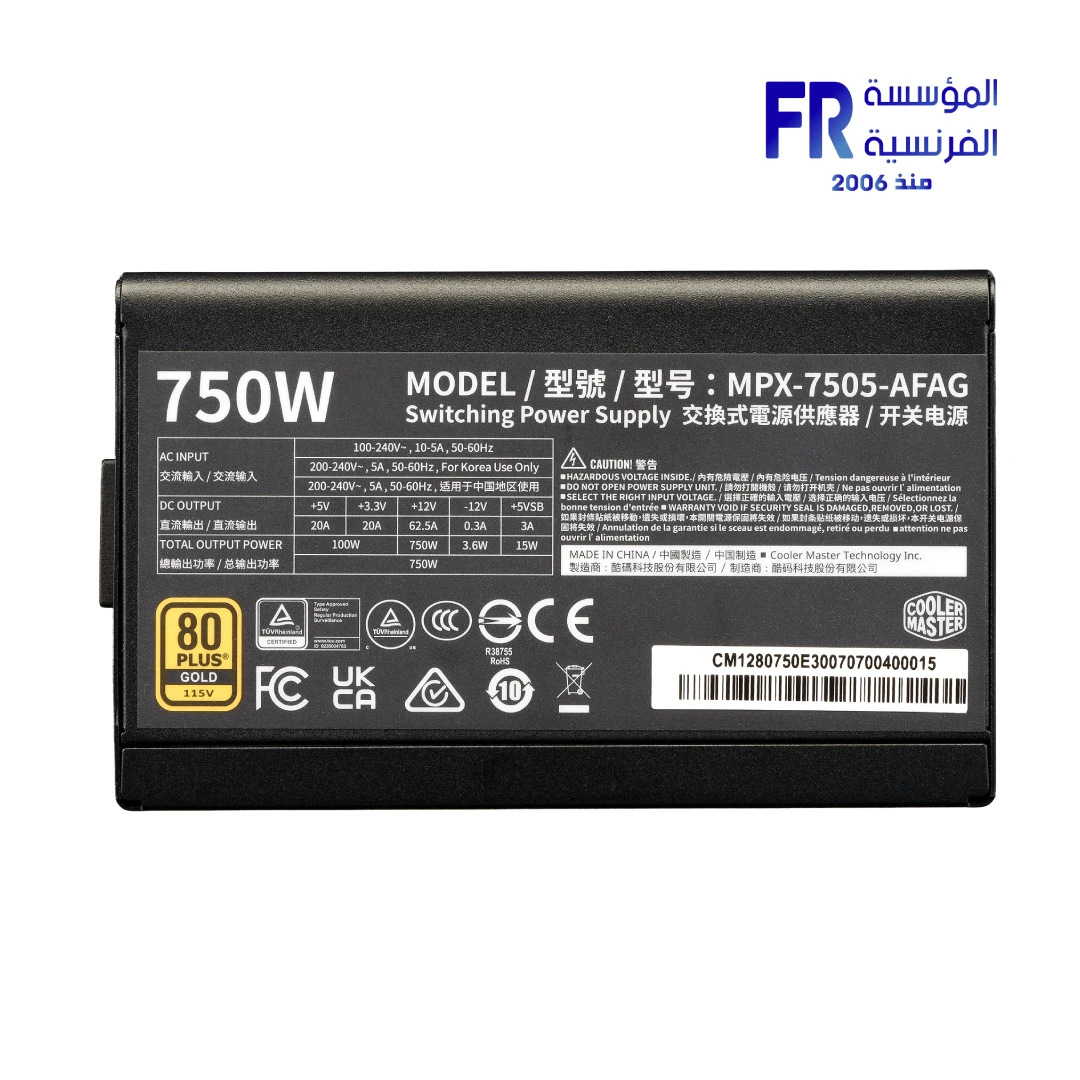

Technical Specifications
| Model Name | Elite Gold 750 |
| Part Number (MPN) | MPX-7505-AFAG-BEU |
| SKU | MPX-7505-AFAG-BEU |
| EAN / UPC | 884102134647 |
| Total Power | 750W |
| 80 PLUS Rating | 80 PLUS Gold (≥90% @ Typical Load) |
| ATX Version | ATX 12V Ver. 3.1 |
| Modularity | Fully Modular |
| Form Factor | ATX (Compact 140mm Depth) |
| Fan Size / Bearing | 120mm / Rifle Bearing |
| Input Voltage / Frequency | 100-240V / 50-60Hz |
| EPS Connectors | 1x 4+4 Pin + 1x 8 Pin |
| PCI-e Connectors | 2x 6+2 Pin |
| 12V-2×6 Connector | 1x Native 12+4 Pin (650mm) |
| SATA / Peripheral | 4x SATA / 2x Peripheral |
| Protections | UVP / OVP / OPP / OTP / SCP |
| MTBF | >100,000 Hours @ 25℃ ambient |
| Color | Black |
| Warranty | 10 Years Local Warranty |
💡 Pro Tip
Thanks to its compact 140mm depth, the Elite Gold 750W leaves extra room behind the motherboard tray for cable management in smaller cases. Always use the included native 12V-2×6 cable for RTX 50 series GPUs instead of adapters to ensure maximum safety and stability.
Frequently Asked Questions
Does the Elite Gold 750W include the native 12V-2×6 connector?
Yes, it includes a dedicated 12+4 pin (12V-2×6) connector fully compliant with PCIe Gen 5.1 standards, making it perfectly ready for next-generation RTX 50 series graphics cards.
Is this power supply compatible with small form factor cases?
Absolutely. The Elite Gold 750W features an ultra-compact 140mm depth, ensuring easy installation in space-conscious builds where standard 150mm+ PSUs might not fit.
What is the advantage of the rifle bearing fan?
The rifle bearing fan offers a significantly longer lifespan and superior noise reduction compared to standard sleeve bearings, providing consistent, quiet cooling even during extended gaming sessions.
