MSI MAG A750GL 750W 80 Plus Gold ATX 3.1 PCIe 5.1 Power Supply:

The MSI MAG A750GL 750W 80 Plus Gold ATX 3.1 PCIe 5.1 Power Supply offers a robust and efficient foundation for your high-performance gaming PC. This unit meets the latest industry standards, being ATX 3.1 ready and featuring a native PCIe 5.1 dual-color 16-pin cable. Consequently, it ensures seamless compatibility and ample power delivery for NVIDIA® GeForce RTX™ 40 Series graphics cards. Moreover, its 80 PLUS Gold certification guarantees up to 90% efficiency, significantly reducing energy consumption and operating temperatures for a cooler, quieter system.

Full Modular Design & Enhanced Protection:

Streamlined Cable Management:

The MSI MAG A750GL Power Supply features a fully modular design with flat cables. This greatly simplifies cable management, leading to a cleaner build and improved airflow within your PC case. Organizing cables, often a challenging part of PC building, becomes much easier with these flat cables. Specifically, you only connect the necessary cables, which reduces clutter and optimizes internal space. Importantly, the 16-pin PCIe cable’s unique dual-color design helps users easily verify proper connection, enhancing safety and preventing installation errors.

Robust Protections and Cooling:

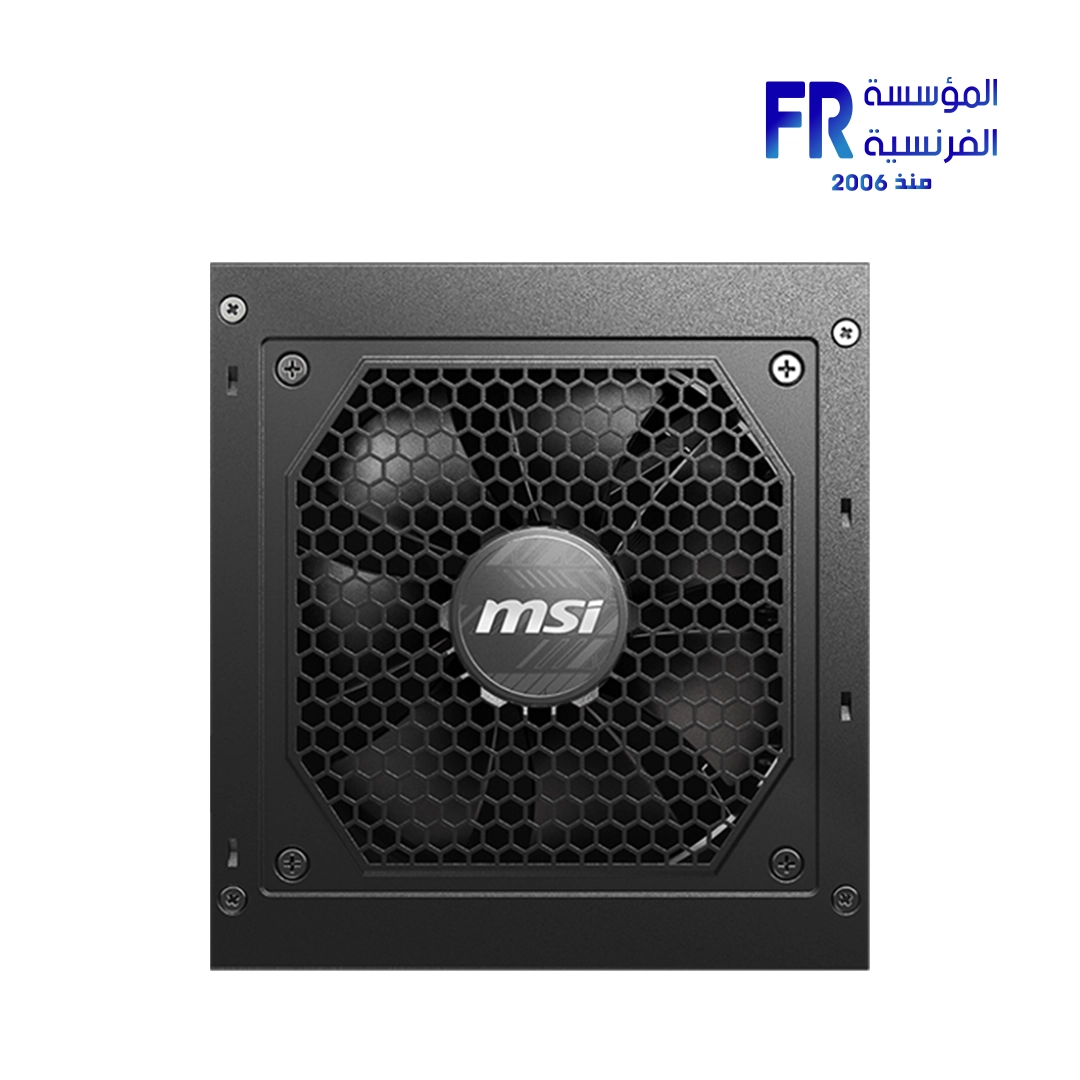

Reliability and safety are paramount with this MSI power supply. It incorporates comprehensive industrial-level protection mechanisms. These include OCP (Over Current Protection), OVP (Over Voltage Protection), OPP (Over Power Protection), OTP (Over Temperature Protection), SCP (Short Circuit Protection), and UVP (Under Voltage Protection). These safeguards effectively ensure your components remain safe from various electrical anomalies. Additionally, a 120mm Fluid Dynamic Bearing fan provides excellent cooling performance while maintaining low noise levels, contributing to a quieter computing environment.

Stable Energy Foundation:

The MSI MAG A750GL 750W 80 Plus Gold ATX 3.1 PCIe 5.1 Power Supply is built with LLC Full Bridge Topology and DC-DC module design. This ensures stable and efficient power conversion across all voltage rails. It offers a robust 750W power output with a power excursion capability of up to 1500W for 100μs. Thus, it handles sudden power spikes effectively. Its compact dimensions (140 x 150 x 86 mm) allow for easy installation in most ATX-compatible cases. This powerful and reliable unit provides the stable energy foundation your high-performance gaming rig deserves.

Explore compatible Power Supplies or check MSI Products for other options. Find full details on the official MSI MAG A750GL PCIE5 product page.

Specifications:

• Efficiency Rating: 80 PLUS Gold (up to 90%)
• Modularity: Yes (full modular)
• Fan Size: 120 mm
• Fan Bearing: Fluid Dynamic Bearing
• Dimensions (DxWxH): 140 x 150 x 86 mm
• PFC Type: Active PFC
• Input Voltage Range: 100~240 VAC
• Power Watt: 750W
• Power Excursion: 1500W (*up to 200% of the PSU’s rated power for 100μs)
• Input Frequency Range: 47-63Hz
• Protection: OCP / OVP / OPP / OTP / SCP / UVP

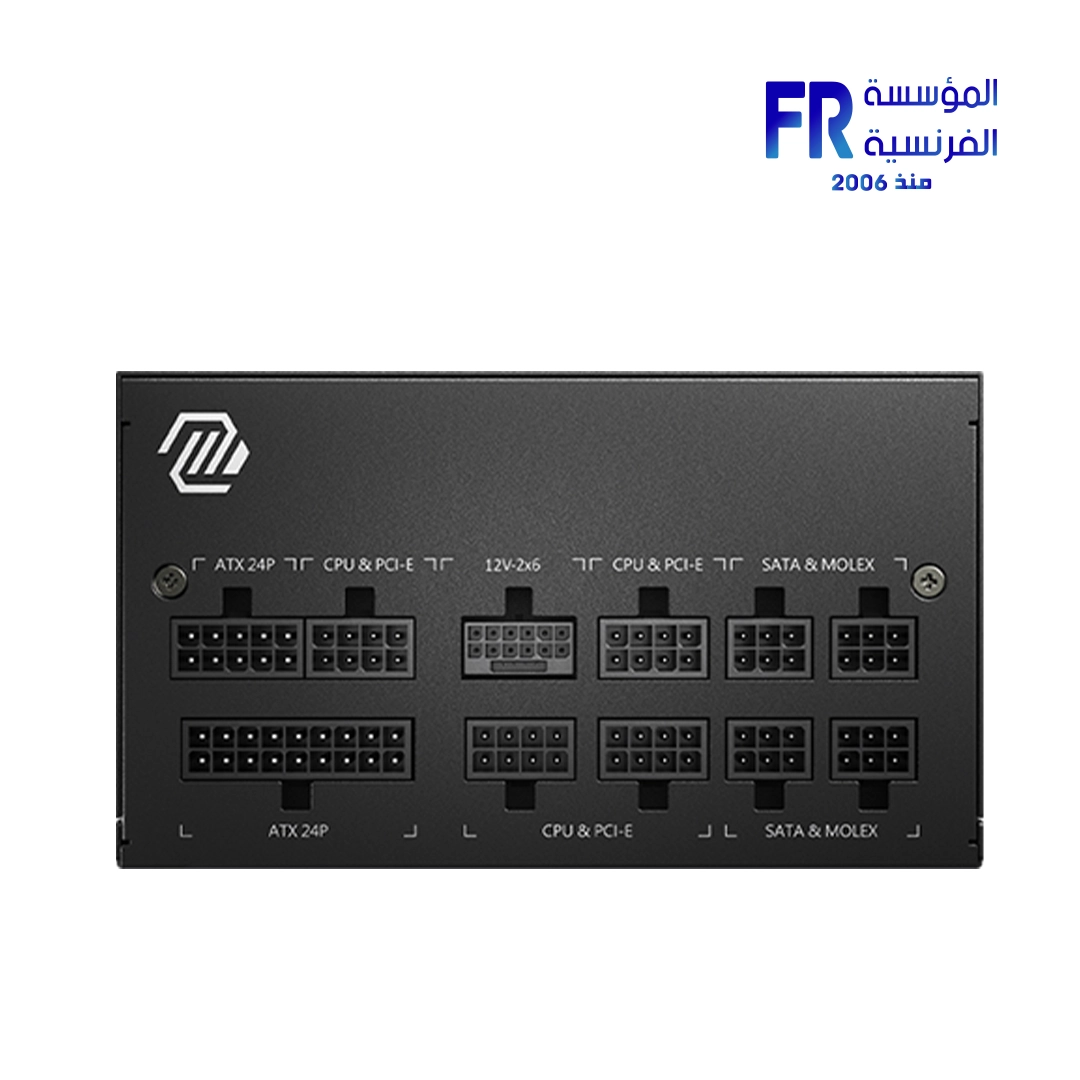

• ATX (24 pin) Connector: 1
• EPS (4+4 pin) Connector: 2
• PCI-E 5.1 (16 pin) Connector: 1 (450W)
• PCI-E (6+2 pin) Connector: 3
• SATA (15 pin) Connector: 8
• PERIPHERAL (4 pin) Connector: 4
• FDD (4 pin) Connector: 1
• Model Number/SKU: 306-7ZP8B11-CE0
• EAN/UPC: 824142319239
