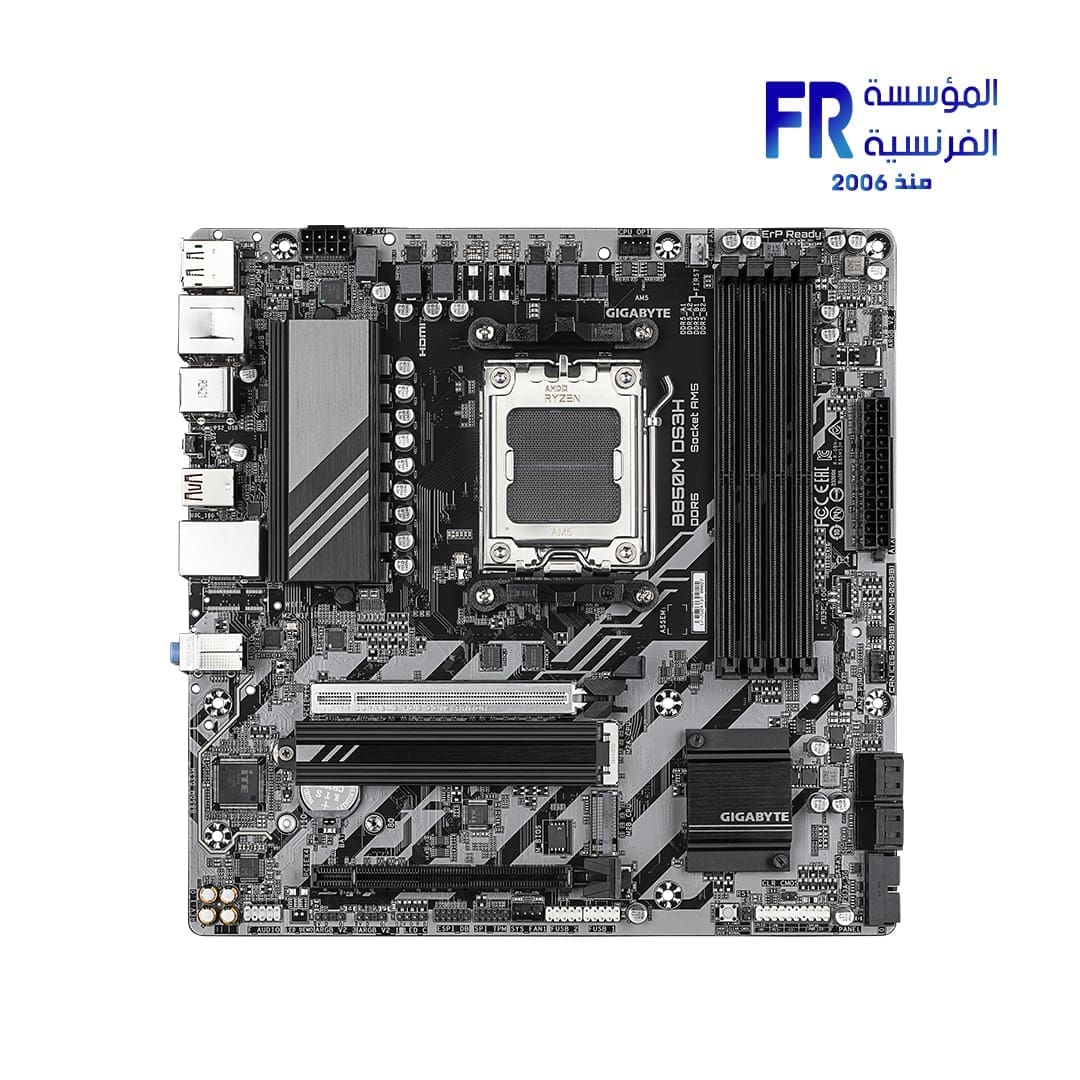

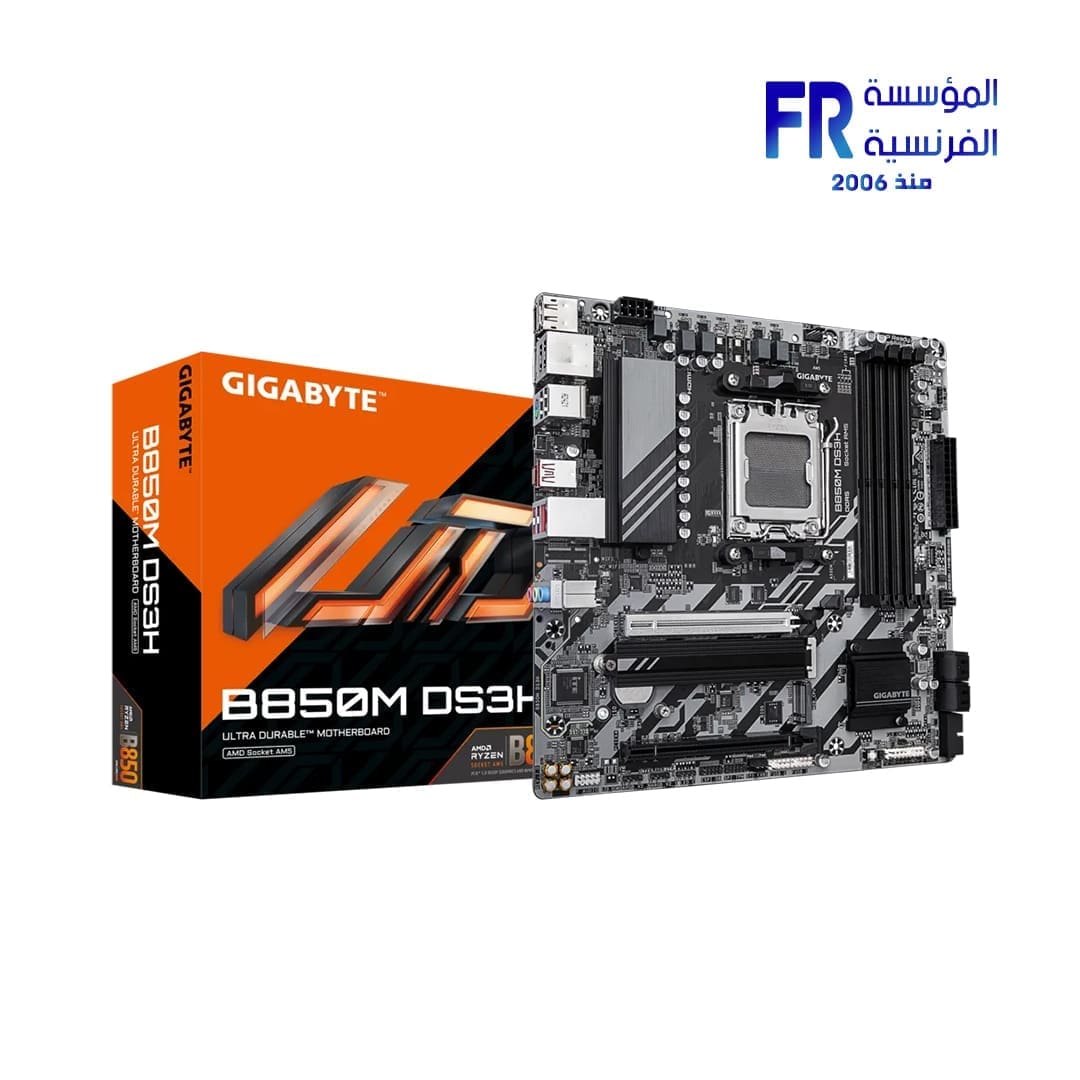

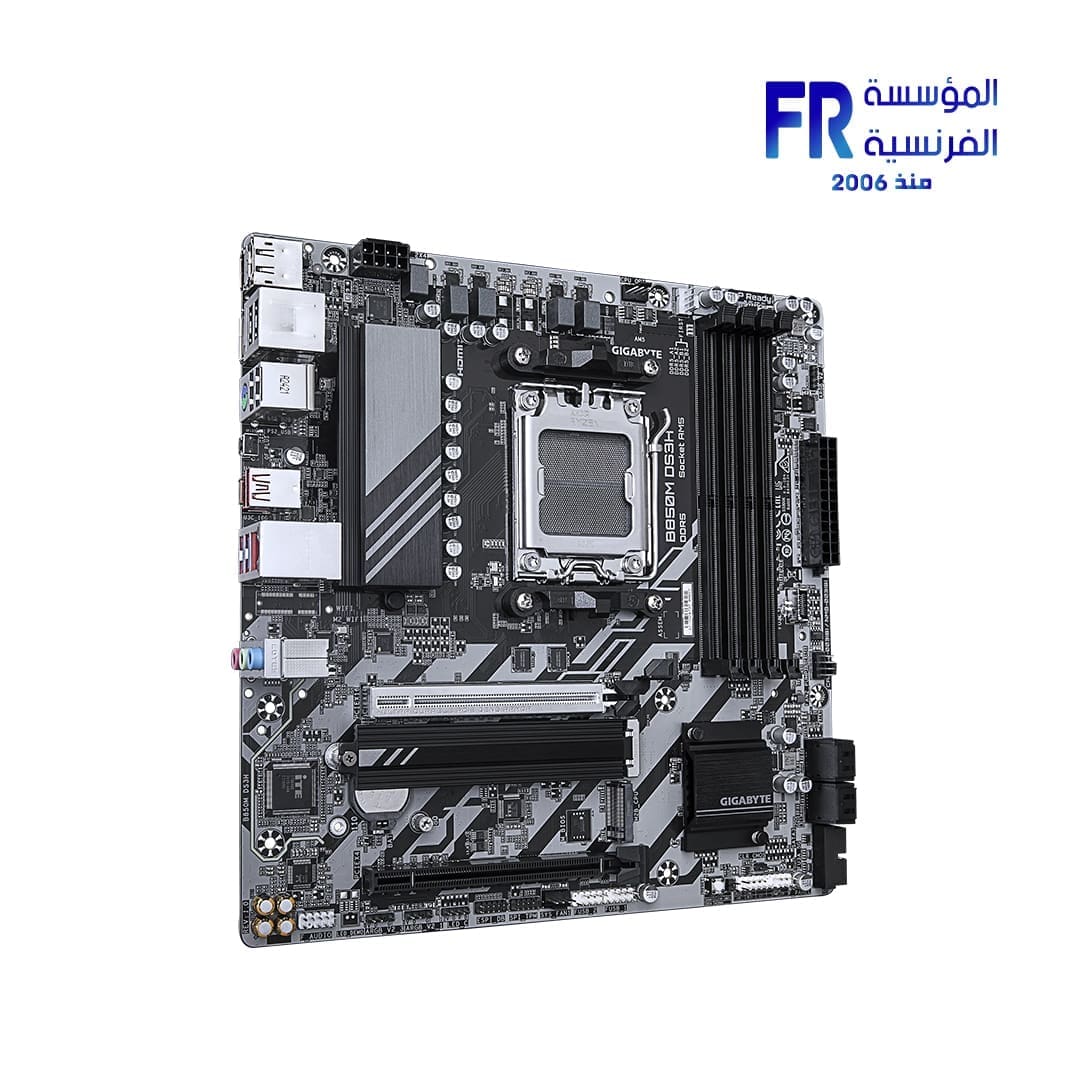

Gigabyte B850M DS3H AM5 Motherboard

Gigabyte B850M DS3H AM5 Motherboard

Gigabyte B850M DS3H AM5 Motherboard SPECIFICATIONS:

• CPU Support:
  • AMD Ryzen™ 9000 Series Processors
  • AMD Ryzen™ 8000 Series Processors
  • AMD Ryzen™ 7000 Series Processors (Socket AM5)

• Chipset: AMD B850

• Memory:
  • DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity)
  • Dual channel memory architecture
  • Supports speeds up to 8200 MT/s (O.C.)
  • Supports AMD EXPO™ and XMP memory modules
• Onboard Graphics:
  • Integrated AMD Radeon™ Graphics
  • 1 x HDMI port (HDMI 2.1, 4K@60Hz, HDR, HDCP 2.3)
  • 2 x DisplayPorts (DisplayPort 1.4, 4K@144Hz)
  • Triple-display support
• Audio:
  • Realtek® Audio CODEC
  • High Definition Audio
  • 2/4/5.1/7.1-channel support

• Networking:

  • Realtek® 2.5GbE LAN chip
• Expansion Slots:
  • CPU:
    • 1 x PCI Express x16 slot (PCIEX16):
      • PCIe 5.0 x16 for Ryzen 9000/7000 Series
      • PCIe 4.0 x8 for Ryzen 8000 Series-Phoenix 1
      • PCIe 4.0 x4 for Ryzen 8000 Series-Phoenix 2
  • Chipset:
    • 1 x PCI Express x16 slot (PCIEX4) running at x4
• Storage Interfaces:
  • CPU:
    • 2 x M.2 connectors (M2A_CPU, M2B_CPU) supporting PCIe 5.0/4.0 x4/x2 SSDs
  • Chipset:
    • 4 x SATA 6Gb/s connectors
  • RAID 0, RAID 1, RAID 5, RAID 10 support for NVMe SSDs (RAID 5 only on Ryzen 9000 Series)
  • RAID 0, RAID 1, RAID 10 support for SATA storage devices

• USB Ports:

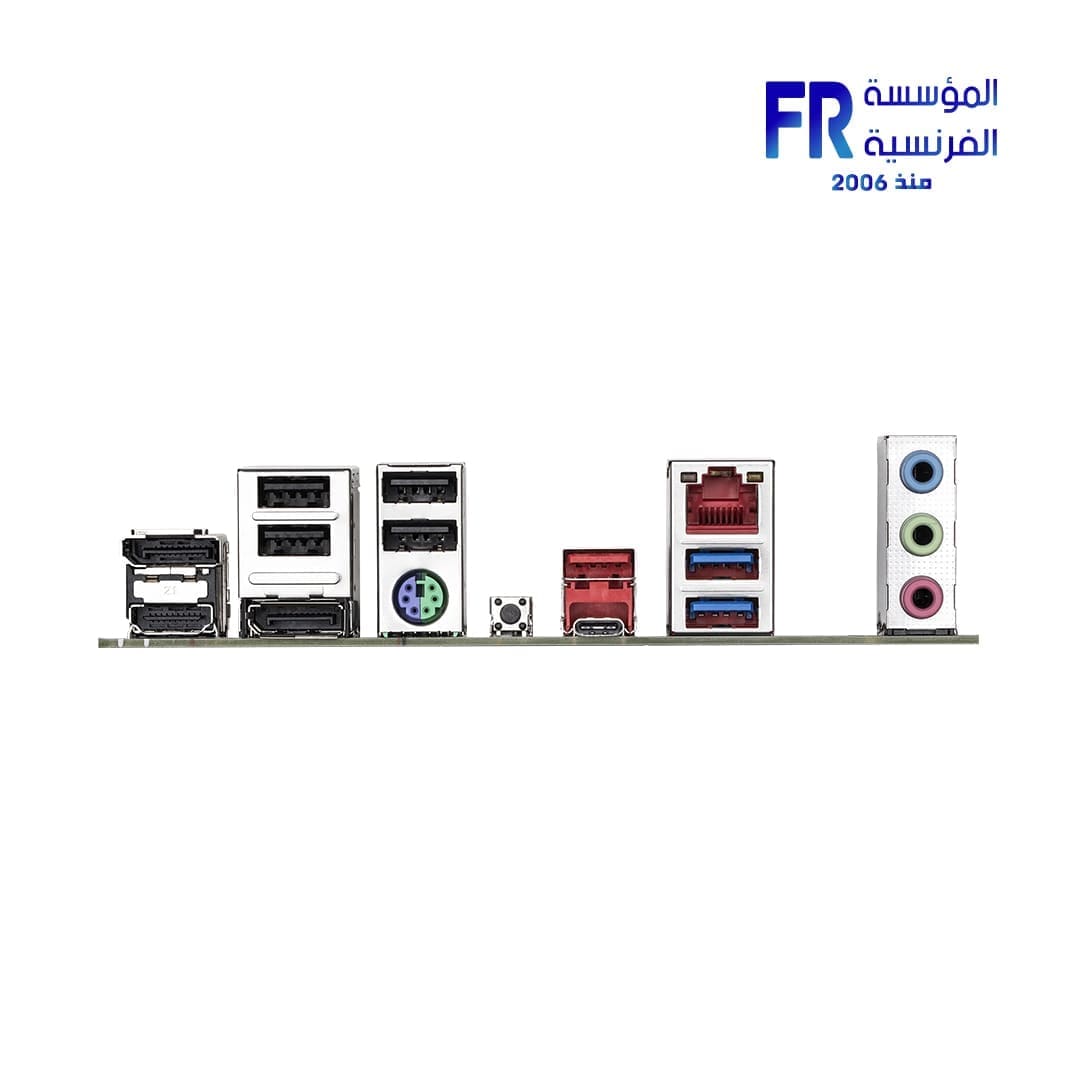

  • Back Panel:
    • 1 x USB Type-C® (USB 3.2 Gen 2)
    • 1 x USB 3.2 Gen 2 Type-A port (red)
    • 2 x USB 3.2 Gen 1 ports
    • 4 x USB 2.0/1.1 ports
  • Internal Headers:
    • 1 x USB Type-C® (USB 3.2 Gen 2)
    • 4 x USB 3.2 Gen 1 ports
    • 4 x USB 2.0/1.1 ports
• Internal I/O Connectors:
  • Power connectors (24-pin ATX, 8-pin ATX 12V)
  • Fan headers (CPU, system, water cooling pump)
  • RGB LED headers
  • SATA connectors, front panel headers
• BIOS:
  • 256 Mbit flash
  • AMI UEFI BIOS
  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

• Unique Features:

  • GIGABYTE Control Center (GCC)
  • Q-Flash, Q-Flash Plus, Smart Backup
• Bundled Software:
  • Norton® Internet Security (OEM version)
  • LAN bandwidth management software
• Operating System Support:
  • Windows 11 64-bit
  • Windows 10 64-bit
• Form Factor:
  • Micro ATX; 24.4cm x 24.4cm

• X3D Turbo Mode : Unleash new era gaming performance
• AMD Socket AM5 : Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
• Digital twin 8+2+2 phases VRM solution
• Dual Channel DDR5 : 4*DIMMs with AMD EXPO™Memory Module Support

• EZ-Latch : PCIe x16 Slot with Quick Release Design

• M.2 EZ-Latch Plus : screwless installation for M.2 SSDs
• Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
• Ultra-Fast Storage : 2*M.2 slots, including 1* PCIe 5.0 slot

• M.2 Thermal Guard : To Ensure M.2 SSD Performance

• Fast Networking : 2.5GbE LAN
• Extended Connectivity : 2*DP, HDMI
