Gigabyte B850M Gaming X WIFI6E AM5 Gaming Motherboard
9599 EGP
- Form Factor: Micro-ATX (24.4×24.4cm)
- Chipset: AMD B850
- Socket: AM5 (Ryzen 7000/8000)
- Memory: 4x DDR5 (128GB max, 6000+ MHz OC)
Not available right now, but we have the alternative
Our sales team will match you with an in-stock alternative at the same level or better, at the best price, right on WhatsApp.
Talk to our sales team for an alternativeOut of stock
Want to be notified when this product is back in stock?
In-stock alternatives

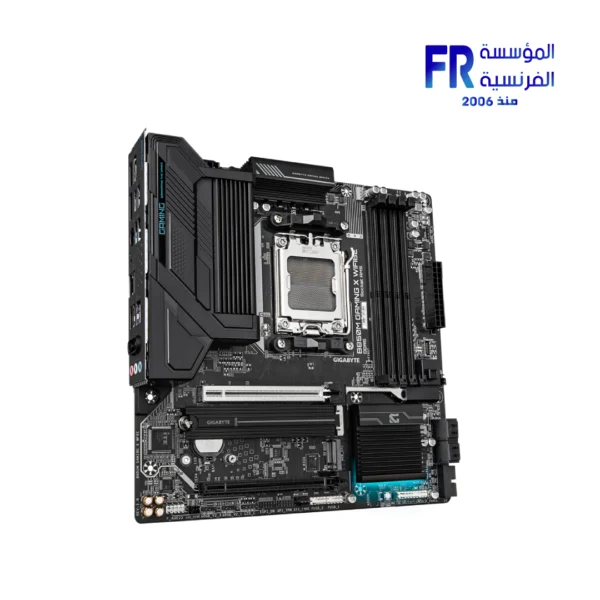

Gigabyte B850M Gaming X WiFi 6E AM5 Gaming Motherboard
The Gigabyte B850M Gaming X WiFi 6E delivers next-gen AMD Ryzen support with PCIe 5.0 connectivity and WiFi 6E in a micro-ATX form factor. Featuring DDR5 memory optimization and advanced thermal design, this motherboard offers exceptional value for AM5 gaming builds.
Next-Gen AMD Performance:
AM5 Socket Ready:
Supports AMD Ryzen 7000/8000 series processors with PCIe 5.0 lanes. The 6-layer PCB ensures stable power delivery for up to 105W TDP CPUs.
DDR5 Memory Boost:
Optimized traces support DDR5-6000MHz+ (OC) with AMD EXPO profiles. The dual-channel architecture provides up to 128GB capacity with on-die ECC.
Advanced Connectivity:
WiFi 6E + 2.5GbE LAN:
Intel WiFi 6E AX210 (6GHz band) delivers up to 2.4Gbps wireless speeds. Realtek 2.5GbE LAN provides low-latency wired networking.
PCIe 5.0 x16 Slot:
Steel-armored graphics slot supports next-gen GPUs with 128GB/s bandwidth. Additional PCIe 4.0 x4 slot for expansion cards.
Gaming Features:
Extended Thermal Design:
Direct-touch 8+2+2 phase VRM with 60A power stages. Enlarged heatsinks and multi-layer PCB ensure stable power delivery.
Dual PCIe 4.0 M.2 Slots:
Both M.2 slots feature thermal guards to prevent throttling. The primary slot supports 2280/22110 lengths for high-capacity NVMe SSDs.
Technical Specifications:
- Form Factor: Micro-ATX (24.4×24.4cm)
- Chipset: AMD B850
- Socket: AM5 (Ryzen 7000/8000)
- Memory: 4x DDR5 (128GB max, 6000+ MHz OC)
- PCIe: 1x PCIe 5.0 x16, 1x PCIe 4.0 x4
- Storage: 2x PCIe 4.0 M.2, 4x SATA 6Gb/s
- Networking: WiFi 6E AX210 + Realtek 2.5GbE
- Audio: Realtek ALC897 7.1-channel (Hi-Fi capacitors)
- USB: 1x USB-C 3.2 Gen2, 4x USB 3.2 Gen1, 2x USB 2.0
- RGB: 2x ARGB headers (Addressable Gen2)
Package Contents:
- B850M Gaming X WiFi 6E motherboard
- WiFi 6E antenna
- 2x SATA cables
- M.2 screws/standoffs
- I/O shield
- Gaming badge
- User manual
Explore more AM5 motherboards or visit the official Gigabyte product page for BIOS updates.
| MODEL | |
|---|---|
| CHIPSET MANUFACTURERS | |
| CPU Socket | |
| Motherboard Chipset | |
| Motherboard Type | |
| CPU SERIES | AMD Ryzen 7000 Series & Ryzen 8000 & Ryzen 9000 Series Processors |
| Technology | |
| Memory Speed | 4400 MHz, 4800 MHz, 5200 MHz, 5600 MHz, 5800 MHz, 6000 MHz, 6200 MHz, 6400 MHz, 6600 MHz, 6800 MHz, 7000 MHz, 7200 MHz, 7400 MHz, 7600 MHz, 7800 MHz, 7900 MHz, 7950 MHz, 8000 MHz, 8200 MHz |
| Max Memory Size | |
| Memory Slot | |
| PCI-E X16 | |
| PCI-E GEN | PCIe 5.0 |
| PCI-E Slots (M.2) | |
| SATAIII | |
| Communication module | |
| Part Number | |
| Warranty |
