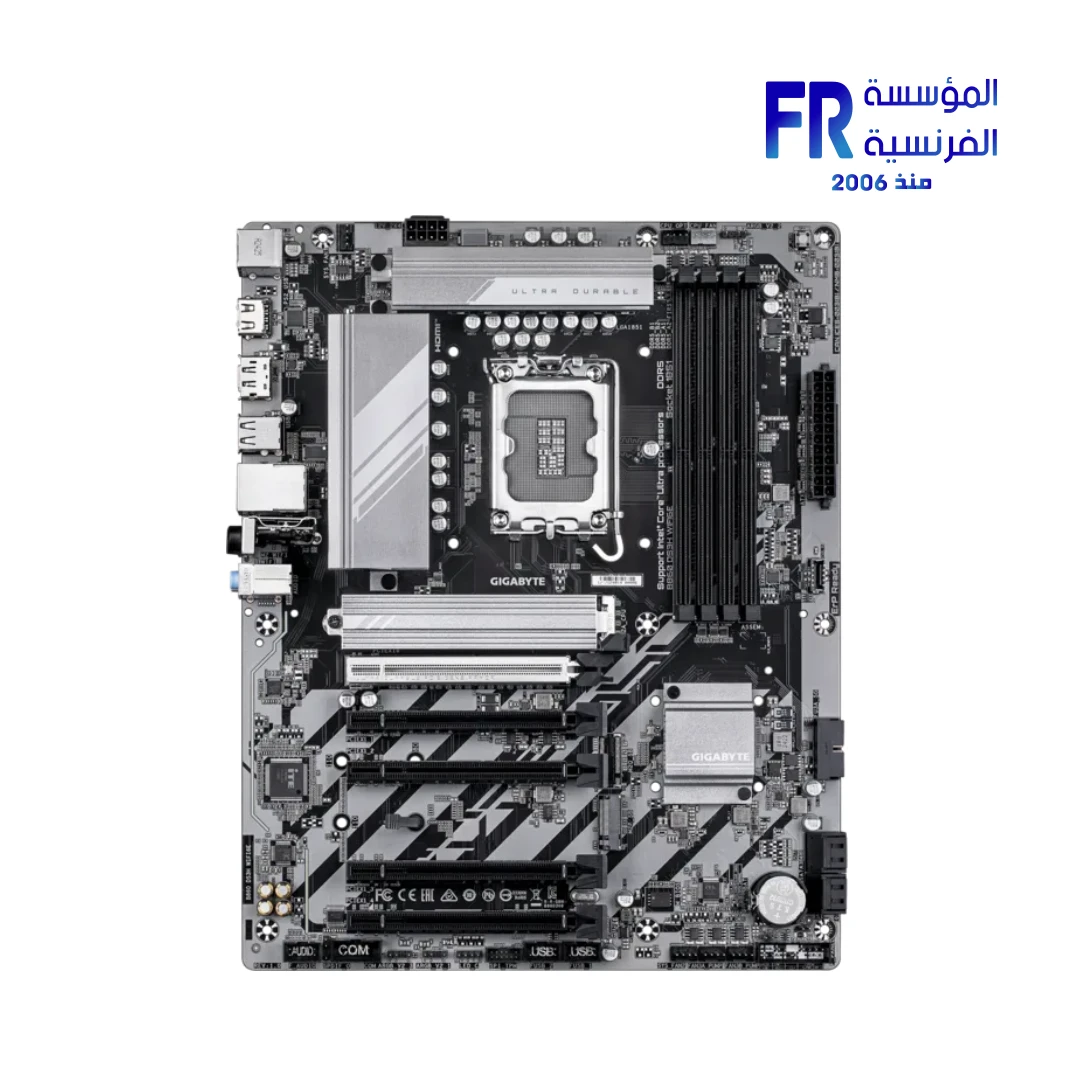

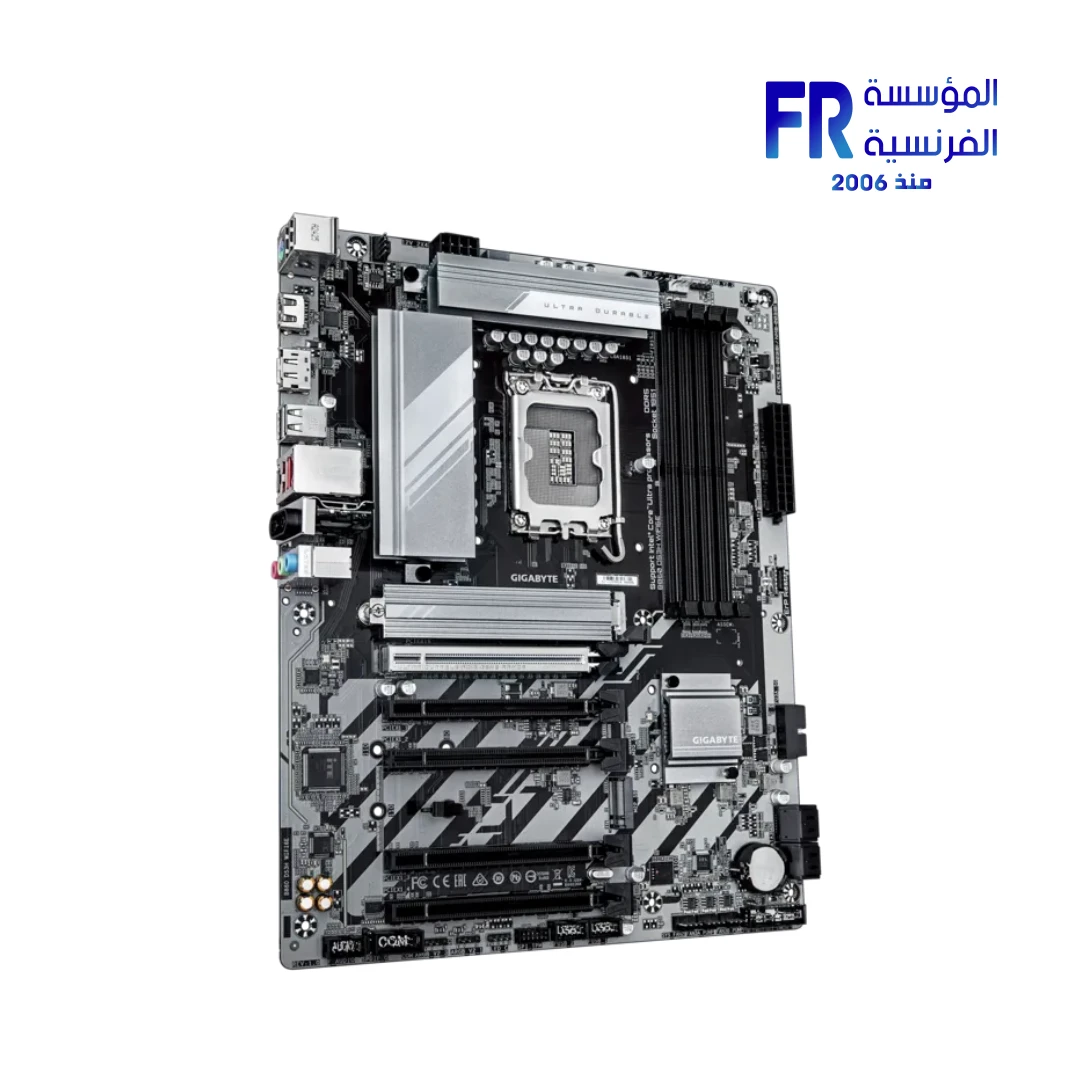

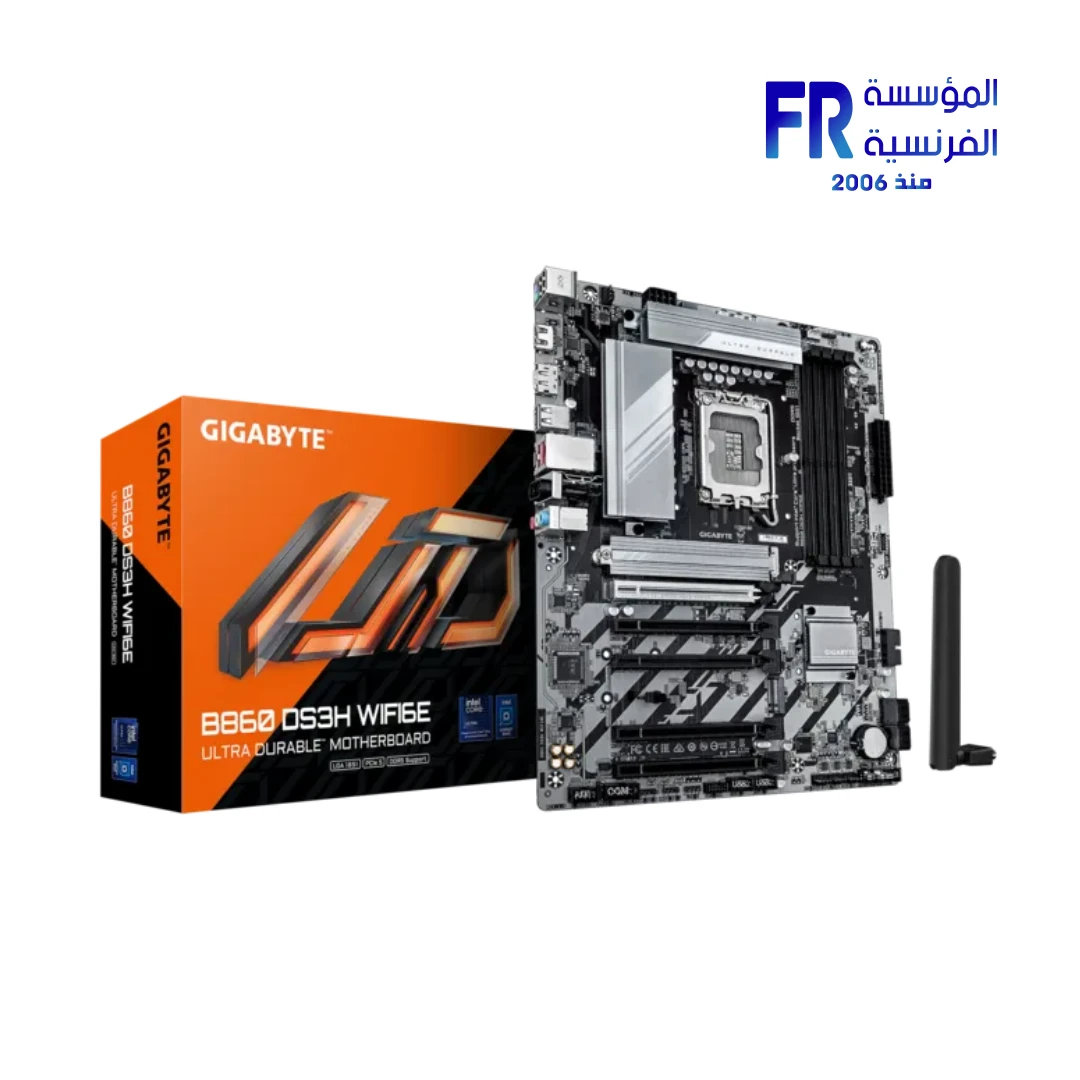

Gigabyte B860 DS3H WiFi 6E LGA 1851 DDR5 ATX Black Motherboard
8899 EGP
- Part Number 9MB86D3H6-00-G10
- CPU Socket LGA 1851 (Intel® Core™ Ultra Processors Series 2)
- Memory Support 4x DDR5 DIMM, up to 9066(O.C.) MT/s
- Primary Expansion Slot 1x PCIe 5.0 x16 (UD Slot with EZ-Latch)
- Storage Interface 2x M.2 Slots (1x PCIe 5.0 x4, 1x PCIe 4.0 x4)
- Networking 2.5GbE LAN & Wi-Fi 6E (802.11ax)
- Connectivity USB 3.2 Gen 2×2 Type-C (20Gbps) & DP 2.1
- Warranty 3 Years
Gigabyte B860 DS3H WiFi 6E LGA 1851 DDR5 ATX Black Motherboard
In short, the Gigabyte B860 DS3H WiFi 6E technically facilitates an expansive and high-performance foundation for the Intel® Core™ Ultra Processors (Series 2). Notably, the architecture utilizes a Hybrid 8+1+2 Phases VRM solution to effectively reinforce system endurance during high-load computational excursions. Specifically, the integration of D5 Bionic Corsa technology effectively acts as a performance multiplier, pushing DDR5 memory speeds to an incredible 9066+ MT/s near-instantaneously.
Furthermore, the motherboard features the revolutionary AI Snatch engine, an auto-overclocking model that technically facilitates elite performance optimization without manual complexity. Because the frame supports PCIe 5.0 M.2 storage and Wi-Fi 6E 802.11ax, it ensures your high-performance hardware transitions remain stable and future-ready. Consequently, the B860 DS3H delivers a visually and logically perfect toolkit for builders, protected by the M.2 Thermal Guard to maintain structural synchronization for enthusiast gaming builds.
Next-Gen DIY & Connectivity Synchronization
EZ-Latch & WIFI EZ-Plug
Notably, the B860 DS3H architecture specifically utilizes tool-free designs for high-velocity builds. The PCIe EZ-Latch and M.2 EZ-Latch Plus technically allow for elite hardware iterations near-instantaneously, while the WIFI EZ-Plug reinforces structural synchronization for antenna installation without the usual mechanical friction.
Ultra Durable™ Power Armor
Moreover, the 6-layer mid-loss PCB effectively supports extreme power delivery for Series 2 Intel chips. This architecture ensures your high-performance hardware transitions remain stable through UD Solid Pins and 2.5GbE LAN networking, maintaining visual and electrical perfection in every industrial-grade build.
💡 Pro-Builder Tip: Arrow Lake Memory Sync
To clarify, the Gigabyte B860 DS3H WiFi 6E technically facilitates DDR5 speeds up to 9066 MT/s. Specifically, ensure you utilize a memory kit from the official QVL list to effectively maintain structural synchronization with the D5 Bionic Corsa AI enhancements. Furthermore, utilize the EZ Debug Zone LEDs to reinforce troubleshooting efficiency during your first boot-up iteration.
Technical Specifications
| Hardware Feature | Detailed Specification |
|---|---|
| CPU | LGA1851 socket: Support for Intel® Core™ Ultra Processors |
| Chipset | Intel® B860 Express Chipset |
| Memory | 4 x DDR5 DIMM; Dual Channel; Up to 256 GB; 9066(O.C) MT/s; XMP Support |
| Onboard Graphics | 1 x HDMI 2.1 (4096×2160@60Hz); 1 x DisplayPort 2.1 (3840×2160@144Hz) |
| Audio | Realtek® Audio CODEC; 7.1-channel; S/PDIF Out Support |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Module | Intel® Wi-Fi 6E AX211; 2.4/5/6 GHz Bands; BLUETOOTH 5.3 |
| Expansion Slots | 1 x PCIe 5.0 x16; 4 x PCIe 4.0 x16 (at x1) |
| Storage Interface | 1 x PCIe 5.0 M.2; 1 x PCIe 4.0 M.2; 4 x SATA 6Gb/s; RAID 0,1,5,10 |
| USB (Rear) | 1 x Type-C® (3.2 Gen 2×2); 1 x Type-A (3.2 Gen 2); 4 x USB 2.0 |
| Internal I/O | 1x 24-pin ATX; 1x 8-pin 12V; 3x ARGB Gen2 headers; Q-Flash Plus button |

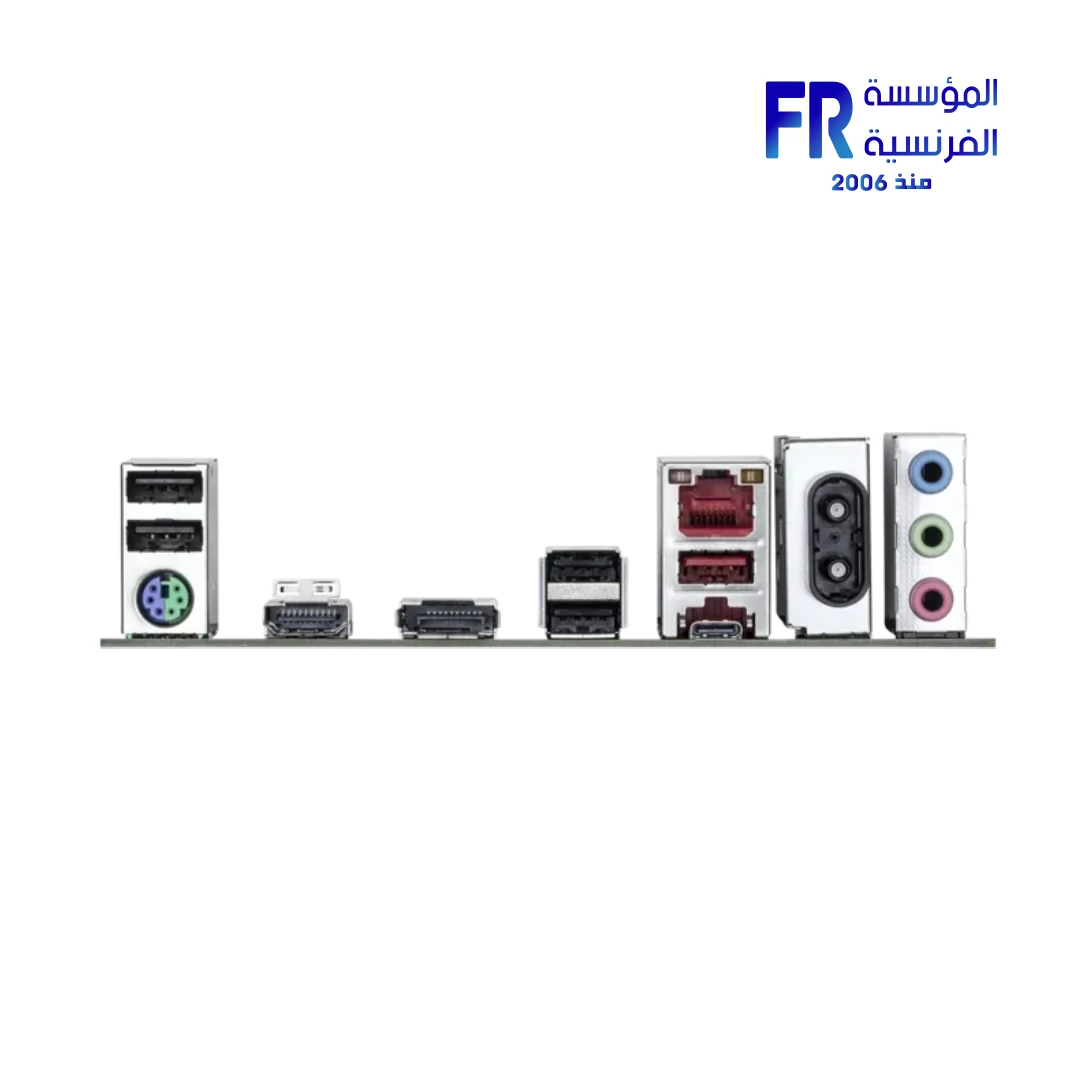

| Back Panel I/O | PS/2 combo; HDMI; DP; Type-C; RJ-45; 2x Antenna; 3x Audio Jacks |
| H/W Monitoring | Voltage, Temp, Fan speed, Water cooling flow detection |
| Operating System | Windows 11/10 64-bit (Intel® NPU driver only on Win 11) |
| Form Factor | ATX Form Factor (30.5cm x 24.4cm) |
| Model Name | B860 DS3H WIFI6E (Rev. 1.0) |
| Part Number | 9MB86D3H6-00-G10 |
| UPC | 889523046326 |
| EAN | N/A |
| Warranty | 3 Years Local Warranty |
Frequently Asked Questions
Does this motherboard support the new Intel AI features?
Notably, the B860 DS3H WiFi 6E technically facilitates full integration for Intel® Core™ Ultra processors, including specialized support for the Intel® NPU driver on Windows 11. This effectively act as a secondary signal bridge for AI-driven workflows near-instantaneously.
What is the M.2 configuration for storage?
Specifically, the motherboard architecture utilizes 2x M.2 slots, including one high-velocity PCIe 5.0 x4 slot. This technically facilitates elite storage excursions with superior cooling reinforced by the M.2 Thermal Guard heatsink iteration.
*GIGABYTE, Ultra Durable, and the GIGABYTE logo are registered trademarks. Intel, Core, and Arrow Lake are trademarks of Intel Corporation. Technical specifications are based on official documentation for Rev. 1.0.
