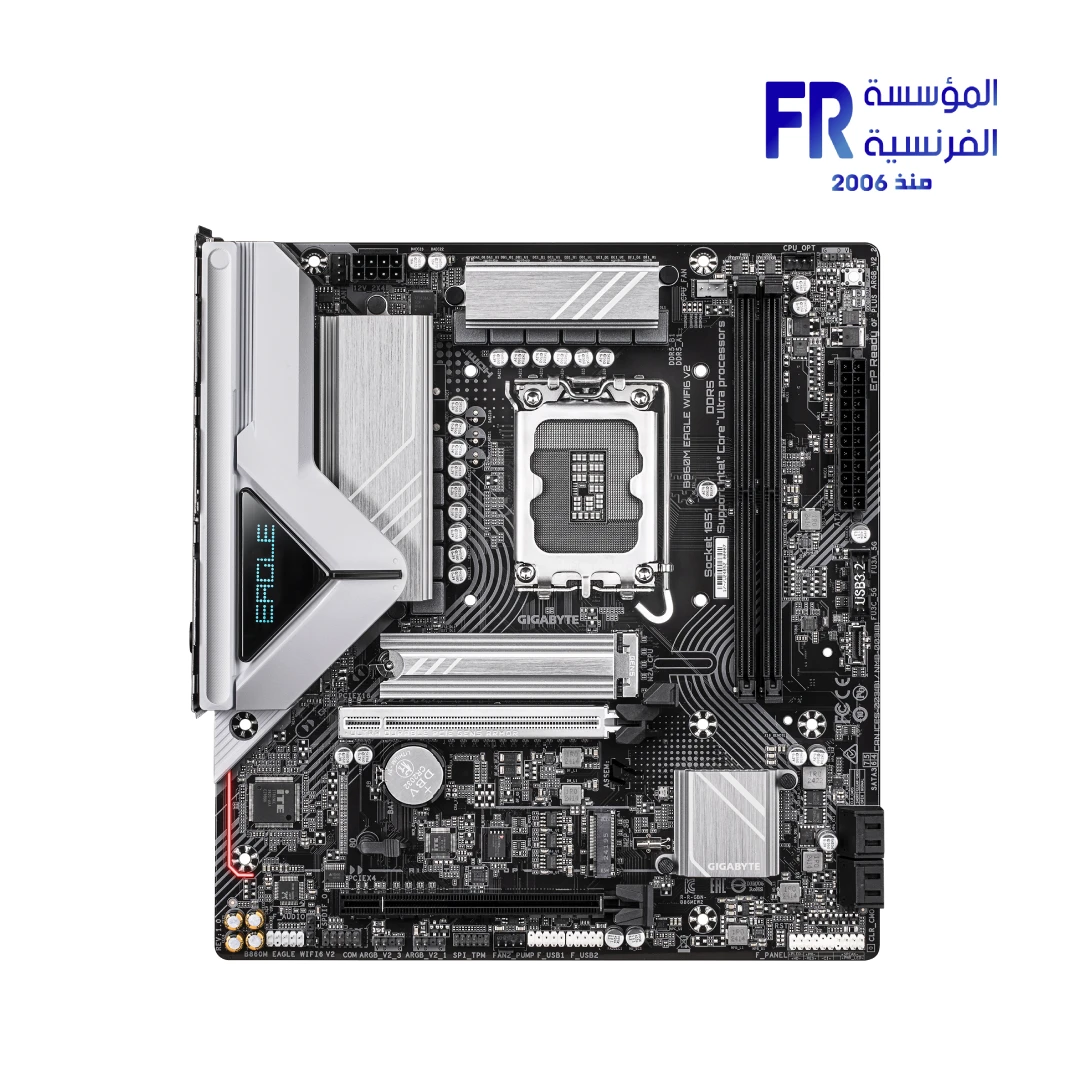

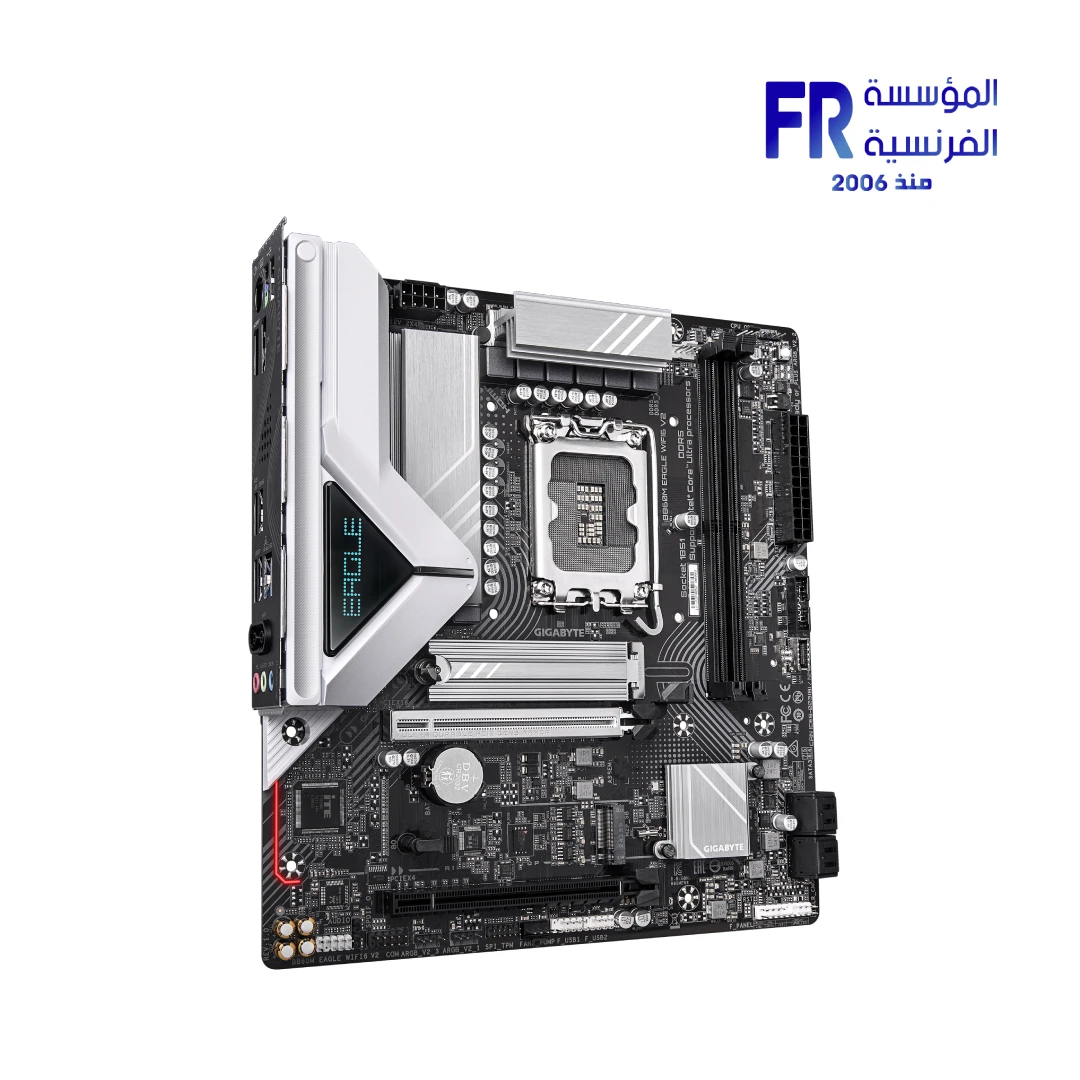

Gigabyte B860M EAGLE WIFI6 V2 Micro ATX Motherboard
7800 EGP
- Part Number: 9MB86MEW200G10
- Platform: Intel B860 Chipset | LGA1851 Socket | DDR5 Support up to 9066 MT/s (OC)
- Expansion & Storage: PCIe 5.0 x16 Slot | 1x PCIe 5.0 M.2 + 1x PCIe 4.0 M.2 | 4x SATA 6Gb/s

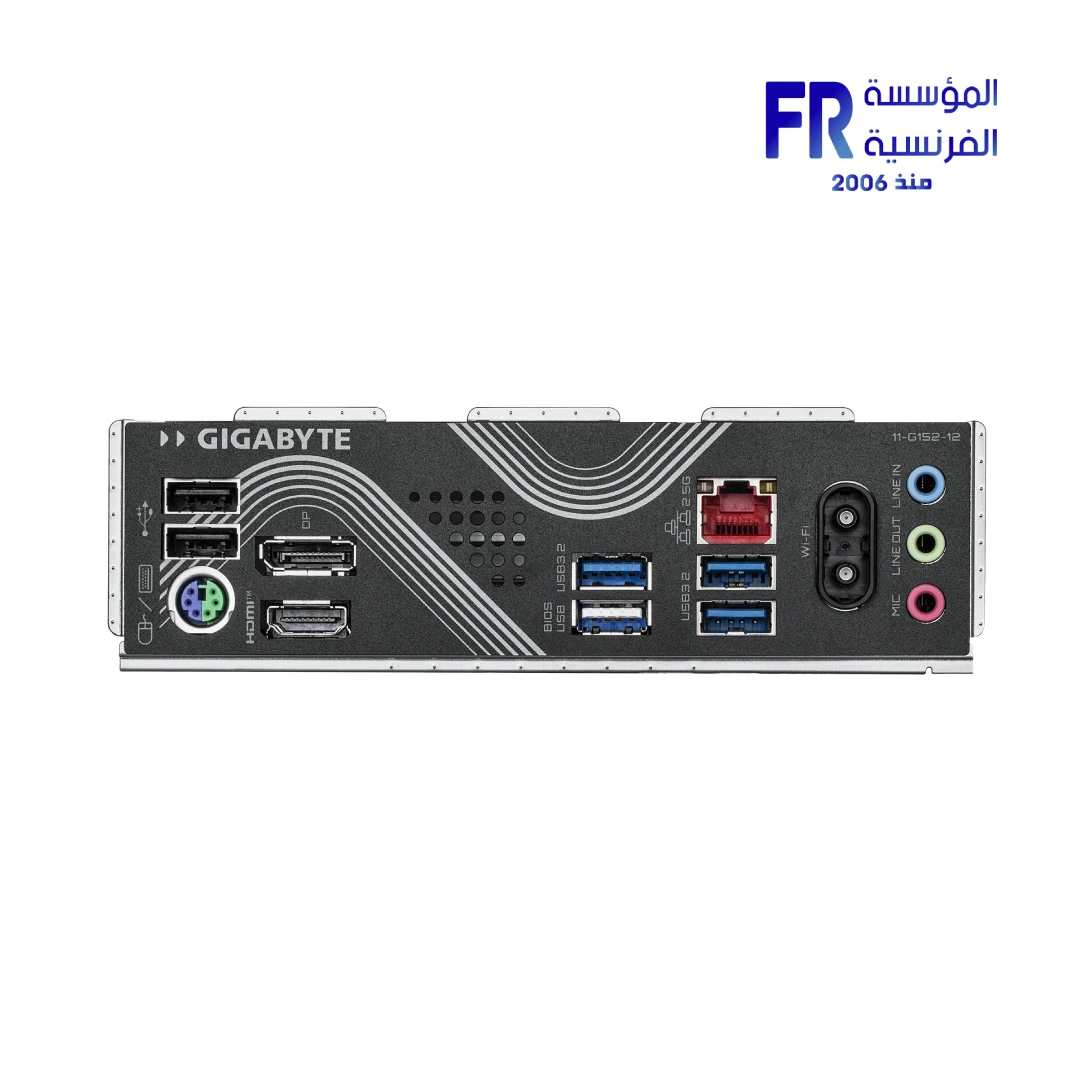

- Connectivity: Wi-Fi 6 | Bluetooth 5.3 | Realtek 2.5GbE LAN | HDMI 2.1 | DisplayPort 2.1
- Warranty: 3 Years
In stock
Price Match Guarantee

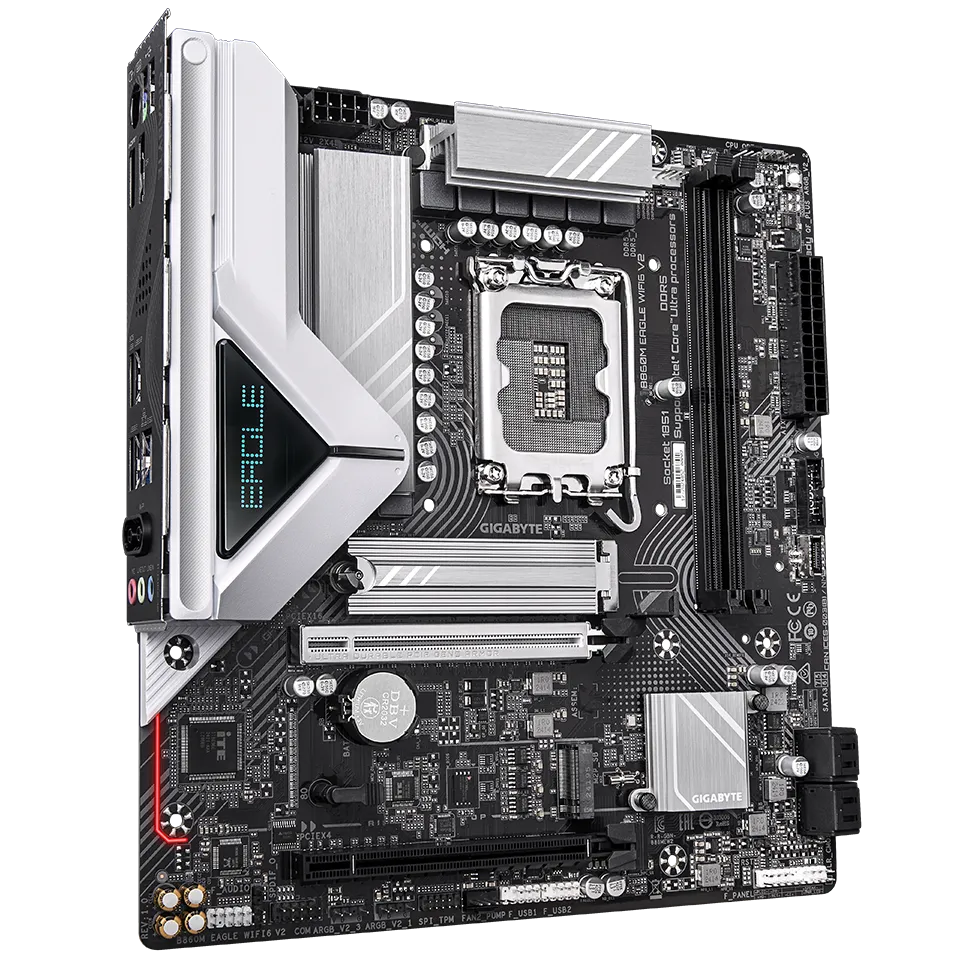

Gigabyte B860M EAGLE WIFI6 V2
The Gigabyte B860M EAGLE WIFI6 V2 delivers next-gen performance for Intel Core Ultra processors on a compact Micro ATX form factor. Featuring PCIe 5.0 x16, dual M.2 slots (Gen5 + Gen4), Wi-Fi 6, and AI-enhanced BIOS tuning, it balances enthusiast-grade connectivity with practical build flexibility.
⚡ PCIe 5.0 x16
💾 DDR5 9066MT/s
📶 Wi-Fi 6 + BT 5.3
Technical Specifications
Is the B860M EAGLE WIFI6 V2 Right For You?
✓ Best For
- ✔ Builders wanting PCIe 5.0 in a compact mATX footprint
- ✔ Users needing Wi-Fi 6 + 2.5GbE without extra cards
- ✔ Gamers pairing with RTX 50-series GPUs via PCIe 5.0 x16
- ✔ Professionals requiring dual M.2 Gen5/Gen4 storage flexibility
✗ Not Ideal For
- ✗ Users requiring full ATX expansion slot density
- ✗ Overclockers needing unlocked Z890 chipset features
- ✗ Builds requiring more than 2 DDR5 DIMM slots
Key Features of the B860M EAGLE
PCIe 5.0 x16 Ready
Direct CPU-connected PCIe 5.0 x16 slot doubles bandwidth over Gen4, ensuring zero bottleneck for next-gen GPUs like RTX 5090 and RX 9000 series.

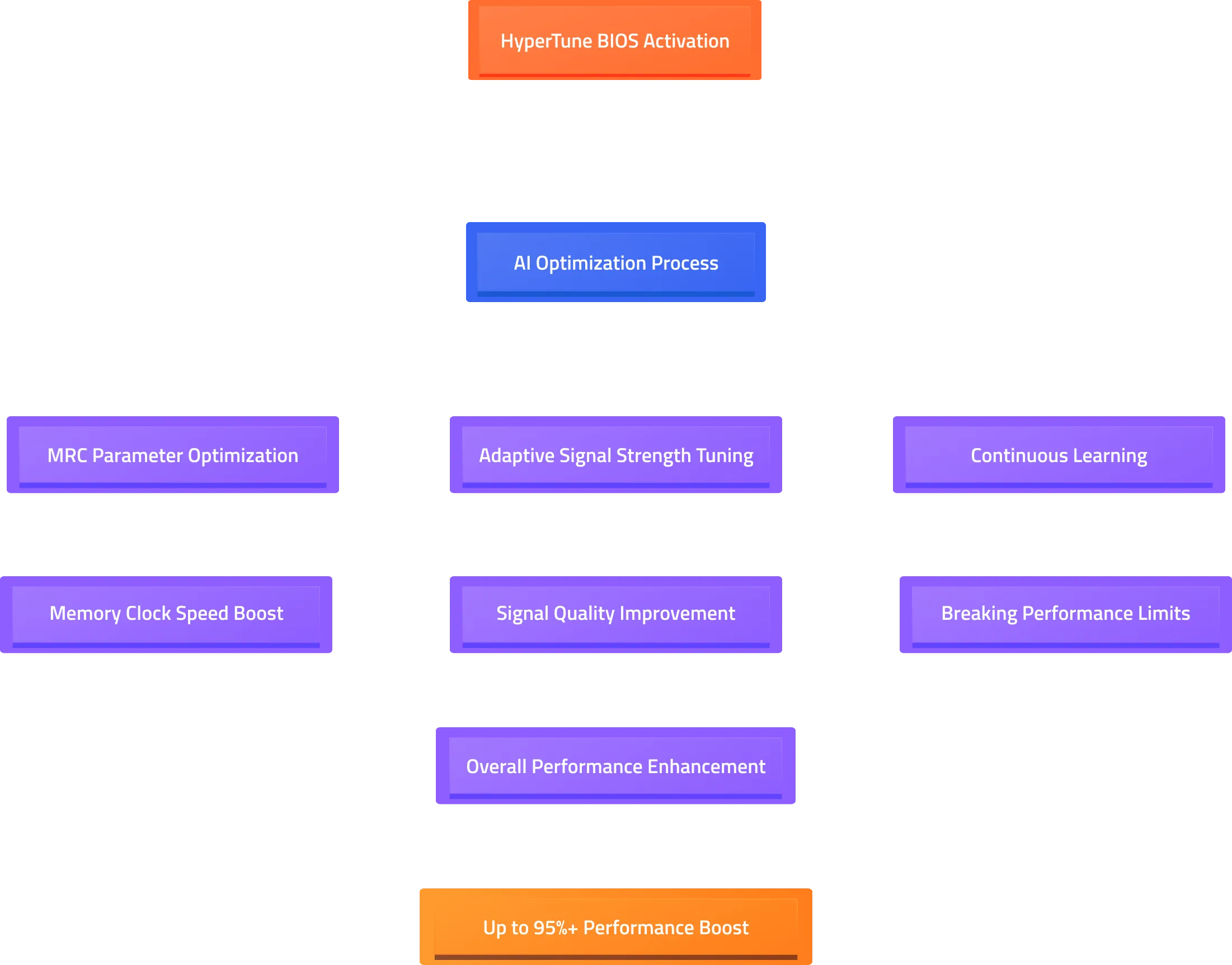

DDR5 9066MT/s Support
AI-powered memory tuning pushes DDR5 speeds beyond stock limits. Supports XMP profiles up to 9066MT/s for maximum gaming and productivity throughput.
Wi-Fi 6 + 2.5GbE LAN
Integrated Realtek Wi-Fi 6 (RTL8851BE) with Bluetooth 5.3 and 2.5Gbps Ethernet provide lag-free wireless and wired networking out of the box.

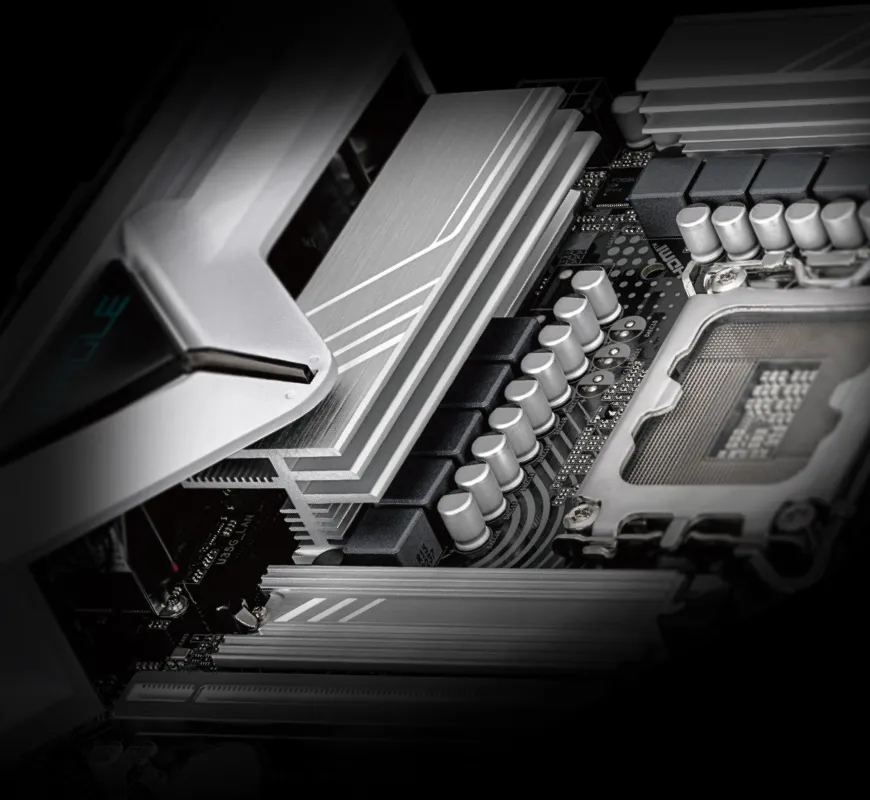

Robust VRM Cooling
Enhanced heatsink design with thermal pads ensures stable power delivery to Intel Core Ultra CPUs under sustained loads, preventing throttling during intensive tasks.

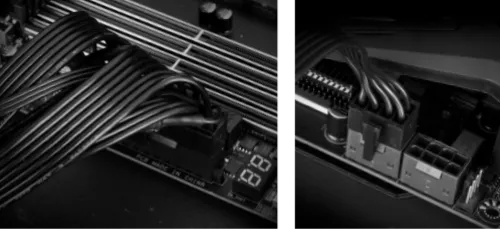

Q-Flash Plus BIOS Update
Update BIOS without CPU/RAM installed via USB drive. Essential for future-proofing with upcoming Intel processor releases and stability patches.
EZ Debug & Build Friendly
LED debug indicators, clear CMOS button, and labeled headers simplify troubleshooting and assembly, making first-time builds stress-free.
Compatibility Matrix
| Component | Support | Notes |
|---|---|---|
| CPU | ✔ LGA1851 | Intel Core Ultra Series Only |
| RAM | ✔ DDR5 | Max 128GB (2x64GB) |
| GPU Slot | ✔ PCIe 5.0 x16 | Reinforced for heavy cards |
| Primary SSD | ✔ PCIe 5.0 M.2 | Type 2280 NVMe Gen5 |
| Secondary SSD | ✔ PCIe 4.0 M.2 | Type 2280 NVMe Gen4 |
| OS | ✔ Win 11/10 | 64-bit Required |

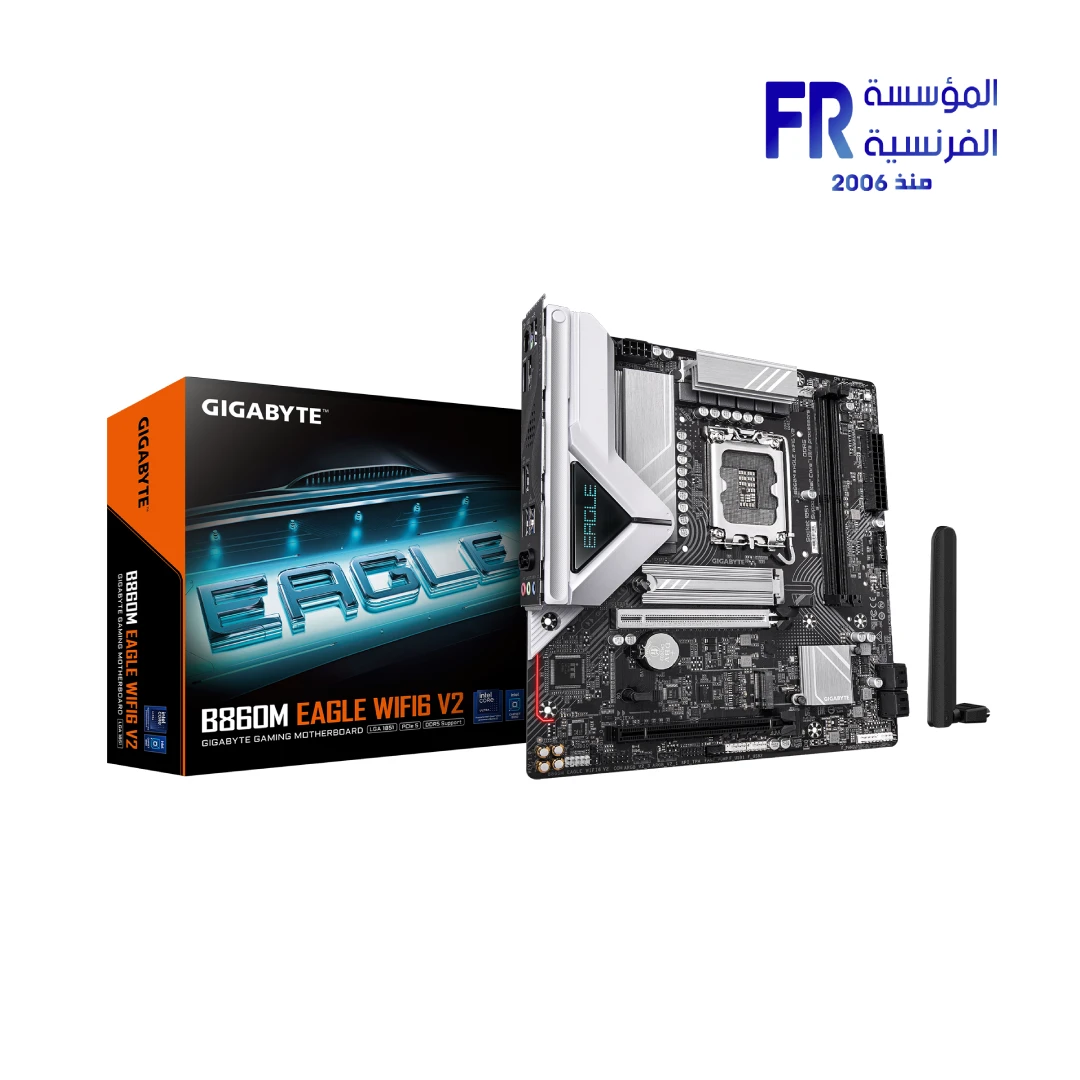

What’s In The Box
Common Questions About the B860M EAGLE
Does this motherboard support PCIe 5.0?
Yes. It features one PCIe 5.0 x16 slot connected directly to the CPU for next-generation graphics cards, plus a PCIe 5.0 M.2 slot for ultra-fast Gen5 NVMe SSDs.
What is the maximum RAM speed supported?
9066 MT/s (OC). The board supports DDR5 memory up to 9066 MT/s with XMP profiles enabled. It has 2 DIMM slots supporting up to 128GB total capacity.
Is Q-Flash Plus included for BIOS updates without CPU?
Yes. The dedicated Q-Flash Plus button allows you to update the BIOS using only a USB drive, even before installing a CPU or RAM, ensuring compatibility with future processor releases.
| MODEL | |
|---|---|
| CHIPSET MANUFACTURERS | |
| CPU Socket | |
| Motherboard Chipset | |
| Motherboard Type | |
| CPU SERIES | |
| Technology | |
| Memory Speed | |
| Max Memory Size | |
| Memory Slot | |
| PCI-E X16 | |
| PCI-E GEN | PCIe 5.0 |
| PCI-E Slots (M.2) | |
| SATAIII | |
| Communication module | |
| Part Number | |
| Warranty |
