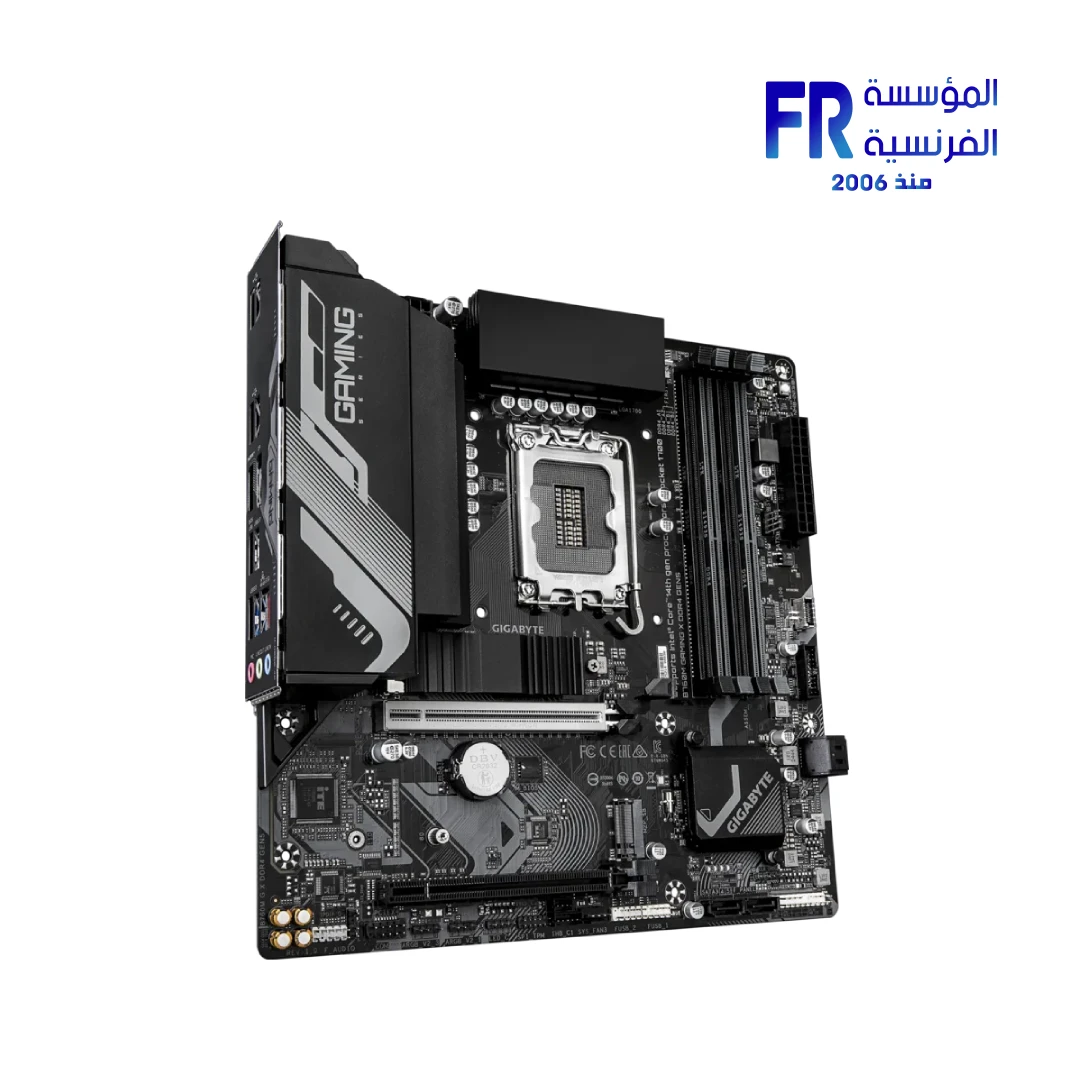

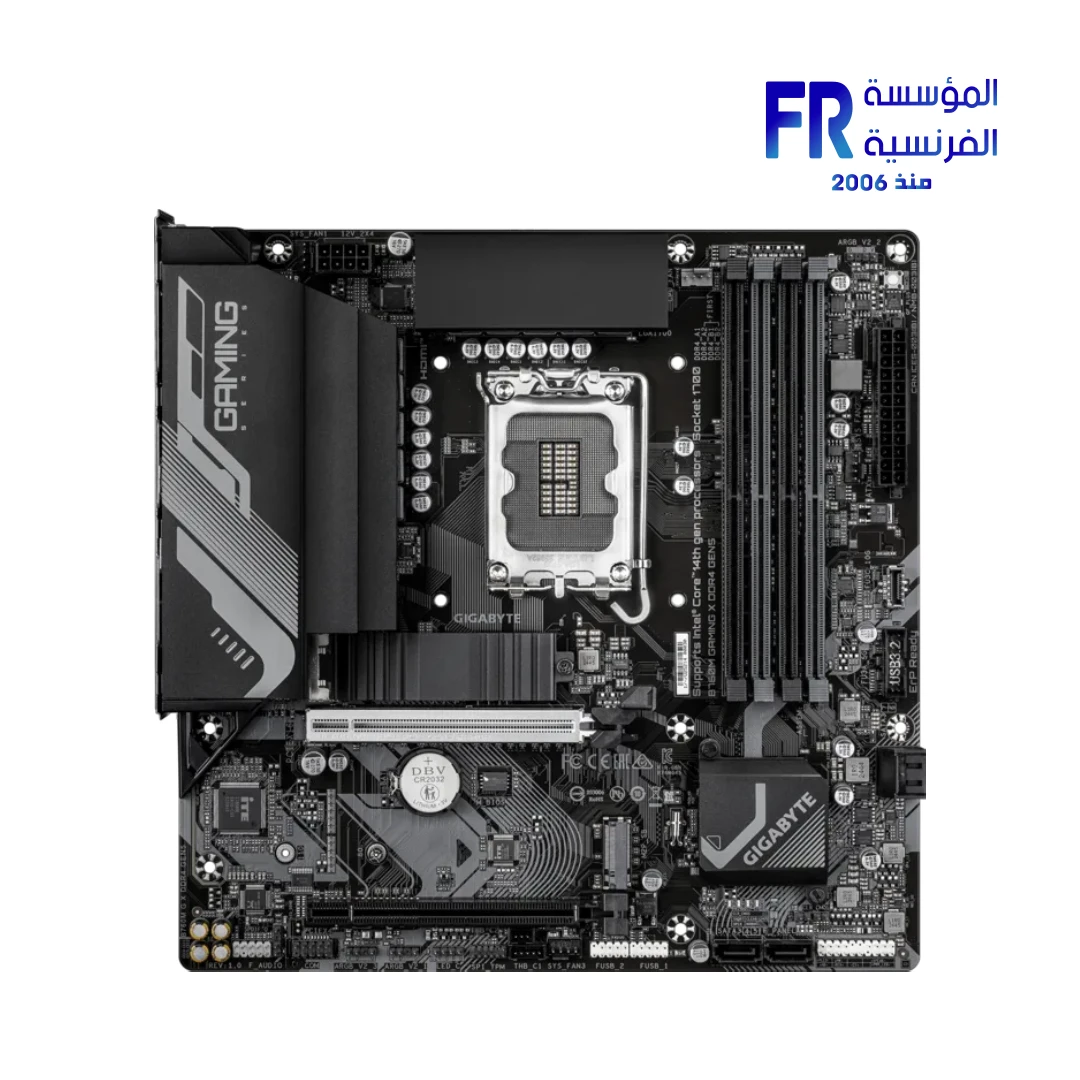

Gigabyte B760M GAMING X DDR4 GEN5 Socket LGA1700 DDR4 Micro ATX Motherboard
6799 EGP
- Part Number: 9MB76MG45-00-G10
- Form Factor & Socket: Micro ATX (24.4 x 24.4 cm) | Intel LGA1700 Socket | Intel B760 Express Chipset
- CPU Support: 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold, and Celeron® Processors
- Memory: 4x DDR4 DIMM Sockets | Up to 128 GB Capacity (32 GB per DIMM) | Dual Channel | Up to 5333(OC) MT/s | Intel XMP Support
- Expansion & Storage: 1x PCIe 5.0 x16 Slot (CPU) | 1x PCIe 3.0 x16 Slot running at x4 (Chipset) | 2x M.2 Connectors (1x PCIe 4.0 x4/x2 from CPU, 1x PCIe 4.0 x4/x2 from Chipset supporting 22110/2280) | 4x SATA 6Gb/s Connectors | RAID 0/1/5/10 Support
- Networking: Realtek 2.5GbE LAN Chip (2.5 Gbps / 1 Gbps / 100 Mbps)

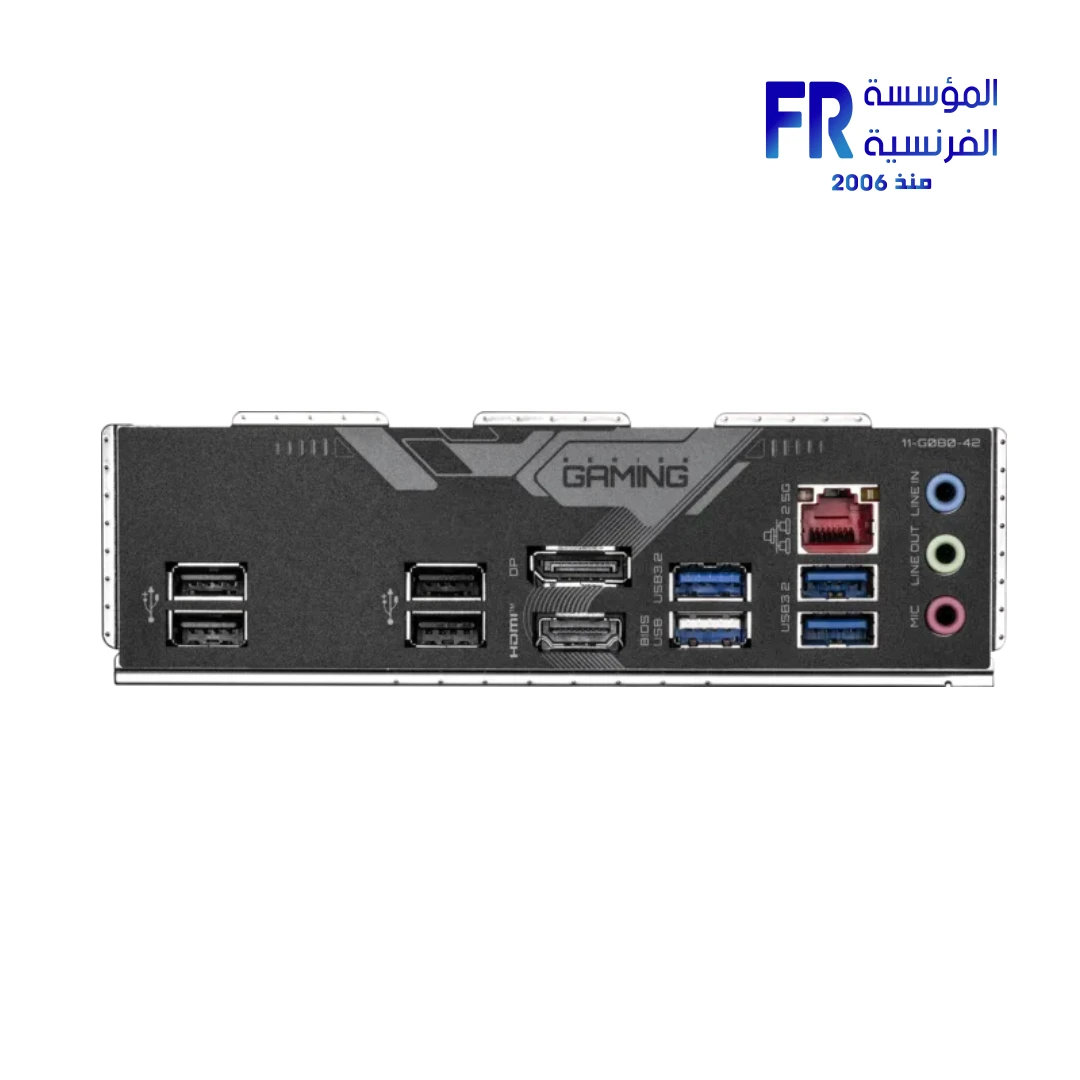

- Rear I/O & Graphics: 1x HDMI 2.1 | 1x DisplayPort 1.2 | 3x USB 3.2 Gen 1 Type-A | 5x USB 2.0 | 1x RJ-45 | 3x Audio Jacks | 2x Antenna Connectors (2T2R)
- Internal I/O: 1x USB Type-C Header (USB 3.2 Gen 2) | 1x USB 3.2 Gen 1 Header | 2x USB 2.0 Headers | 3x Addressable LED Strip Headers | 1x RGB LED Strip Header | Q-Flash Plus Button | S/PDIF Out Header
- Audio: Realtek High Definition Audio (2/4/5.1/7.1-channel)
- OS Support: Windows 11 / Windows 10 (64-bit)
- Warranty: 3 years
In stock
Price Match GuaranteeGigabyte B760M GAMING X DDR4 GEN5
LGA1700 · PCIe 5.0 · 2x M.2 PCIe 4.0 · 2.5GbE LAN
Why Choose the B760M GAMING X DDR4 GEN5?
PCIe 5.0 Ready
Full-length PCIe 5.0 x16 slot doubles the bandwidth of PCIe 4.0, ready for current and next-gen graphics cards and NVMe storage.
DDR4 XMP Support
4 DIMM slots supporting up to 128GB DDR4 with XMP profiles up to 5333MHz (OC). Dual-channel architecture for maximum memory bandwidth.
Ultra Durable Design
One-piece stainless-steel PCIe shielding, UD Power Connector, and 5 W/mK thermal pads ensure reliability and longevity.
Engineered for Performance
8+1+1 Phase VRM with 60A DrMOS
Hybrid VRM design with premium chokes and high-quality capacitors ensures stable power delivery under demanding loads. Fully covered MOSFET heatsinks with 5 W/mK thermal pads improve heat dissipation.
Dual M.2 PCIe 4.0 + 4x SATA
Two M.2 connectors support PCIe 4.0 x4/x2 SSDs (2280 and 22110/2280), each protected by M.2 Thermal Guard. Four SATA 6Gb/s ports support RAID 0/1/5/10 for flexible storage configurations.
PCIe 5.0 Performance
PCIe 5.0 doubles the data transfer rate from 16 GT/s to 32 GT/s per lane, delivering massive bandwidth for high-performance graphics cards, NVMe storage, and AI accelerators. The reinforced PCIe UD Slot with one-piece stainless-steel shielding supports heavy graphics cards with reduced signal degradation.
PCIe 5.0 x16 · UD Slot
DDR4 XMP Up to 5333MHz
Four DDR4 DIMM slots support up to 128GB of system memory with XMP profiles reaching 5333MHz (OC). Dual-channel architecture maximizes memory bandwidth. Shielded memory routing under the PCB inner layer ensures signal integrity at high speeds.
4x DIMM · 128GB Max · XMP
Smart Fan 6 & Thermal Armor
Smart Fan 6 supports both PWM and DC fans with up to 24W per header. Multiple temperature sensors and customizable fan curves ensure optimal cooling and whisper-quiet operation. Fan Stop completely turns off fans at low temperatures for silent operation during light loads.
Smart Fan 6 · M.2 Thermal Guard
2.5GbE LAN & USB Connectivity
Realtek 2.5GbE LAN delivers 2.5x the bandwidth of standard Gigabit Ethernet for faster downloads, lower latency gaming, and smoother streaming. Front USB-C 10Gb/s header, USB 3.2 Gen 1 ports, and HDMI 2.1 / DisplayPort outputs provide comprehensive connectivity.
2.5GbE · USB-C 10Gb/s · HDMI 2.1
Built for Your Build
Intel LGA1700 Platform
Supports Intel Core 14th, 13th, and 12th Gen processors, plus Pentium Gold and Celeron. Compatible with Windows 11 and Windows 10 64-bit.
Micro ATX Form Factor
244mm x 244mm compact footprint fits a wide range of cases while offering full-size expansion capabilities and comprehensive connectivity.
Q-Flash Plus BIOS Update
Update the BIOS without installing a CPU, memory, or graphics card. Simply connect power and press the Q-Flash Plus button with a USB drive.
In the Box
Everything you need to get started.
|

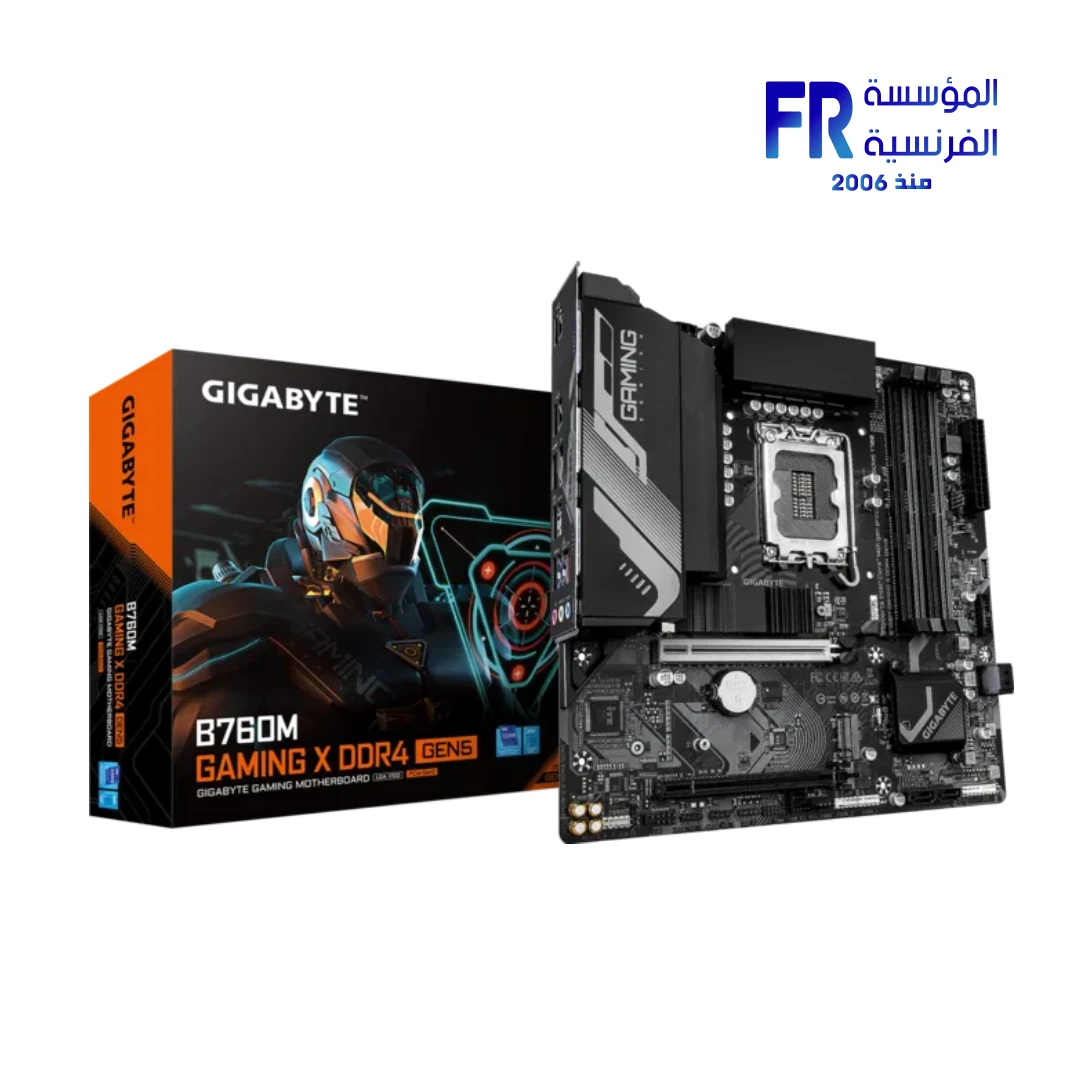

Motherboard GIGABYTE B760M GAMING X DDR4 GEN5. |
Quick Start Guide Setup instructions and documentation. |
Warranty Card 3-year warranty documentation. |
SATA Cables SATA data cables for storage devices. |
Technical Specifications
Frequently Asked Questions
Gigabyte B760M GAMING X DDR4 GEN5
LGA1700 · PCIe 5.0 · DDR4 XMP · 2.5GbE LAN
3-Year Warranty Included
In Stock · Ships from Alfrensia
| MODEL | |
|---|---|
| CHIPSET MANUFACTURERS | |
| CPU Socket | |
| Motherboard Chipset | |
| Motherboard Type | |
| CPU SERIES | |
| Technology | |
| Memory Speed | |
| Max Memory Size | |
| Memory Slot | |
| PCI-E X16 | |
| PCI-E GEN | PCIe 5.0 |
| PCI-E Slots (M.2) | |
| SATAIII | |
| Communication module | |
| Part Number | |
| Warranty |
