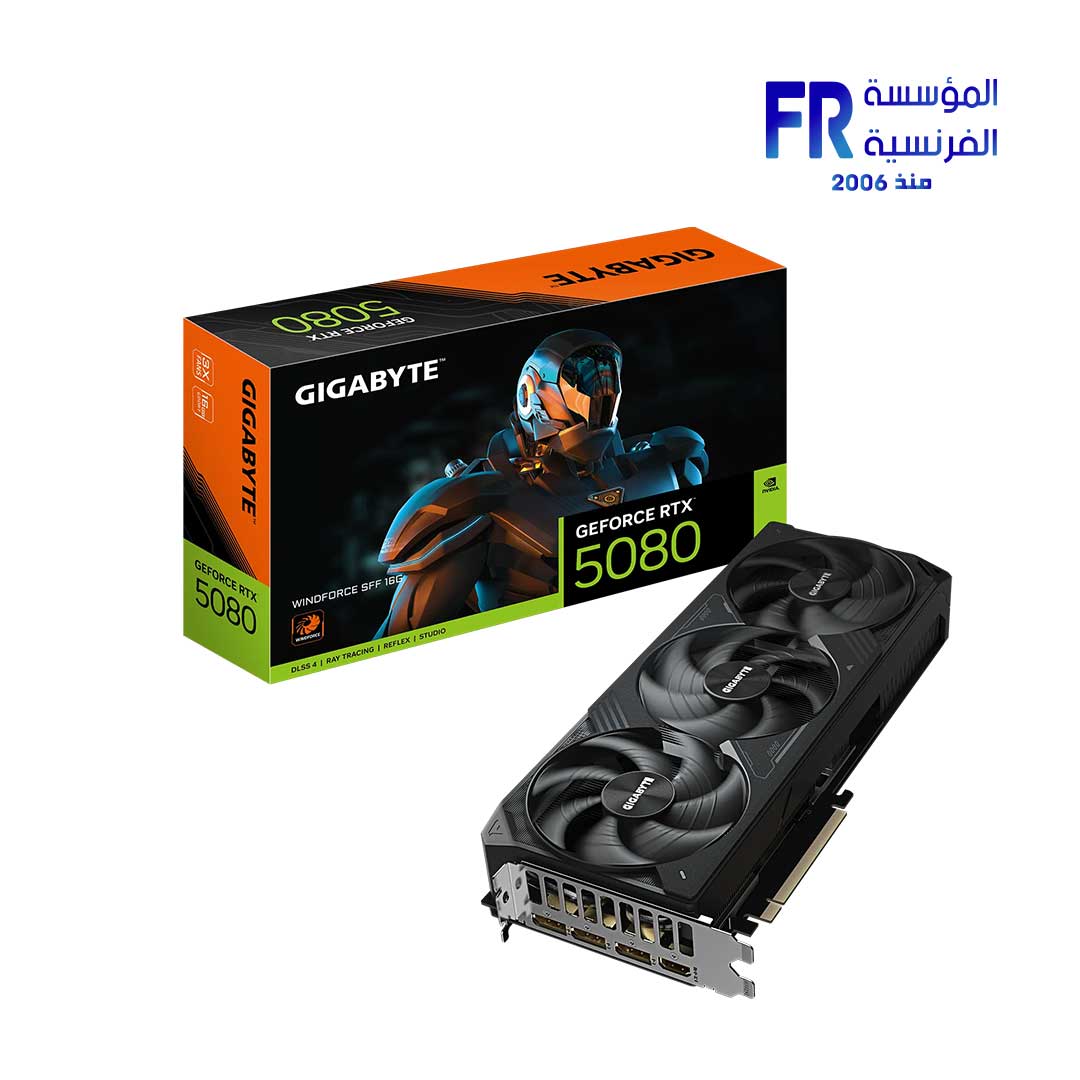

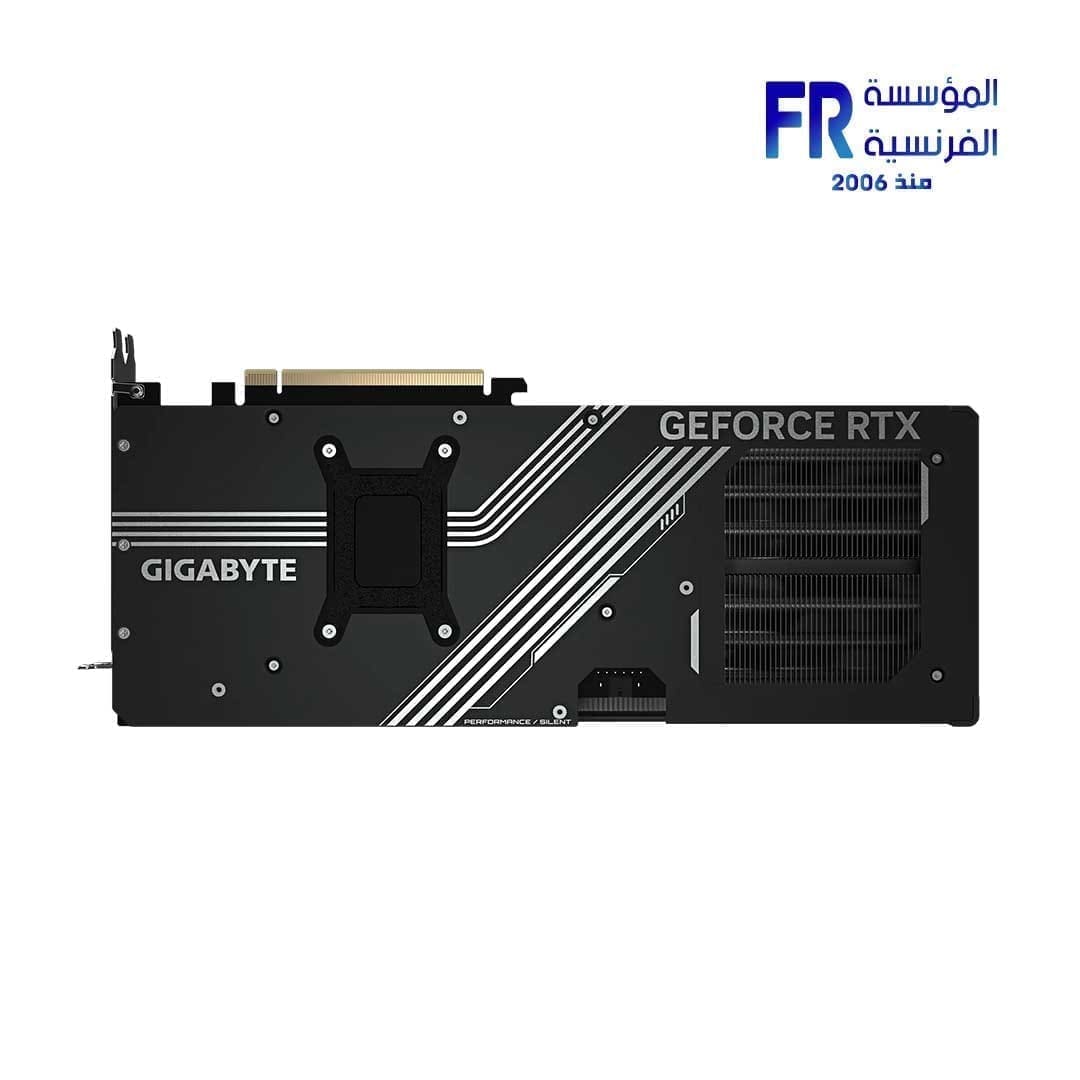

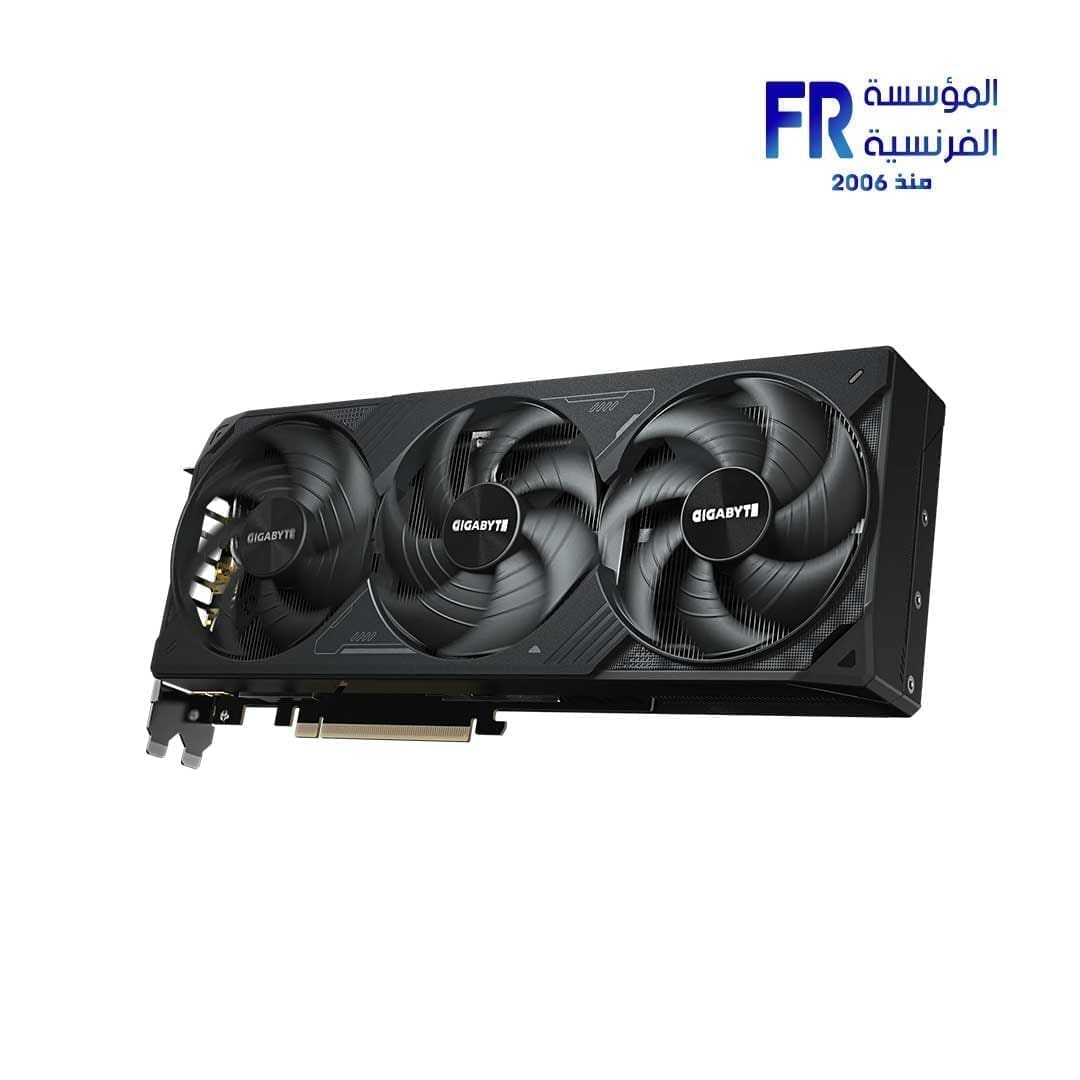

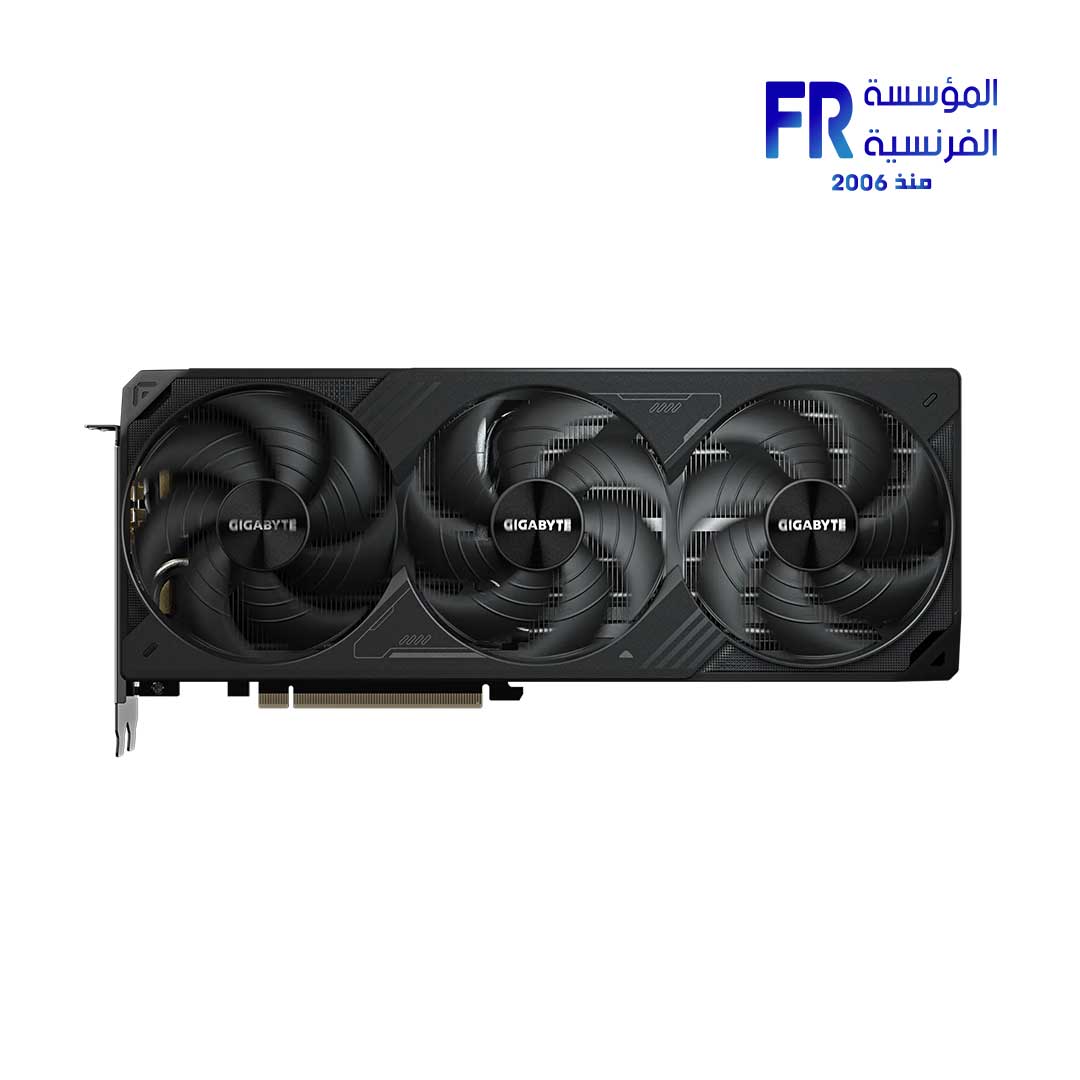

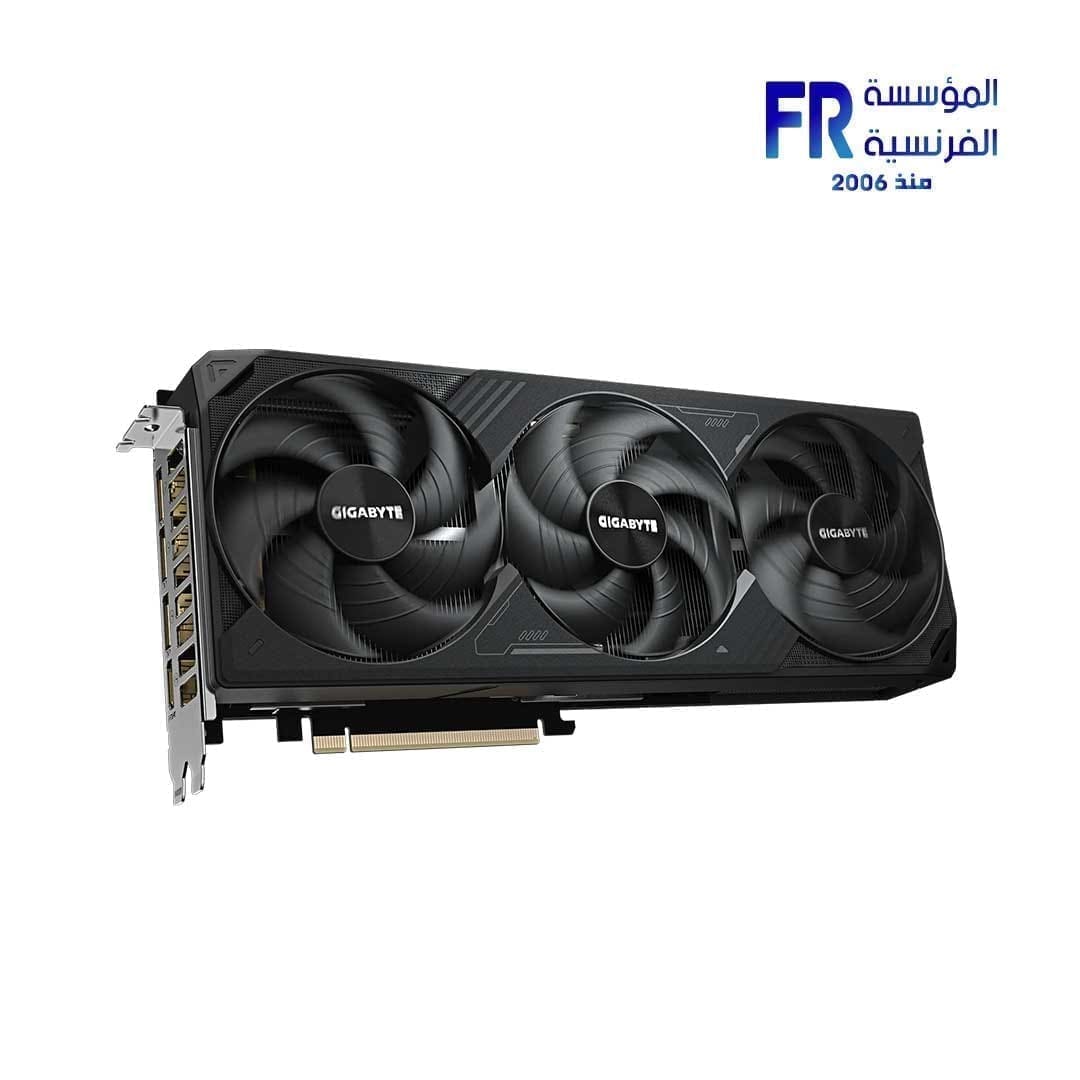

Gigabyte GeForce RTX 5080 Windforce SFF 16Gb GDDR7 Graphic Card

Gigabyte GeForce RTX 5080 Windforce SFF 16Gb GDDR7 Graphic Card

Gigabyte GeForce RTX 5080 Windforce SFF 16Gb GDDR7 Graphic Card specs:

• Graphics Processing
  GeForce RTX™ 5080
• Core Clock
  TBD
• CUDA® Cores
  TBD
• Memory Clock
  30 Gbps
• Memory Size
  16GB
• Memory Type
  GDDR7
• Memory Bus
  256 bit
• Card Bus
  PCI-E 5.0
• Digital max resolution
  7680 x 4320
• Multi-view
  4
• Card size
  L=304 W=126 H=50 mm
• PCB Form
  ATX
• DirectX
  DirectX 12 API
• OpenGL
  OpenGL 4.6
• Recommended PSU
  850W
• Power Connectors
  16 pin*1

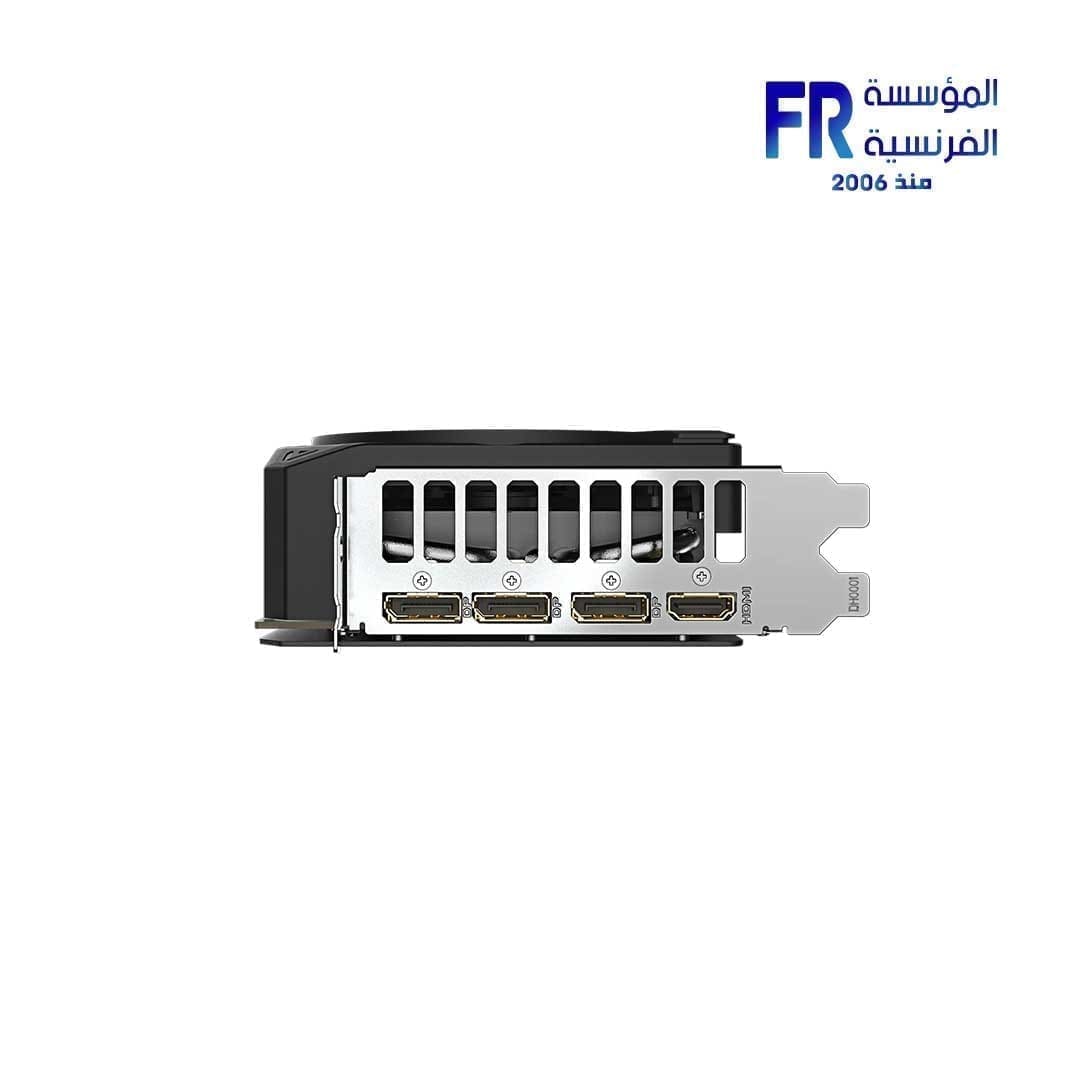

• Output
  DisplayPort 2.1a x3
  HDMI 2.1b x1
• Accessories
  1. VGA manual
  2. 1x 12V-2×6 to 3x PCIe 8pin adapter
  3. Versatile VGA holder
  4. Versatile VGA holder manual

FEATURES

• Powered by the NVIDIA Blackwell architecture and DLSS 4
• Powered by GeForce RTX™ 5080
• Integrated with 16GB GDDR7 256bit memory interface
• WINDFORCE cooling system
  • Hawk fan
  • Server-grade thermal conductive gel
• Dual BIOS (Performance / Silent)
• NVIDIA SFF-ready
• Reinforced structure
• Versatile VGA holder

HAWK FAN

The Hawk Fan features a unique blade design inspired by the aerodynamics of an eagle’s wing. This design reduces air resistance and noise levels, resulting in up to a 53.6% increase in air pressure and a 12.5% increase in air volume without compromising acoustics.

GRAPHENE NANO LUBRICANT

Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.

ALTERNATE SPINNING

Reduce the turbulence of adjacent fans and increase airflow pressure.

3D ACTIVE FAN

• The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
• SERVER-GRADE THERMAL CONDUCTIVE GEL
• To enhance product quality and reliability, we have introduced server-grade thermal conductive gel for cooling critical components such as VRAM and MOSFETs. This highly deformable, non-fluid gel provides optimal contact for uneven surface and effectively resists deformation from transport or long-term use, unlike traditional thermal pads.
• LARGE VAPOR CHAMBER & COMPOSITE COPPER HEAT PIPE
• The large vapor chamber directly contacts the GPU, coupled with the composite copper heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.
• SCREEN COOLING
• Extended heatsink allows air to pass through, providing better heat dissipation.
