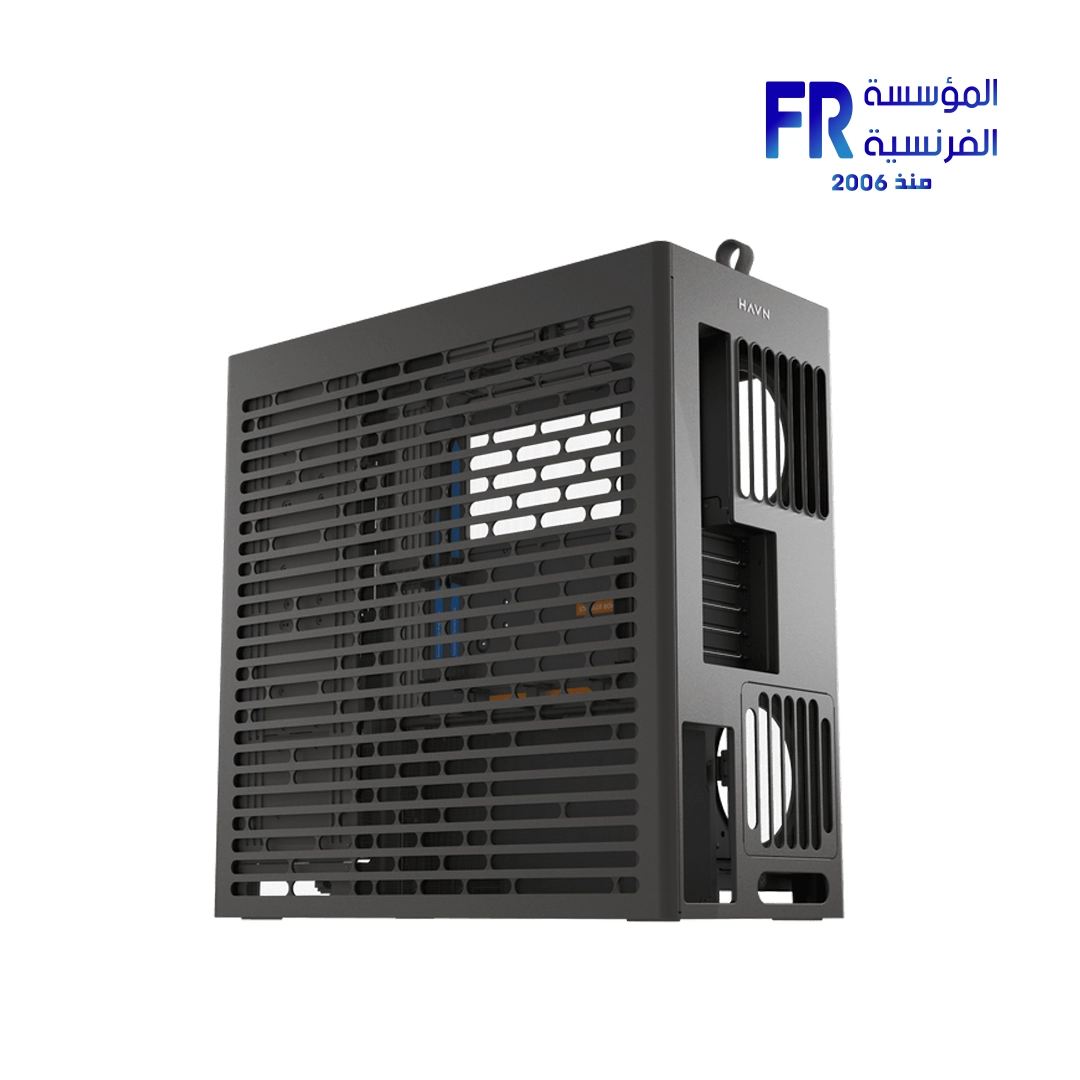

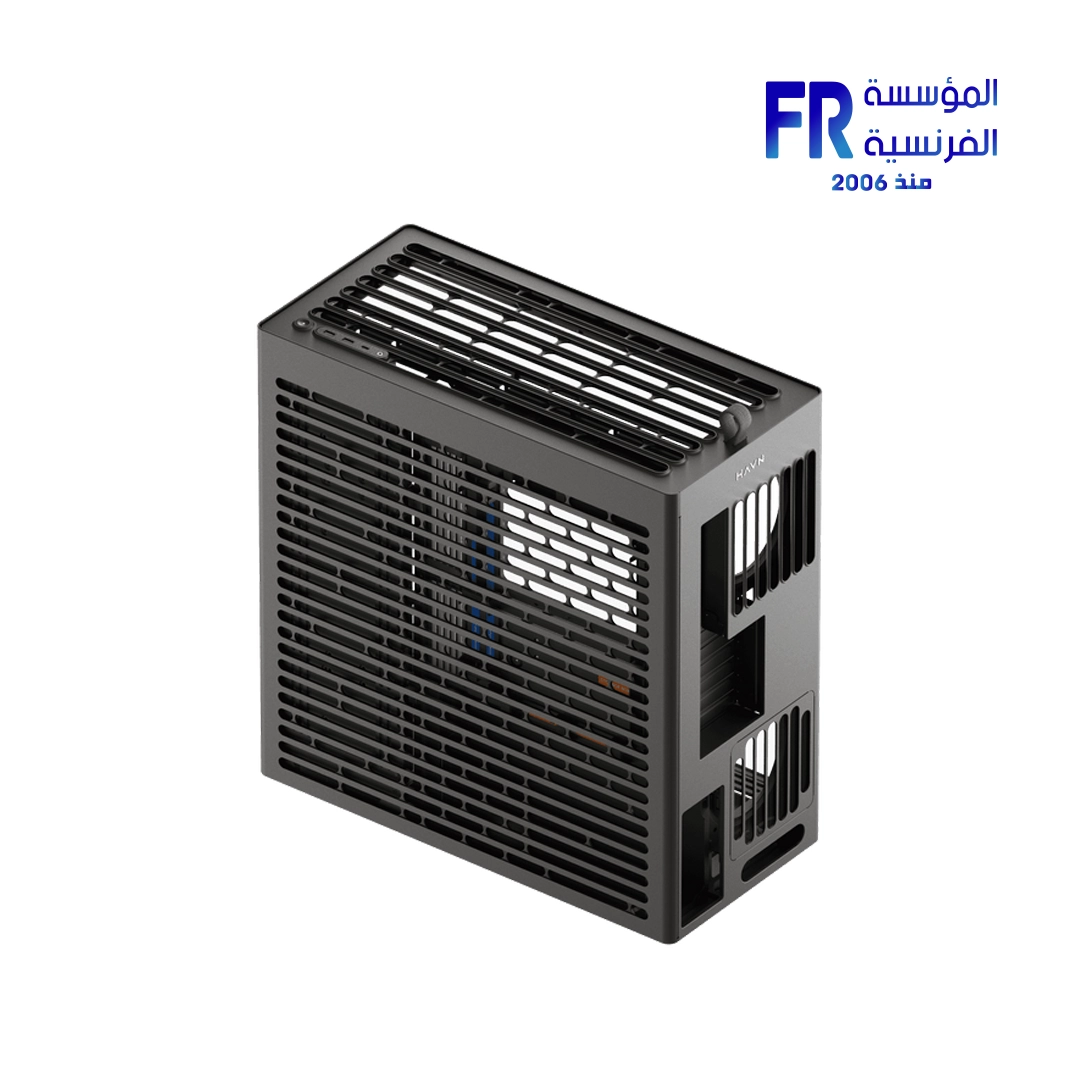

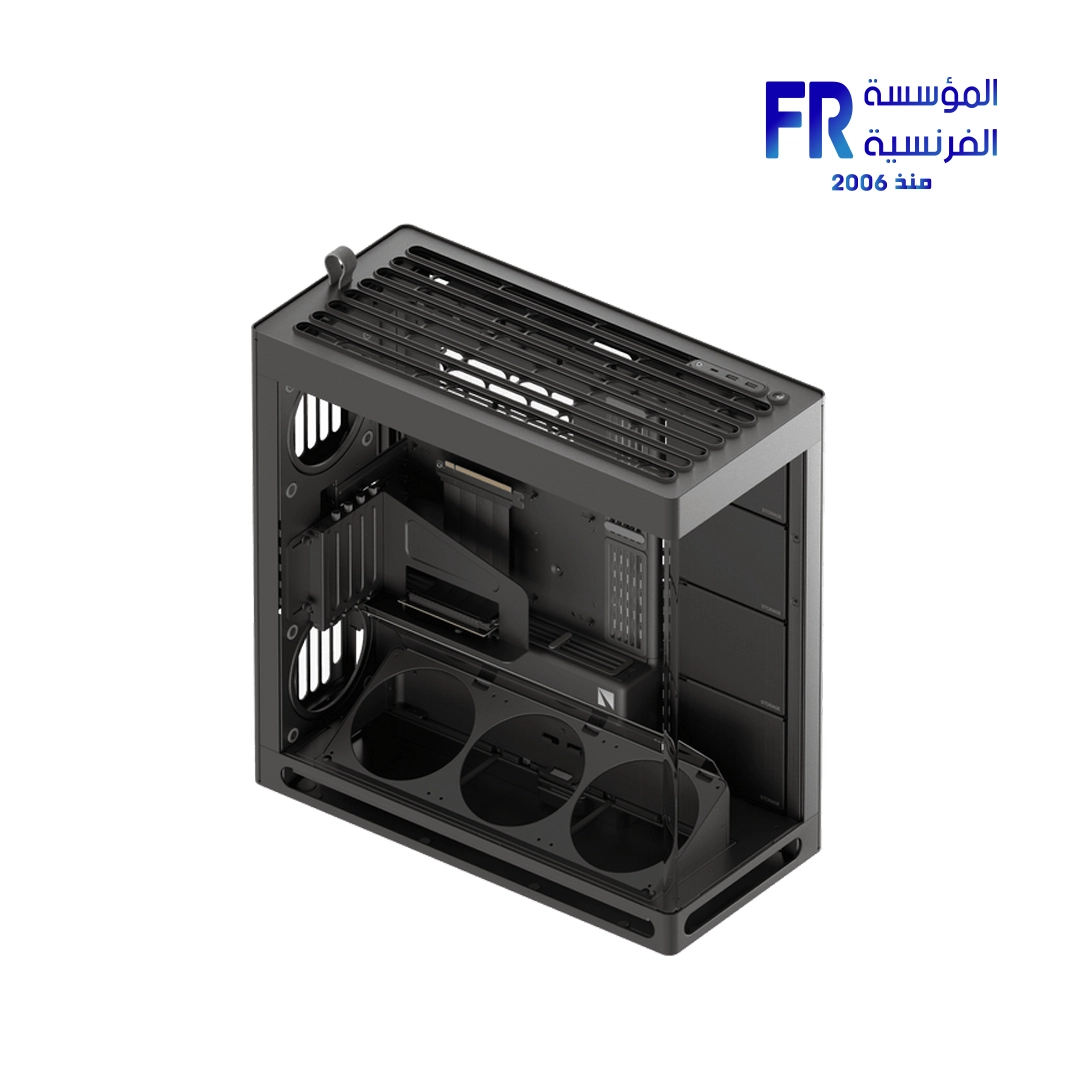

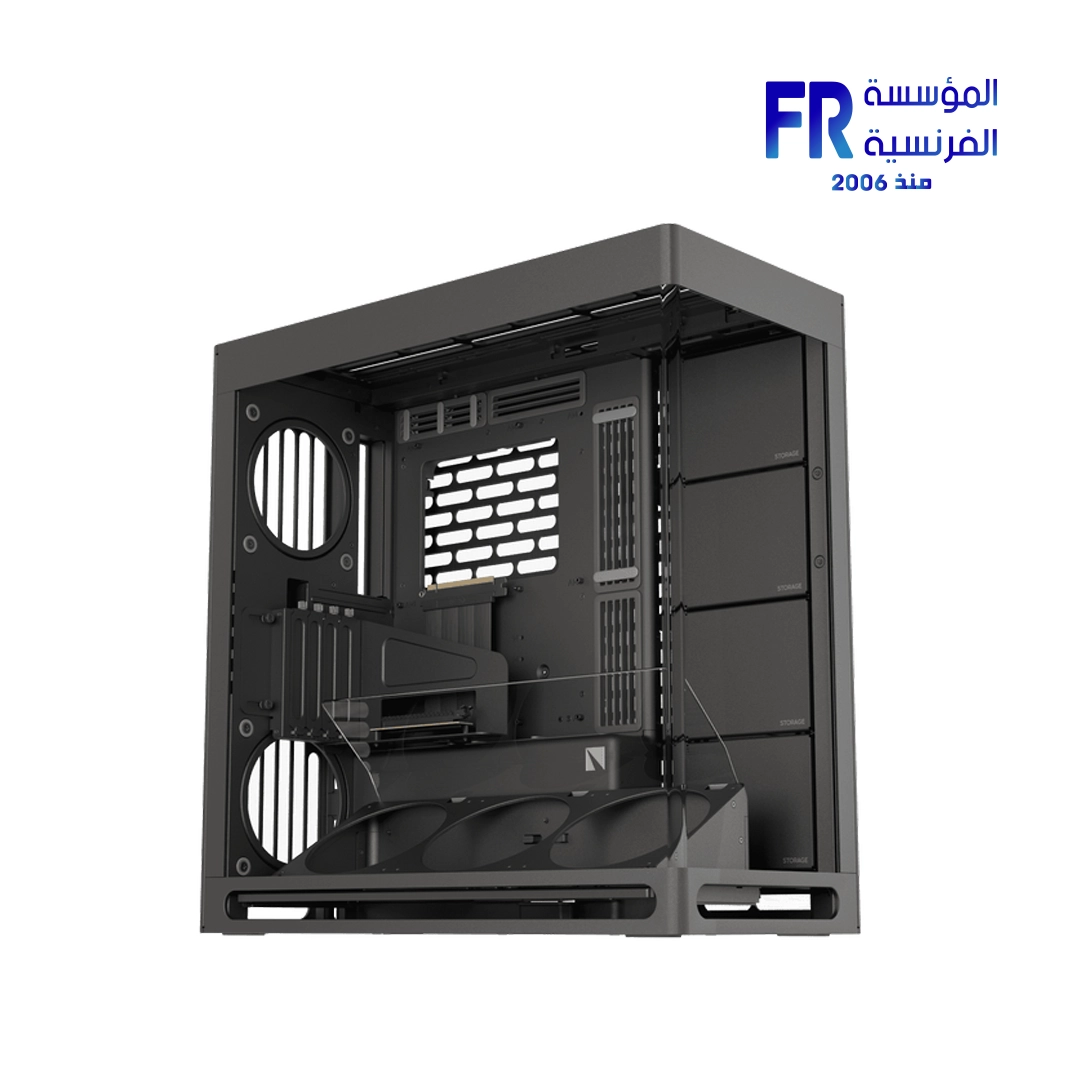

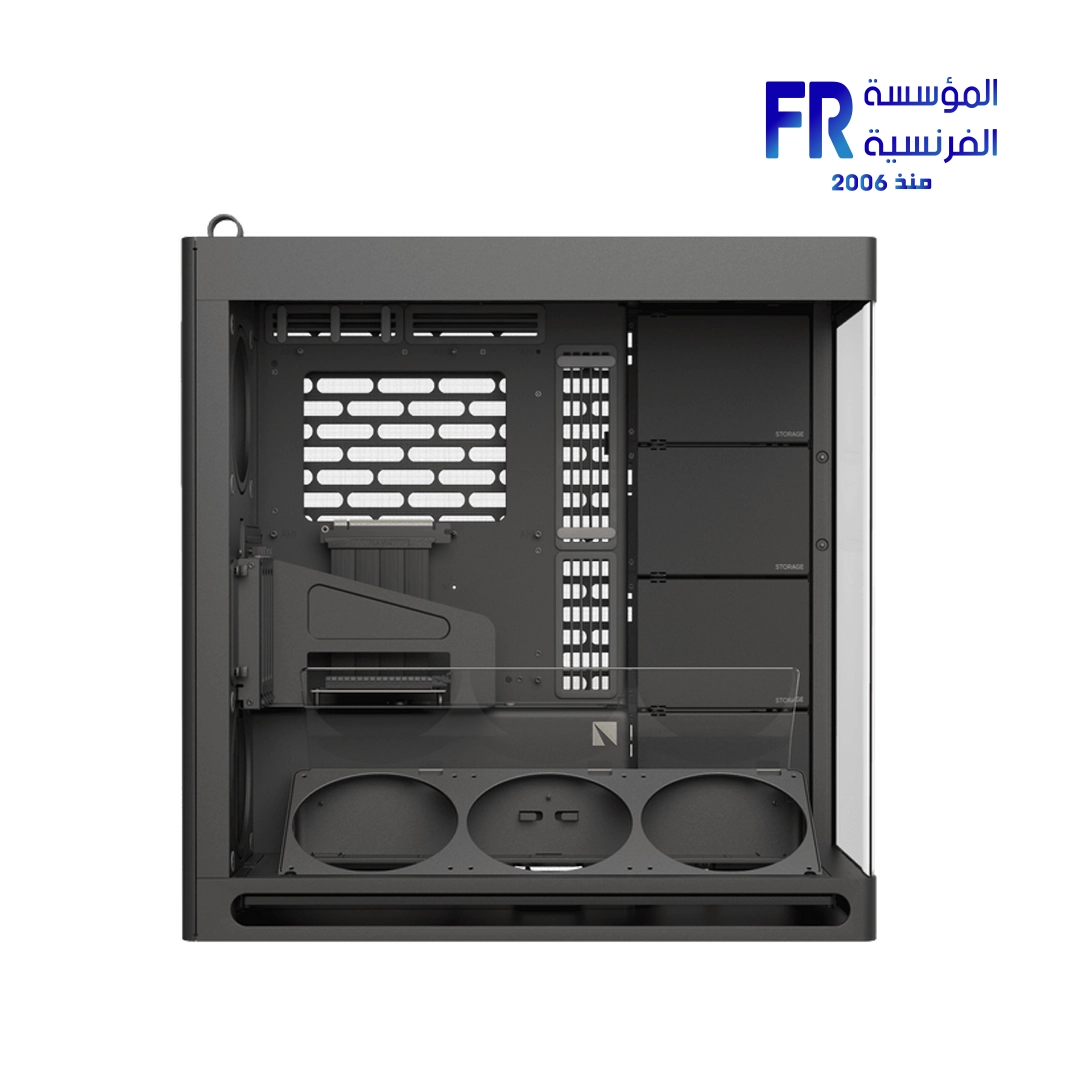

Havn HS 420 VGPU Dual Chamber ATX Airflow Mid Tower Case:

The Havn HS 420 VGPU Dual Chamber ATX Airflow Mid Tower Case combines functional beauty with user-centric innovation. Designed by the HAVN team, this case is crafted to deliver superior GPU airflow. It features a VGPU Mount Kit with a PCI Express® 5.0 riser cable. Its elegant panoramic housing, hybrid structure, optimized airflow, and smart cable management system make it the ultimate sanctuary for your gaming setup. This product does not include the flat, standard bottom fan bracket as featured on the Base Edition. This will be available for purchase separately soon.

Optimized Airflow & Panoramic Design of Havn HS 420 VGPU:

Superior GPU Cooling with Hybrid Structure:

The Havn HS 420 VGPU Dual Chamber ATX Airflow Mid Tower Case features a dual-chamber design with balanced airflow. It maintains a traditional case size ratio. This design channels cool air from the bottom intake directly onto the centrally positioned GPU. The HAVN Hybrid Structure places the GPU front and center, fully showcased behind the panoramic Unisheet glass. This design not only emphasizes your key components but also enhances GPU airflow for optimal performance. An additional fan intake at the bottom of the rear panel channels cool air directly to your graphics card. This perfectly balances intake and exhaust, ensuring peak performance and helping maintain a cleaner, dust-free system.

Extensive Cooling Power & Compatibility:

The Havn HS 420 VGPU Case accommodates up to eleven 140mm fans. It also supports 420mm radiators on both the top and side. This ensures exceptional cooling power for even the most demanding builds. The UniSheet heat-formed glass panel provides a panoramic view. We’ve pushed production boundaries to achieve the smallest possible curve radius. This minimizes visual distortion. It offers a clear, uninterrupted view of your case’s interior. The adjustable VGPU Bracket allows horizontal adjustment. This optimizes the GPU’s distance to the glass air guide, accommodating different GPU thicknesses.

Intuitive Cable Management & Robust Build:

The Havn HS 420 VGPU Dual Chamber ATX Airflow Mid Tower Case features a unique SimpliCable routing system. This system and the fan hub include top-to-bottom grooved guides. This makes cable management effortlessly clean. It gives your setup a pristine, organized appearance. Clever silicon pass-throughs with stabilizing clips allow for precision cable management. A lightning-fast PCI Express® 5.0 X16 riser cable is included. This lets you showcase your hardware without compromising performance. Every fan bracket is equipped with flexible rubber isolators. These separate the bracket from the chassis. This prevents resonance and ensures quieter operation.

Versatile Customization & Comprehensive Support:

The Havn HS 420 VGPU Case offers customizable space. This accommodates a combination of storage, fans, radiators, and portable displays. A VESA mounting bracket is included. It supports E-ATX (Max Width 277 mm), ATX, M-ATX, and Mini-ITX motherboards. It provides 6 horizontal and 4 vertical expansion slots. The CPU tower cooler clearance is up to 185 mm. Graphics card clearance is up to 470 mm in length and 195 mm in width. This ensures broad compatibility. The case also features multiple dust filters (bottom, top, right, rear bottom) for hassle-free maintenance.

Explore compatible PC Cases or check HAVN Products for other options. Find full details on the official HAVN HS 420 VGPU product page.

Specifications:

• Form Factor: Mid Tower
• Material: SGCC sheet metal, tempered glass, ABS, Nylon, Silicon, Zinc alloy, NdFeB magnets
• PC Case Dimensions (L x W x H): 541 x 259.5 x 547 mm
• Net Weight: 19 kg
• Warranty: 1 year (for orders shipped within the United States)
• Front I/O: USB 3.2 Gen 2 Type-C x1, USB 3.2 Gen 1 Type-A x2, Audio Jack x1, Power & Reset Button x1
• Motherboard Support: E-ATX (Max Width 277 mm) / ATX / M-ATX / Mini-ITX
• Expansion Slots: 6 horizontal, 4 vertical
• Fan Support (Maximum Amount): 11
• Fan Support (Top): 3 x 120 / 3 x 140 mm
• Fan Support (Right): 3 x 120 / 3 x 140 mm
• Fan Support (Bottom): 3 x 140 mm
• Fan Support (Rear): 2 x 120 / 2 x 140 mm (Thickness Up to 30 mm)
• Fan PWM Repeater: 2 x PWM repeaters, 12 ports total
• CPU Tower Cooler Clearance Height: Up to 185 mm
• Liquid Cooling Support (Top): 280 / 360 / 420 mm (Thickness: 65 mm, not overlapping with RAM)
• Liquid Cooling Support (Right): 280 / 360 / 420 mm (Thickness: 60 mm w/ GPU >317mm, 80 mm w/ top AIO)
• Graphics Card Clearance Length: Up to 470 mm
• Graphics Card Clearance Width: Up to 195 mm
• Vertical GPU Support: 4 Slots
• PCI Express 5.0 Riser Cable: Included
• Power Supply Support: ATX (Length: Up to 220mm, Clearance – 290mm)
• Storage (Right Fan Mount): 4 Storage Bays: 4 x 3.5” / 8 x 2.5”
• Storage (Cable Management Tray): 1 Storage Bay: 1 x 3.5” / 2 x 2.5”
• Storage Bay Included: 4x
• Internal Display Support: VESA Mounting: 75 x 75 mm / 100 x 100 mm (Display Size: 14 in. Max)
• Dust Filter: Bottom (Removable), Top (Built-in), Right (Built-in), Rear Bottom (Removable)
• Model Number/SKU: HVN-CA-HS420-08
• EAN/UPC: 842946112177
