ID-COOLING DX360 GDL Gen 7 Pro Pump ARGB AIO Liquid Cpu Cooler
4500 EGP
- Part Number: DX360 GDL / 6931393308302
- Form Factor & Compatibility: Intel LGA1851/1700/1200/115X Series | AMD AM5/AM4
- Cooling Performance: 350W TDP Support | 396 x 134 x 27 mm Aluminum Radiator | Copper Cold Plate | 160mm Premium Sleeved Tubing
- Pump Specifications: Gen 7 Pro Pump | 2900±10% RPM | Ceramic Bearing | 25 dB(A) Noise Level | 3-Pin Connector
- Fan Specifications: 3x 120mm AF-127-GDL Fluid Dynamic Bearing Fans (120x120x27mm) | 500 ~ 2000±10% RPM | 78 CFM Max Air Flow | 2.68 mmH₂O Max Static Pressure | 29.9 dB(A) Max Noise Level
- Power & Connectivity: 12VDC Rated Voltage | 2.16W Power Input | 4-Pin PWM Connector for precise speed control
- Warranty: 3 years
In stock
Price Match Guarantee
ID-COOLING DX360 GDL
360mm ARGB AIO · Gen 7 Pro Pump
350W TDP. Gen 7 Pro ceramic pump at 2900 RPM. 396mm aluminum radiator. 3× AF-127-GDL 120mm fluid dynamic bearing PWM fans with ARGB.
350W TDP
Gen 7 Pro Pump
ARGB
350W TDP
Gen 7 Pro Pump
78 CFM per fan
Fluid Dynamic Bearing
Gen 7 Pro pump. High-CFM GDL fans.
The DX360 GDL pairs a 396mm aluminum radiator with ID-COOLING’s Gen 7 Pro pump — a ceramic bearing unit running at 2900 RPM with a rated noise level of 25 dB(A). The copper cold plate handles heat transfer from the CPU into the coolant loop, and the 100 × 94 × 69 mm waterblock is engineered for a stable, long-running interface.
Three AF-127-GDL 120mm fluid dynamic bearing PWM fans are included. Each pushes up to 78 CFM with 2.68 mmH₂O static pressure — meaningfully higher pressure than typical 120mm radiator fans, so the triple-fan configuration can push air efficiently through the 27 mm thick 396 mm radiator. Overall TDP support: 350W, covering Intel LGA1851 / 1700 / 1200 / 115X and AMD AM5 / AM4.
350W
396 × 134 × 27 mm
2900 ±10% RPM
3× AF-127-GDL
2 Years
Ceramic Bearing · 2900 RPM · 25 dB(A)

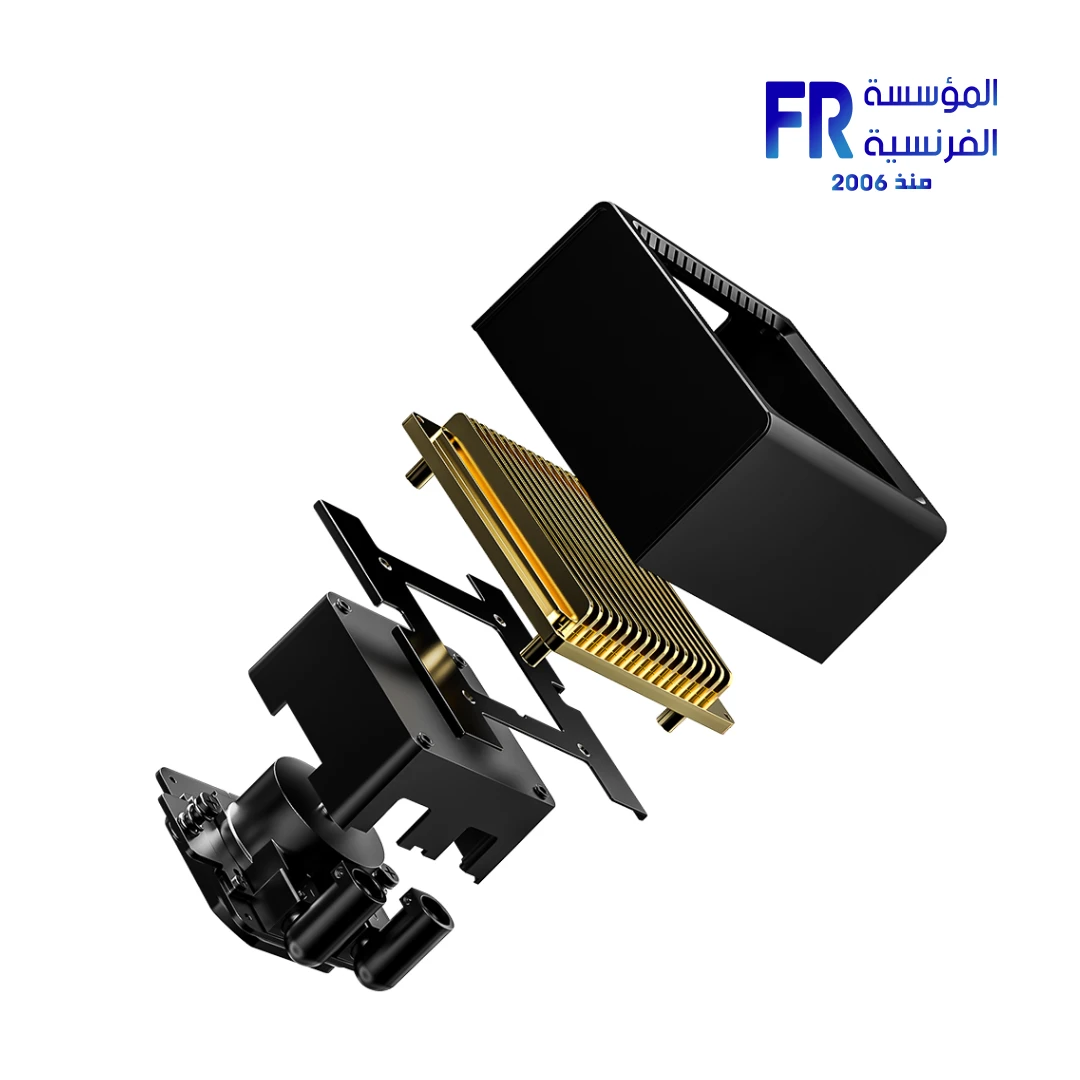

The Gen 7 Pro pump uses a ceramic bearing rated for quiet, reliable service over the long term. It runs at 2900 RPM (±10%) with a 0.45 A pump current and a rated noise level of 25 dB(A). The 100 × 94 × 69 mm waterblock integrates a copper cold plate for efficient heat pickup from the CPU.
Engineered for Demanding CPUs
350W TDP Support
Headroom for high-end desktop CPUs under sustained load.
Gen 7 Pro Pump
Ceramic bearing pump at 2900 RPM with 25 dB(A) noise.

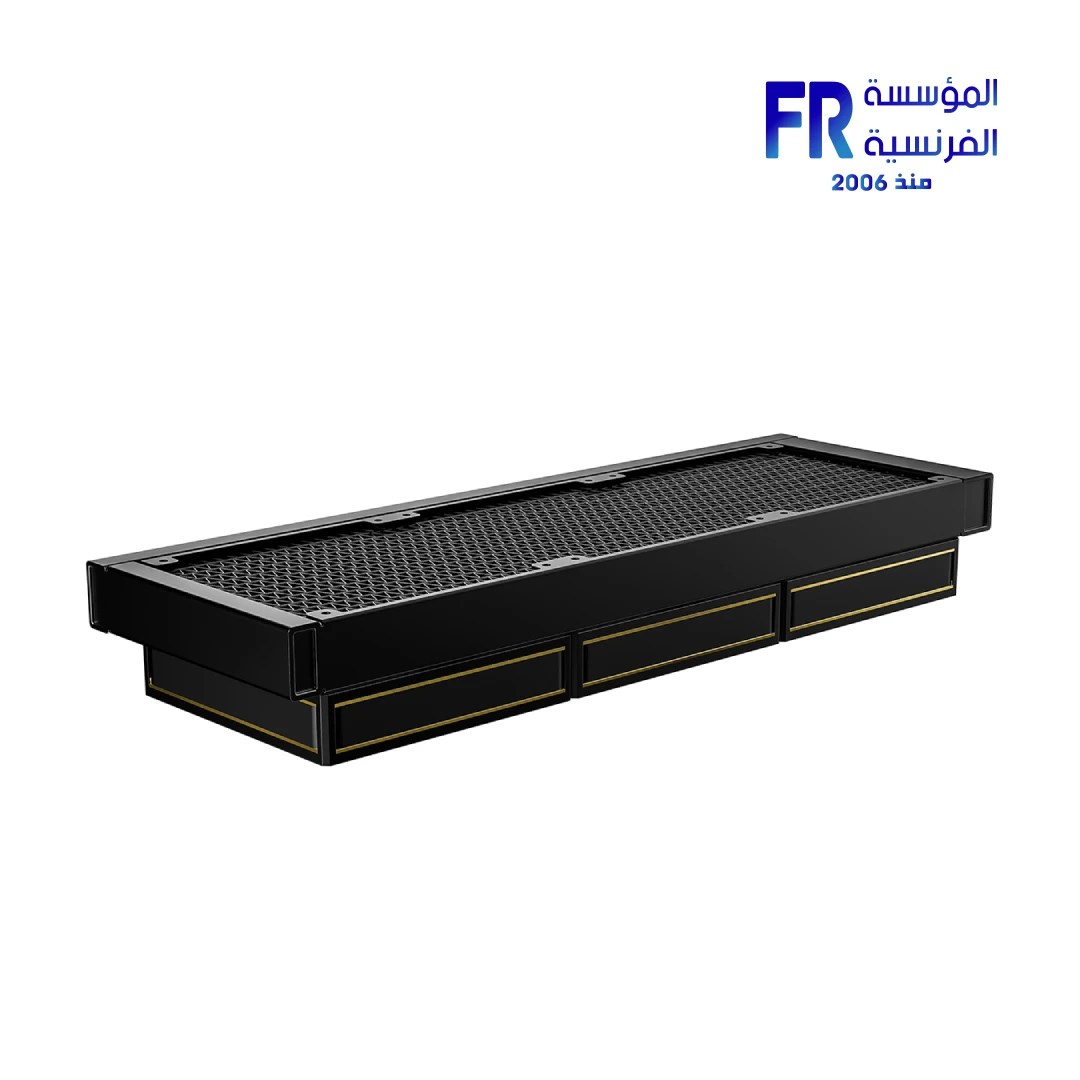

360mm Radiator
396 × 134 × 27 mm aluminum radiator with triple-fan coverage.
3× AF-127-GDL Fans
120×120×27 mm with fluid dynamic bearings and 78 CFM each.
2.68 mmH₂O Pressure
High static pressure tuned to push air through a 27 mm radiator.

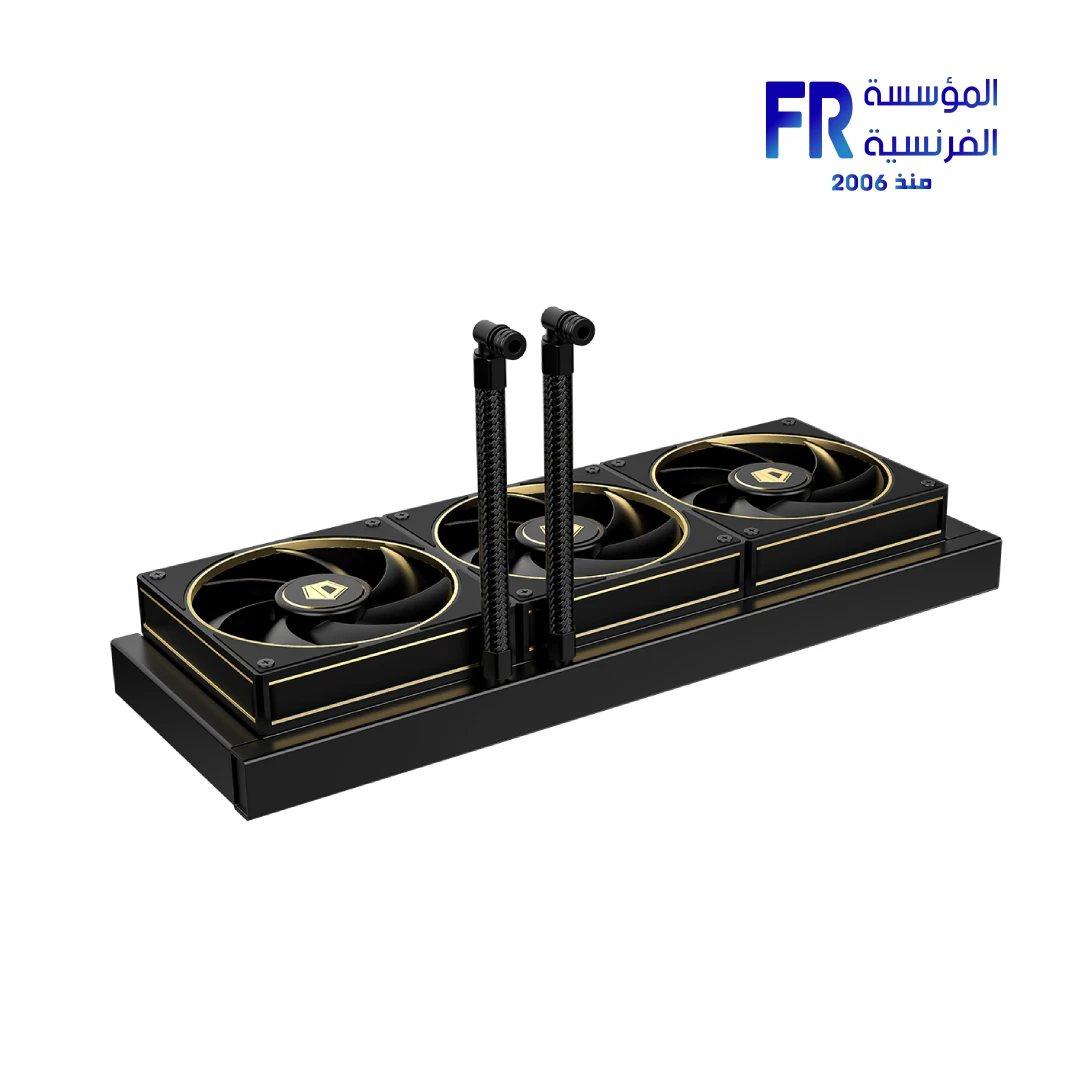

Sleeved 160mm Tubing
Premium sleeved tubing for clean in-case routing.
AF-127-GDL Fans · 78 CFM · 2.68 mmH₂O
The included AF-127-GDL fans are 27 mm thick — slightly thicker than standard 25 mm fans — and tuned for high static pressure at 2.68 mmH₂O. That pressure matters on radiator fins, where airflow meets resistance. Each fan moves up to 78 CFM with fluid dynamic bearings for quiet, long-life operation.
Intel LGA1851 / 1700 · AMD AM5 / AM4
Intel: LGA1851 · 1700 · 1200 · 115X
AMD: AM5 · AM4
From current-generation LGA1851 and AM5 builds to older LGA1200 and AM4 systems, the DX360 GDL ships with universal mounting hardware for a clean install across platforms.

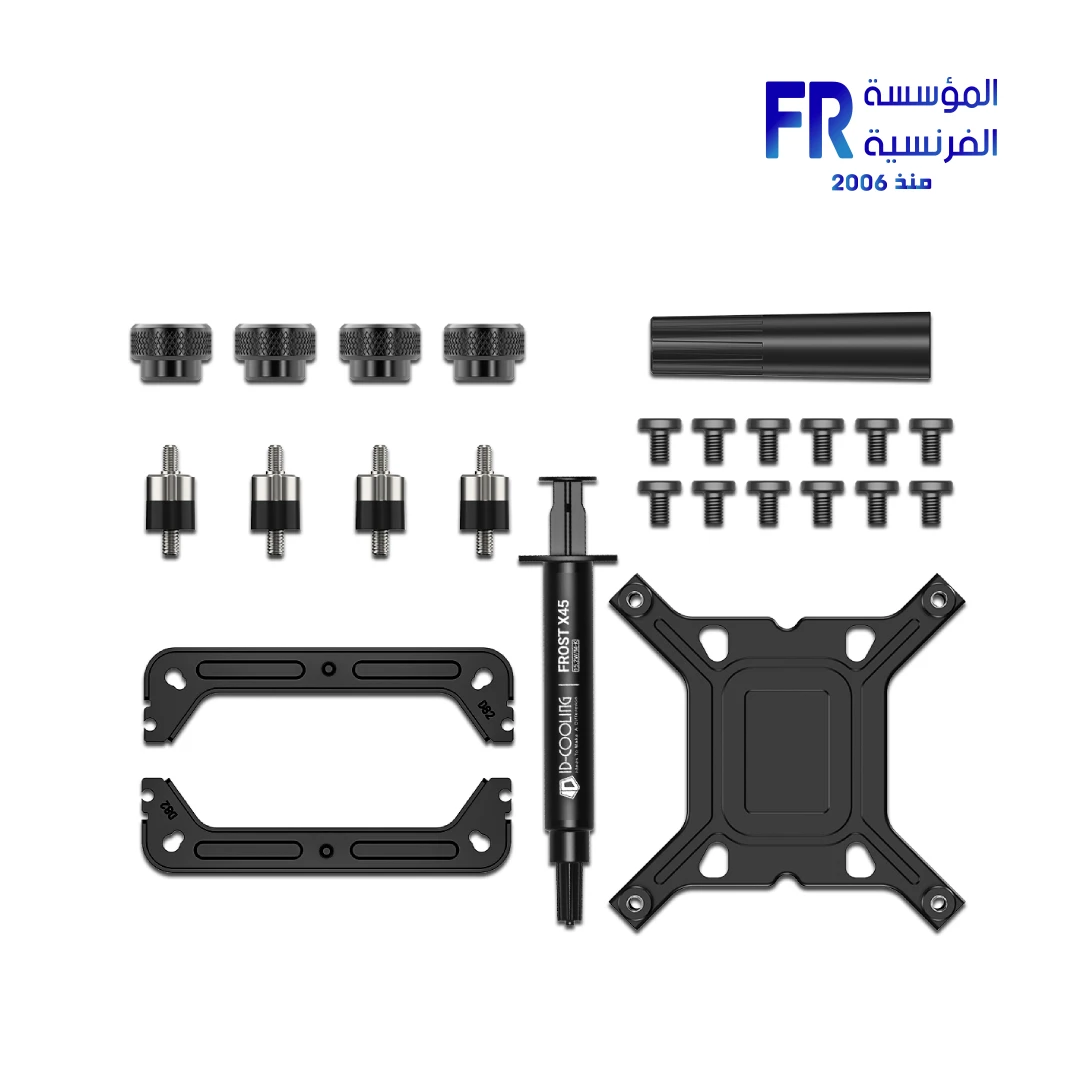

What’s in the Box
360mm radiator · pump · tubing
120mm fluid dynamic PWM · ARGB
Intel & AMD brackets
Installation guide
Technical Specifications
| Model | ID-COOLING DX360 GDL |
|---|---|
| Compatibility | Intel LGA1851/1700/1200/115X · AMD AM5/AM4 |
| TDP | 350W |
| Radiator Dimensions | 396 × 134 × 27 mm |
| Radiator Material | Aluminum |
| Tube Material | Premium Sleeved Tubing |
| Tube Length | 160 mm |
| Waterblock Dimensions | 100 × 94 × 69 mm |
| Cold Plate Material | Copper |
| Pump Current | 0.45 A |
| Pump Speed | 2900 ±10% RPM |
| Pump Bearing | Ceramic Bearing |
| Pump Connector | 3-Pin |
| Pump Noise Level | 25 dB(A) |
| Fan Model | AF-127-GDL (3 units included) |
| Fan Dimensions | 120 × 120 × 27 mm (each) |
| Fan Speed | 500 – 2000 ±10% RPM |
| Max. Air Flow | 78 CFM |
| Max. Static Pressure | 2.68 mmH₂O |
| Fan Noise | 29.9 dB(A) Max. |
| Rated Voltage | 12 VDC |
| Rated Current | 0.25 A |
| Power Input | 2.16 W |
| Fan Bearing Type | Fluid Dynamic Bearing |
| Fan Connector | 4-Pin PWM |
| Warranty | 2 Years |
Frequently Asked Questions
What CPU sockets does the DX360 GDL support?
+
The DX360 GDL supports Intel LGA1851, LGA1700, LGA1200, LGA115X, and AMD AM5, AM4 sockets.
What is the pump life and noise like?
+
The Gen 7 Pro pump uses a ceramic bearing running at 2900 RPM (±10%) with a rated noise level of 25 dB(A). The ceramic bearing is designed for long-life, quiet service in continuous operation.
What is the TDP rating of this AIO?
+
The DX360 GDL is rated for up to 350W TDP, covering mainstream through high-end desktop CPUs under sustained load.
What fans are included and what are their specs?
+
Three AF-127-GDL 120 × 120 × 27 mm fans are included. Each delivers up to 78 CFM with 2.68 mmH₂O static pressure, running from 500 to 2000 RPM (±10%) on 4-pin PWM with fluid dynamic bearings.
What warranty is included?
+
The ID-COOLING DX360 GDL is covered by a 2-year warranty against manufacturing defects. Please contact your local retailer for warranty support.
Cool Your Build with Gen 7 Pro Precision
360mm AIO · Gen 7 Pro ceramic pump · 350W TDP · 3× AF-127-GDL high-pressure PWM fans · 160mm sleeved tubing — backed by a 2-year warranty.
