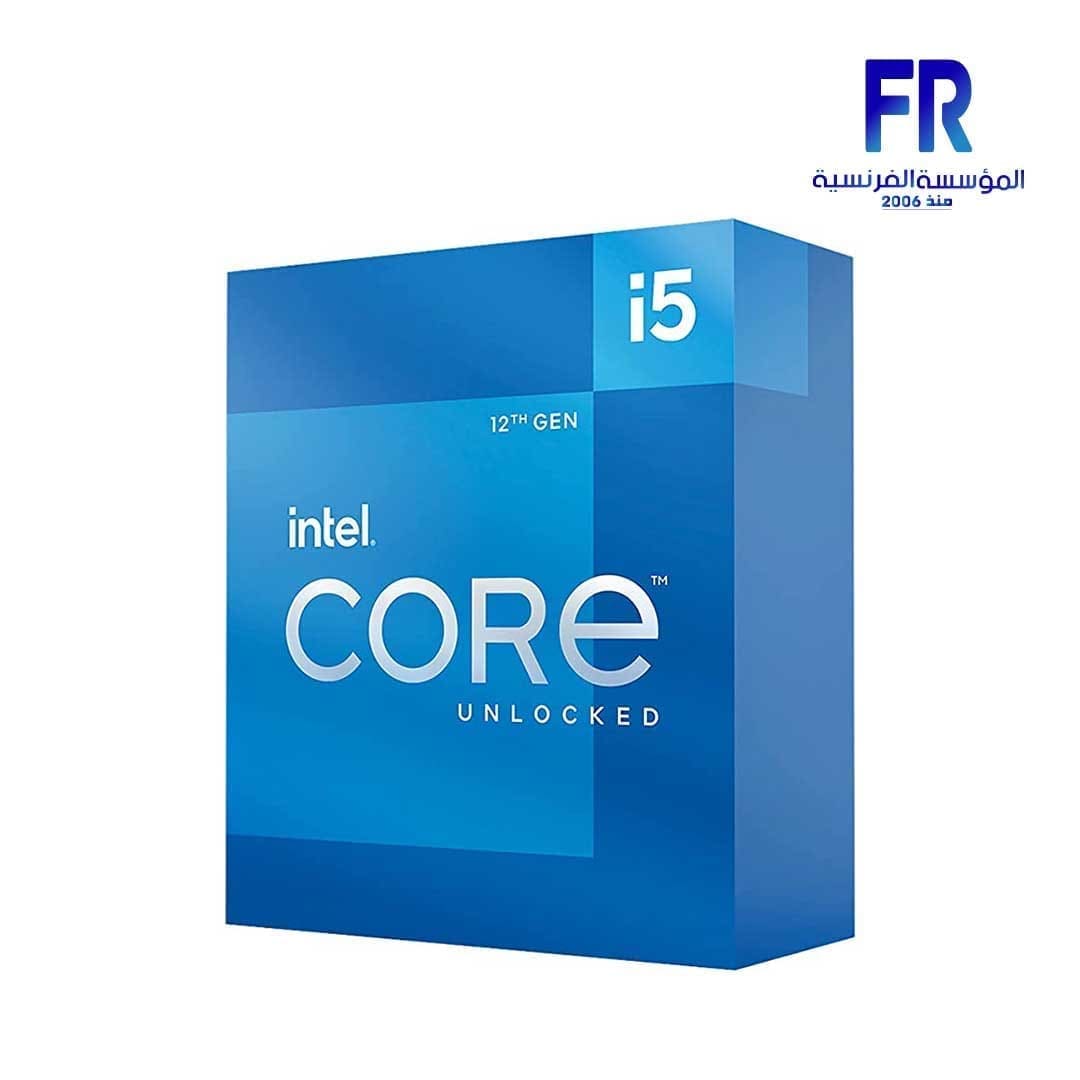

Intel Core I5 12600K Processor
9600 EGP
Out Of Stock.
| MODEL | |
|---|---|
| CHIPSET MANUFACTURERS | |
| Code Name | |
| CPU SERIES | |
| CPU Generation | |
| CPU SOCKET | |
| CORES | |
| THREADS | |
| OPERATING FREQUENCY | |
| MAX TURBO FREQUENCY | |
| L2 CACHE | |
| L3 CACHE | |
| Technology | |
| MEMORY CHANNEL | |
| MAX MEMORY SIZE | |
| INTEGRATED GRAPHICS | |
| Part Number | |
| Warranty |
INTEL CORE I5 12600K Processor
Essentials
Product Collection
12th Generation Intel® Core™ i5 Processors
Vertical Segment
Desktop
Processor Number
i5-12600K
Lithography
Intel 7
Use Conditions
PC/Client/Tablet, Workstation
CPU Specifications
Total Cores
10
# of Performance-cores
6
# of Efficient-cores
4
Total Threads
16
Max Turbo Frequency
4.90 GHz
Performance-core Max Turbo Frequency
4.90 GHz
Efficient-core Max Turbo Frequency
3.60 GHz
Performance-core Base Frequency
3.70 GHz
Efficient-core Base Frequency
2.80 GHz
Cache 20 MB Intel®
Smart Cache
Total L2 Cache
9.5 MB
Processor Base Power
125 W
Maximum Turbo Power
150 W
Supplemental Information
Embedded Options Available
No
Memory Specifications
Max Memory Size (dependent on memory type)
128 GB
Memory Types
Up to DDR5 4800 MT/s
Up to DDR4 3200 MT/s
Max # of Memory Channels
2
Max Memory Bandwidth
76.8 GB/s
ECC Memory Supported ‡
Yes
Processor Graphics
Processor Graphics ‡
Intel® UHD Graphics 770
Graphics Base Frequency
300 MHz
Graphics Max Dynamic Frequency
1.45 GHz
Graphics Output
eDP 1.4b, DP 1.4a, HDMI 2.1
Execution Units
32
Max Resolution (HDMI)‡
4096 x 2160 @ 60Hz
Max Resolution (DP)‡
7680 x 4320 @ 60Hz
Max Resolution (eDP – Integrated Flat Panel)‡
5120 x 3200 @ 120Hz
DirectX* Support
12
OpenGL* Support
4.5
OpenCL* Support
3.0
Multi-Format Codec Engines
2
Intel® Quick Sync Video
Yes
Intel® Clear Video HD Technology
Yes
# of Displays Supported ‡
4
Device ID
0x4680
Expansion Options
Direct Media Interface (DMI) Revision
4.0
Max # of DMI Lanes
8
Scalability
1S Only
PCI Express Revision
5.0 and 4.0
PCI Express Configurations ‡
Up to 1×16+4, 2×8+4
Max # of PCI Express Lanes
20
CORE I5 12600K
Package Specifications
Sockets Supported
FCLGA1700
Max CPU Configuration
1
Thermal Solution Specification
PCG 2020A
TJUNCTION
100°C
Package Size
45.0 mm x 37.5 mm
Advanced Technologies
CORE I5 12600K
Intel® Gaussian & Neural Accelerator
3.0
Intel® Thread Director
Yes
Intel® Deep Learning Boost (Intel® DL Boost)
Yes
Intel® Optane™ Memory Supported ‡
Yes
Intel® Speed Shift Technology
Yes
Intel® Turbo Boost Max Technology 3.0 ‡
No
Intel® Turbo Boost Technology ‡
2.0
Intel® Hyper-Threading Technology ‡
Yes
Intel® 64 ‡
Yes
Instruction Set
64-bit
Instruction Set Extensions
Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
Idle States
Yes
Enhanced Intel SpeedStep® Technology
Yes
Thermal Monitoring Technologies
Yes
Intel® Volume Management Device (VMD)
Yes
CORE I5 12600K
Security & Reliability
Intel vPro® Eligibility ‡
Intel vPro® Enterprise
Intel® Threat Detection Technology (TDT)
Yes
Intel® Active Management Technology (AMT) ‡
Yes
Intel® Standard Manageability (ISM) ‡
Yes
Intel® One-Click Recovery ‡
Yes
Intel® Hardware Shield Eligibility ‡
Yes
Intel® Control-Flow Enforcement Technology
Yes
Intel® Total Memory Encryption – Multi Key
Yes
Intel® Total Memory Encryption
Yes
Intel® AES New Instructions
Yes
Secure Key
Yes
Intel® OS Guard
Yes
Intel® Trusted Execution Technology ‡
Yes
Execute Disable Bit ‡
Yes
Intel® Boot Guard
Yes
Mode-based Execute Control (MBEC)3
Yes
Intel® Stable IT Platform Program (SIPP)
Yes
Intel® Virtualization Technology with Redirect Protection (VT-rp) ‡
Yes
Intel® Virtualization Technology (VT-x) ‡
Yes
Intel® Virtualization Technology for Directed I/O (VT-d) ‡
Yes
Intel® VT-x with Extended Page Tables (EPT) ‡
Yes
