Lian Li Edge EG1300 1300W 80 Plus PLATINUM ATX 3.1 Full Modular Power Supply

Lian Li Edge EG1300 1300W 80 Plus PLATINUM ATX 3.1 Full Modular Power Supply

The Lian Li Edge EG1300 1300W 80 Plus PLATINUM ATX 3.1 Full Modular Power Supply introduces a revolutionary power supply designed for dual-chamber cases. It features a unique L-shape design, an integrated USB hub, and enhanced efficiency. This 1300W PSU ensures top-tier energy efficiency with 80 PLUS Platinum, Cybenetics Platinum, and PPLP Platinum certifications. This reduces power consumption and heat output while delivering reliable, stable performance. Furthermore, it is fully compliant with ATX 3.0 and 3.1 standards, ensuring compatibility with the newest components and motherboards.

Innovative Design & Superior Performance of Lian Li Edge EG1300:

L-Shape Design for Dual Chamber Cases:

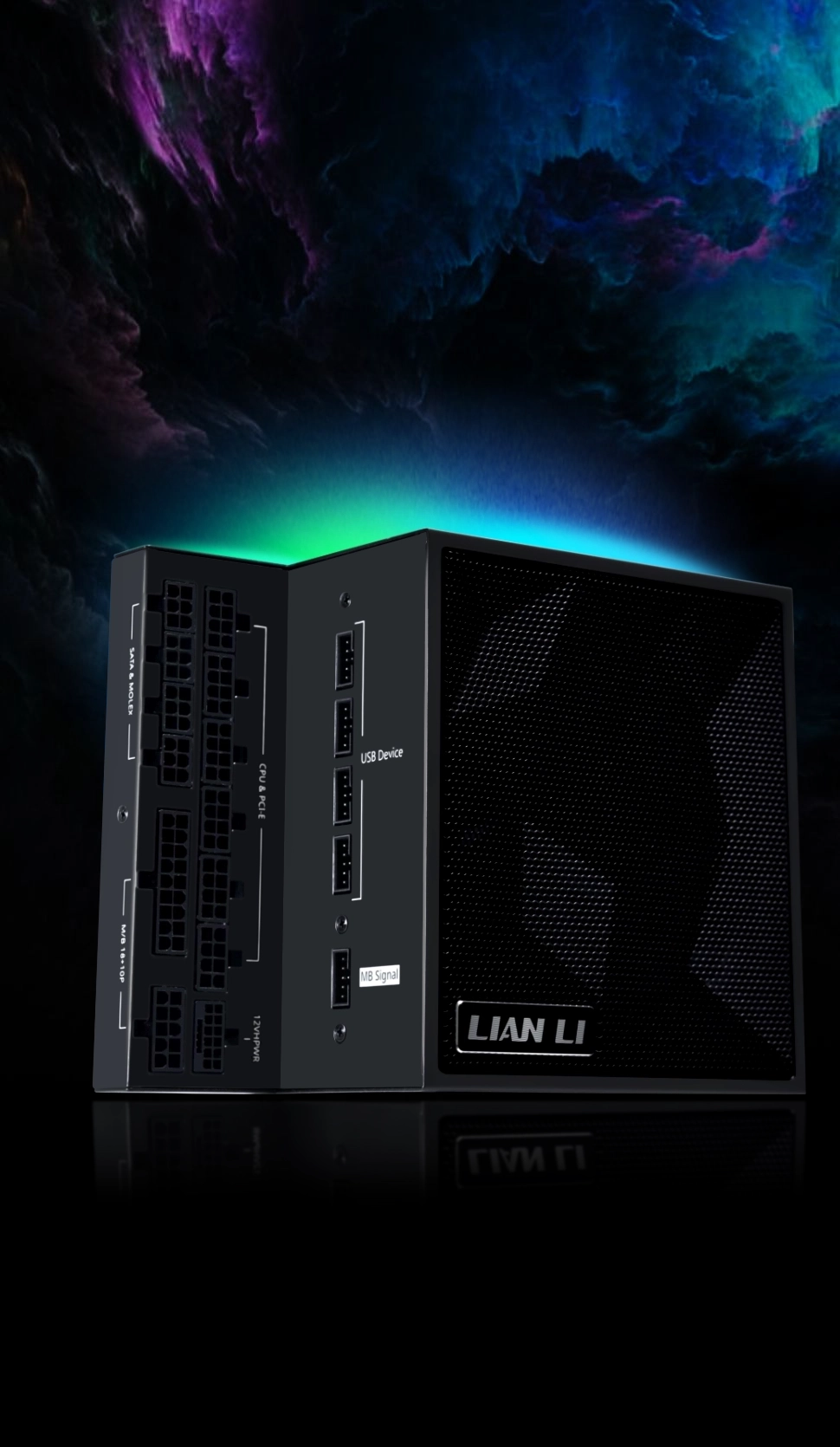

The Lian Li Edge EG1300 1300W 80 Plus PLATINUM ATX 3.1 Full Modular Power Supply features an innovative L-shape design. This is engineered specifically for dual-chamber chassis, such as the LIAN LI O11 series. This unique form factor is ideal for vertical installation at the second chamber. It reorients the connectors outward, simplifying cable management and ensuring a clean, organized build. This design optimizes aesthetics and convenience in your PC build.

Integrated USB Hub & Comprehensive Connectivity:

The Lian Li Edge EG1300 1300W 80 Plus PLATINUM ATX 3.1 Full Modular Power Supply integrates a built-in USB expansion hub. This functions as a 1-to-7 USB hub, simplifying the connection of USB devices like UNI fans, Strimer Plus, and RGB controllers to the motherboard. All USB ports feature uninterruptible power, allowing connected devices to remain operational even when the PC is off, as long as the power supply is on. Each port supports a rate current of 500mA. It offers two options for motherboard signal connection, accommodating different configurations.

Stable PCIe 5.1 Connector & Industrial-Grade Capacitors:

Lian Li’s in-house R&D developed 12V-2×6 alloy copper soldered terminals for secure and efficient power delivery. This enhances system stability and performance. The terminal maintains a contact resistance below 1.5mΩ after 50 plug/pull cycles, improving long-term reliability. The Lian Li Edge EG1300 integrates German EPCOS bulk capacitors. These offer compact, robust performance with higher tolerance to temperature and harsh environments. Featuring LLC topology and Active PFC, this Lian Li PSU enhances efficiency, reduces heat generation, and ensures cleaner, more reliable power delivery.

Cool in Silence & Premium Braided Cables:

Designed for optimal performance, the open-style mesh facilitates excellent heat dissipation for internal components. This feature is especially beneficial for the 120 MM PWM fan, which operates efficiently with minimal noise, ensuring the system stays cool and quiet even under heavy loads. The fan features a fanless mode, remaining at zero RPM during low loads for quiet operation. The power supply units come equipped with 20+4pin, CPU, PCIe 6+2pin, and 12V-2×6 cables featuring premium braided sleeves. These cables are designed with easy-to-adjust cable combs, ensuring very clean curves and cable runs for an aesthetically pleasing and organized dual chamber build.

Explore compatible Power Supplies or check Lian Li Products for other options. Find full details on the official Lian Li Edge EG1300 product page.

Specifications:

• Model Name: EDGE1300
• Model No.: EG1300
• Color: Black/ White
• Dimensions: (D)182 mm X (W)86 mm X (H)150 mm
• Power Supply Design: Fully modular
• Material: Steel
• Form Factor: ATX 3.1
• Certification: 80 PLUS PLATINUM / Cybenetics PLATINUM / PPLP PLATINUM
• Max. DC Output: 1300W
• Combined +3.3V & +5V: 120W
• Combined +12V: 1296W
• Input Voltage: 100-240Vac
• Input Frequency Range: 15-7.5A 50-60Hz
• PFC: Active PFC, PF > 0.90 under full load @ 115Vac, 60Hz
• Efficiency: 92.39% MAX
• Protective Circuit: OCP/OVP/OTP/OPP/SCP/UVP/SIP/NLP
• Fan Type: 120mm FDB Fan
• Fan Speed: 2400RPM (for 1300W)
• Fan Noise Level: 33.61dBA (for 1300W)
• Warranty: 10 Years
• Connectors (1300W): 1x 24/20-Pin motherboard, 2x 8/4+4 Pin CPU/ATX 12V, 4x 8/6+2 Pin PCIe, 1x 12V-2×6, 1x 12V-2×6 – 2 x 8pin, 1x 4x 4-Pin Peripheral, 2x 4x SATA, 1x 4x Y Type SATA, 1x USB*9pin – USB*9pin, 1x USB*9pin -Type A
• Model Number/SKU: EG1300.BE00
• EAN/UPC: Not explicitly provided in source.
