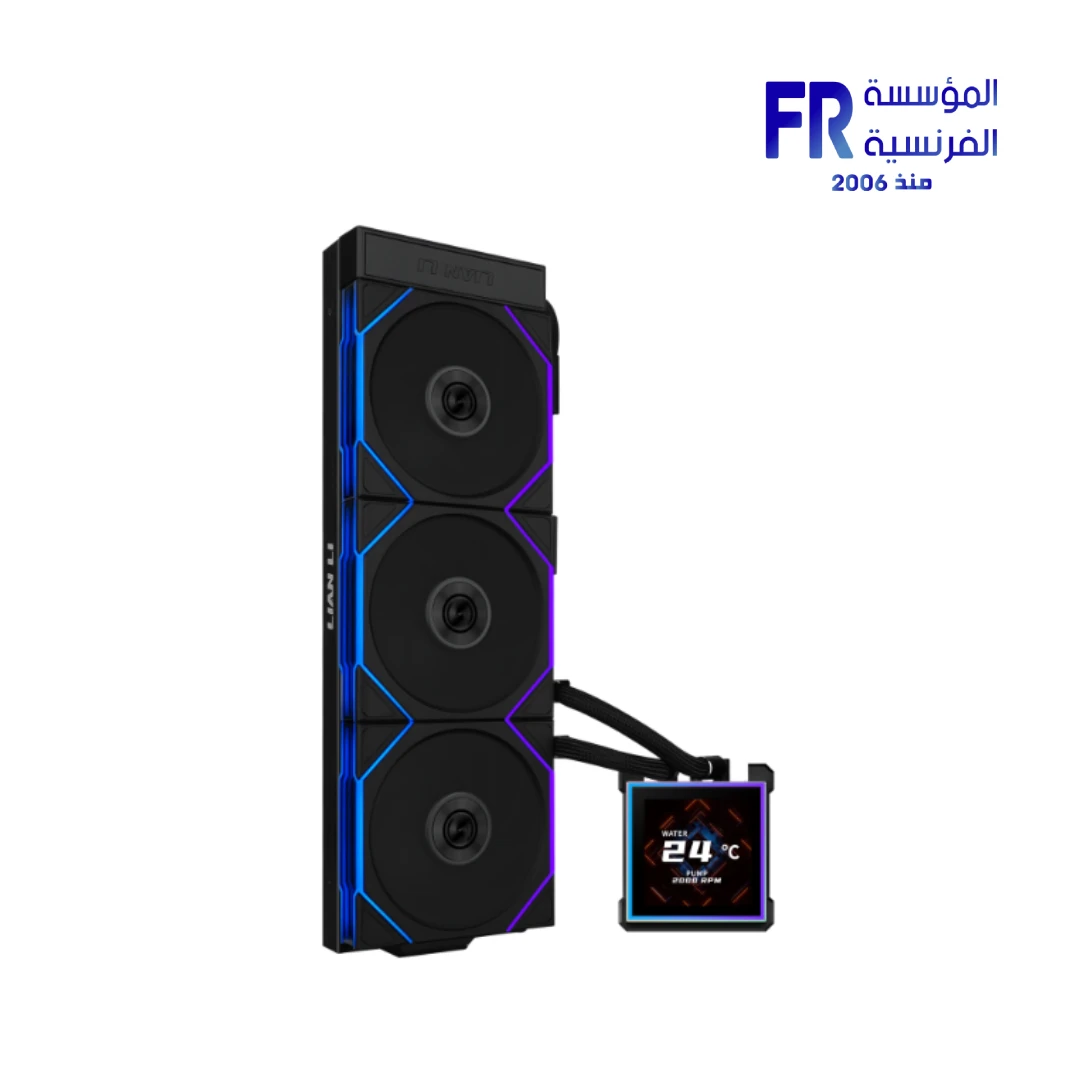

Lian Li HydroShift II LCD-S 360CL 360MM with UNI FAN CL Wireless AIO Liquid Cpu Cooler
8113 EGP
- Part Number: GHS2LCDS36CB
- Display & Pump: 3.4″ IPS LCD (480×480, 500 nits, 60Hz) | Up to 3200 RPM Pump
- Cooling & Radiator: 360mm Compact Aluminum Radiator (400x122x24mm) with 3x UNI FAN CL Wireless
- Design & Cable: Side-Mounted Tubing with Embedded USB Data/Power Cables, Magnetic Hot-Swap Screen
- Features: L-Connect 3 Control (Offline/Wireless/Streaming Modes), ARGB Sync
- Warranty: 6 Years
Want to be notified when this product is back in stock?
✅ Authorized Lian Li Partner in Egypt | Official Local Warranty | Expert Cooling Consultation Available
Lian Li HydroShift II LCD-S 360mm AIO Liquid Cooler with UNI FAN CL Wireless
Quick Summary: The Lian Li HydroShift II LCD-S 360 CL is a premium AIO liquid cooler featuring a compact 400×122×24mm radiator, a 3.4″ 480×480 IPS LCD at 500 nits, a 3200 RPM upgraded pump, side-mounted concealed tubing, three UNI FAN CL Wireless fans, and full L-Connect 3 control across Offline, Wireless, and USB Streaming modes.
Experience the next level of cooling with the Lian Li HydroShift II LCD-S AIO liquid cooler, featuring an enhanced pump that reaches up to 3200 RPM with reduced noise and improved thermal efficiency. Furthermore, the compact 360mm radiator has been refined to just 24mm thickness while maintaining 90% compatibility with mainstream cases, making it easier than ever to install without sacrificing heat dissipation performance.
Available now at Alfrensia, the authorized Lian Li distributor in Egypt, this model comes pre-installed with three UNI FAN CL Wireless fans that deliver high-efficiency airflow with independently controllable RGB light strips and fan blades. Additionally, the innovative side-mounted tubing runs cleanly along the radiator edge with USB power and data cables embedded directly inside the sleeved tubing, delivering a completely cable-free aesthetic for minimalist builds.
Why Choose the Lian Li HydroShift II LCD-S?
Why it matters: The 480×480 IPS display at 500 nits snaps magnetically into place via pogo-pin connectors — no powering down required. This means you can install or remove the screen after full system assembly without risk of damage.
Who benefits: Builders who want to add the screen last to avoid scratches during assembly.
Why it matters: The redesigned pump delivers more cooling power at lower noise levels (≤28dBA) compared to the first generation, with a hidden frame and skirted cover for a clean look.
Who benefits: Users running high-TDP CPUs like the i9-14900K or Ryzen 9 9950X who need maximum thermal headroom.
Why it matters: USB power and data lines are embedded inside the industrial-grade corrugated tubing itself. There are zero visible front-side cables, creating an ultra-clean build that looks professional without any cable management effort.
Who benefits: Showcase builders and anyone using panoramic glass cases like the O11 series.
Why it matters: Offline Mode (no USB, shows coolant temp), Wireless Mode (via optional L-Wireless Controller), and full USB Streaming Mode with media uploads, custom widgets, and secondary display support — all from one software.
Who benefits: Users who want flexibility ranging from zero-cable operation to full custom dashboard display.
Pros and Cons of the HydroShift II LCD-S 360 CL
- • Magnetic hot-swap LCD — install or remove without powering off
- • Completely cable-free front aesthetic with embedded USB inside tubing
- • Compact 24mm thick radiator fits 90% of mainstream cases
- • 3200 RPM pump with improved cooling over first generation
- • UNI FAN CL Wireless with independent light strip and blade ARGB control
- • 6-year warranty with full liquid damage component compensation
- • Supports Intel LGA1700, LGA1851, AMD AM4, and AM5
- • CL variant does not include the L-Wireless Controller — Wireless Mode requires separate purchase
- • Interferes with ROG MAXIMUS Z890 EXTREME and Z890 HERO motherboards — not compatible
- • Side-mounted tubing layout may require bracket adjustment in compact cases
Compatibility and Setup Notes
🚫 Hard Block — Known Incompatibility:
- NOT compatible with ASUS ROG MAXIMUS Z890 EXTREME and ASUS ROG MAXIMUS Z890 HERO motherboards. The HydroShift II LCD-S physically interferes with these boards. Do not purchase if you own either motherboard.
⚠️ Compatibility Check: Please verify the following before purchasing:
- Supported Sockets: Intel LGA1700, Intel LGA1851, AMD AM4, AMD AM5. The upgraded AM4/AM5 bracket ensures even pressure distribution for improved thermal performance.
- Case Clearance: The radiator measures 400 × 122 × 24mm. For hidden-tube top-mount installations, your case’s top mounting area should measure at least 280 × 400mm. The tubing bracket is removable and adjustable for tighter layouts.
- Compact Case Installations: In cases with limited space between the radiator bracket and motherboard (e.g., Lancool 216, O11D MINI V2), tube brackets may need to be removed or repositioned. Excess tubing routes behind the radiator.
- L-Wireless Controller: This CL variant does not include the L-Wireless Controller (only the TL variant includes it). To use Wireless Mode, you must purchase the controller separately. USB Streaming Mode works without it via direct USB connection.
- PWM Power Note: If your motherboard cannot read the pump’s RPM, Lian Li recommends connecting the 4-pin PWM header to a SATA power adapter for more stable power delivery.
- USB 2.0 Connection: The decorative cover on the right side of the radiator must be removed to access the USB 2.0 port. When unplugging, press the connector latch to release — do not pull forcefully.
Technical Specifications
| Specification | Details |
|---|---|
| Model Name | HydroShift II LCD-S 360 CL |
| Brand | Lian Li |
| SKU / MPN | GHS2LCDS36CB |
| EAN | 840353052147 |
| UPC | N/A |
| Product Color | Black |
| Pump Speed | 1600 – 3200 RPM ±10% |
| Pump Noise | ≤28 dBA |
| Water Block Dimensions | 91 × 99 × 62mm |
| LCD Panel | 3.4″ IPS |
| LCD Resolution | 480 × 480 |
| LCD Refresh Rate | 60Hz |
| LCD Brightness | 500 Nits |
| Radiator Size | 400 × 122 × 24mm |
| Radiator Material | Aluminum |
| Tubing Length | 450 / 470mm |
| Fan Model | UNI FAN CL Wireless × 3 |
| Fan Size | 124 × 120 × 28mm (per fan) |
| Fan Speed | 0 – 2100 RPM |
| Fan Pressure | 3.00 H2O |
| Fan Airflow | 72.7 CFM |
| Fan Noise Level | 30 dBA |
| Bearing Type | Fluid Dynamic Bearing (FDB) |
| CPU Socket Support | Intel LGA1700, Intel LGA1851, AMD AM4, AMD AM5 |
| Software | L-Connect 3 (Offline, Wireless, USB Streaming Modes) |
| Warranty | 6 Years Local Alfrensia Warranty |
Understanding Your HydroShift II AIO Liquid Cooler Warranty
💡 Pro Tip: This Lian Li AIO liquid cooler comes with an exceptional 6-year warranty that includes full liquid damage coverage. If a non-human-related leakage damages your motherboard, CPU, RAM, storage, or GPU, Lian Li compensates you based on a 15% annual depreciation rate (100% in Year 1, 85% in Year 2, and so on). To activate this coverage, always keep your Alfrensia purchase receipt and ensure the product was bought through an authorized channel.
Frequently Asked Questions
Does the CL variant include the L-Wireless Controller?
No. Only the HydroShift II LCD-S 360 TL variant includes the L-Wireless Controller. For the CL variant, Wireless Mode requires purchasing the L-Wireless Controller separately. However, you can still use the full USB Streaming Mode and Offline Mode without any additional hardware — simply connect the USB 2.0 cable to your motherboard.
Can I remove and reattach the LCD screen without turning off my PC?
Yes. The 3.4″ LCD uses magnetic hot-swap pogo-pin connectors, so you can snap it on or off while the system is running. This is especially useful during initial build assembly — you can install the AIO first, cable everything, then attach the screen last to avoid accidental scratches or damage.
Is this cooler compatible with my ASUS ROG MAXIMUS Z890 motherboard?
It depends on the exact model. The HydroShift II LCD-S is NOT compatible with the ROG MAXIMUS Z890 EXTREME and ROG MAXIMUS Z890 HERO due to physical interference. However, other Z890 motherboards (such as the ROG MAXIMUS Z890 APEX, STRIX, or Hero non-EXTREME variants) should work fine — always verify your specific motherboard’s CPU area clearance before purchasing.
Can I fit this in a compact case like the O11D MINI V2?
Yes, but with adjustments. In small form factor cases where space between the radiator bracket and motherboard is extremely limited, the upright tube bracket may need to be removed and the two tube holders repositioned. Excess tubing routes behind the radiator. Note that tube support brackets may not be usable in this configuration.
Where can I buy the Lian Li HydroShift II LCD-S in Egypt with a warranty?
You can purchase the original Lian Li HydroShift II LCD-S 360 CL with UNI FAN CL Wireless, backed by a 6-year official local warranty with liquid damage coverage, and fast Cairo-wide delivery directly from Alfrensia, an authorized Lian Li partner.
Ready to Upgrade Your Cooling?
Speak with our cooling specialists for case compatibility verification, L-Wireless Controller bundle pricing, and thermal performance advice for your CPU.
