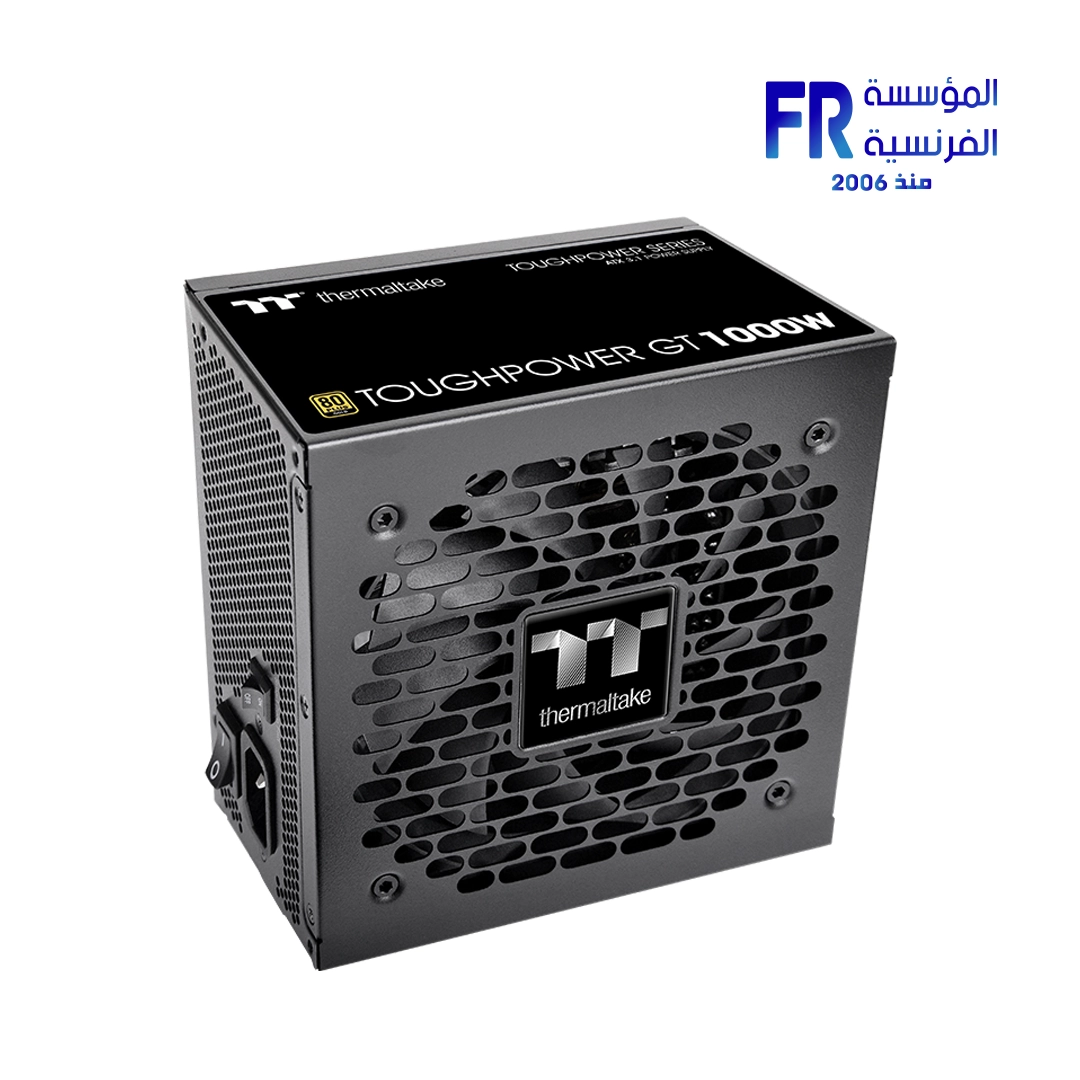

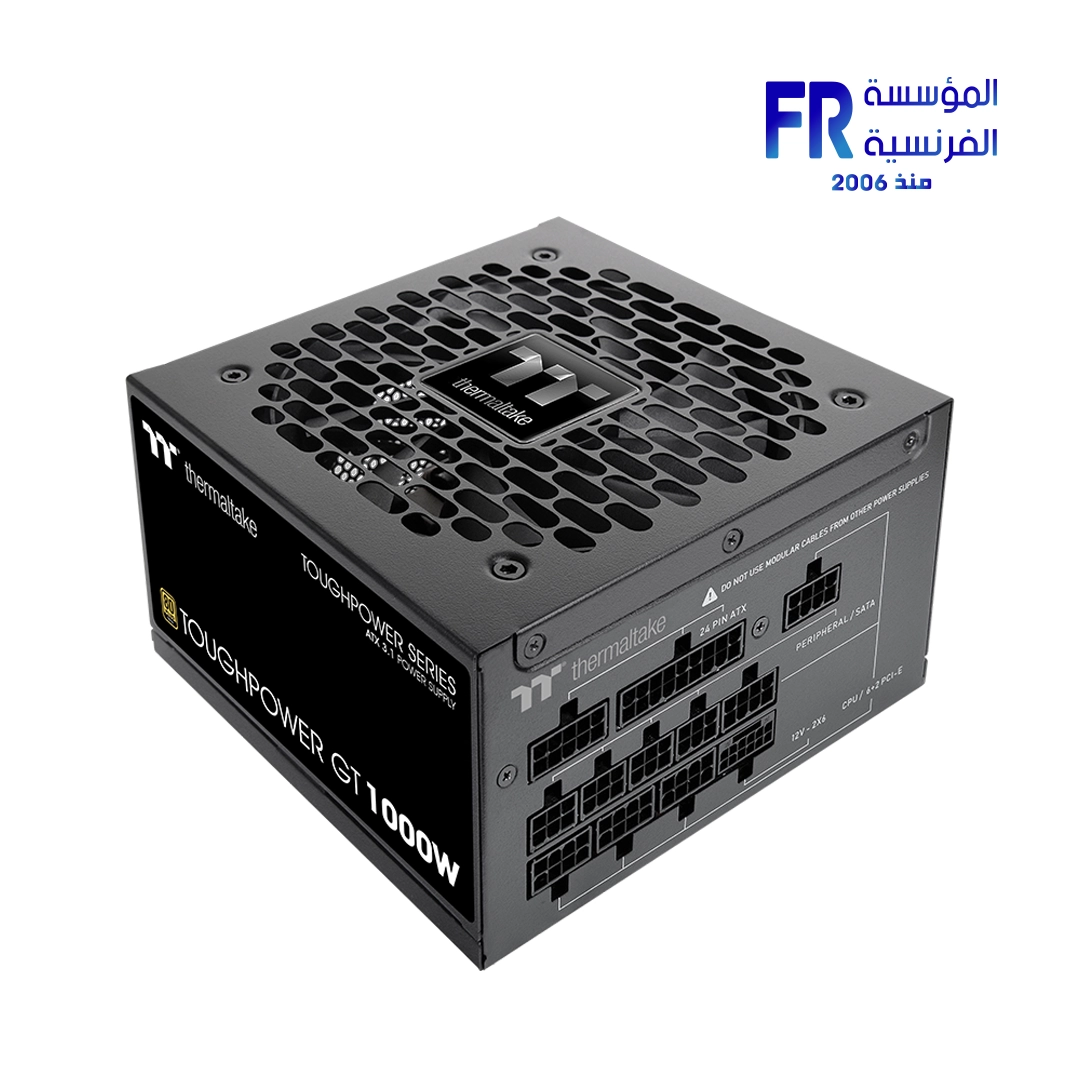

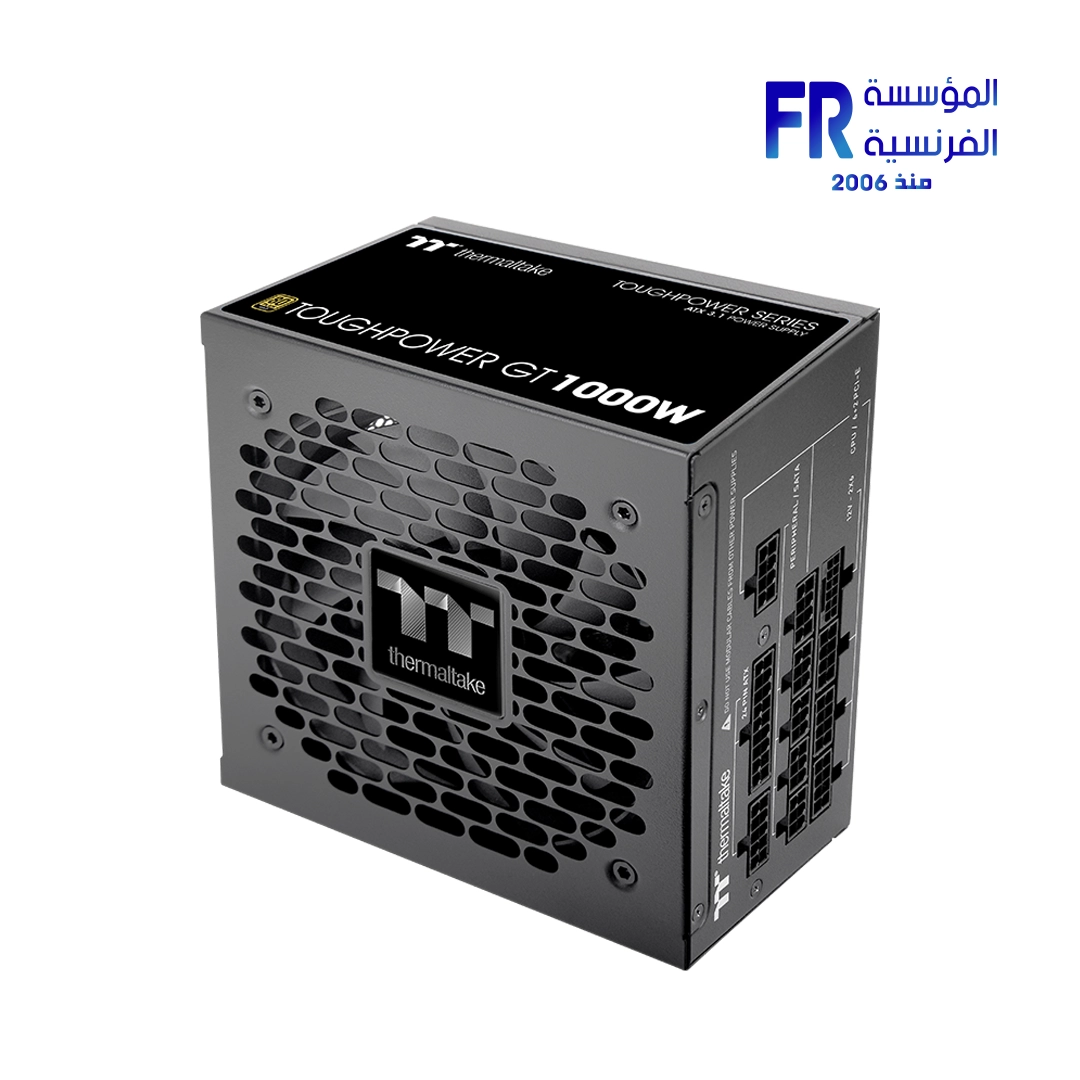

Thermaltake Toughpower GT 1000W 80 Plus Gold ATX 3.1 Fully Modular Power Supply
7874 EGP
- P/N: PS-TPT-1000FNFAGK-3
- Watts: 1000W
- Efficiency: 80 PLUS Gold
- Dimension (W / H / D): 150mm x 86mm x 140mm
- PFC: Active PFC
- Cooling System: 12cm Hydraulic bearing fan
- Connectors: PCIe 12V-2×6 (native), 5 PCIe 6+2pin
Want to be notified when this product is back in stock?
Thermaltake Toughpower GT 1000W Power Supply
The Thermaltake Toughpower GT 1000W is a high-performance power supply designed to meet the demands of modern, high-end PC builds. As a result, this unit is certified with 80 Plus Gold efficiency, ensuring minimal energy waste and cooler operation. Its fully modular design simplifies cable management, leading to a cleaner build and improved airflow. Crucially, the PSU is fully compatible with the new ATX 3.1 standard and includes a native PCIe 12V-2×6 connector, providing stable and reliable power for the latest graphics cards. This makes the Thermaltake Toughpower GT 1000W an ideal choice for gamers and enthusiasts who need a dependable and future-proof power solution.
Why Choose a Fully Modular Power Supply?
- Cable Management: A fully modular design allows you to connect only the cables you need. This reduces clutter inside your PC case, improving aesthetics and making future upgrades easier.
- Improved Airflow: Fewer unnecessary cables means better airflow and superior cooling performance for all your components.
- Native 12V-2×6 Connector: The inclusion of a native 12V-2×6 connector ensures maximum stability and power delivery to high-end GPUs, eliminating the need for adapters.
- Hydraulic Bearing Fan: A 12cm hydraulic bearing fan provides quiet and efficient cooling, maintaining optimal temperatures under load while keeping noise levels to a minimum.
Comprehensive Specifications:
This Thermaltake Toughpower GT 1000W unit comes with a range of features to ensure reliability and top-tier performance. It includes a robust suite of protections to safeguard your system from electrical issues. For instance, the OVP/UVP/OCP/OPP/OTP/SCP protections ensure your components are safe from over-voltage, under-voltage, over-current, over-power, over-temperature, and short-circuit faults. You can find more details on the official Thermaltake website.
| Spec | Details |
|---|---|
| P/N | PS-TPT-1000FNFAGK-3 |
| watts | 1000W |
| Model | TPD-1000AH2FXG-3 |
| Max. Output Capacity | 1000W |
| Color | Black |
| Dimension ( W / H / D ) | 150mm(W)x86mm(H)x140mm(D) |
| PFC (Power Factor Correction) | Active PFC |
| Power Good Signal | 100-250 msec |
| Hold Up Time | > 17msec at 80% load |
| Input Current | 15-10A |
| Input Frequency Range | 50Hz-60Hz |
| Input Voltage | 100-240V～ |
| OPERATING TEMPERATURE | 0°C to + 40°C |
| Operating Humidity | 5% to 85%,non-condensing |
| Storage Temperature | -40°C to + 70°C |
| COOLING SYSTEM | 12cm Hydraulic bearing fan |
| Efficiency | Meet 80 PLUS® Gold at 115Vac input. |
| MTBF | 100,000 hrs minimum |
| Safety Approval | CE/UKCA/ICES/TUV/LVD/RCM/CB/FCC/cTUVus/BSMI/CCC/BIS/S-MARK/EAC |
| PCI-E 6+2pin | 5 |
| PCIe 12+4pin | 1 |
| PROTECTION | OVP/UVP/OCP/OPP/OTP/SCP |
| MODEL | |
|---|---|
| PSU WATT | |
| Psu-Cable-Type | |
| ENERGY EFFICIENT | |
| Protection | |
| PSU Capacitors | |
| DC to DC | |
| Part Number | |
| Warranty |
