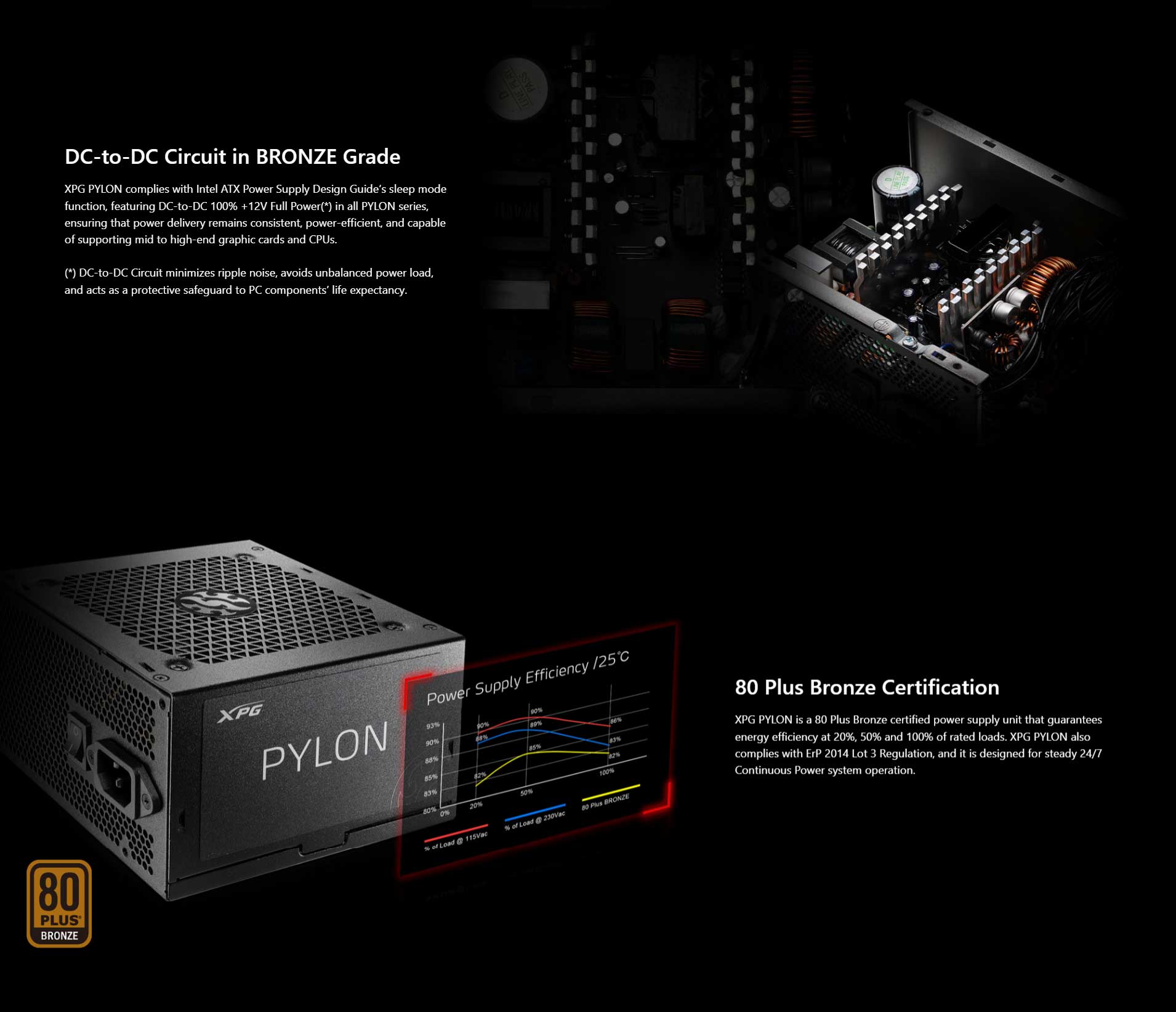

(*) DC-to-DC Circuit minimizes ripple noise, avoids unbalanced power load, and acts as a protective safeguard to PC components’ life expectancy.
The operating environment is kept quiet and efficient, and prolongs its life expectancy.
- Dimensions (L x W x H) 140 x 150 x 86mm
- 80 PLUS RATING BRONZE
- ATX Version Intel ATX 12V V2.4 (Timing complies with Intel ATX12V Specific guidelines to version 2.52)

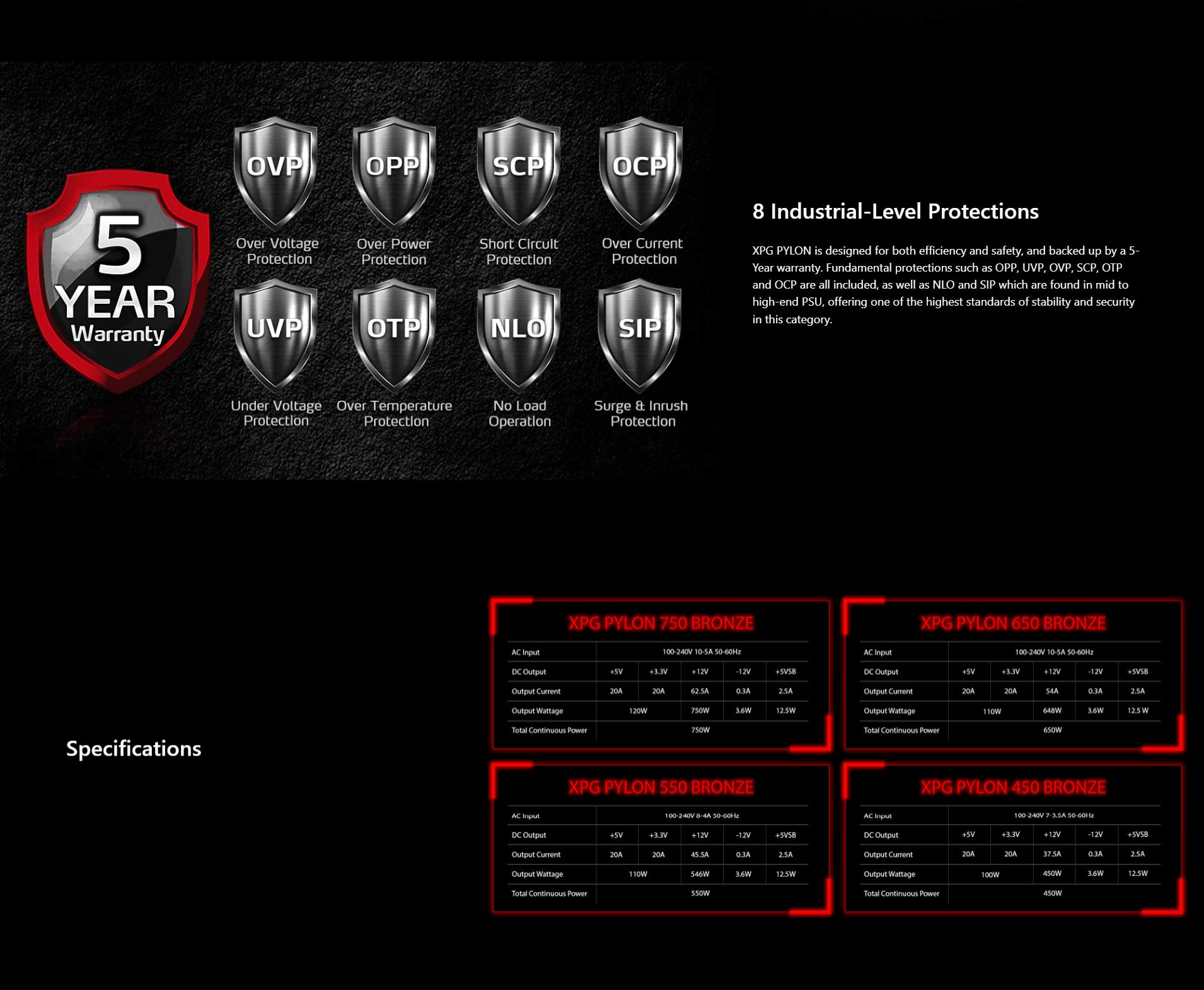

- Protections OCP / OVP / UVP / OPP / SCP / OTP / NLO / SIP
- Certification CE / UKCA / CB / FCC (IC) / EAC / CCC / TUV / cTUVus / TUV S-Mark / RCM / NOM / BSMI / KC
- PFC 0.99
- Input Voltage 100-240V
- Input Current 750W:10A/5A 、650W:10A/5A 、550W:8A/4A 、450W:7A/3.5A
- Input Frequency 50Hz – 60Hz
- Operating Temperature 50°C

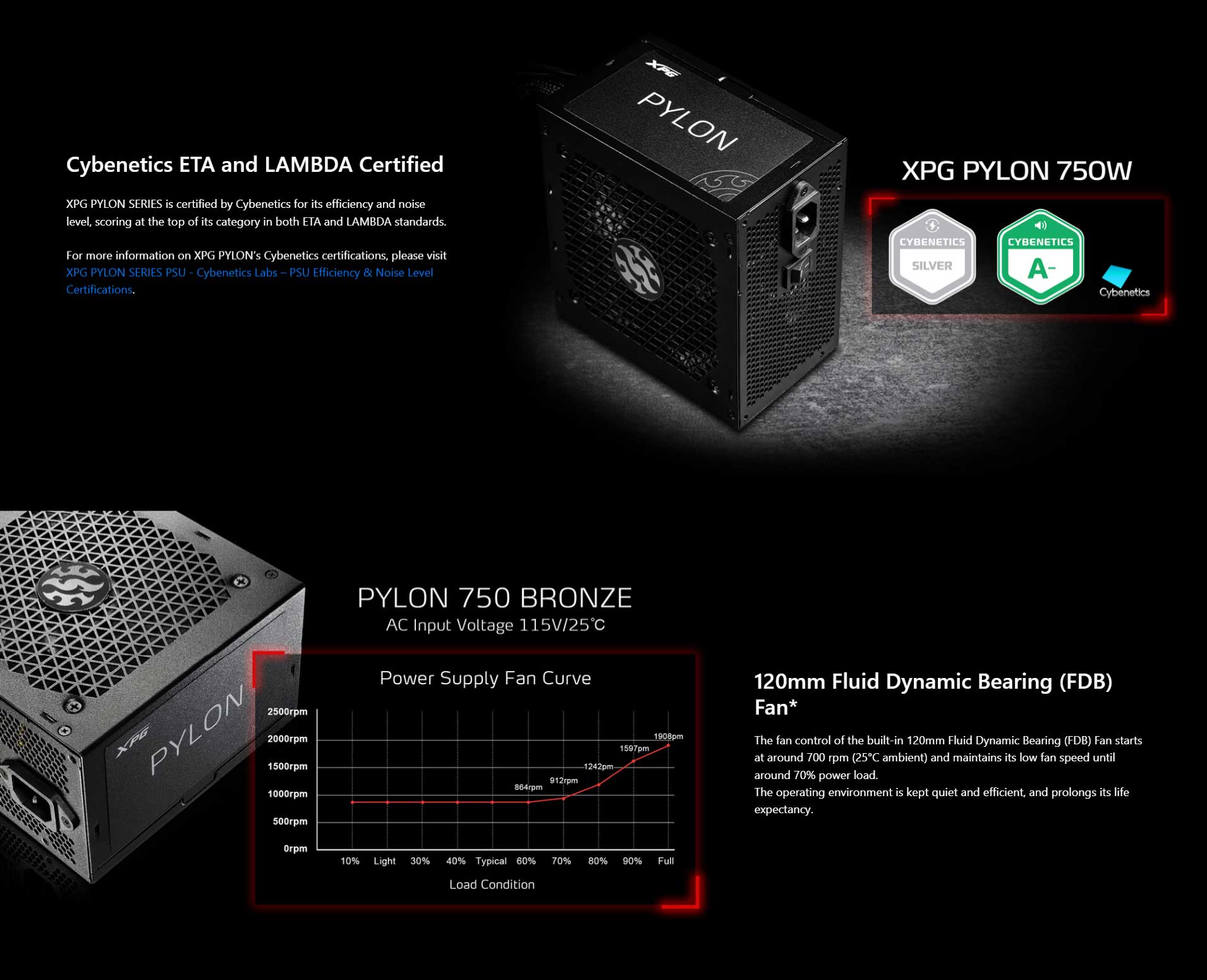

- Fan Size 120mm
- Fan Bearing FDB (Fluid Dynamic Bearing)*
- Fan Speed 2,000 RPM
- MTBF 100K Hours at 25℃

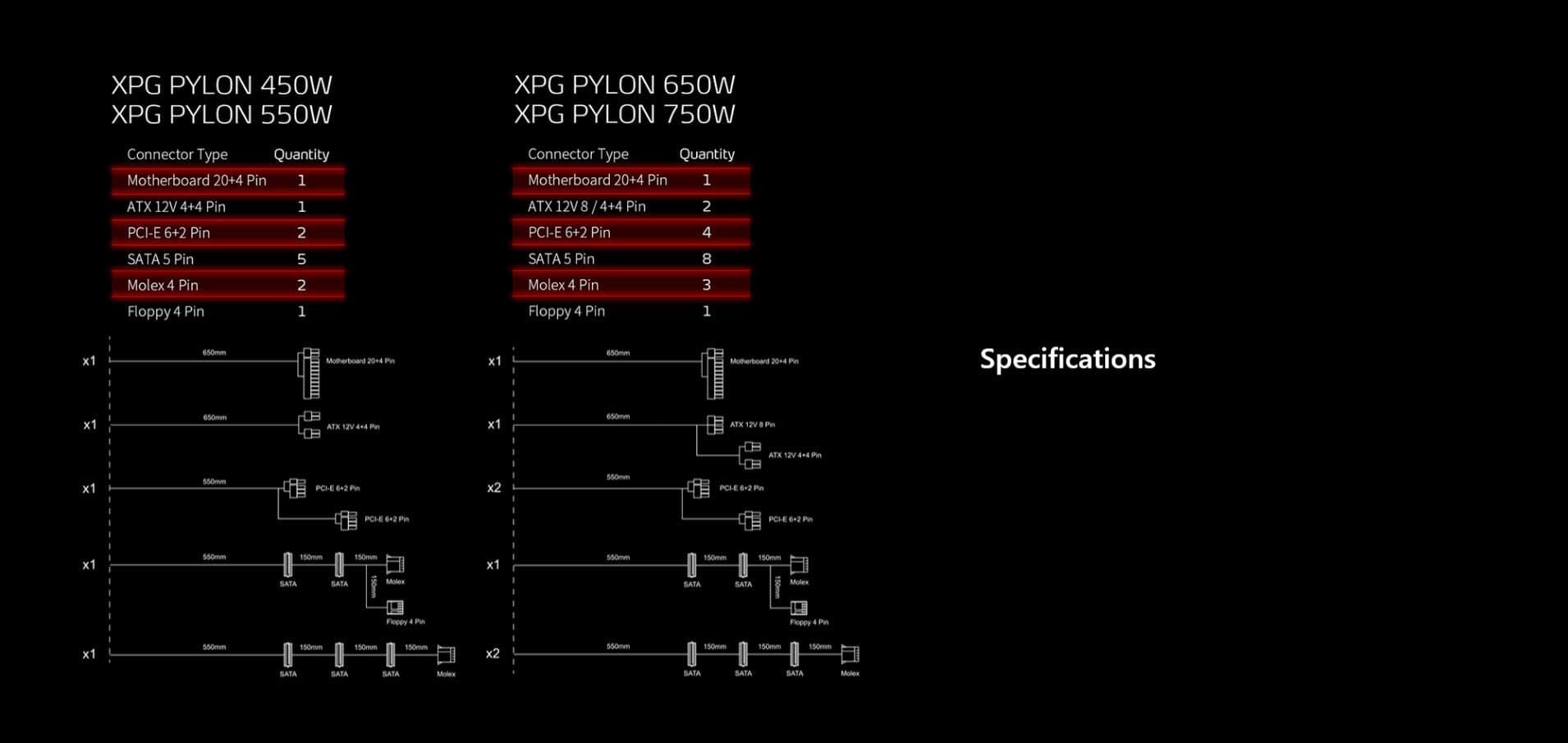

- ATX 24 Pin Connector 1
- EPS 8 Pin Connector 750w : 1 / 650w : 1 / 550w : 0 / 450w : 0
- EPS 8 (4+4) Pin Connector 750W : 1 / 650W : 1 / 550W : 1 / 450W:1
- PCI-E 6+2 Pin Connector 750W : 4 / 650W : 4 / 550W : 2 / 450W:2
- SATA Connector 750W : 8 / 650W : 8 / 550W : 5 / 450W:5
- Peripheral 4 Pin Connector 750W : 3 / 650W : 3 / 550W : 2 / 450W:2
- Floppy 4 Pin Connector 750W : 1 / 650W : 1 / 550W : 1 / 450W : 1
- Weight
- 750W: Product:2.12kg (4.7lb) ±5% with Package:2.63kg (5.8lb) ±5%
- 650W: Product:1.87kg (4.1lb) ±5% with Package:2.38kg (5.2lb) ±5%
- 550W: Product:1.77kg (3.9lb) ±5% with Package:28kg (5.0lb) ±5%
- 450W: Product:1.67kg (3.7lb) ±5% with Package:2.2kg (4.9lb) ±5%
- Warranty 5 Years (3 years when purchased before 2022 January
