Is the Aerocool SMART G1 1000W PSU compatible with modern GPUs?

Yes, the SMART G1 1000W PSU is compliant with the latest ATX 3.1 and PCIe 5.1 standards, ensuring full compatibility and stable power delivery via the secure 12V-2x6 connector for high-end graphics cards.

What are the core efficiency features of the SMART G1 power supply?

The power supply features 80 Plus Gold certification for high energy efficiency, Active Power Factor Correction (APFC), and uses a resonant converter design to ensure clean and reliable power delivery while minimizing electricity consumption.

How does the compact design of the SMART G1 benefit my build?

With a compact shell length of just 140mm, the SMART G1 allows for much easier installation in smaller PC cases or mid-towers where space management is critical, offering builders more room for cables and components.

Filter

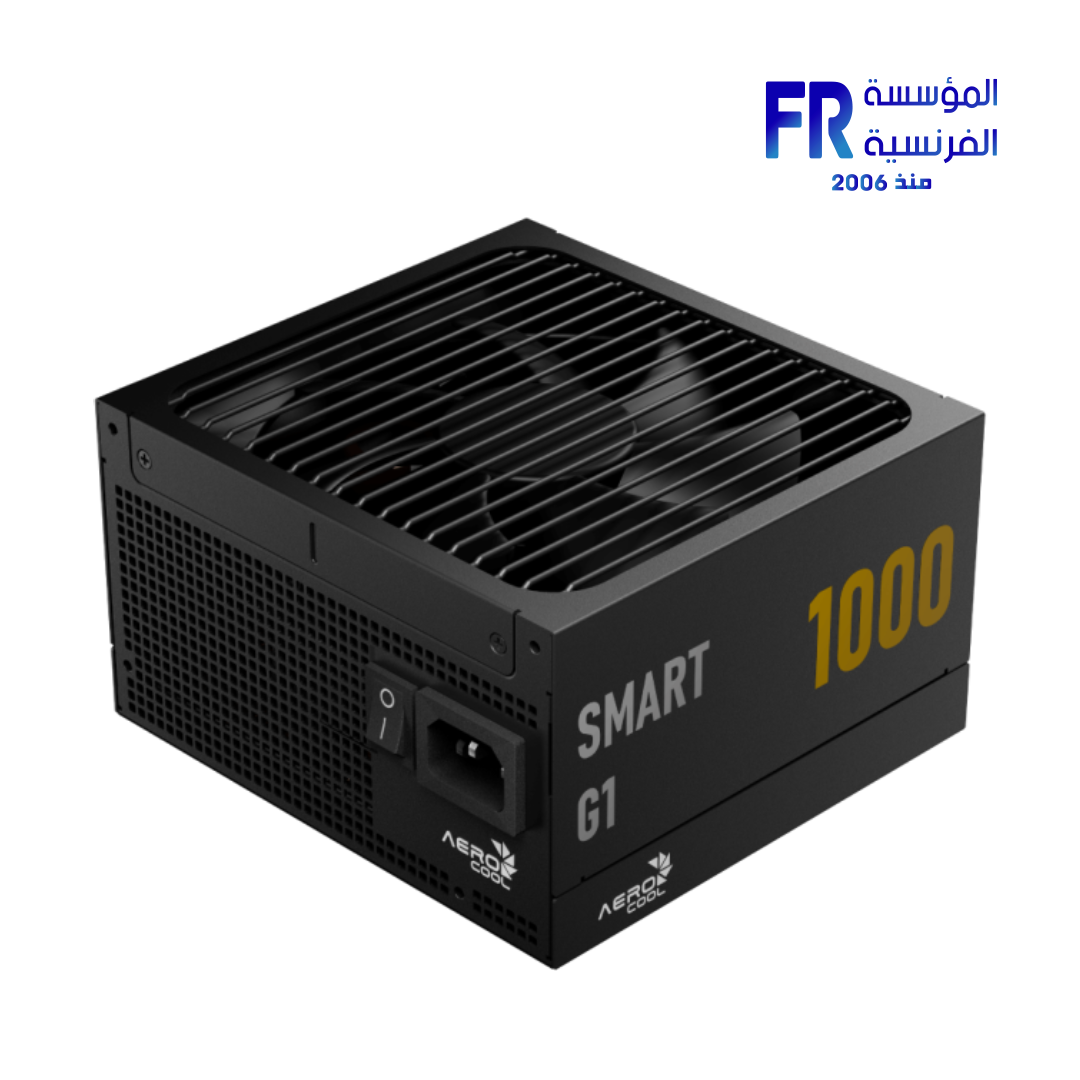

Aerocool SMART G1 1000W 80 Plus Gold ATX 3.1 PCIe 5.1 Power Supply

Aerocool SMART G1 1000W 80 Plus Gold ATX 3.1 PCIe 5.1 Power Supply

5799 EGP

Part Number (Model): SMART G1 1000
Wattage & Efficiency: 1000 W 80 PLUS Gold
Standards Support: ATX 3.1 & PCIe 5.1 Ready (12V-2×6 Connector)
Modularity: Flat Direct Cable (Non-Modular)
Depth: 140 mm (Compact ATX Form Factor)
Capacitor Type: 100% High-Grade 105°C Primary Capacitors
Warranty: 6 Years

Only 2 left in stock

Price Match Guarantee

SKU: 4711530962985 Category: POWER SUPPLY Tags: 1000W, ATX 3.1, PCIe 5.1, 4711530962985, GOLD, Pcie, 1000 Watt, Aerocool SMART G1 series, 80+, G1, 3.1, POWER, High Efficiency, Supply, AeroCool, PSU, SMART, Plus, Power Supply Unit, 80 PLUS GOLD, ATX, 5.1, ACPG-SRK0FEC.71 Brand: AEROCOOL

Aerocool SMART G1 1000W 80 Plus Gold ATX 3.1 PCIe 5.1 Power Supply

The Aerocool SMART G1 1000W PSU offers highly stable, Gold-certified power with full ATX 3.1 and PCIe 5.1 compliance for next-generation PC builds and extreme hardware.

1000W

Max Power Output

80 Plus Gold

Efficiency Rating

ATX 3.1 / PCIe 5.1

Next-Gen Standard Ready

140mm

Compact Length

Key Features of the Aerocool SMART G1 1000W PSU

Future-Proof ATX 3.1 and PCIe 5.1

To begin with, the SMART G1 ensures compatibility with the latest high-performance hardware, supporting ATX 3.1 and PCIe 5.1 standards. Consequently, this model includes the secure 12V-2×6 connector, guaranteeing stable and reliable power delivery, especially to demanding next-gen GPUs.

Premium Reliability and Durability

Furthermore, this power supply utilizes 100% high-grade 105°C primary capacitors. Therefore, this premium build ensures exceptional long-term durability and rock-solid voltage regulation, providing consistent performance across intense gaming and rendering workloads.

Technical Specifications for Aerocool SMART G1 1000W PSU

Specification	Detail
Wattage	1000 W
Efficiency Certification	80 PLUS GOLD
PSU Standard	ATX 3.1 Compliant
PCIe Support	PCIe 5.1 Ready (12V-2×6 Connector)
Max Power (+12V)	999.6W (83.3A)
Capacitor Type	100% High-Grade 105°C
PSU Depth	140mm (Compact)
Cooling Fan	135mm Fluid Dynamic Bearing (FDB)
Cable Type	Flat Direct Cable (Non-Modular)
Protections	OVP, UVP, OPP, SCP, OCP, OTP, Surge Protection

💡 Pro Tip:

Pair the Aerocool SMART G1 1000W PSU with a high-end RTX 4080 or RTX 4090 GPU to fully utilize its ATX 3.1 and PCIe 5.1 capabilities for maximum system efficiency and performance stability.

Important Notice: All information, specifications, and images provided herein are for reference and illustrative purposes only. Visual representations may not be perfectly accurate. Product specifications, features, and appearance can vary by model and country, and are subject to change without notice by the manufacturer. While we strive to present the most precise and comprehensive information, errors in typography or photography may occur.

For the most accurate and up-to-date details, we strongly recommend referring to the official manufacturer’s website. All trademarks and copyrights are the property of their respective owners.

If you have suggestions, or if you notice an error or incorrect information in this draft, please help us improve by reporting it directly via our feedback form: Alfrensia.com – Website Feedback & Report Form.

POWER SUPPLY

MODEL	SMART G1
Psu-Cable-Type	NON MODULAR
PSU WATT	1000 W
ENERGY EFFICIENT	80 PLUS GOLD
Protection	OCP, OPP, OTP, OVP, SCP, UVP
PSU Capacitors	Not Specified
DC to DC	Not Specified
Fan Size (mm)	135mm
Part Number	ACPG-SRK0FEC.71
Warranty	6 Years
