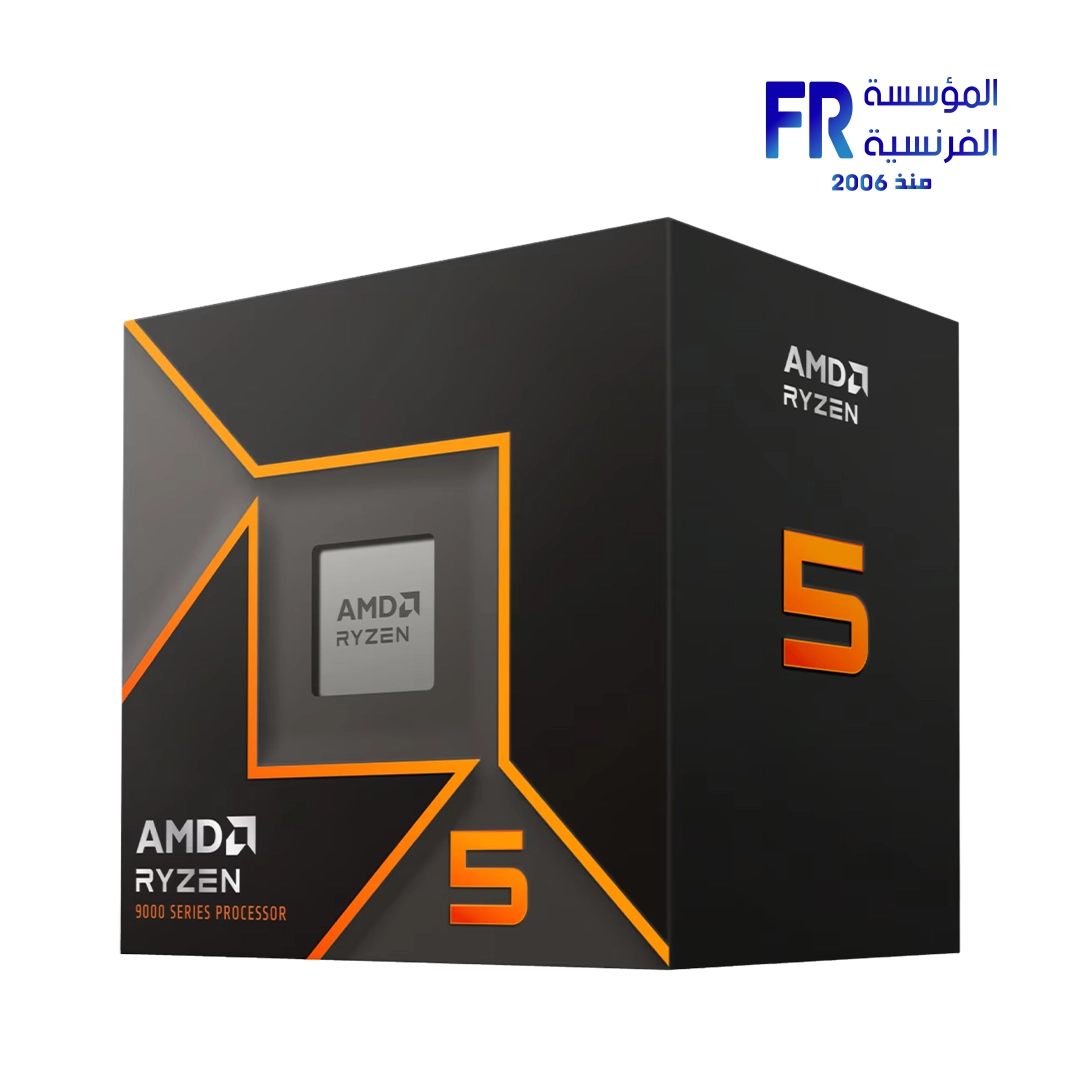

AMD Ryzen 5 9600 Box Processor

The AMD Ryzen™ 5 9600 Box Processor delivers gaming performance for everyone. This 6-core processor effectively handles both demanding gaming and productivity tasks. It offers incredible gaming, professional-grade productivity, and magical AI experiences.

Next-Gen Architecture and Powerful Performance:

Zen 5 Architecture and Core Count:

Built on the cutting-edge Zen 5 processor architecture, the AMD Ryzen™ 5 9600 delivers a significant leap in performance, responsiveness, and power efficiency. It features 6 CPU cores and supports multithreading (SMT), resulting in 12 threads. This configuration provides an optimal balance for gaming and multitasking.

High Clock Speeds and Cache:

The processor boasts a base clock of 3.8 GHz and a maximum boost clock of up to 5.2 GHz. This ensures rapid processing, allowing games and applications to run smoothly even under heavy workloads. It further includes a 480 KB L1 Cache, 6 MB L2 Cache, and a substantial 32 MB L3 Cache, which collectively accelerate data access and enhance overall system responsiveness.

Future-Ready Connectivity and Memory Support:

PCIe 5.0 and USB Connectivity:

The Ryzen™ 5 9600 supports PCI Express® 5.0, offering compatibility with next-gen SSDs and GPUs for blazing-fast data transfer speeds. It provides 28 total native PCIe® lanes, with 24 usable. For USB connectivity, it includes 4 native USB 3.2 Gen 2 (10Gbps) ports and 1 native USB 2.0 (480Mbps) port, ensuring versatile peripheral support.

DDR5 Memory and Overclocking Capabilities:

This processor supports DDR5 system memory with 2 memory channels, allowing for a maximum memory capacity of 192 GB. It supports UDIMM memory subtypes and various memory speeds, including 2x1R DDR5-5600, 2x2R DDR5-5600, 4x1R DDR5-3600, and 4x2R DDR5-3600. Furthermore, the processor is unlocked for overclocking, and it supports AMD EXPO™ Memory Overclocking Technology, Precision Boost Overdrive, and Curve Optimizer Voltage Offsets. This allows enthusiasts to push their system’s performance even further.

Integrated Graphics and Thermal Solution:

Integrated AMD Radeon™ Graphics:

The Ryzen™ 5 9600 features integrated AMD Radeon™ Graphics. This provides visual capabilities without the need for a discrete graphics card. It includes 2 graphics core counts and a graphics frequency of 2200 MHz. Additionally, it supports USB Type-C® DisplayPort™ Alternate Mode, offering flexible display output options.

Efficient Cooling and Broad Compatibility:

The processor comes with an AMD Wraith Stealth thermal solution (PIB), ensuring efficient cooling right out of the box. It maintains a maximum operating temperature (Tjmax) of 95°C. The CPU uses the AM5 socket, ensuring compatibility with the latest motherboards. It supports various chipsets, including A620, X670E, X670, B650E, B650, X870E, and X870. This broad compatibility makes it a versatile choice for various system builds.

Explore compatible Processors or check AMD Ryzen™ 9000 Series Processors for other options. Find full details on the official AMD Ryzen™ 5 9600 product page.

Specifications:

• Name: AMD Ryzen™ 5 9600
• Family: Ryzen
• Series: Ryzen 9000 Series
• Form Factor: Desktops, Boxed Processor
• Market Segment: Enthusiast Desktop
• Former Codename: Granite Ridge AM5
• Processor Architecture: Zen 5
• # of CPU Cores: 6
• Multithreading (SMT): Yes
• # of Threads: 12
• Max. Boost Clock: Up to 5.2 GHz
• Base Clock: 3.8 GHz
• L1 Cache: 480 KB
• L2 Cache: 6 MB
• L3 Cache: 32 MB
• Default TDP: 65W
• Processor Technology for CPU Cores: TSMC 4nm FinFET
• Processor Technology for I/O Die: TSMC 6nm FinFET
• Package Die Count: 2
• Unlocked for Overclocking: Yes
• AMD EXPO™ Memory Overclocking Technology: Yes
• Precision Boost Overdrive: Yes
• Curve Optimizer Voltage Offsets: Yes
• AMD Ryzen™ Master Support: Yes
• CPU Socket: AM5
• Supporting Chipsets: A620, X670E, X670, B650E, B650, X870E, X870
• CPU Boost Technology: Precision Boost 2
• Instruction Set: x86-64
• Supported Extensions: AES, AMD-V, AVX512, AVX2, AVX, FMA3, MMX-plus, SHA, SSE2, SSE4.2, SSE4A, SSE4.1, SSE3, SSSE3, SSE, x86-64
• Thermal Solution (PIB): AMD Wraith Stealth
• Max. Operating Temperature (Tjmax): 95°C
• OS Support: Windows 11 – 64-Bit Edition, Windows 10 – 64-Bit Edition, RHEL x86 64-Bit, Ubuntu x86 64-Bit
• Native USB 3.2 Gen 2 (10Gbps): 4
• Native USB 2.0 (480Mbps): 1
• PCI Express® Version: PCIe® 5.0
• Native PCIe® Lanes (Total/Usable): 28 / 24
• NVMe Support: Boot, RAID0, RAID1, RAID5, RAID10
• System Memory Type: DDR5
• Memory Channels: 2
• Max. Memory: 192 GB
• System Memory Subtype: UDIMM
• Max Memory Speed: 2x1R DDR5-5600, 2x2R DDR5-5600, 4x1R DDR5-3600, 4x2R DDR5-3600
• ECC Support: Yes (Requires motherboard support)
• Graphics Model: AMD Radeon™ Graphics
• Graphics Core Count: 2
• Graphics Frequency: 2200 MHz
• USB Type-C® DisplayPort™ Alternate Mode: Yes
• Product ID Boxed: 100-100000718BOX
• Product ID Tray: 100-000000718
• Supported Technologies: AMD EXPO™ Technology, AMD Ryzen™ Technologies
• Model Number/SKU: 100-100000718BOX
• EAN/UPC: 314515010
