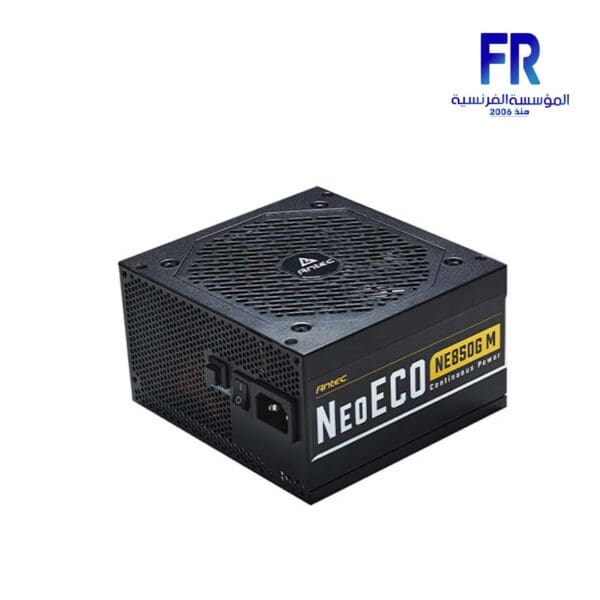

Antec NeoECO NE850 850W 80 Plus Gold Atx3.0 Fully Modular Power Supply
5999 EGP
- – 850W Continuous Power – Guaranteed 850W of Continuous Power from Antec with 7-year warranty
- – 80 PLUS Gold Certified – Reduce your electricity bill.
- – High-Quality Japanese Heavy-Duty Capacitors achieve unprecedented tight voltage regulation & low ripple & noise to maximize your system’s performance.
- – 28(18+10) pin MBU Socket for possible future MBU connectors
- – 120 mm Silent Fan: Whisper-quiet high-quality fluid bearing fan with long lifetime
- – PhaseWave Design-A server-class full-bridge LLC design with a synchronous rectification based on a DC-DC topology
- – Zero RPM Manager: An advanced low voltage fan control with fan-off mode at low loads for absolute silence
- – CircuitShield: Full suite of industrial grade protections: OCP, OVP, SCP, OPP, OTP, SIP, NLO
- – ATX 12V 2.4-Engineered according to the newest PSU guideline and compatible with the latest CPU generation
Only 1 left in stock
| MODEL | |
|---|---|
| PSU CABLE TYPE | |
| PSU WATT | |
| ENERGY EFFICIENT | |
| Protection | |
| PSU Capacitors | |
| DC to DC | |
| Fan Size | |
| Part Number | |
| Warranty |
Antec NeoECO NE850 850W 80 Plus Gold Atx3.0 Fully Modular Power Supply
Antec NeoECO NE850 850W 80 Plus Gold Atx3.0 Fully Modular Power Supply SPECS :
Product Name |
NE850G M |
Model Name |
X7000A083-20 |
Type |
ATX 12V 2.4 |
Modular |
Fully |
Dimension |
150(L) x 140(W) x 86(H) |
Warranty |
7 years |
Input Voltage |
100-240 VAC |
Input Current |
10A MAX |
Input Frequency Range |
50Hz-60Hz |
PFC |
Active PFC |
PowerGood Signal |
100-500ms |
Efficiency |
Up To 92% |
Protection |
OCP / OVP / UVP / SCP / OPP / OTP / SIP / NLO |
Output Capacity |
850W |
OperationTemperature |
0~40°C |
Regulatory |
cTUVus / TUV / CB / RCM / CE / FCC / BIS / BSMI / KC / UKCA / ICES |
Fan |
120mm Silence Fan |
Certifications |
80 Plus Gold |
Connector |
1 x MB 24(20+4) Pin |
| 2 x 8(4+4) Pin EPS 12V | |
| 6 x 8(6+2) Pin PCI-E | |
| 1 x 16(12+4) Pin 12VHPWR | |
| 10 x SATA | |
| 5 x Molex | |
| 1 x FDD | |
Net Weight |
1.38 kgs |
Gross Weight |
2.71 kgs |
NEoeco
gold modular 850W
- 850W Continuous Power™ – Guaranteed 850W of Continuous Power from Antec
- 100% Modular – Improves airflow and reduces clutter
- 80 PLUS® Gold certified -Reduce your electricity bill
- PhaseWave™ Design – A server-class LLC design with a synchronous rectification based on a DC-DC topology
- Antec Quality 7-year warranty
- 120 mm Silent Fan – Whisper-quiet high-quality fluid bearing fan with long lifetime
- Zero RPM Manager – An advanced low voltage fan control with fan-off mode at low loads for absolute silence
- 99%+12V – Output for maximum CPU & GPU support
- CircuitShield™ – Full suite of industrial grade protections: OCP, OVP, UVP, SCP, OPP, OTP, SIP, NLO
- Regulatory – cTUVus/TUV/CB/RCM/CE/FCC/BIS/BSMI/KC/UKCA/ICES
- High-Quality JP capacitors achieve unprecedented tight voltage regulation & low ripple & noise to maximize your system’s performance
- 28(18+10) pin MBU socket – For possible future MBU connectors
- 12VHPWR Cable – For advanced PCIe5.0 standard
- Net Weight: 1.38kg, Gross Weight: 2.71kg
- 120mm
- Silent Fan
- Features improvement for airflow and excellent durability.
-
Zero RPM Mode
-
The Zero RPM fan mode further automatically ensures zero fan speed at low loads to reduce plenty of noise and keep absolute silence.
-
Japanese Heavy-Duty Caps
-
Japanese capacitors ensure the tightest DC stability and regulation, for eliability that you and your system can count on.
-
PhaseWaveTM LLC + DC to DC Design
-
A server-class Half-Bridge LLC design with synchronous rectification based on a DC-DC topology to improve performance and stability.
-
PCIE5.0 Ready
-
12VHPWR cable included, delivering high performance & stability under high load or usage to pair with your powerful graphics cards like RTX 40 Sereies.
- 100%
- Full ModularEnables users to use only the cables which are needed and help clear out excess cables that can obstruct and reduce airflow.
