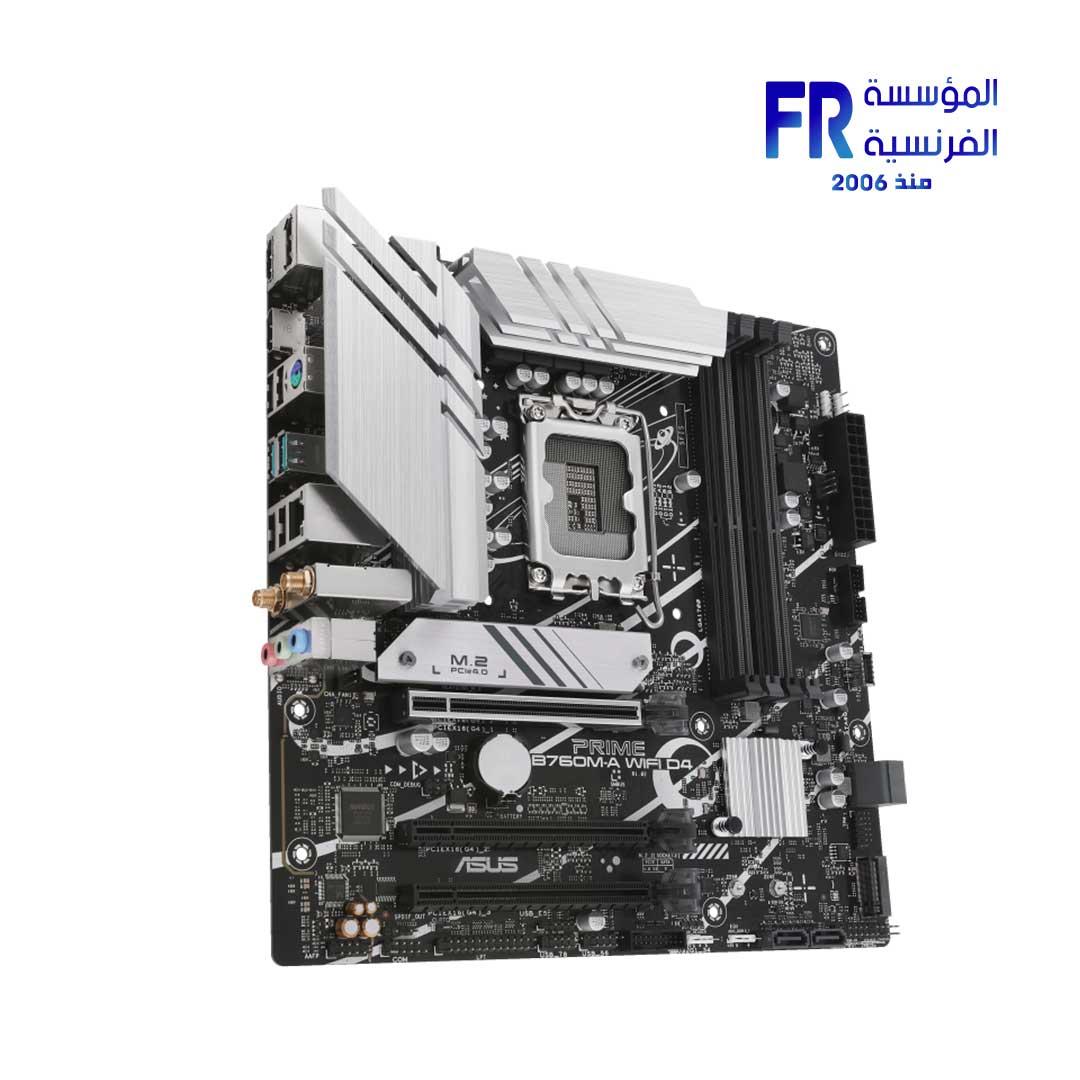

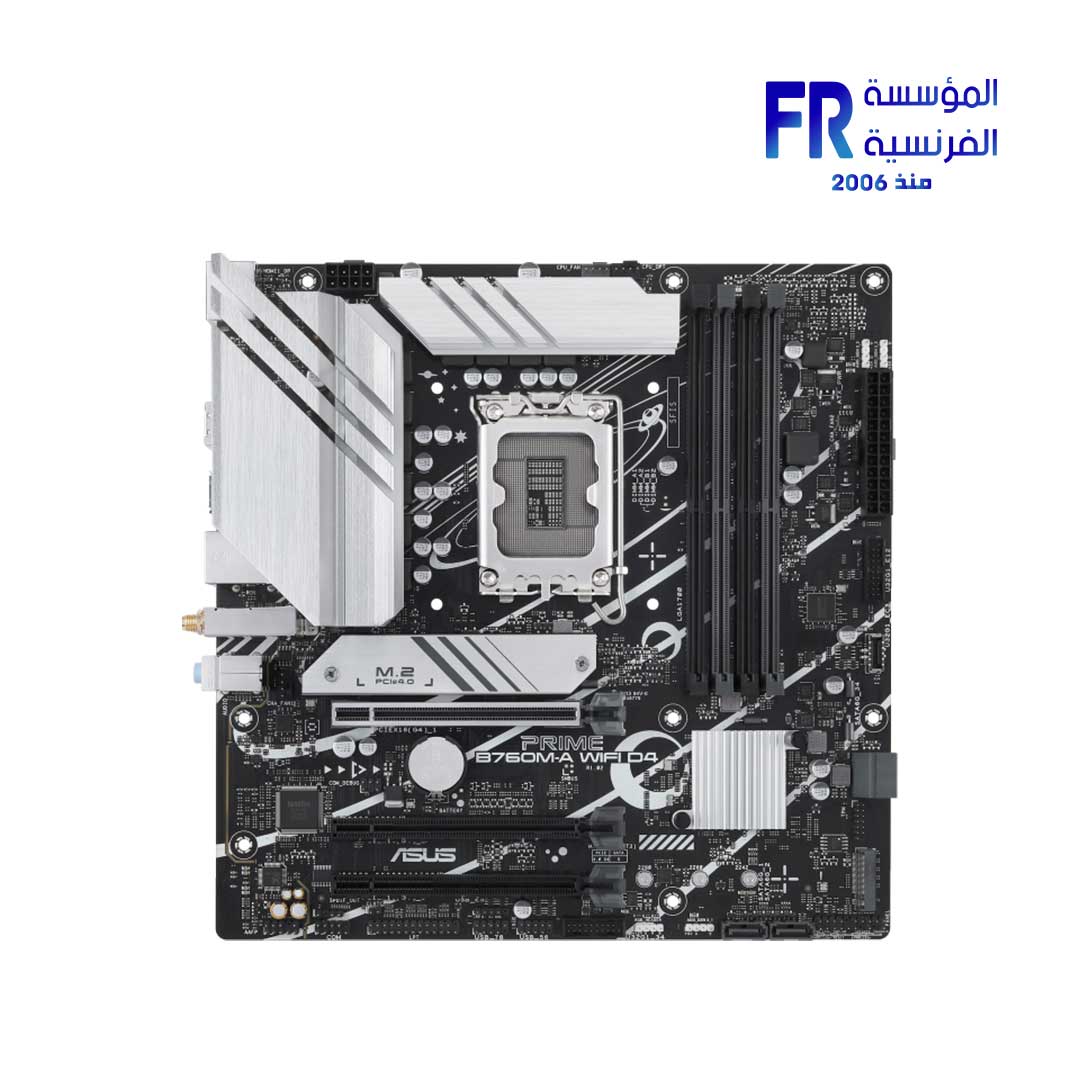

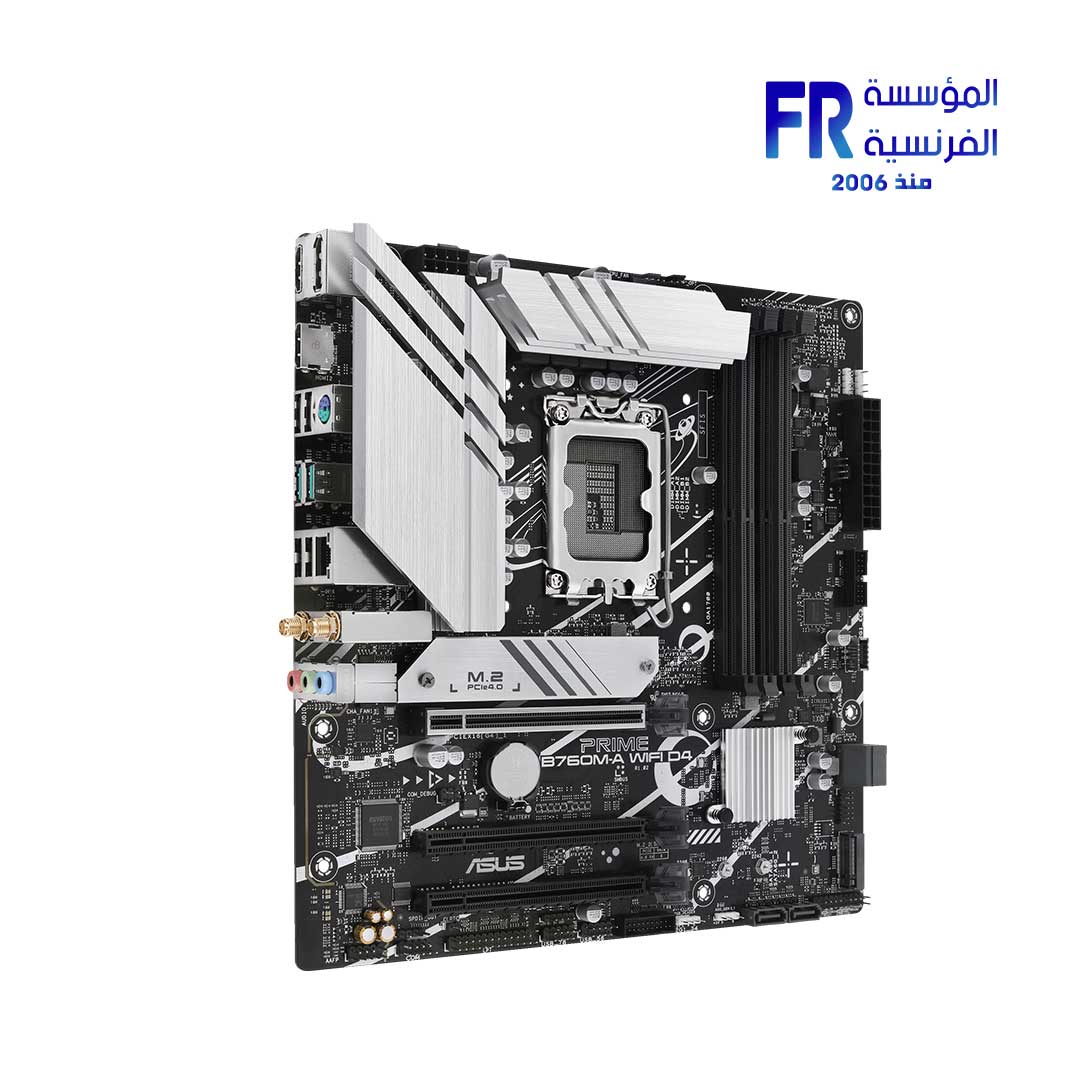

• Model

• PRIME B760M-A WIFI D4

• News & Updates

• 2024/08/12: The new BIOS with Intel microcode (0x129) enhancing the stability of Intel Core 13th and 14th Gen desktop processors is now available. Please visit support site for the latest BIOS updates.

• CPU

• Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors*

• Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

• *Refer to www.asus.com for CPU support list.

• ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

• Chipset

• Intel® B760 Chipset

• Memory

• 4 x DIMM, Max. 128GB, DDR4

• 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-

• buffered Memory*

• Dual Channel Memory Architecture

• Supports Intel® Extreme Memory Profile (XMP)

• OptiMem II

• * Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support

• list.

• Graphics

• 1 x DisplayPort**

• 2 x HDMI® ports***

• * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.

• ** Supports max. 4K@60Hz as specified in DisplayPort 1.4.

• *** Supports 4K@60Hz as specified in HDMI® 2.1.

• Expansion Slots

• Intel® CoreTM Processors (14th & 13th & 12th Gen)

• 1 x PCIe 4.0 x16 slot

• Intel® B760 Chipset

• 1 x PCIe 4.0 x16 slot (supports x4 mode)

• 1 x PCIe 4.0 x16 slot (supports x1 mode)

• Note: To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

• Storage

• Total supports 2 x M.2 slots and 4x SATA 6Gb/s ports*

• Intel® CoreTM Processors (14th & 13th & 12th Gen)

• M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

• Intel® B760 Chipset

• M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

• 4 x SATA 6Gb/s ports

• * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.

• Ethernet

• 1 x Realtek 2.5Gb Ethernet

• Wireless & Bluetooth

• Wi-Fi 6

• 2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)

• Supports 2.4/5GHz frequency band

• Bluetooth v5.2

• * The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer’s website for the latest specifications.

• USB

• Rear USB (Total 6 ports)

• 2 x USB 3.2 Gen 2 ports (2 x Type-A )

• 4 x USB 2.0 ports (4 x Type-A)

• Front USB (Total 10 ports)

• 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports

• 1 x USB 3.2 Gen 1 connector (supports USB Type-C®)

• 2 x USB 2.0 headers support 4 additional USB 2.0 ports

• 1 x USB 2.0 header supports 1 additional USB 2.0 port

• Audio

• Realtek 7.1 Surround Sound High Definition Audio CODEC*

• – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

• – Supports up to 24-Bit/192 kHz playback

• Audio Features

• – Audio Shielding

• – Premium audio capacitors

• – Dedicated audio PCB layers

• * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

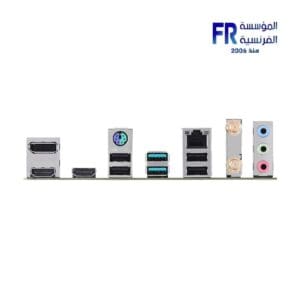

• Back Panel I/O Ports

• 2 x USB 3.2 Gen 2 ports (2 x Type-A )

• 4 x USB 2.0 ports (4 x Type-A)

• 1 x DisplayPort

• 2 x HDMI® ports

• 1 x Wi-Fi Module

• 1 x Realtek 2.5Gb Ethernet port

• 3 x Audio jacks

• 1 x PS/2 Keyboard/Mouse combo port

• Internal I/O Connectors

• Fan and Cooling related

• 1 x 4-pin CPU Fan header

• 1 x 4-pin CPU OPT Fan header

• 2 x 4-pin Chassis Fan headers

• Power related

• 1 x 24-pin Main Power connector

• 1 x 8-pin +12V Power connector

• Storage related

• 2 x M.2 slots (Key M)

• 4 x SATA 6Gb/s ports

• USB

• 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports

• 1 x USB 3.2 Gen 1 connector (supports USB Type-C®)

• 2 x USB 2.0 headers support 4 additional USB 2.0 ports

• 1 x USB 2.0 header supports 1 additional USB 2.0 port

• Miscellaneous

• 3 x Addressable Gen 2 headers

• 1 x Aura RGB header

• 1 x Clear CMOS header

• 1 x COM Port header

• 1 x Front Panel Audio header (AAFP)

• 1 x LPT header

• 1 x S/PDIF Out header

• 1 x SPI TPM header (14-1pin)

• 1 x 20-3 pin System Panel header with Chassis intrude function

• Special Features

• ASUS 5X PROTECTION III

• – DIGI+ VRM

• – LANGuard

• – Overvoltage Protection

• – SafeSlot Core+

• – Stainless-Steel Back I/O

• ASUS Q-Design

• – Q-DIMM

• – Q-LED Core

• – Q-Slot

• ASUS Thermal Solution

• – M.2 heatsink

• – VRM heatsink design

• ASUS EZ DIY

• – ProCool

• Aura Sync

• – Aura RGB header

• – Addressable Gen 2 headers

• Software Features

• ASUS Exclusive Software

• Armoury Crate

• – Aura Creator

• – Aura Sync

• – Fan Xpert 2+

• – Power Saving

• AI Suite 3

• – Digi+ VRM

• – PC Cleaner

• ASUS CPU-Z

• MyAsus

• Norton Deluxe (60 Days Free Trial)

• WinRAR

• UEFI BIOS

• ASUS EZ DIY

• – ASUS CrashFree BIOS 3

• – ASUS EZ Flash 3

• – ASUS UEFI BIOS EZ Mode

• BIOS

• 128 Mb Flash ROM, UEFI AMI BIOS

• Manageability

• WOL by PME, PXE

• Accessories

• Cables

• 2 x SATA 6Gb/s cables

• Miscellaneous

• 1 x ASUS Wi-Fi moving antennas

• 1 x I/O Shield

• 1 x M.2 Rubber Package

• 1 x Screw package for M.2 SSD

• Documentation

• 1 x User guide

• Operating System

• Windows® 11, Windows® 10 64-bit

• Form Factor

• mATX Form Factor

• 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
