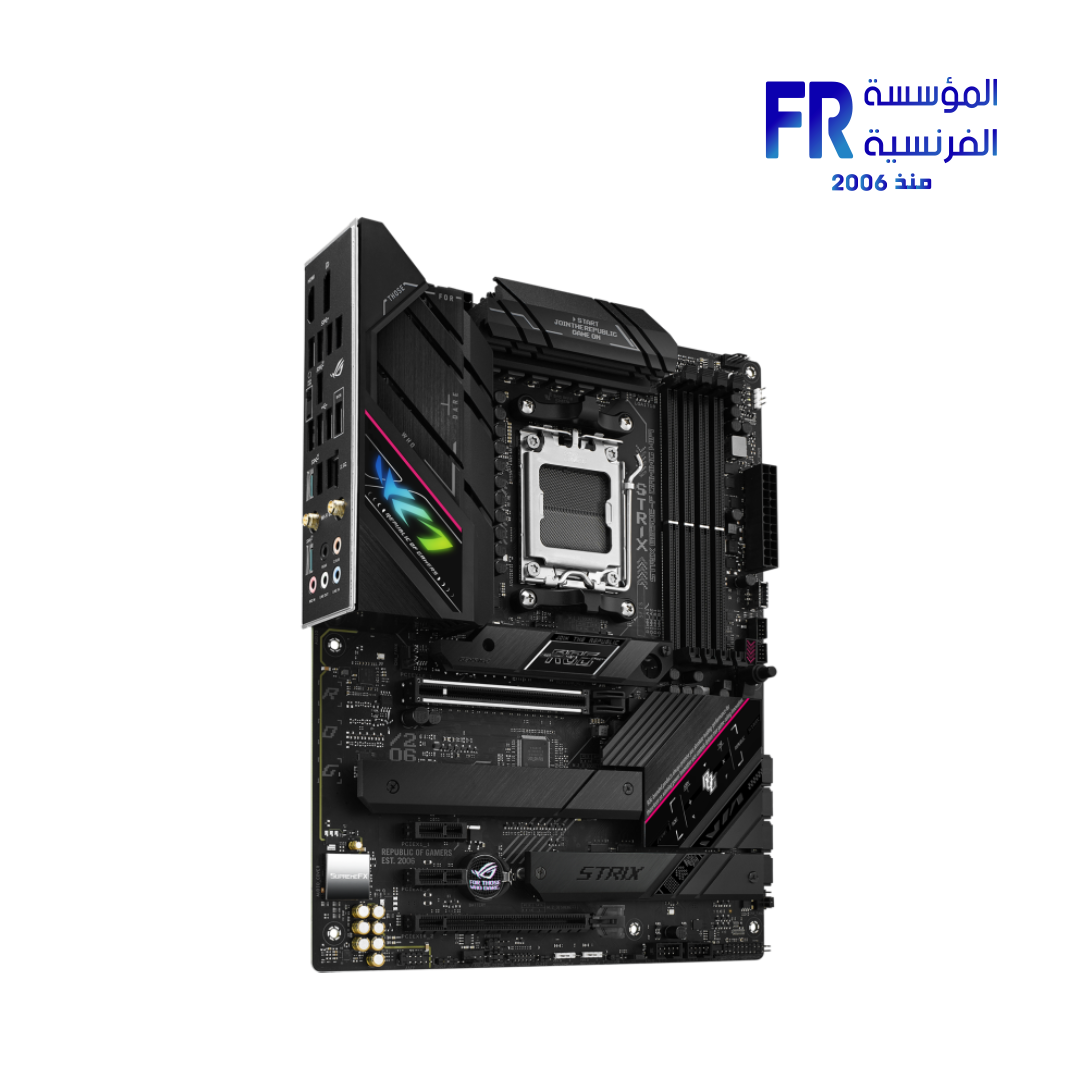

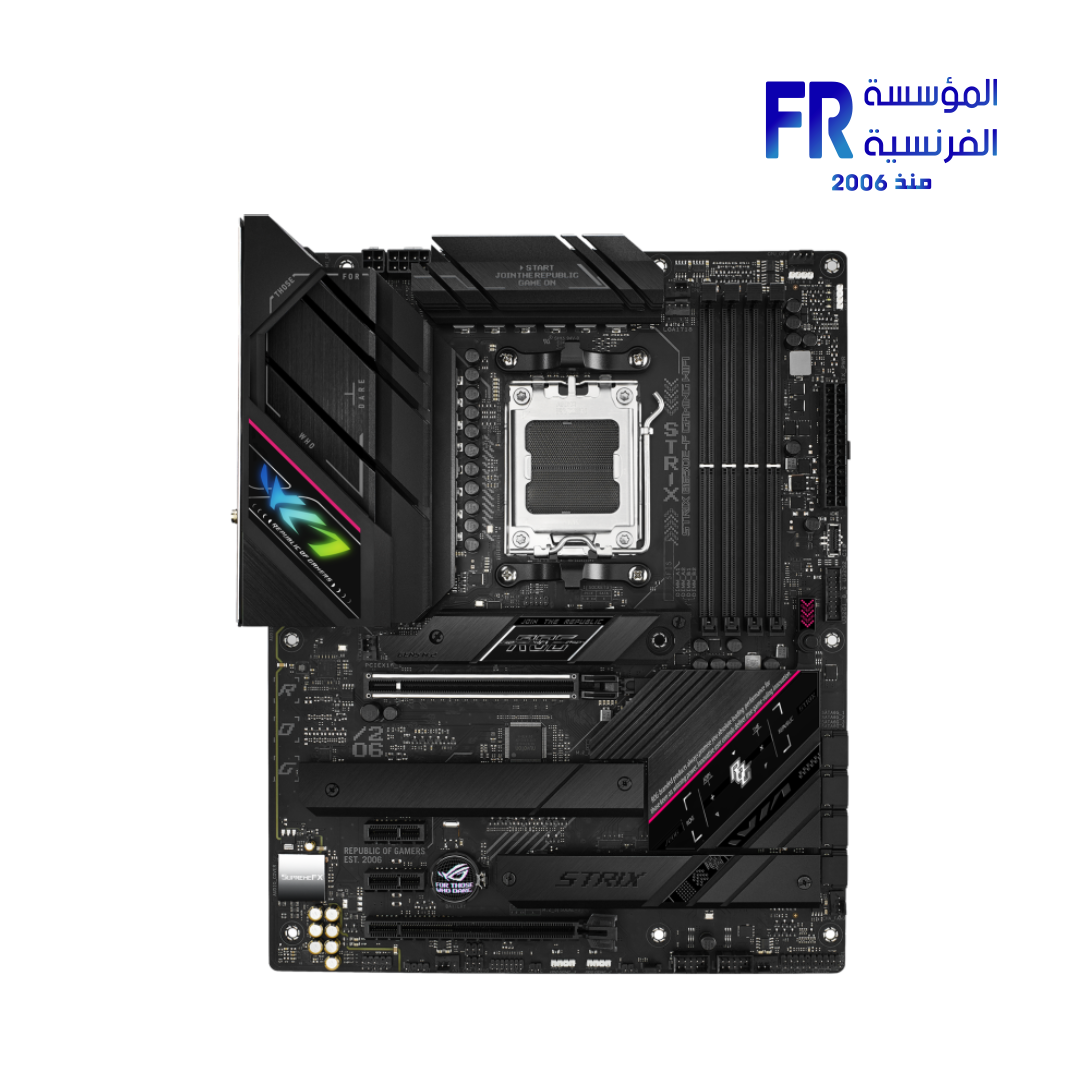

Asus Rog Strix B650E F Gaming Wifi Motherboard
Elevate your AMD Ryzen™ build with the powerful and stylish ROG Strix B650E-F WIFI motherboard. Built on the advanced AMD B650E chipset, this ATX board unlocks the full potential of the AM5 platform. Notably, the “E” signifies crucial support for both PCIe 5.0 x16 for next-gen graphics cards and a blazing-fast PCIe 5.0 M.2 slot for cutting-edge storage. Furthermore, it supports high-speed DDR5 memory with AMD EXPO™ profiles, reaching speeds up to 8000+ MT/s (OC). Combined with robust power delivery, premium audio, and comprehensive connectivity including Wi-Fi 6E, this board is engineered for serious gamers and enthusiasts.

Discover PCIe 5.0 Power & Premium Features
The ROG Strix B650E-F GAMING WIFI leverages the B650E chipset to deliver future-proof performance. To begin with, its robust power stages and substantial VRM heatsinks ensure stable power delivery for demanding Ryzen™ 9000, 8000, and 7000 series processors. Memory performance is optimized through ASUS OptiMem II and support for AMD EXPO™ profiles, pushing DDR5 speeds significantly. The standout feature, however, is its dual PCIe 5.0 support. This includes the primary x16 SafeSlot for graphics and the primary M.2 slot, enabling maximum bandwidth for next-generation components.
Beyond raw speed, connectivity is top-notch. The board features onboard Intel® 2.5Gb Ethernet and the latest Wi-Fi 6E, offering high-speed wired and wireless networking options along with Bluetooth 5.2. In terms of storage, alongside the PCIe 5.0 M.2 slot, there are two additional PCIe 4.0 M.2 slots and four SATA ports. Furthermore, audio quality is excellent, thanks to the ROG SupremeFX ALC4080 codec and Savitech amplifier. Extensive USB connectivity, including a rear USB 3.2 Gen 2×2 (20Gbps) Type-C® port, ensures ample peripheral support. Finally, ASUS Q-Design features like M.2 Q-Latch, PCIe Slot Q-Release, and BIOS FlashBack™ simplify the building and maintenance process considerably.

Specifications
- CPU Socket: AMD AM5 (Supports Ryzen™ 9000/8000/7000 Series)
- Chipset: AMD B650E
- Form Factor: ATX (30.5 cm x 24.4 cm)
- Memory: 4 x DIMM, Max. 192GB, DDR5 8000+(OC) – 4800 MHz, ECC & Non-ECC
- Expansion Slots: 1 x PCIe 5.0 x16 (CPU dependent), 1 x PCIe 4.0 x16 (x4 mode), 2 x PCIe 4.0/3.0 x1
- Storage: 1 x M.2 PCIe 5.0 x4, 2 x M.2 PCIe 4.0 x4, 4 x SATA 6Gb/s ports
- Networking: Intel® 2.5Gb Ethernet, Wi-Fi 6E (802.11ax), Bluetooth 5.2

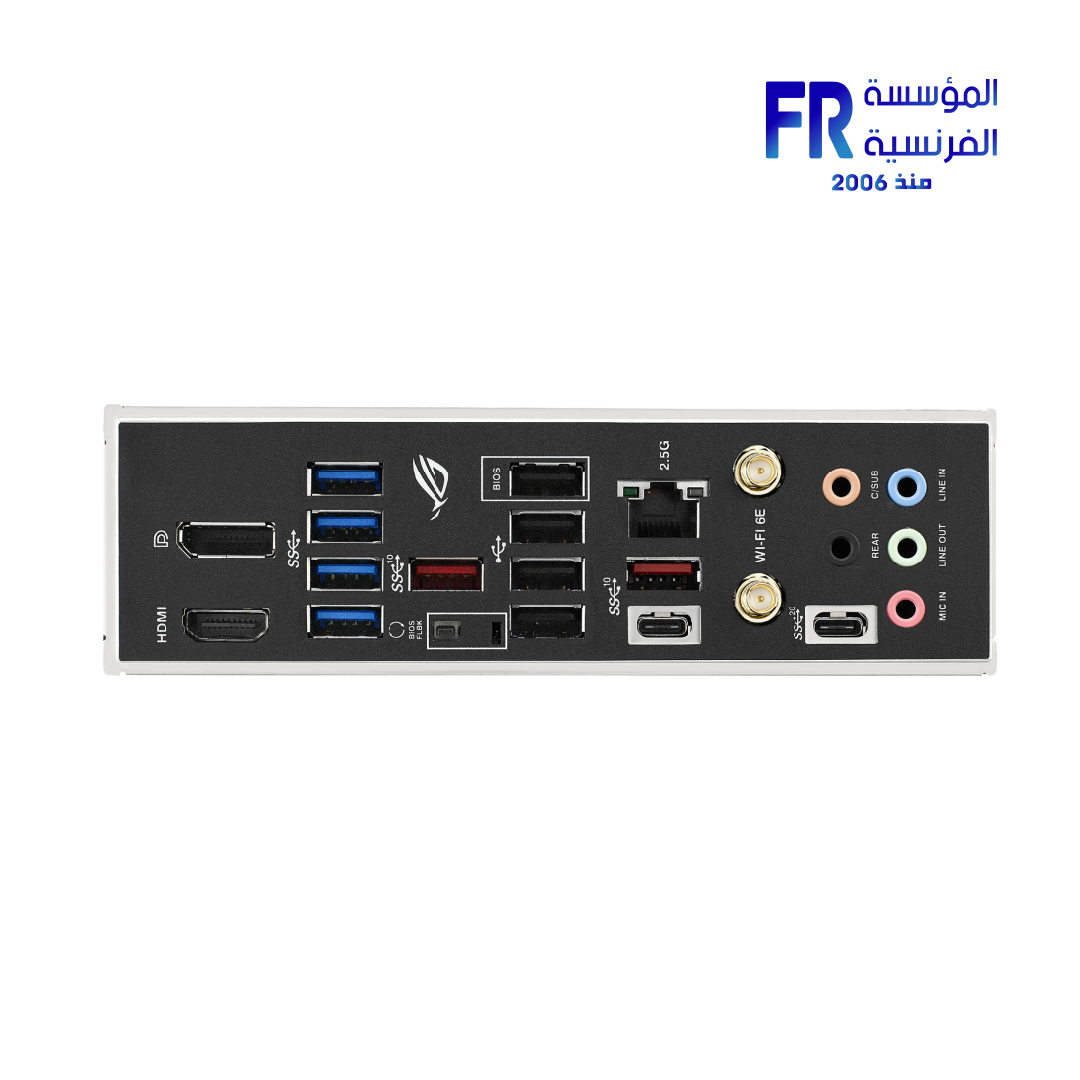

- Rear USB: 1x USB 3.2 Gen 2×2 (Type-C®), 3x USB 3.2 Gen 2 (2x Type-A + 1x Type-C®), 4x USB 3.2 Gen 1 (Type-A), 4x USB 2.0 (Type-A)
- Front USB: 1x USB 3.2 Gen 2 (Type-C®) connector, 1x USB 3.2 Gen 1 header (2 ports), 2x USB 2.0 headers (4 ports)
- Audio: ROG SupremeFX ALC4080 7.1 CODEC + Savitech SV3H712 AMP
- Special Features: PCIe 5.0 x16 + PCIe 5.0 M.2, DDR5 8000+, Wi-Fi 6E, 2.5Gb LAN, Premium Audio (ALC4080+AMP), Q-Design (Q-Latch, Q-Release, Q-LED, Q-DIMM), BIOS FlashBack™, Aura Sync
Q&A
Who is the ROG Strix B650E-F WIFI for?
This motherboard is designed for gamers and PC enthusiasts building a high-performance ATX system based on AMD Ryzen™ 7000 series or newer processors. Specifically, it targets users who want to leverage the full bandwidth of PCIe 5.0 for both their graphics card and primary NVMe SSD, alongside fast DDR5 memory and robust connectivity.
Why choose the ROG Strix B650E-F WIFI?
The key differentiator is the B650E chipset, offering simultaneous PCIe 5.0 support for the GPU and M.2_1 slot, unlike standard B650 boards. Additionally, it provides excellent DDR5 overclocking potential with EXPO support, integrated Wi-Fi 6E, premium ALC4080 audio, fast 2.5Gb LAN, and extensive USB connectivity. Furthermore, the user-friendly ROG Q-Design features and reliable power delivery make it a solid choice.
What are the Pros?
Pros: PCIe 5.0 support for both GPU and primary M.2 slot; Excellent DDR5 performance potential (8000+ OC, EXPO); Integrated Wi-Fi 6E and 2.5Gb LAN; Premium ALC4080 audio with amplifier; Robust power delivery; Extensive USB ports including 20Gbps Type-C; User-friendly Q-Design features (Q-Latch, Q-Release, etc.); BIOS FlashBack™.
What are the Cons?
Cons: Higher price point than standard B650 motherboards due to PCIe 5.0 implementation; Shares bandwidth between M.2_3 slot and the second PCIe x16 slot (running at x4 mode).
Verdict
The ROG Strix B650E-F WIFI stands out in the B650 landscape by offering crucial PCIe 5.0 support for both graphics and storage, making it truly future-proof for the AM5 platform. Combined with its high-speed DDR5 capabilities, integrated Wi-Fi 6E, premium audio, and robust ROG features, it delivers exceptional performance for demanding users. While carrying a premium over standard B650, the investment ensures maximum bandwidth for next-generation components. Therefore, if you’re building a high-end AMD system and want the full benefit of PCIe 5.0, this motherboard is an excellent choice. Find complete specifications on the official ASUS ROG product page.
