Asus Rog Thor 1200w Platinum II 80 Plus Platinum Fully Modular Gaming Power Supply

Asus Rog Thor 1200w Platinum II 80 Plus Platinum Fully Modular Power Supply

17800 EGP

1200W Single +12V Rail
135mm Cooling Fan
Intel ATX 12V Specification
9 x PCIe Connectors
12 x SATA Connectors
6 x 4-Pin Peripheral Connectors
Sleeved Cables
RGB Lighting
Built-In OLED Display

Out Of Stock.

Price Match Guarantee

SKU: 195553236065 Category: POWER SUPPLY Tags: Platinum II, FULLY MODULAR, 80 Plus Platinum Fully Modular Gaming Power Supply, 80 PLUS PLATINUM, Fully Modular Gaming Power Supply, 1200W, Gaming Power Supply, POWER SUPPLY, Rog Thor 1200w Platinum II 80 Plus Platinum Fully Modular Gaming Power Supply, gaming, ASUS, Rog Thor, POWER, 1200w Platinum II 80 Plus Platinum Fully Modular Gaming Power Supply, Supply, Platinum II 80 Plus Platinum Fully Modular Gaming Power Supply Brand: ASUS

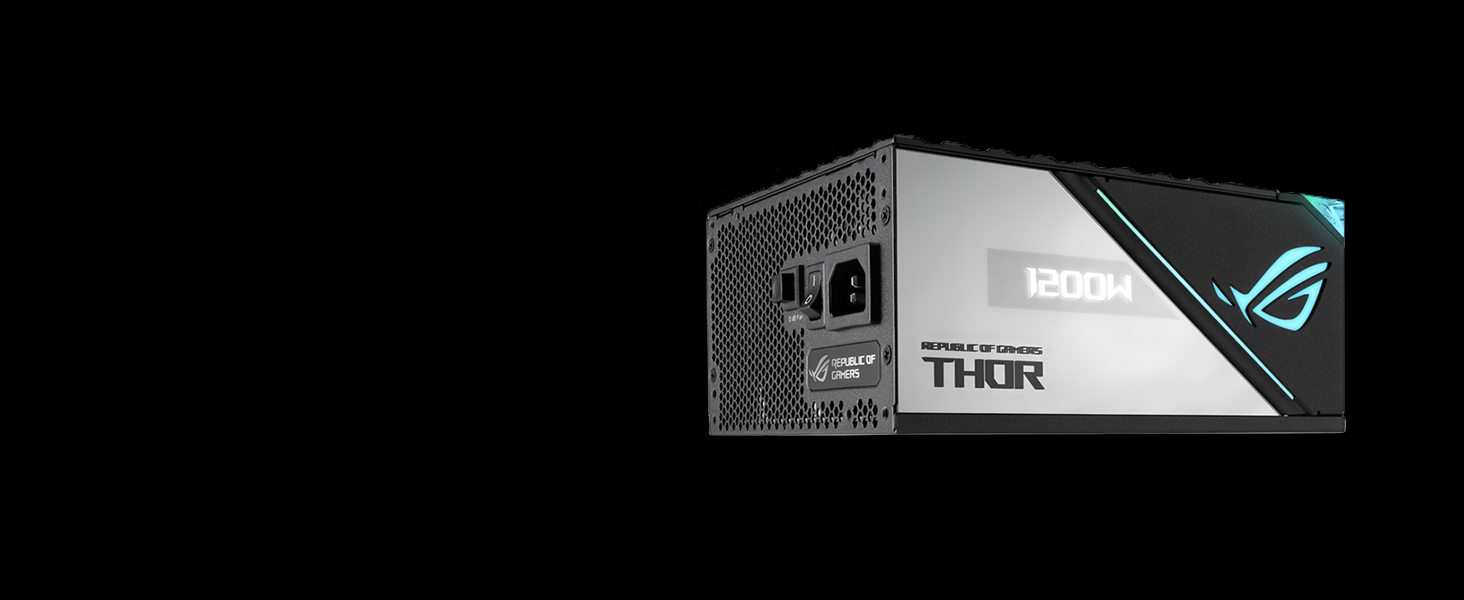

Asus Rog Thor 1200w Platinum II 80 Plus Platinum Fully Modular Gaming Power Supply

The Quietest 1200W Power Supply

The second iteration of the ROG Thor 1200W Platinum wields cooling and component upgrades that make it the quietest PSU in its class. To compliment the latest high-end ROG motherboards and bring additional flair to beastly rigs, we’ve added a mirrored side panel that neatly frames the OLED display.

ROG Heatsinks

ROG heatsinks have 2x more volume than traditional designs, facilitating lower temperatures, longer component lifespan, and extended 0dB operation.

80 Plus Platinum Certification

The Thor 1200W uses low-ESR Japanese capacitors to ensure efficient operation. These upgrades enable an 80+ Platinum certification, which guarantees 89% efficiency at 100% load & 92% efficiency at 50% load. The increased efficiency results in less heat, reduces fan noise, and increases reliability.

OLED Power Display

The built-in OLED panel makes it easy to tune your system for best performance and efficiency.

Asus Rog Thor 1200w Platinum II 80 Plus Platinum Fully Modular Gaming Power Supply
PFC Type
Active PFC

Dimensions
190 x 150 x 86 mm

Efficiency
80Plus Platinum

MTBF
>120,000 hrs @ 25°C

Protection Features
OPP/OVP/UVP/SCP/OCP/OTP

Hazardous Materials
ROHS

AC Input Range
100-240Vac

Thermal Features
ROG Thermal Solution

DC Output Voltage
+3.3V +5V +12V -12V +5Vsb

Maximum Load
25A 25A 100A 0.3A 3A

Combined Load
125W 125W 1200W 3.6W 15W

Total Output
1200W

Cable Connectors
MB 24/20-pin x 1
CPU 4+4-pin x 2
PCI-E 16-pin x 1 (component side)
PCI-E 6+2-pin x 8
SATA x 12
PERIPHERAL x 6

Package Contents
Power Cord x 1
Motherboard Power Cable x1 (610mm)
CPU Cable x2 (650mm)
PCIE Cable 16-pin x1 (675mm)
PCIE 1-to-1 Cable x4 (675mm)
PCIE 1-to-2 Cable x2 (675+75mm)
SATA 1-to-4 Cable x3 (400+120+120+120mm)
Peripheral 1-to-3 Cable x2 (450+120+120mm)
Addressable RGB Cable x1 (800mm)
ROG sticker x 1
ROG cable tie x 6
Sleeved Cable Combs (6-pin) x 4
Sleeved Cable Combs (8-pin) x 10
Sleeved Cable Combs (24-pin) x 2
Chassis Screws Package x 1
Cable Tie x 12
User Manual x 1

Weight
2.37 KG

AURA SYNC
ARGB

Cybenetics Noise Level Certification
A++

0dB Technology
Supported. The fan shuts off entirely when the PSU is under certain load

0dB Fan Button
Yes. When the Button is ON, the fan will only spin up when the system reaches a certain load. When the Button is OFF, the fan will continuously spin at all load levels.

POWER SUPPLY

MODEL	Rog Thor 1200w Platinum II
Psu-Cable-Type	FULL MODULAR
PSU WATT	1200 W
ENERGY EFFICIENT	80 PLUS PLATINUM
Protection	OCP, OPP, OTP, OVP, SCP, UVP
PSU Capacitors	Japanese Capacitors
DC to DC	YES
Fan Size (mm)	135mm
Part Number	90YE00L0-B0NA00
Warranty	2 Years
