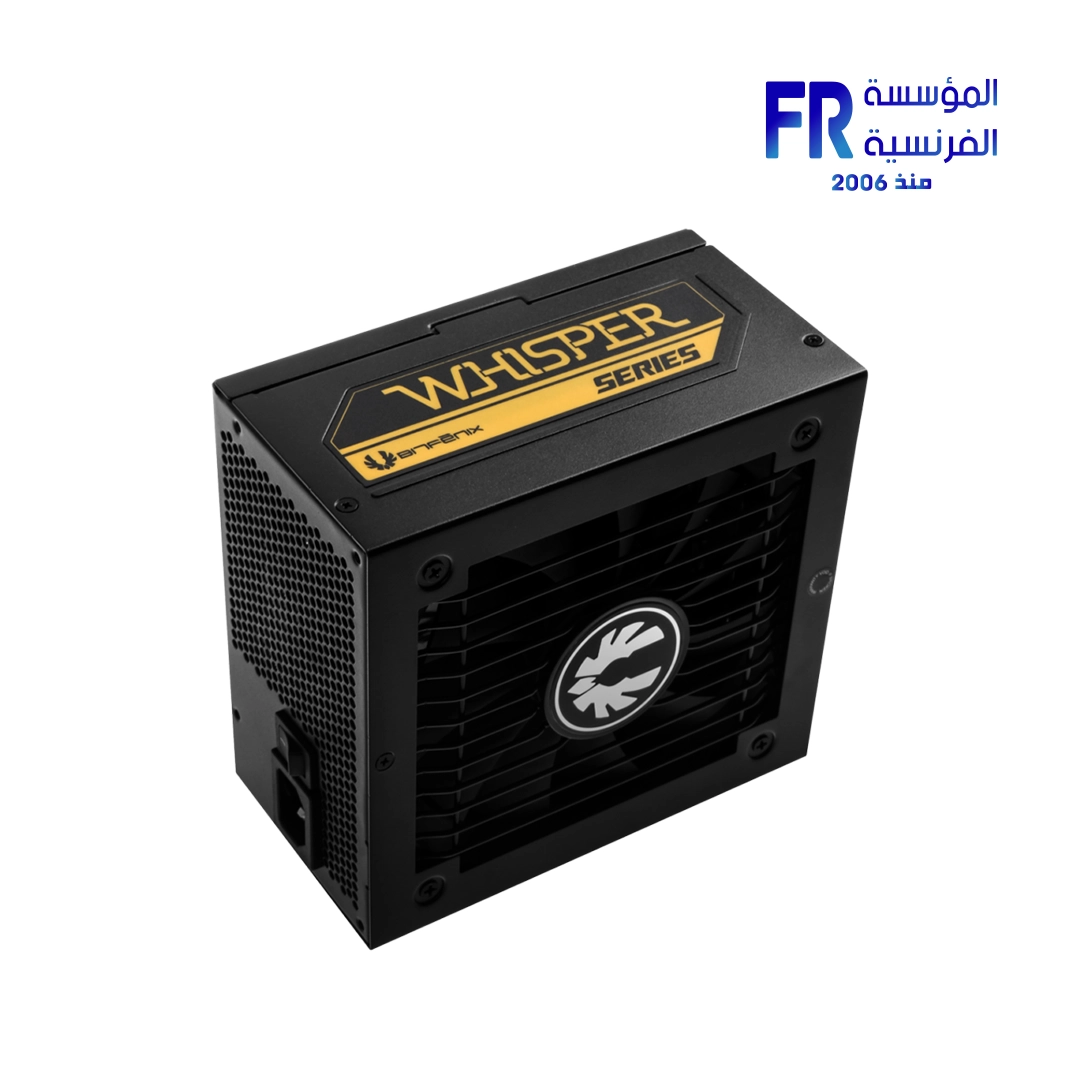

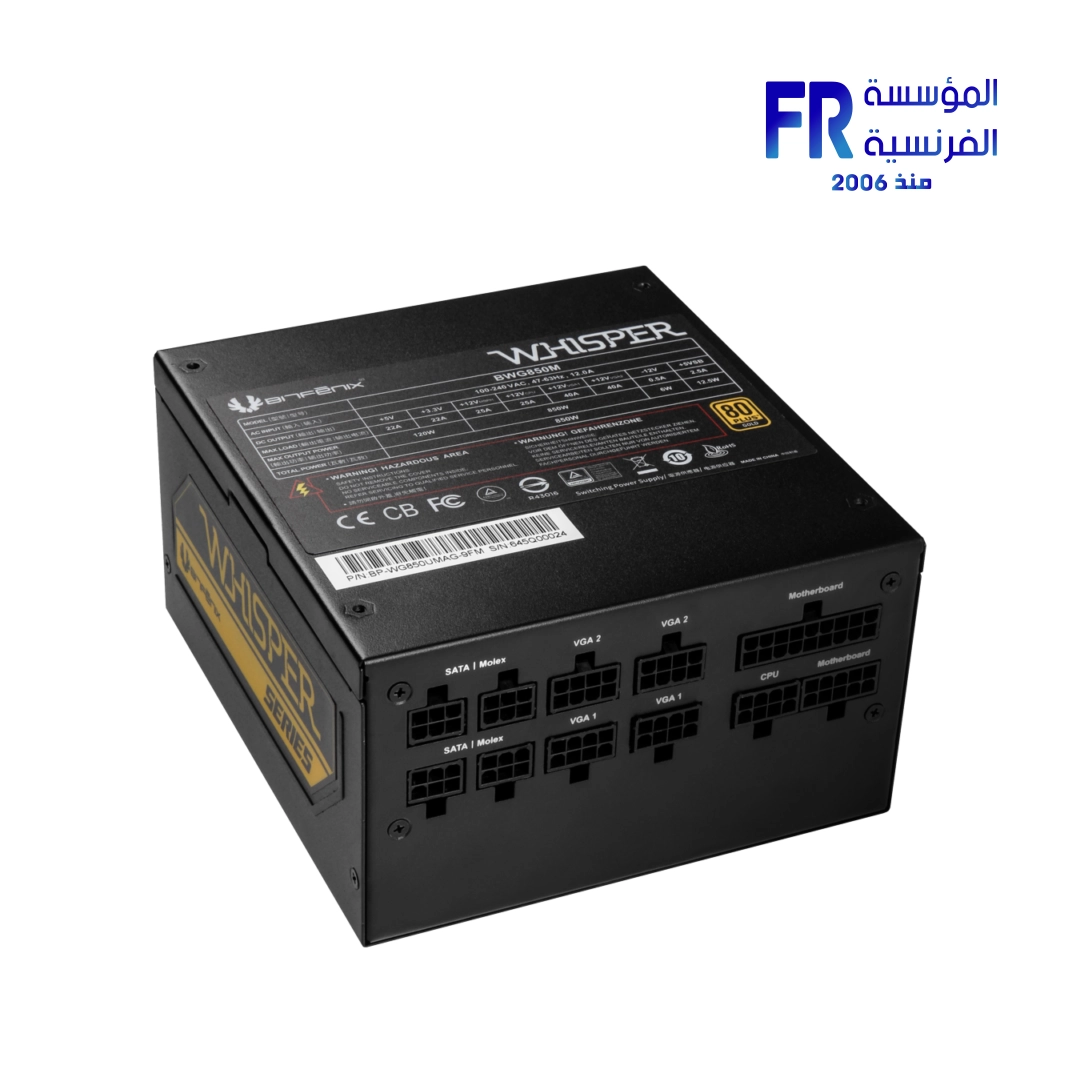

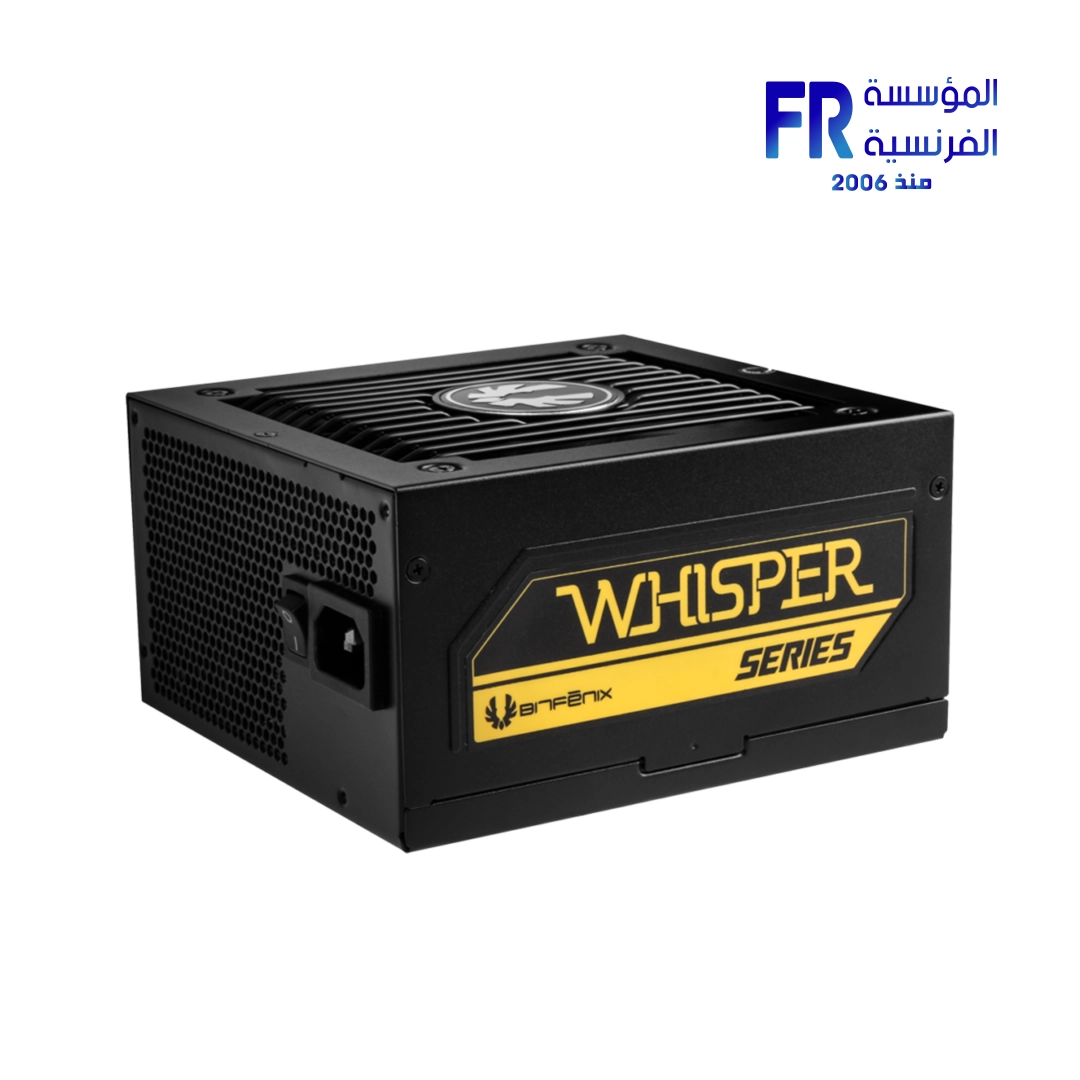

Bitfenix Whisper 850W 80 Plus Gold Fully Modular Power Supply

Bitfenix Whisper 850W 80 Plus Gold Fully Modular Power Supply

1 EGP

850W Quad +12V Rails
135mm Cooling Fan
Intel ATX12V Version 2.4
6 x PCI-E Connectors
12 x SATA Connectors
4 x 4-Pin Connectors
Flat, Low-Profile Cables

Out Of Stock.

Price Match Guarantee

SKU: 886027015131 Category: POWER SUPPLY Tags: 850W, POWER SUPPLY, 80 PLUS, GOLD, Bitfenix, Whisper, FULLY MODULAR Brand: BITFENIX

Bitfenix Whisper 850W 80 Plus Gold Fully Modular Power Supply

Bitfenix Whisper 850W 80 Plus Gold Fully Modular Power Supply specs:

BWG850M
Intel Specification	ATX 12V V2.4
Dimension(DxWxH)	160mm(D) x 150mm(W) x 86mm(H)
AC Input	100-240Vac
Input Current	12A
Frequency	47-63Hz
APFC PF value	> 0.99
80Plus Certification	80Plus Gold, up to 92%
Operating Temp.	0-50°C
Fan Size	140mm
Protection	OPP/ OVP/ OCP/ UVP/ SCP/ NLO/ OTP/ SIP
Safety	cTUVus, TUV, CB, CE, FCC, BSMI
ErP regulation	ErP 2013 Lot 6
MTBF	> 100,000hrs
Output cable Type	Fully Modular │ Flat Cable
Connector Quantity	24Pin x 1 │ 4+4Pin CPU x 2 │ 6+2Pin VGA x 6 │ SATA x 12 │ Molex x 4

High Efficiency Layout

As the name suggests, Whisper is an extremely silent power supply with an 80+ Gold Efficiency certification. Because of the high efficiency layout and use of high quality components, the Whisper is capable of functioning with a very low noise and heat level while providing stable currents at highest loads.

Intelligent Fan-Curve

Thanks to the use of an Intelligent Fan Control Curve the fan speed is intelligently controlled to minimize the noise levels while maintaining optimum temperatures.
Whisper can operate at room temperature with minimum noise even at 60% load, meaning that the noise level is dead silent even carrying out intensive work loads.

Industrial Quality Fan

Unlike regular PSUs, Whisper M comes with a 140mm FDB fan that starts working at a much lower voltage of 3.5v the fan can start working at 500rpm ± 10%. Because of these unique features together with ultra-low bearing noise and high life expectancy of the fan, BitFenix Whisper can operate at noise levels lower than 18dBA while PSU load is lower than 60% at 25°C

Ultra Efficient

Whisper is rated at a Power Factor of 0.99, and is extremely efficient with an 80+ Gold efficiency certification. With 87+ (20% to 100% load)/ 90+ (40% to 70% load) high efficiency design, Whisper saves both energy and money for the user while providing extremely stable power output at a very low noise level

Environmental Friendly

Generate up to 80% less heat and consume 30% less power than standard PSU’s. BitFenix Whisper also fully supports Intel C6/C7 Sleep States which consumes very less energy when the system is at sleep. With LLC, Active PFC & DC-to-DC circuit with an 80+ gold certificate, BitFenix Whisper Power Supply saves energy and your environment while providing unmatched power quality for your computer hardware.

Dedicated Quad Rails

A dedicated quad rail design together with an advance voltage switching circuit from +12V to minor rail provides the best stability and output quality. The main quad +12V rails on all BitFenix Whisper models are dedicated as Motherboard + Peripherals, CPU, GPU 1 and GPU 2 (450W and 550W models only come with GPU1). All of these rails have dedicated Over Current Protection (OCP) circuits to keep your High-End-components safe all the time

POWER SUPPLY

MODEL	Whisper
Psu-Cable-Type	FULL MODULAR
PSU WATT	850 W
ENERGY EFFICIENT	80 PLUS GOLD
Protection	NLO, OCP, OPP, OTP, OVP, SCP, SIP, UVP
PSU Capacitors	Japanese Capacitors
DC to DC	YES
Fan Size (mm)	140mm
Part Number	BWG850M
Warranty	1 Year
