MODEL | |
---|---|
CASE SIZE | |
PANEL | |
Motherboard Type | |
FANS INCLUDED | |
Expansion Slots | |
Fan Support | |
Radiator Support | |
GPU Length | |
CPU Height | |
PSU SUPPORT | |
Pre-installed PSU | |
I/O Ports | |
3.5“ Drive Bays | |
2.5" Drive Bays | |
Color | |
Part Number | |
Warranty |

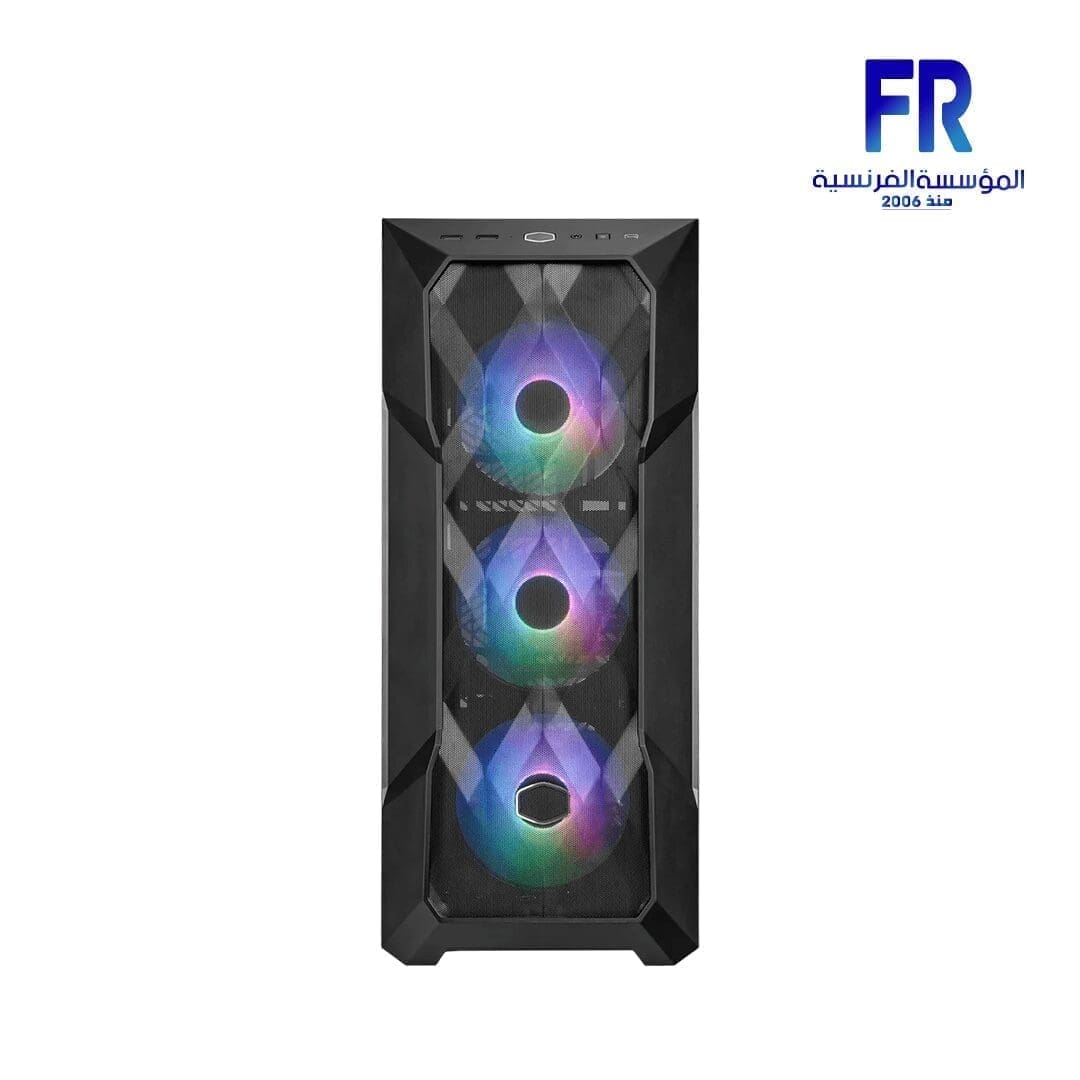

Cooler Master MASTERBOX TD500 MESH V2 Black Mid Tower Case
4500 EGP
- Polygonal FineMesh Front Panel
- Three CF120 ARGB Fans Included
- USB 3.2 Gen 2 Type C Support
- Tool-Free Crystalline TG Side Panel
- PSU Shroud With Removable Cover
- ARGB Controller Included
- Removable Top Panel
- Removable HDD cage
Views: 962
Out Of Stock.
SKU: 884102107689
Categories: CASES
Tags: BLACK, BLACK MID TOWER Case, COOLER MASTER, Masterbox, MASTERBOX TD500 MESH V2 Black Mid Tower Case, MID, MID TOWER CASE, TD500 MESH V2, TD500 MESH V2 Black Mid Tower Case, TOWER CASE
Cooler Master MASTERBOX TD500 MESH V2 Black Mid Tower Case
Cooler Master MASTERBOX TD500 MESH V2 Black Mid Tower Case
Materials – Exterior |
Steel, Mesh, Plastic |
Left Side Panel Material |
Tempered Glass |
Dimensions (L x W x H) |
499 x 210 x 500mm (Incl. Protrusions), 430 x 210 x 477mm (Excl. Protrusions) |
Volume |
50L |
Motherboard Support |
Mini ITX, Micro ATX, ATX, SSI CEB, E-ATX* (*up to 12″ x 10.7″ motherboards, may impact cable management feature) |
Expansion Slots |
7 |
3.5″ Drive Bays |
2 |
2.5″ Drive Bays |
3 |
I/O Panel – USB Ports |
2x USB 3.2 Gen 1, 1x USB 3.2 Gen 2 Type C |
I/O Panel – Audio In / Out |
1x Audio Jack |
I/O Panel – Other |
1x ARGB Fan Hub |
Pre-installed Fans – Front |
3x 120mm CF120 ARGB |
Pre-installed Fans – Rear |
1x 120mm CF120 ARGB |
Fan Support – Top |
3x 120mm, 2x 140mm |
Fan Support – Front |
3x 120mm, 2x 140mm |
Fan Support – Rear |
1x 120mm |
Radiator Support – Top |
120mm, 140mm, 240mm, 280mm, 360mm (recommended maximum thickness -55mm) |
Radiator Support – Front |
120mm, 140mm, 240mm, 280mm, 360mm |
Radiator Support – Rear |
120mm |
Clearance – CPU Cooler |
165mm/6.49″ |
Clearance – PSU |
200mm, (Recommended up to 170mm) |
Clearance – GFX |
410mm / 16.14″ |
Cable Routing – Behind Motherboard Tray |
19mm / 0.74″ |
Dust Filters |
Front, Top, Bottom |
Power Supply Support |
Bottom Mount, ATX |
Series |
MasterBox Series |
Size |
Mid Tower |
- 3 x 120MM ARGB FANS – Pre-installed fan lighting can be assigned via onboard controller or directly connected to an ARGB supported motherboard (ASUS, Gigabyte, MSI & ASRock); The front and top panel features Fine Mesh technology for optimal airflow
- TEMPERED GLASS SIDE PANEL – A removable top panel and tempered-glass side panel provide easy access and showcase system build (tool-free design); The PSU shroud comes with a removable cover to showcase or hide the PSU
- MULTIPLE COOLING OPTIONS – Comes with 3 x CF120 ARGB frontal fans; The front & top panels each support up to 3 x 120mm fans/2 x 140mm fans, or a 360mm radiator, the rear panel supports 1 x 120mm fan/radiator
- MAXIMIZE THE POSSIBILITIES -The TD500 Mesh V2 interior accommodates E-ATX (up to 12” x 10.7”), ATX, micro-ATX and mini-ITX motherboards; CPU coolers up to 165mm in height; Graphics cards (GFX/GPU) up to 410mm in length; PSU up to 200mm in length
- RICH CONNECTIVITY I/O PANEL – The I/O panel features 2 x USB 3.2 Gen 1 Type-A ports, 1 x USB 3.2 Gen 2 Type-C port, 1 x audio jack and 1 x Reset/ARGB button for fast data transmission and excellent connectivity
