| Brand | Cooler Master |
|---|---|
| Series | MasterBox TD500 Mesh w/ Controller |
| Model | MCB-D500D-KGNN-S01 |
| Type | ATX Mid Tower |
|---|---|
| Color | Black |
| Case Material | Steel / Plastic / Tempered Glass |
| With Power Supply | No |
| Power Supply Mounted | Bottom |
| Motherboard Compatibility | Micro ATX / ATX / Mini ITX / E-ATX (up to 12″ x 10.7″ motherboards) |
| Side Panel Window | Yes |
| LED | Addressable RGB |
| Dust Filters | Front, Top, Bottom |
| Internal 3.5″ Drive Bays | 2 x 3.5″ / 2.5″ Combo |
|---|---|
| Internal 2.5″ Drive Bays | 4 (2 + 2 Combo) |
| Hot-Swap Drive Bays | 0 |
| Expansion Slots | 7 |
| Front Ports | 2 x USB 3.2 Gen 1 (USB 3.0) / Audio / ARGB Controller |
|---|

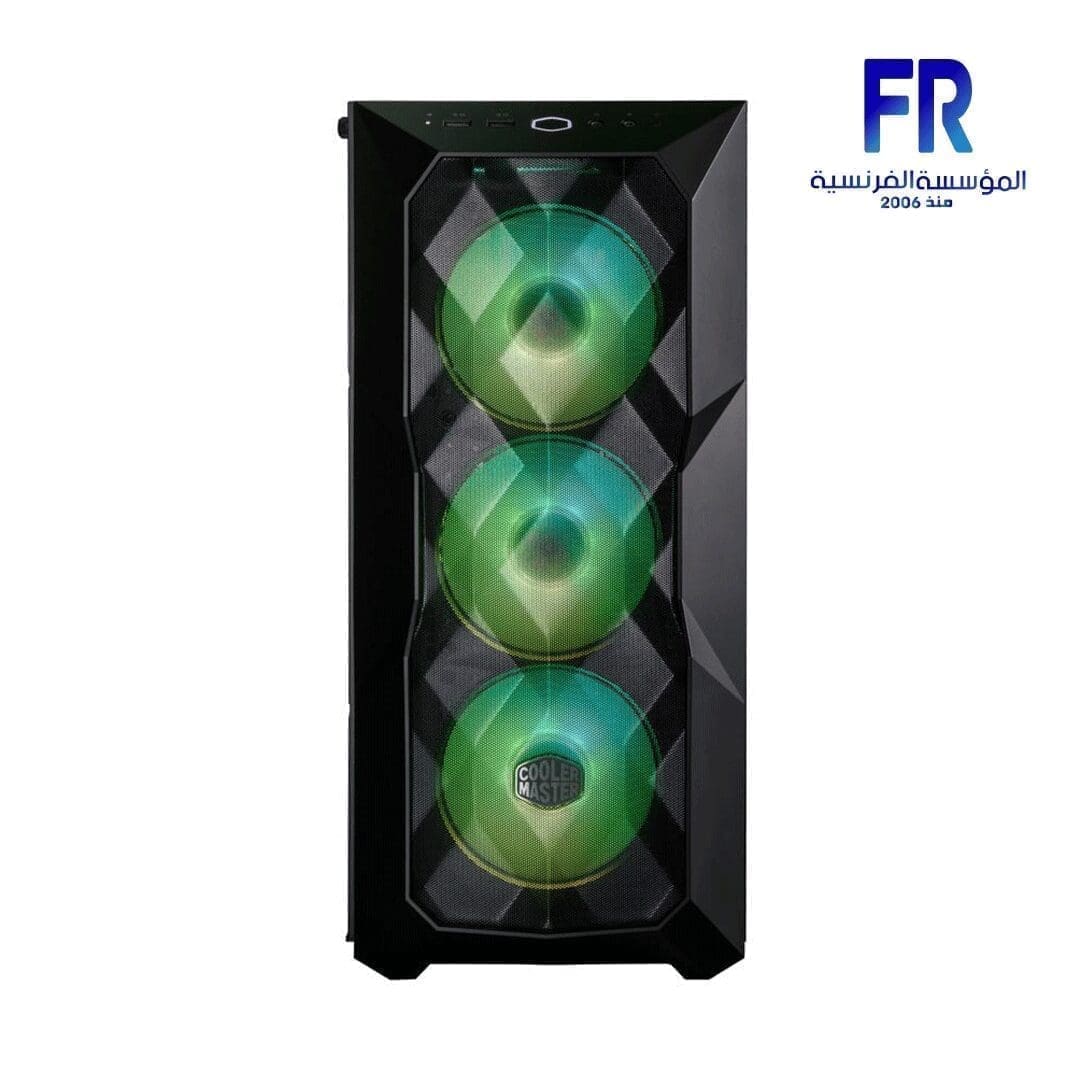

| Fan Options | Front: 3 x 120mm (3 x 120mm ARGB fans Pre-installed) or 2 x 140mm fan
Top: 3 x 120mm or 2 x 140mm fan Rear: 1 x 120mm fan |
|---|---|
| Radiator Options | Front: 120 / 140 / 240 / 280 / 360mm
Top: 120 / 240 / 360mm (44mm max motherboard component height) Rear: 120mm |
| 80mm Fans | No |
| 120mm Fans | No |
| 140mm Fans | No |
| Side Air duct | Yes |
| Max GPU Length | 410 mm |
|---|---|
| Max CPU Cooler Height | 165 mm |
| Max PSU Length | 180 mm |
| Dimensions (H x W x D) | 18.50″ x 8.50″ x 19.40″ |
| Weight | 15.32 lbs. |
| Features | Polygonal Mesh features a three-dimensional contour and is also capable of simultaneously providing high airflow and dust filtration. .

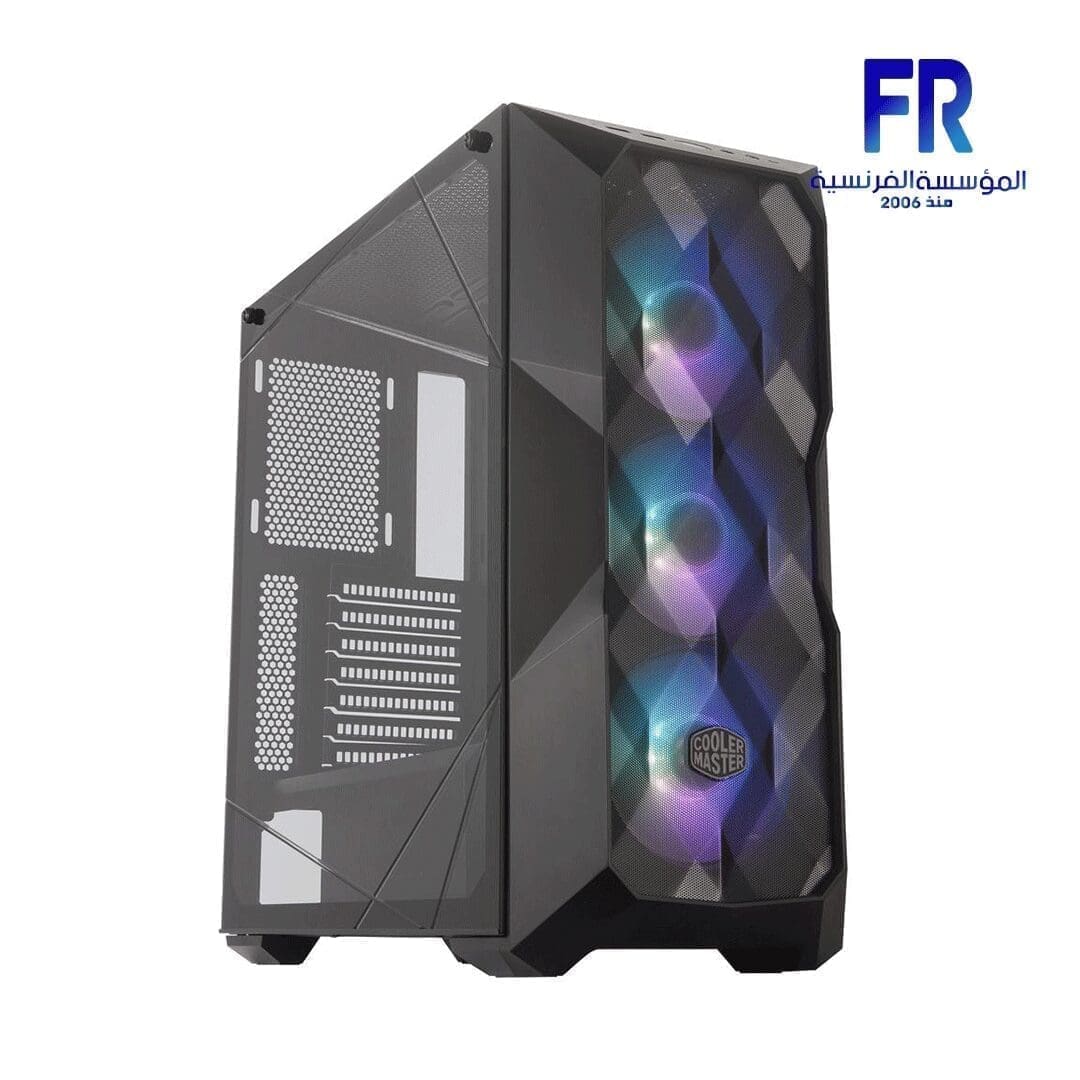

A Crystalline Tempered Glass side panel dons a crystalline design, precision engineered for strength as well as aesthetics Three included addressable RGB fans flood the build with lighting while providing considerable airflow. For enthusiast-grade cooling, two 360mm radiators are supported on the top and front panel to keep the most extreme systems cool. Support for up to seven 120mm fans and front, top, and rear liquid cooling ensure the utmost in performance. |
|---|
