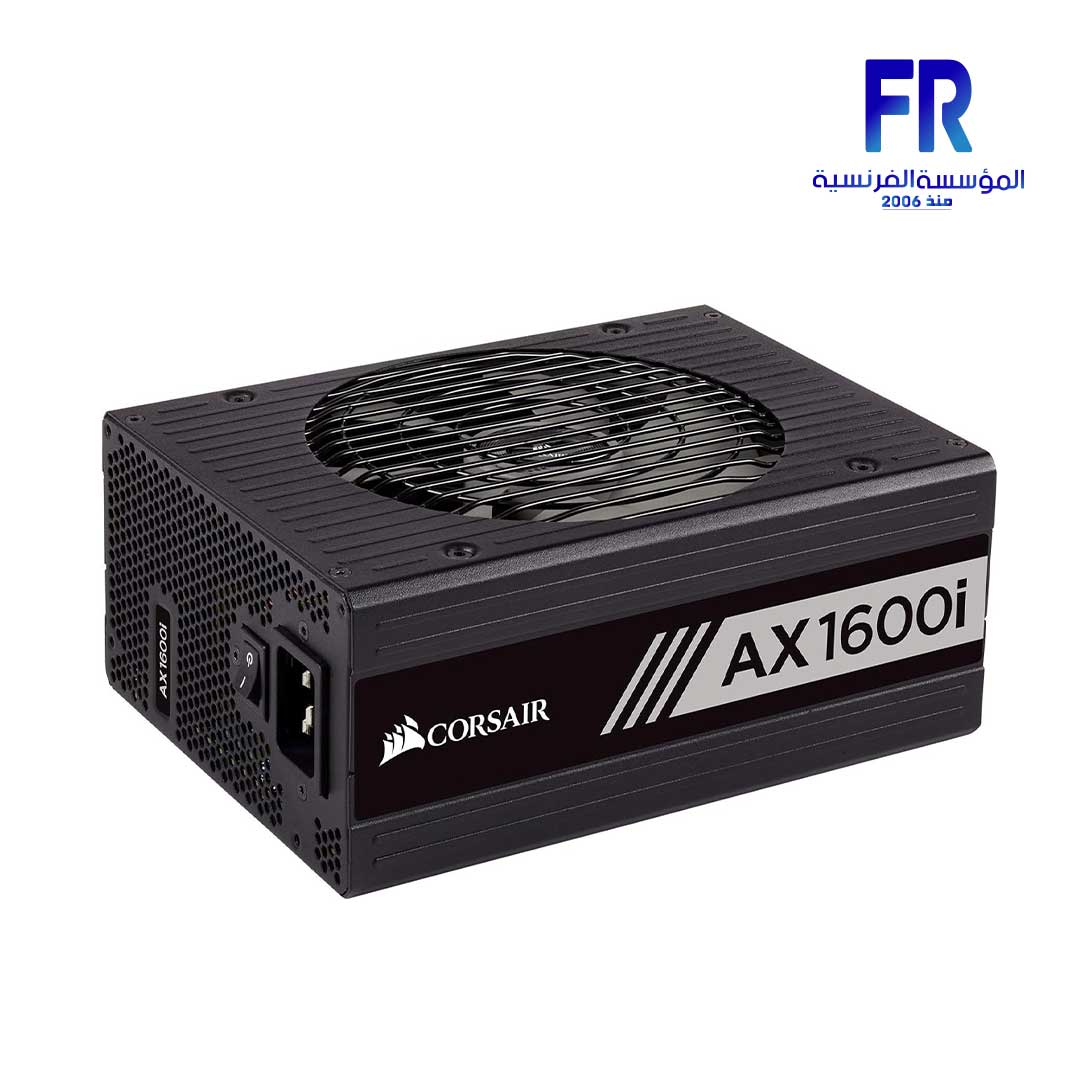

Corsair AX1600i 1600W 80 PLUS Titanium Fully Modular Digital ATX Power Supply
25000 EGP
- 1600W Single +12V Rail
- 80 Plus Titanium Efficiency
- 140mm FDB Cooling Fan

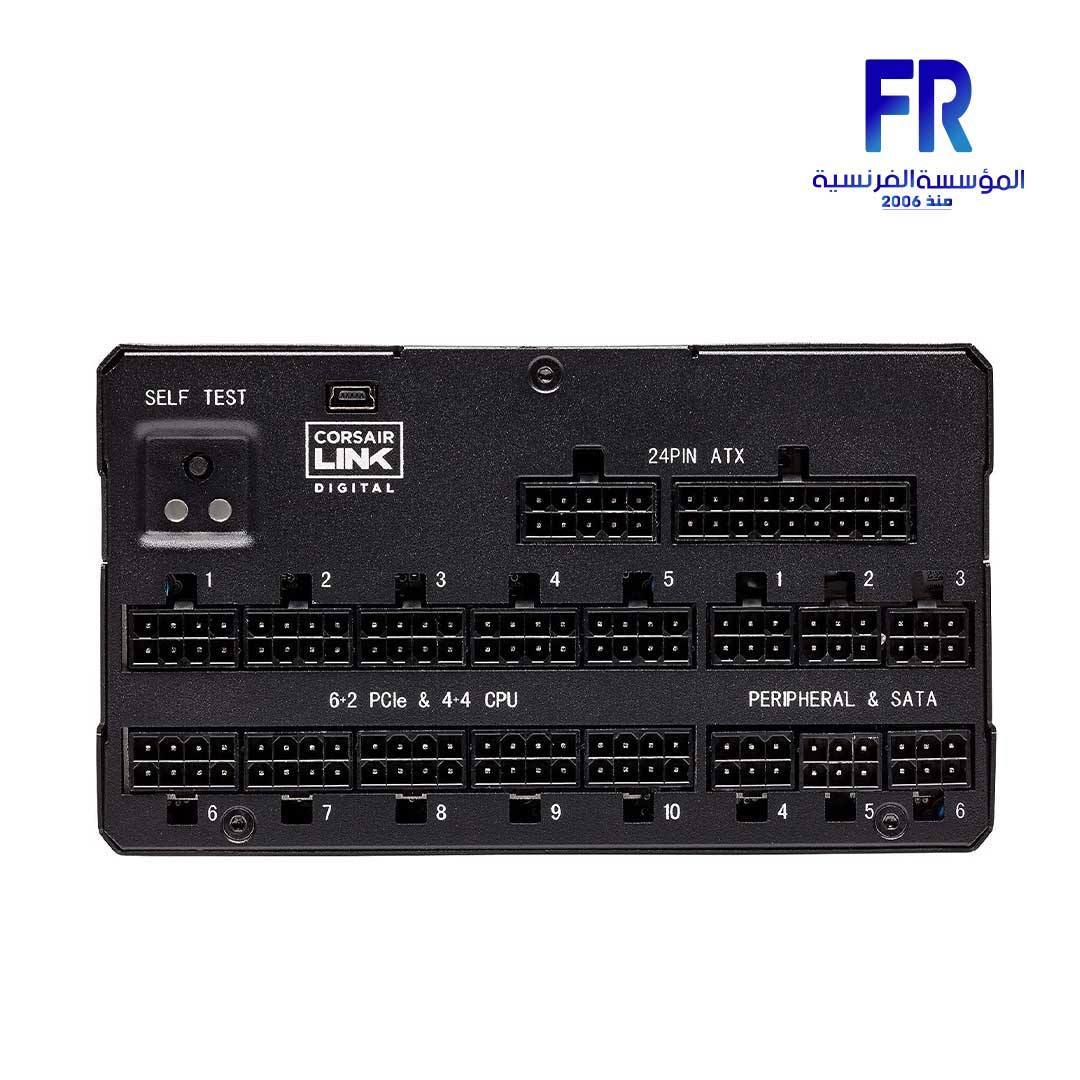

- Fully Modular Cables and Connectors
- Low Profile Cables
- 10 x PCIe Connectors
- 16 x SATA Connectors
- 9 x PATA Connectors
Corsair AX1600i 1600W 80 PLUS Titanium Fully Modular Digital ATX Power Supply
PSU Compatibility |
Conforms to ATX12V v2.4 and EPS 2.92 standards, and is backward compatible with the ATX12V 2.2 and ATX12V 2.01 standards | Delivers 1600 watts of co |
---|---|
ATX Connector |
1 |
ATX12V Version |
v2.4 |
Cable Type |
Low-Profile, All Black |
Continuous Power W |
1600 Watts |
EPS Connector |
2 |
Fan Bearing Technology |
Fluid Dynamic Bearing |
Fan Size MM |
140mm |
Floppy Connector |
2 |
MTBF Hours |
100,000 hours |
Multi GPU Ready |
Yes |
SATA Connector |
16 |
PATA Connector |
9 |
PSU Form Factor |
ATX |
---|---|
Special Technology |
DSP, GaN Totem Pole PFC |
Protections |
OVP (Over Voltage) | UVP (Under Voltage) | SCP (Short Circuit) | OTP (Over Temp) | OPP (Over Power) |
Modern Standby |
No |
Dimensions |
150mm x 86mm x 200mm |
Modular |
Fully |
Intel C6C7 Sleep State Compat |
Yes |
PCIe Connector |
10 |
Zero RPM Mode |
Yes |
Single Multiple 12V Rail Toggl |
Yes |
80 PLUS Efficiency |
Titanium |
Warranty |
1 Year |
Weight |
5.46 |
Corsair AX1600i 1600W 80 PLUS Titanium Fully Modular Digital ATX Power Supply
THE WORLD’S BEST PSU GETS BETTER
The CORSAIR AX1600i is the ultimate digital ATX power supply, built using only the best components and state-of-the-art gallium nitride transistors to deliver more than 94% efficiency.
1600W OF ULTIMATE POWER
Delivers 1600W of continuous, ultra-stable, 80 PLUS Titanium efficient power.
TOP TIER COMPONENTS
THE ONLY CONSUMER PSU WITH GALLIUM NITRIDE TRANSISTORS
100% 105°C Japanese capacitors, top-specification internal components and digital design deliver over 94% efficiency. Totem-pole PFC Gallium Nitride (GaN) transistors for superior efficiency in a smaller form-factor.
WORLD CLASS ELECTRICAL PERFORMANCE
Incredibly stable voltages and ultra-low ripple noise.
CHOOSE YOUR COLOR
Three-color customizable magnetic side labels let you choose your PSU’s style to match your build.

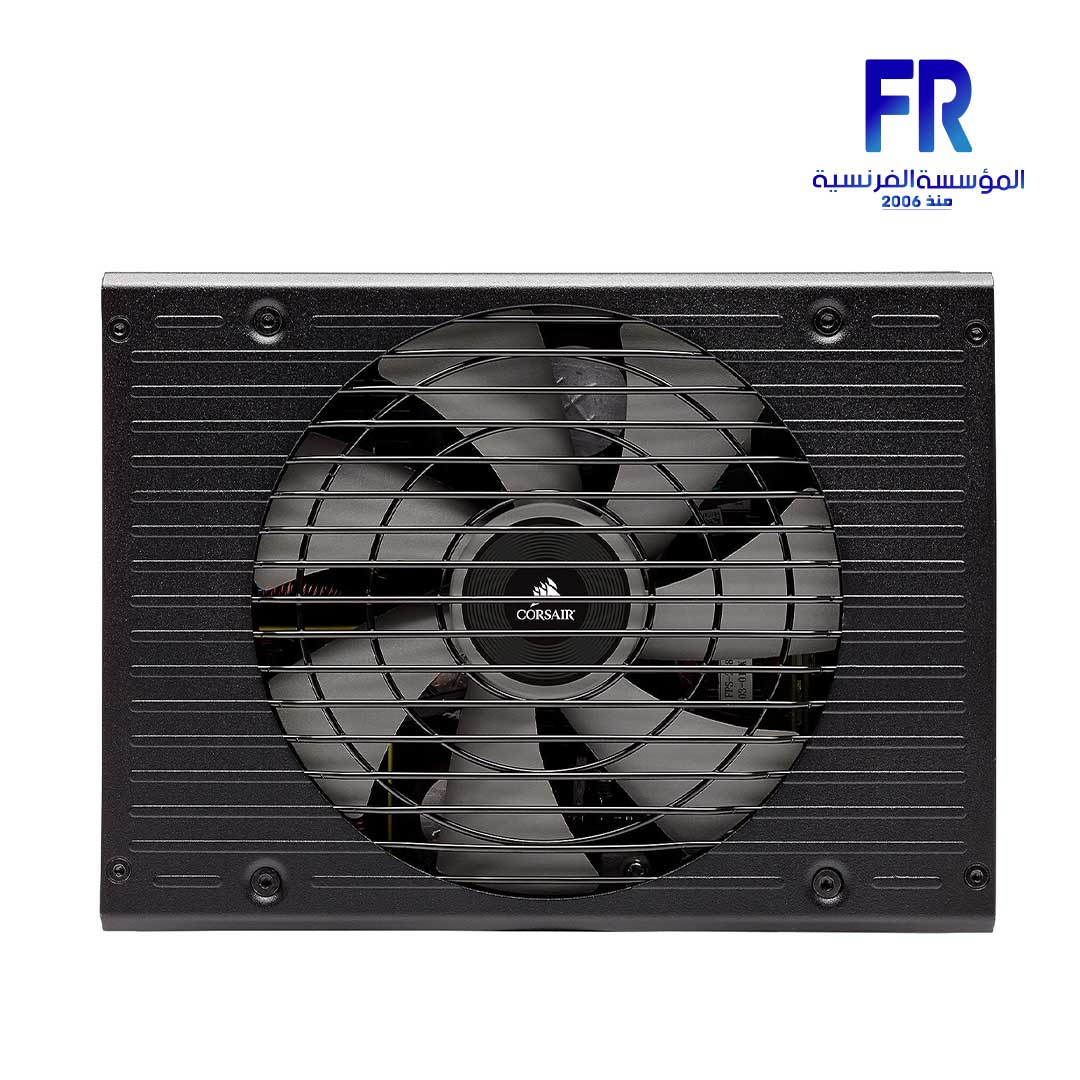

140MM PATENTED FDB COOLING FAN
ZERO RPM FAN MODE
Delivers low-noise operation even at demanding loads.
For near-silent op
