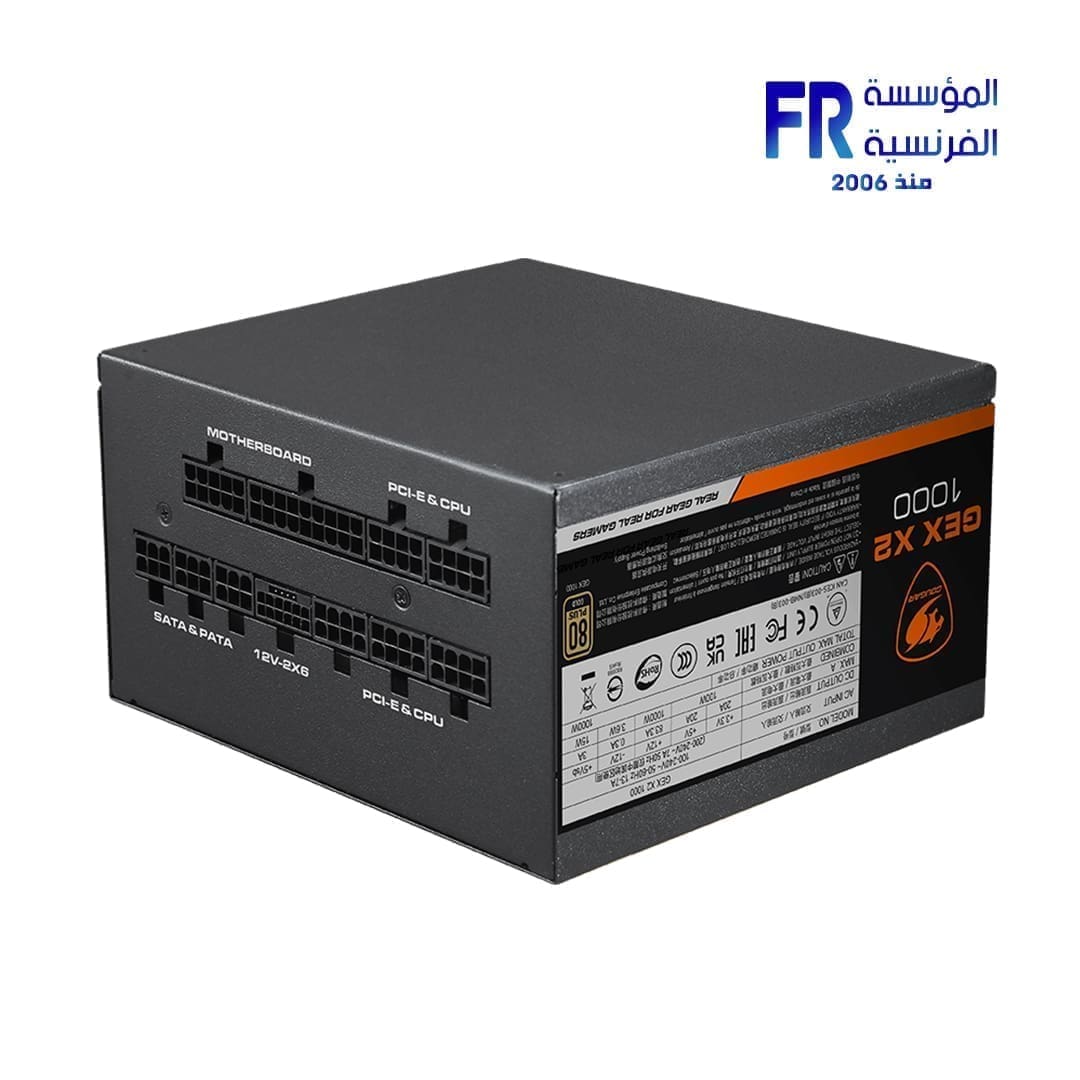

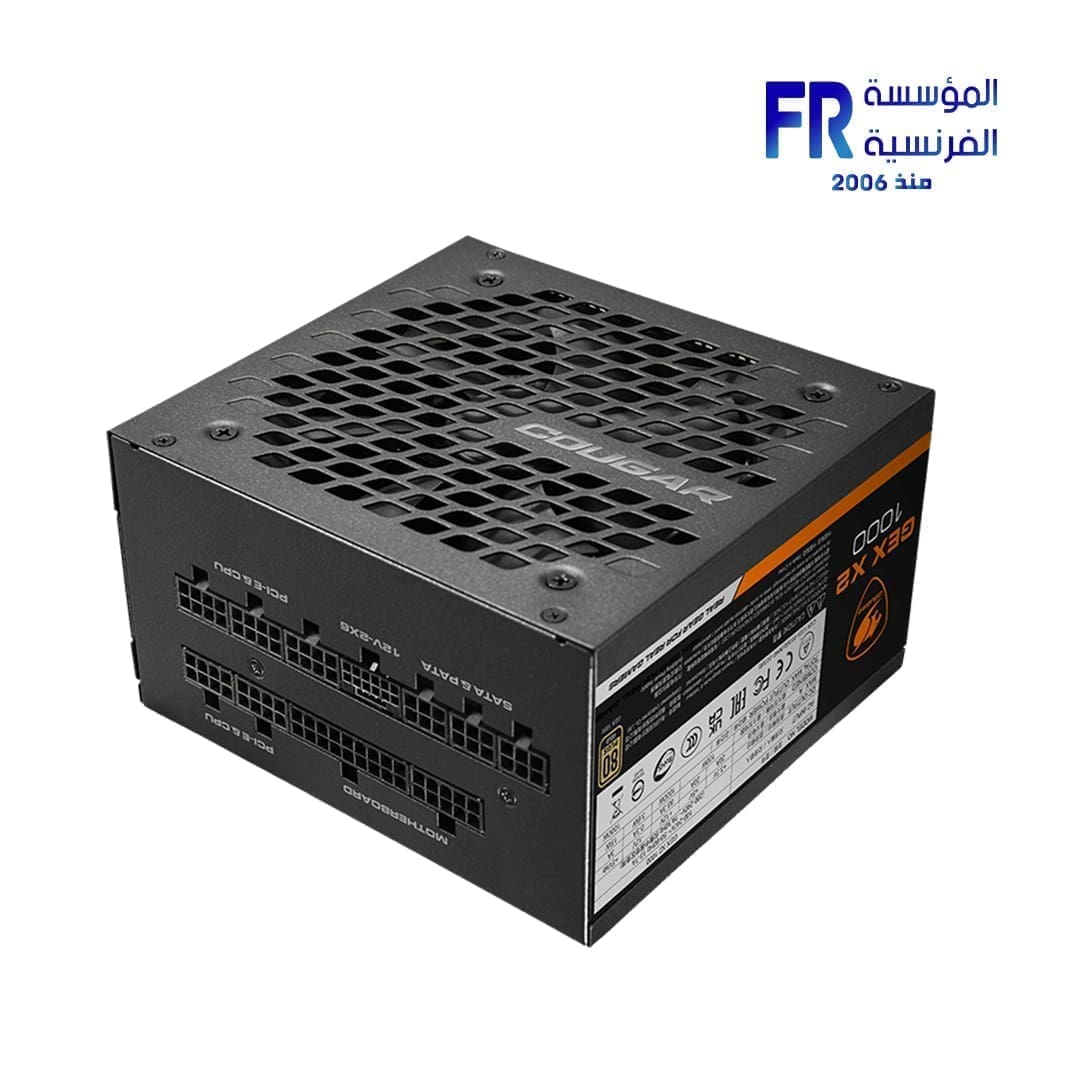

Cougar GEX X2 1000w 80 Plus Gold ATX 3.0 Fully Modular Power Supply
Cougar GEX X2 1000w 80 Plus Gold ATX 3.0 Fully Modular Power Supply
Cougar GEX X2 1000w 80 Plus Gold ATX 3.0 Fully Modular Power Supply
Cougar GEX X2 1000w 80 Plus Gold ATX 3.0 Fully Modular Power Supply
Cougar GEX X2 1000w 80 Plus Gold ATX 3.0 Fully Modular Power Supply
Cougar GEX X2 1000w 80 Plus Gold ATX 3.0 Fully Modular Power Supply

Cougar GEX X2 1000w 80 Plus Gold ATX 3.0 Fully Modular Power Supply

8000 EGP

  • Model: GEX X2
  • PSU Cable Type: Full Modular
  • PSU Wattage: 1000 W
  • Energy Efficiency: 80 PLUS GOLD
  • Protection: OCP, OPP, OTP, OVP, SCP, UVP
  • PSU Capacitors: Japanese Capacitors
  • DC to DC: Yes
  • Fan Size: 120mm
  • Part Number: GEX X2 1000
  • Warranty: 2 years
Views: 306

Only 2 left in stock

Compare
SKU: 192554005751 Categories: Tags: , , , , , , , , , , , , , , , , Brand:

Cougar GEX X2 1000w 80 Plus Gold ATX 3.0 Fully Modular Power Supply

Cougar GEX X2 1000w 80 Plus Gold ATX 3.0 Fully Modular Power Supply Cougar GEX X2 1000w 80 Plus Gold ATX 3.0 Fully Modular Power Supply Cougar GEX X2 1000w 80 Plus Gold ATX 3.0 Fully Modular Power Supply Cougar GEX X2 1000w 80 Plus Gold ATX 3.0 Fully Modular Power Supply Cougar GEX X2 1000w 80 Plus Gold ATX 3.0 Fully Modular Power Supply Cougar GEX X2 1000w 80 Plus Gold ATX 3.0 Fully Modular Power Supply Cougar GEX X2 1000w 80 Plus Gold ATX 3.0 Fully Modular Power Supply Cougar GEX X2 1000w 80 Plus Gold ATX 3.0 Fully Modular Power Supply Cougar GEX X2 1000w 80 Plus Gold ATX 3.0 Fully Modular Power Supply

Cougar GEX X2 1000w 80 Plus Gold ATX 3.0 Fully Modular Power Supply SPECIFICATIONS:

  • Model Name: GEX X2 1000
  • AC Input: 100-240V~, 50-60Hz ( 13-7A for 1000W)
  • DC Output:
    • +3.3V: 20A
    • +5V: 20A
    • +12V: 83.3A (1000W)
    • -12V: 0.3A
    • +5Vsb: 3A
  • Total Power:
    • 1000W Model: 100W (+3.3V & +5V), 1000W (+12V), 3.6W (-12V), 15W (+5Vsb)
  • Connectors & Pin Configuration:
    • Main (24-pin, 20+4): 1 (Both Models)
    • CPU (8-pin, 4+4): 1 (Both Models)
    • Peripherals (8-pin): 1 (Both Models)
    • SATA (4-pin): 2 (Both Models)
    • 12V-2X6 (5-pin): 10 (Both Models)
    • PCI-E (12+4-pin): 1 (Both Models)
    • PCI-E (8-pin, 6+2): 3 (Both Models)
  • PCI Express 5.0 Ready – 12+4 pin connector for next-gen GPUs.
  • 200% Power Excursion – Stable & dynamic 12V-2X6 output.
  • 80 PLUS Gold Certified – Up to 91% efficiency for energy savings.
  • Durable HDB Fan – Hydro Dynamic Bearing for silent & long-lasting cooling.
  • 100% Japanese Capacitors – Ensures reliability & extended lifespan.
  • Fully Modular Design – Reduce cable clutter & improve airflow.
  • Zero Noise Mode – Smart fan curve tuning for near-silent operation.
  • Future-Proof Compatibility – Designed for modern multi-core CPUs.
  • 40°C Operation – Delivers stable performance even in high temps.

Compact Size for All PC Cases

Measuring just 140mm in length, the GEX X2 is one of the most compact fully modular PSUs available. As a result, it fits seamlessly into a wide range of cases, offering greater flexibility for PC builders.

Fully Modular & Flat Cables for a Cleaner Build

With a fully modular design, you only need to connect the essential cables. Consequently, this reduces clutter, improves airflow, and makes installation much easier—especially for DIY builders.

Strict Power Excursion Compliance

The GEX X2 successfully passes four rigorous power excursion tests from the PSU ATX 3.1 Guide. These tests ensure that it can handle spike power consumption up to 200% of its rated power for 100μs, guaranteeing stability under demanding loads.

Next-Gen Graphics Card Compatibility

Equipped with a modular 12+4-pin 12V-2X6 cable, the GEX X2 delivers reliable power to next-generation graphics cards. Unlike traditional solutions that require a 6+2-pin adapter, this 650mm cable minimizes connection risks and ensures a hassle-free PC installation.
