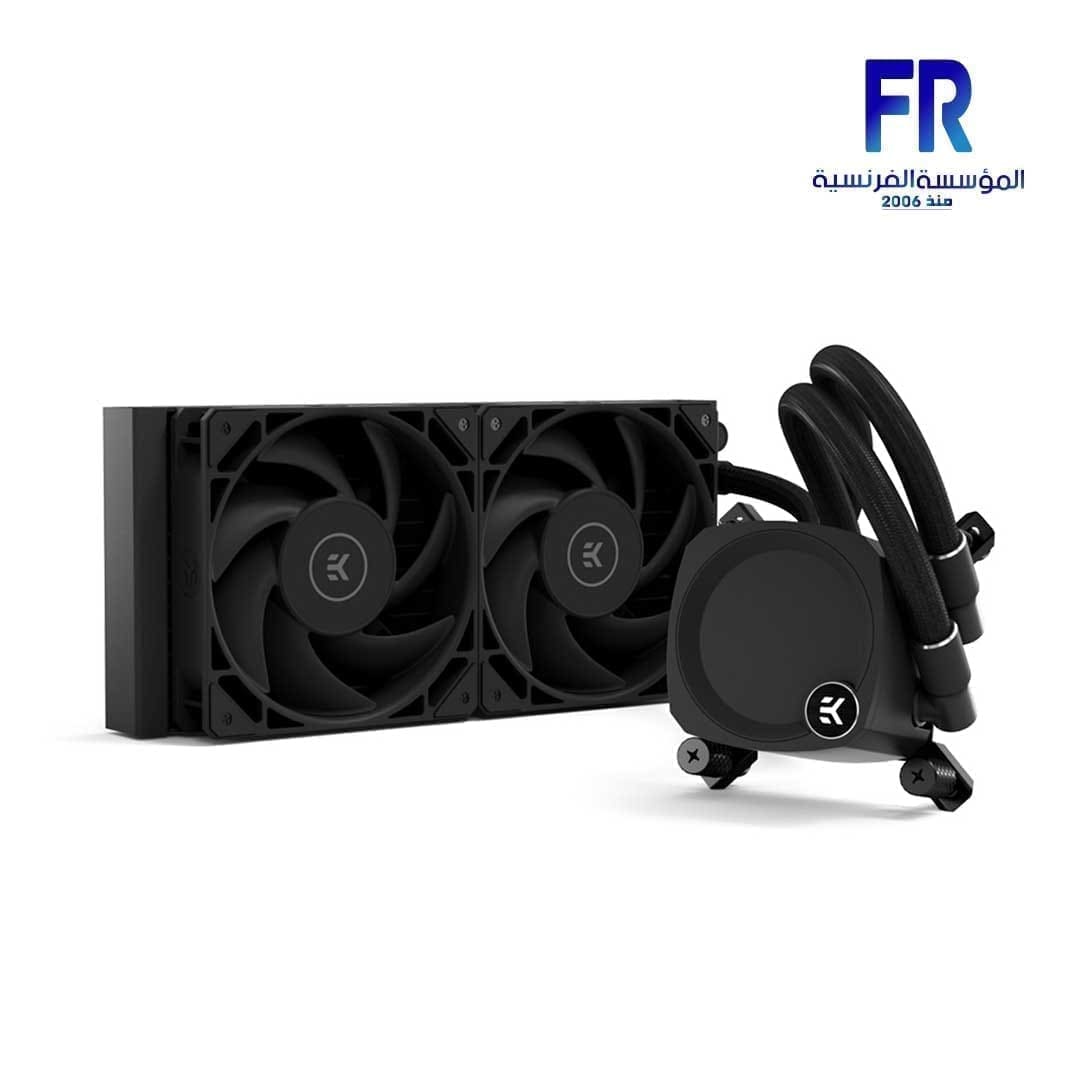

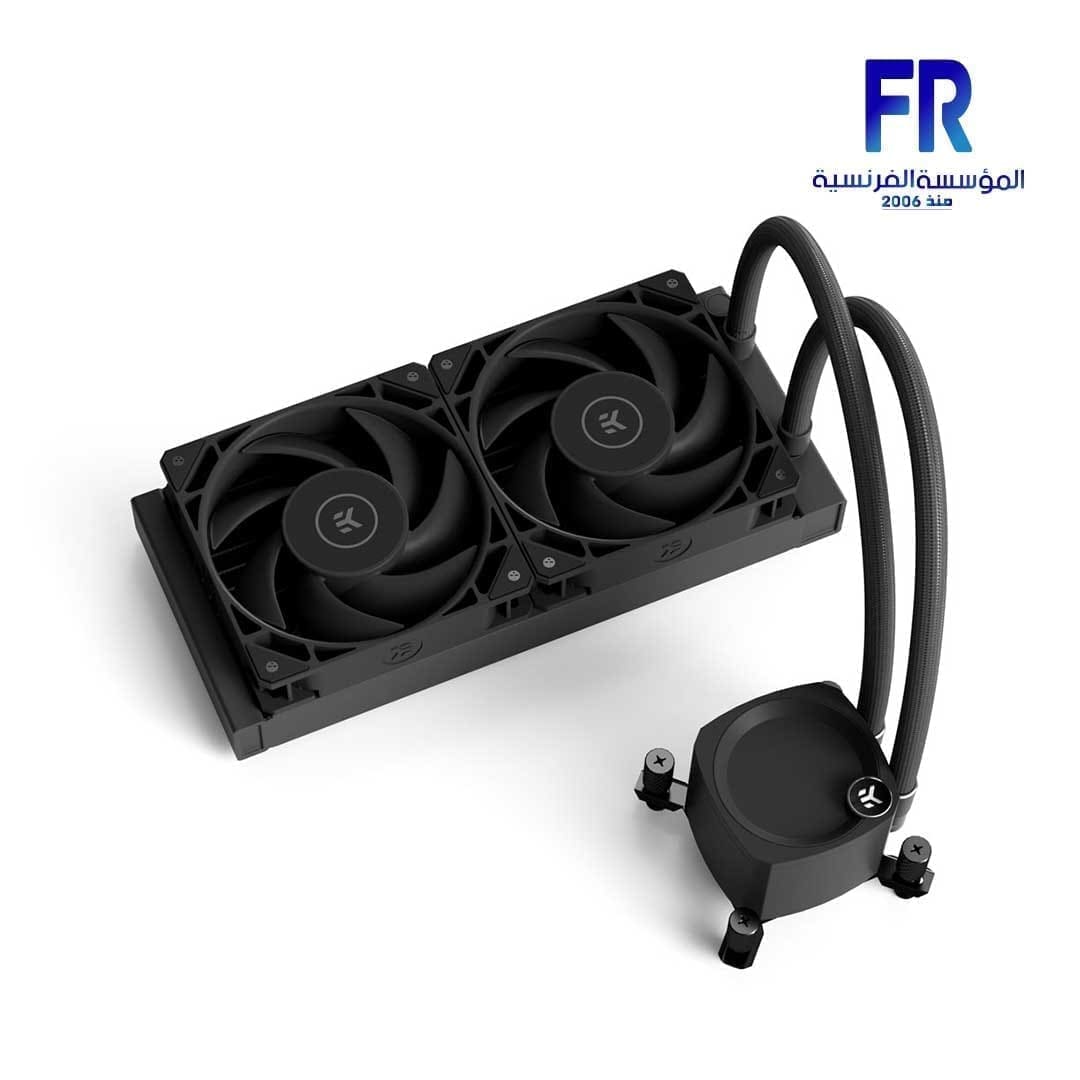

EK Nucleus CR240 Dark Aio Liquid Cpu Cooler
1 EGP
- UNIVERSALLY COMPATIBLE – All EK-Nucleus AIOs come with a universally compatible CPU water block, fitting all the latest Intel and AMD CPU sockets (LGA 1700 and AM5). The installation process is very straightforward, thanks to the included manual and mounting mechanism. This product requires enough space to mount a single slim 240mm radiator, making it compatible with almost all modern cases.
- MICROFIN COPPER COLDPLATE – The copper coldplate that touches the CPU IHS is made of copper to enhance the thermal transferring characteristics. It has a dense stack of microfins that boost the thermal transfer area between the copper base and coolant, ensuring unparalleled cooling.
- NEW POSITIONING OF ROTARY FITTINGS – The AIO CR240 Dark comes pre-installed with reinforced and sleeved rubber tubing, now featuring finer threads. The fittings are covered with an aesthetic black radiator cover at the connection of the tubing and the radiator to ensure a sleek design and flushed line with the added fans. The improved position of rotary fittings on the other side, which are now placed next to each other, allows the EK-Nucleus AIO to be installed in even the tightest spaces.
- ROTATABLE PUMP TOP – The top allows you to re-orient the D-RGB EK badge no matter in which direction the cooler is installed. The orientation can be changed in 90° increments, so if the cooler is installed upside down, rotate it 180 degrees to display the logo right side up. Regardless of the angle needed to install the AIO, it will always offer clean and aligned aesthetics.
- HIGH-STATIC PRESSURE FPT FANS – FPT series fans aim to succeed the EK-Vardar fans completely, as they improve upon many aspects while maintaining focus on excellent radiator performance. FPT fans feature a full frame design that doesn’t allow air to escape outside the frame and thus achieve overall better static pressure.
Out Of Stock.
EK Nucleus CR240 Dark Aio Liquid Cpu Cooler
-
Radiator Dimensions
- 281 x 124 x 27 mm
-
Radiator Material
- Aluminum
-
Fan Compatibility
- 120 mm
-
Pump Unit Dimensions
- 82.3 x 69.2 x 61.6 mm
-
Pump Unit Material
- ABS housing, ABS top ring
-
Pump Speed Range
- 3100 RPM ± 10%
-
Pump PWM Range
- 20 – 100%
-
Tubing Material
- Ultra-Low Evaporation Rubber with Nylon Braided Sleeve
-
Tubing Length
- 370 mm
-
Fan Dimensions
- 120 x 120 x 25mm
-
Fan Speed Range
- 550 – 2300 ± 10%
-
Fan Noise Level
- 36 dB (at maximum speed)
-
Fan Air Flow
- 72 CFM = 122,33 m³/h (at maximum speed)
-
System Requirements
- 4-Pin PWM Header for pump and fan operation
-
Enclosed
- EK-Nucleus AIO CR240 Dark unit
- EK-FPT FAN 120 – Black Full Pressure Technology Fan (2x)
- Mounting Kit
- User Manual
-
Compatible CPU Sockets
- Intel Sockets LGA: 1150, 1151, 1155, 1156, 1200, 2011, 2011-3, 2066 + Next-gen Intel Socket, 1700
- AMD Socket: AM4, AM5
