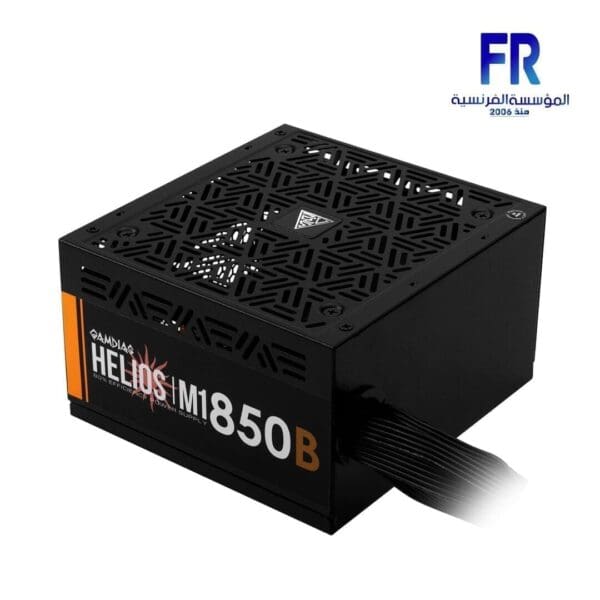

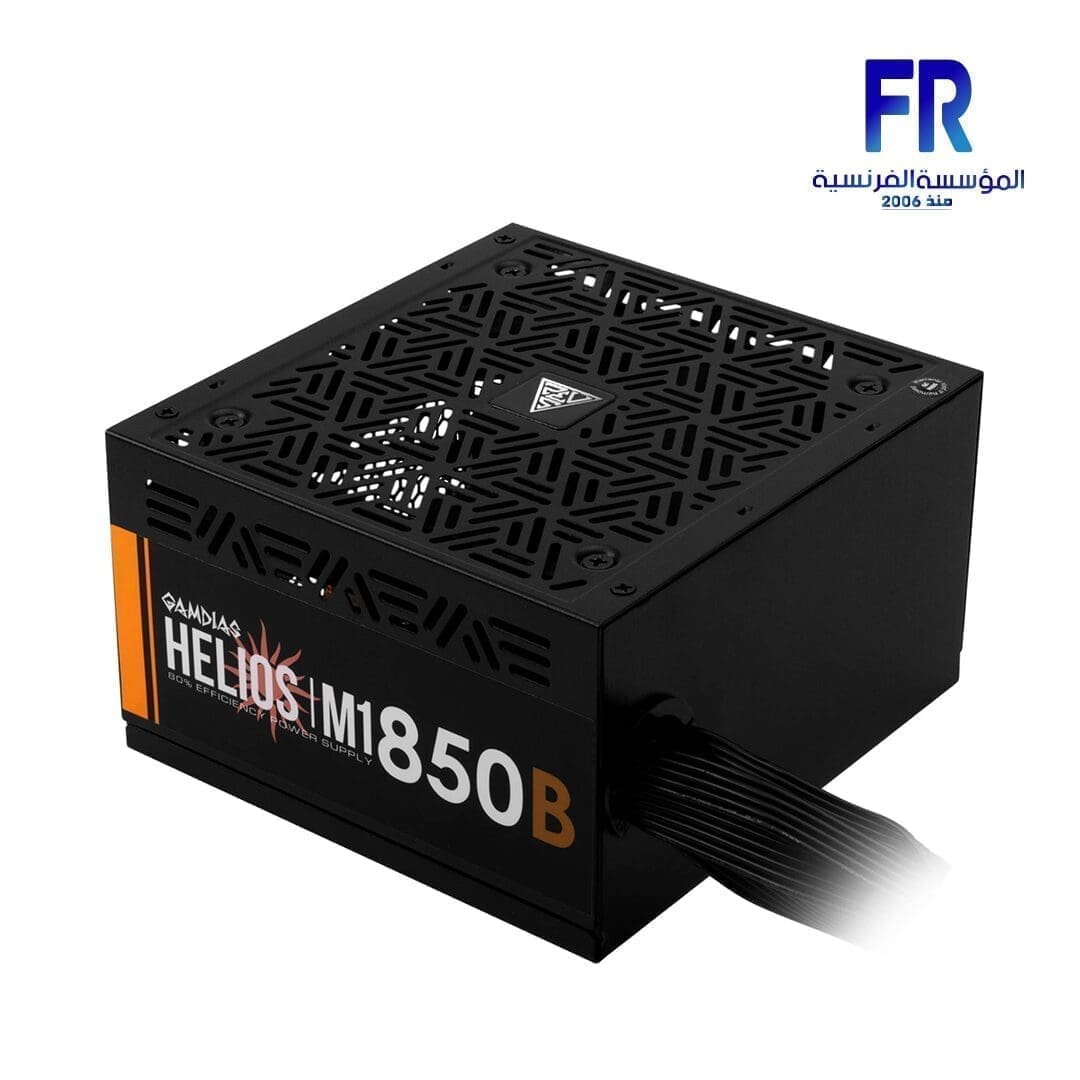

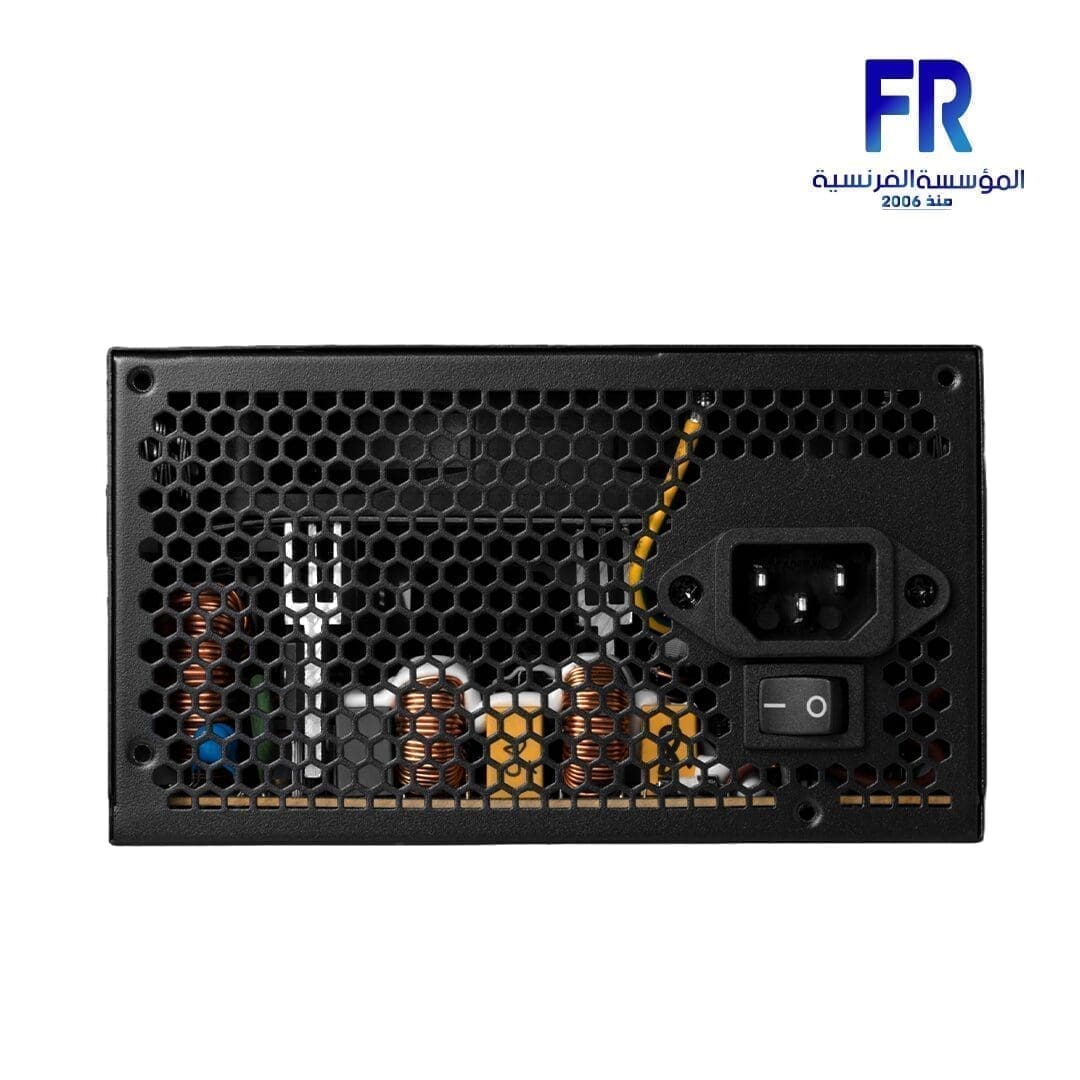

Gamdias Helios M1 850B 850W 80 Plus Bronze Power Supply

Gamdias Helios M1 850B 850W 80 Plus Bronze Power Supply

• Type

• ATX12V v2.4

• Efficiency

• Meet 80 PLUS Bronze efficiency

• Power Factor Correction

• APFC with PF value of 0.99

• Dimension (L x W x H)

• 140 x 150 x 86 mm

• Support C6/C7 power state

• Yes

• AC Input

• 100-240V / 5.5-11A / 47-63Hz

• DC Output

• +3.3V / +5V / +12V / -12V / +5Vsb

• Max. Output Current

• 20A / 20A / 70A / 0.3A / 2.5A

• Max. Output Power

• 130W / 840W / 3.6W / 12.5W

• Total Power

• 850W

• Protection

• OVP / UVP / OPP / OCP / SCP / SP / ICP

• Main Power

• 1 (20+4 Pin)

• CPU

• 2 (4+4 Pin)

• PCI-E

• 4 (6+2 Pin)

• SATA

• 6 (5 Pin)

• Molex

• 4 (4 Pin)

• Flat Cable

• Yes

• Modular

• Non Modular

• Flat Cable

• Yes

• Silent Mode

• No

• DC to DC

• Yes

• Meets 80 PLUS Bronze Efficiency

• Black Flat Cables

• Automatic Fan Speed Optimization

• APFC with PF value of 0.99

• Support C6/C7 Power States

• Stealth Black
