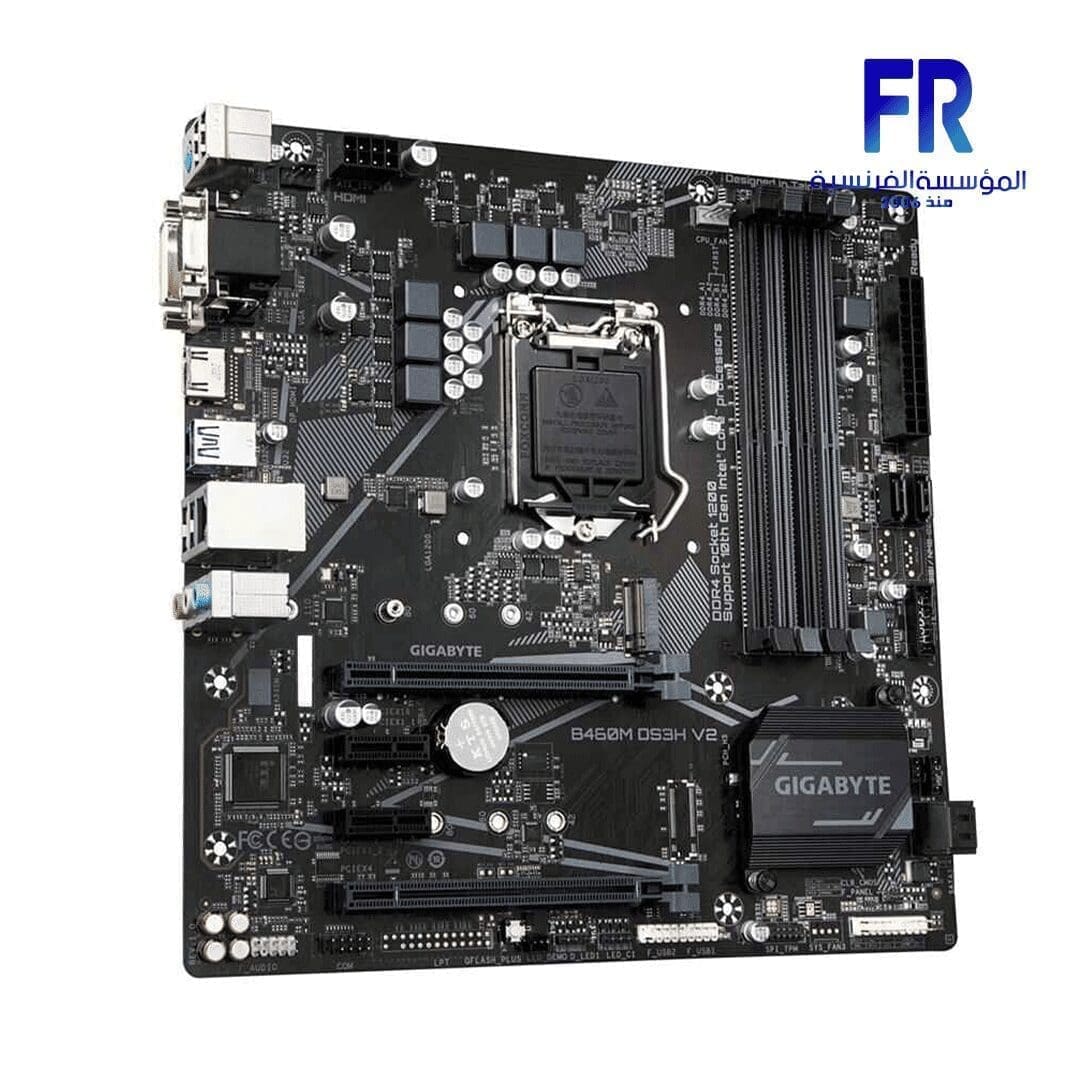

Gigabyte B460M Ds3H V2 Motherboard

2310 EGP

Supports 10th Gen Intel^® Core™ Processors and 11th Gen Intel^® Core™ Processors*
Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
NVMe PCIe Gen3 X4 M.2 Connectors
Smart Fan 5 Features Multiple Temperature Sensors,Hybrid Fan Headers with FAN STOP
Intel^® Optane™ Memory Ready
Intel^® GbE LAN with cFosSpeed Internet Accelerator Software
3 Display Interfaces Support
RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
Anti-Sulfur Resistors Design
Q-Flash Plus Update BIOS without Installing the CPU、Memory and Graphics Card

Out Of Stock.

Price Match Guarantee

SKU: 889523026281 Categories: Intel Motherboards, MOTHERBOARD Tags: 889523026281, B460M DS3H V2, gigabyte b460m ds3h Brand: GIGABYTE

CPU
1. Support for 10th Generation Intel^® Core™ i9 processors/Intel^® Core™ i7 processors/Intel^® Core™ i5 processors/Intel^® Core™ i3 processors/Intel^® Pentium^® processors/Intel^® Celeron^® processors in the LGA1200 package
2. L3 cache varies with CPU
(Please refer “CPU Support List” for more information.)
Chipset
1. Intel^®H470 Express Chipset
Memory
1. Intel^® Core™ i9/i7 processors:
  Support for DDR4 2933/2666/2400/2133 MHz memory modules
2. Intel^® Core™ i5/i3/Pentium^®/Celeron^®processors:
  Support for DDR4 2666/2400/2133 MHz memory modules
3. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
4. Dual channel memory architecture
5. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
6. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
7. Support for Extreme Memory Profile (XMP) memory modules
(Please refer “Memory Support List” for more information.)
Onboard Graphics
Integrated Graphics Processor-Intel^® HD Graphics support:
1. 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz
  * D-Sub port, supported by 10th Generation processors only.
2. 1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz
  * The DVI-D port does not support D-Sub connection by adapter.
3. 1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz
  * Support for HDMI 1.4 version and HDCP 2.3.
Support up to three displays (limited to 10th Generation Intel processors only)
Maximum shared memory of 512 MB
Audio
1. Realtek^® Audio CODEC
2. High Definition Audio
3. 2/4/5.1/7.1-channel
  * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE’s website for details on configuring the audio software.
LAN
1. Intel^® GbE LAN chip (1000 Mbit/100 Mbit)
Expansion Slots
1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
  * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
3. 2 x PCI Express x1 slots
  (All of the PCI Express slots conform to PCI Express 3.0 standard.)
Supports up to ASPM L1.2 power management protocols.
Multi-Graphics Technology
1. Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
Storage Interface
1. 1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support)
2. 4 x SATA 6Gb/s connectors
3. Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10
  * Refer to “1-7 Internal Connectors,” for the installation notices for the M.2 and SATA connectors.
Intel^® Optane™ Memory Ready
M.2 connectors support up to ASPM L1.2 PCIe power management protocols.
USB
Chipset:
1. 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
2. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors
1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x CPU fan header
4. 1 x system fan header
5. 1 x addressable LED strip header
6. 1 x RGB LED strip header
7. 1 x M.2 Socket 3 connector
8. 4 x SATA 6Gb/s connectors
9. 1 x front panel header
10. 1 x front panel audio header
11. 1 x USB 3.2 Gen 1 header
12. 2 x USB 2.0/1.1 headers
13. 2 x Thunderbolt™ add-in card connectors
14. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
15. 1 x serial port header
16. 1 x Clear CMOS jumper
17. 1 x Q-Flash Plus button
Back Panel Connectors
1. 1 x PS/2 keyboard/mouse port
2. 1 x D-Sub port
3. 1 x DVI-D port
4. 1 x HDMI port
5. 3 x USB 3.2 Gen 1 ports
6. 2 x USB 2.0/1.1 ports
7. 1 x RJ-45 port
8. 3 x audio jacks
I/O Controller
1. iTE^® I/O Controller Chip
H/W Monitoring
1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Fan fail warning
5. Fan speed control
  * Whether the fan speed control function is supported will depend on the fan you install.
BIOS
1. 1 x 256 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
1. Support for APP Center
  * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  @BIOS
  EasyTune
  Fast Boot
  Game Boost
  ON/OFF Charge
  RGB Fusion
  Smart Backup
  System Information Viewer
2. Support for Q-Flash
3. Support for Q-Flash Plus
Bundled Software
1. Norton^® Internet Security (OEM version)
2. cFosSpeed
Operating System
1. Support for Windows 10 64-bit
Form Factor
1. Micro ATX Form Factor; 24.4cm x 24.4cm
Remark
1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors’ website or 3rd party website.
2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
