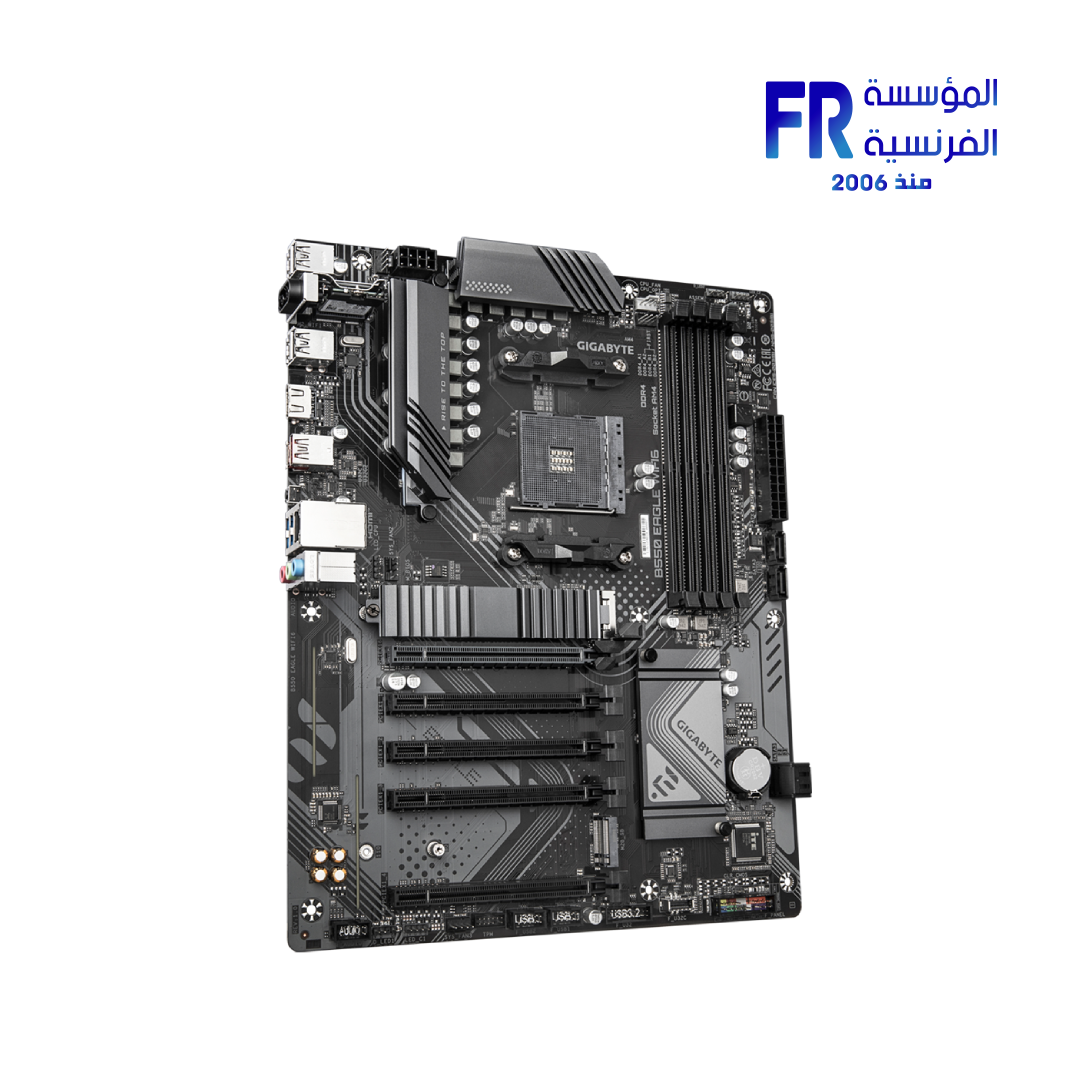

Gigabyte B550 EAGLE WiFi 6 AM4 Gaming Motherboard
The Gigabyte B550 EAGLE WiFi 6 delivers premium AMD Ryzen support with PCIe 4.0 connectivity and WiFi 6 in an ATX form factor. Featuring robust power delivery and dual M.2 slots, this motherboard offers excellent value for AM4 gaming builds.
AMD Ryzen Ready:
AM4 Socket Support:
Compatible with AMD Ryzen 5000/3000 series processors. The 6-layer PCB ensures stable power delivery for up to 105W TDP CPUs.
DDR4 Boost Technology:
Optimized traces support DDR4-4733MHz+ (OC) with AMD Ryzen processors. The dual-channel architecture provides up to 128GB capacity.
Advanced Connectivity:
WiFi 6 + 2.5GbE LAN:
Intel WiFi 6 AX200 (802.11ax) delivers up to 2.4Gbps wireless speeds. Realtek 2.5GbE LAN provides high-speed wired networking.
PCIe 4.0 Support:
Steel-armored PCIe 4.0 x16 slot for graphics cards and PCIe 4.0 M.2 slot for NVMe SSDs with 64GB/s bandwidth.
Gaming Features:
Direct 6+2 Phase VRM:
High-quality chokes and capacitors with enlarged heatsinks ensure stable power delivery for Ryzen processors.
Dual M.2 Thermal Guards:
Both M.2 slots feature thermal guards to prevent throttling. The primary slot supports PCIe 4.0 x4 speeds.
Technical Specifications:
- Form Factor: ATX (30.5×24.4cm)
- Chipset: AMD B550
- Socket: AM4 (Ryzen 5000/3000)
- Memory: 4x DDR4 (128GB max, 4733+ MHz OC)
- PCIe: 1x PCIe 4.0 x16, 2x PCIe 3.0 x1
- Storage: 1x PCIe 4.0 M.2, 1x PCIe 3.0 M.2, 6x SATA
- Networking: WiFi 6 AX200 + Realtek 2.5GbE
- Audio: Realtek ALC887 7.1-channel
- USB: 1x USB-C 3.2 Gen2, 2x USB 3.2 Gen1, 4x USB 2.0
- RGB: 1x ARGB header
Package Contents:
- B550 EAGLE WiFi 6 motherboard
- WiFi antenna
- 2x SATA cables
- M.2 screws
- I/O shield
- User manual
