What is the warranty for the Gigabyte B850 Aorus Stealth with Wifi 7 Ice Motherboard?

The Gigabyte B850 Aorus Stealth with Wifi 7 Ice Motherboard comes with a 3 Years Limited Warranty.

What processors are compatible with the Gigabyte B850 Aorus Stealth with Wifi 7 Ice Motherboard?

This motherboard supports AMD Socket AM5 for AMD Ryzen™ 9000, 8000, and 7000 Series processors, offering broad compatibility with the latest CPUs.

What is the maximum memory speed supported by this motherboard?

The Gigabyte B850 Aorus Stealth with Wifi 7 Ice Motherboard supports DDR5 memory with overclocked speeds of up to 8200(O.C.) MT/s, and it is compatible with both AMD EXPO™ and Intel XMP memory profiles.

Filter

Gigabyte B850 Aorus Stealth with Wifi 7 Ice Motherboard

Q: Does the Gigabyte B850 Aorus Stealth with Wifi 7 Ice Motherboard support Wi-Fi 7?

Yes, the Gigabyte B850 Aorus Stealth with Wifi 7 Ice Motherboard features a built-in Realtek Wi-Fi 7 module, providing the latest wireless standard for ultra-fast connectivity, along with Bluetooth 5.4.

14900 EGP

CPU Support: AMD Socket AM5 (Ryzen 9000/8000/7000 Series)
Memory: 4 x DDR5 DIMM, up to 256 GB at 8200(O.C) MT/s
Expansion Slots: 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x4
Wireless: Realtek Wi-Fi 7, Bluetooth 5.4
Connectivity: Realtek 5GbE LAN, Dual USB4® Type-C®

In stock

Price Match Guarantee

SKU: 889523051290 Categories: MOTHERBOARD, AMD Motherboards Tags: DDR5, STEALTH, white motherboard, motherboard, AORUS, 7, 9MB85STLE-00-G10, AMD, Ice, 889523051290, gaming, Content Creation, B850, GIGABYTE, PCIe 5.0, Computer Components, M.2 Slots, AM5 Socket, B850 Chipset, Wi-Fi 7, Desktop Motherboard, WIFI, High-Speed Networking Brand: GIGABYTE

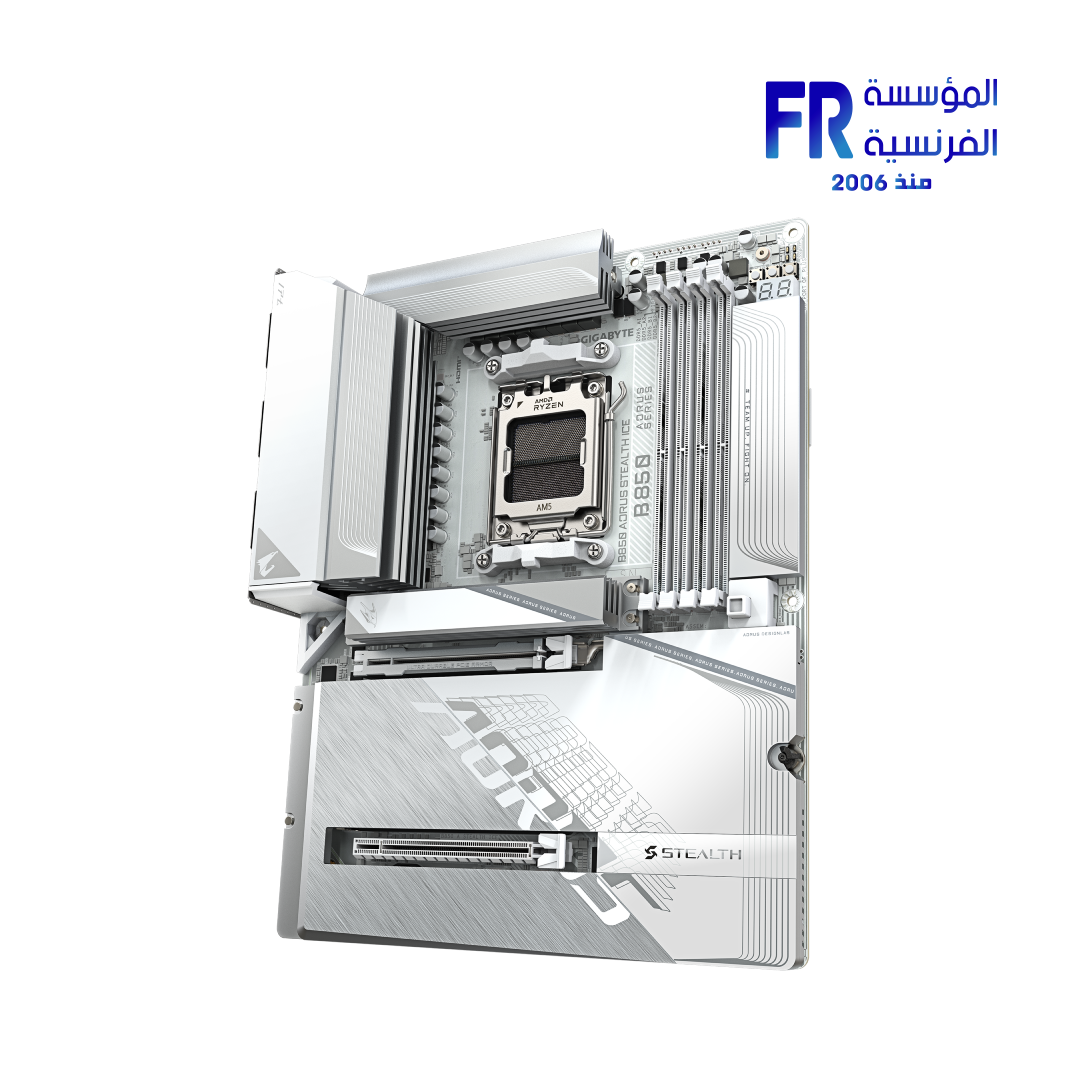

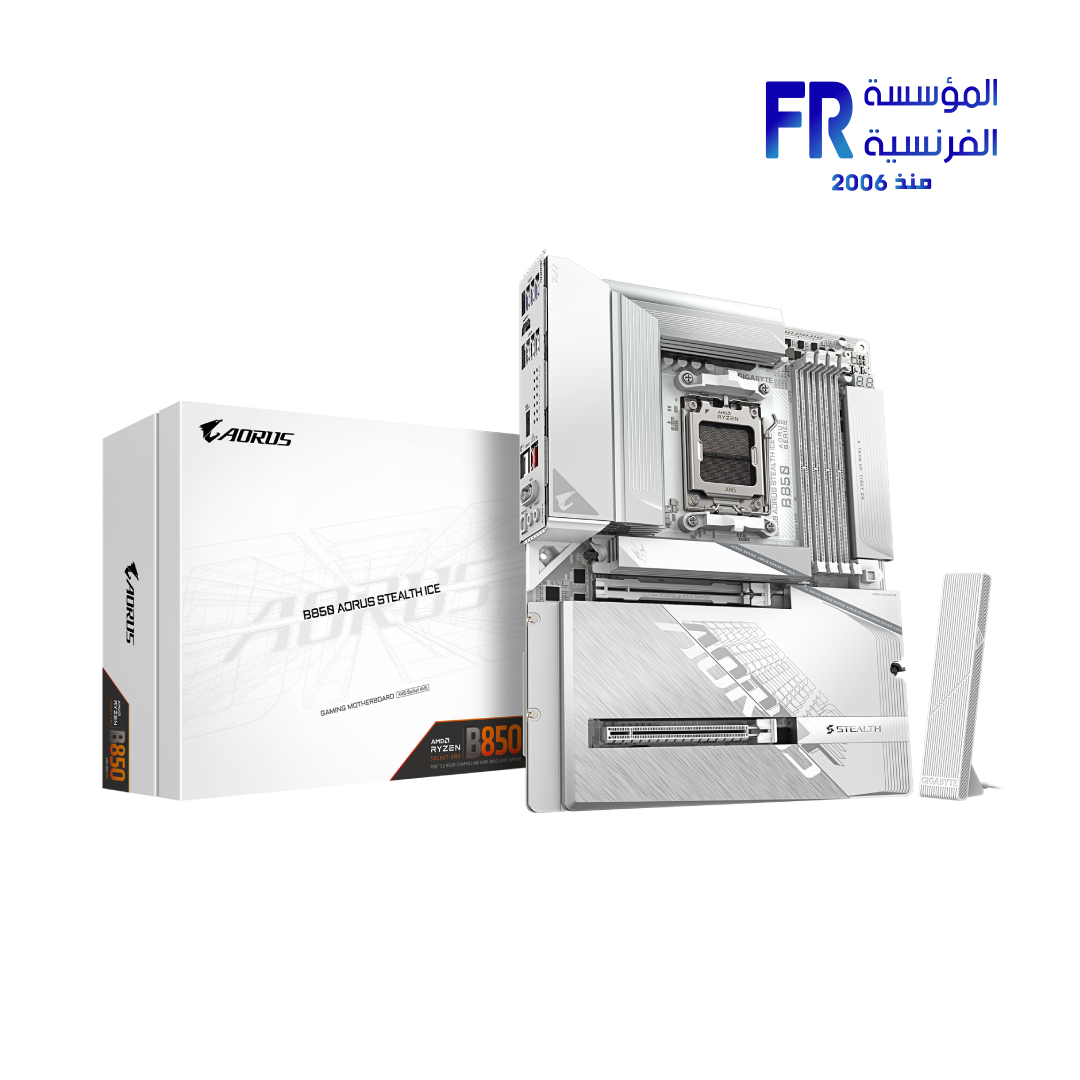

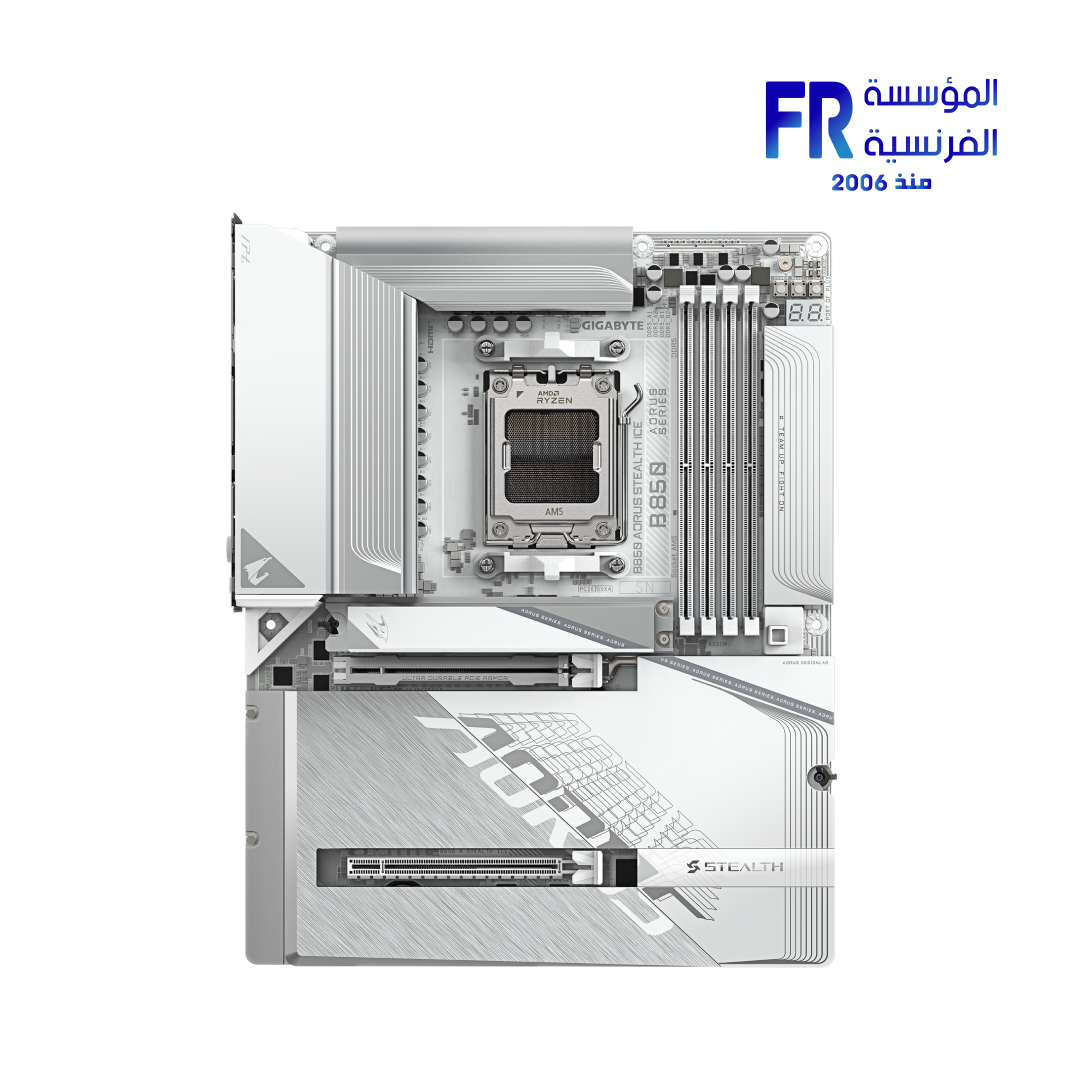

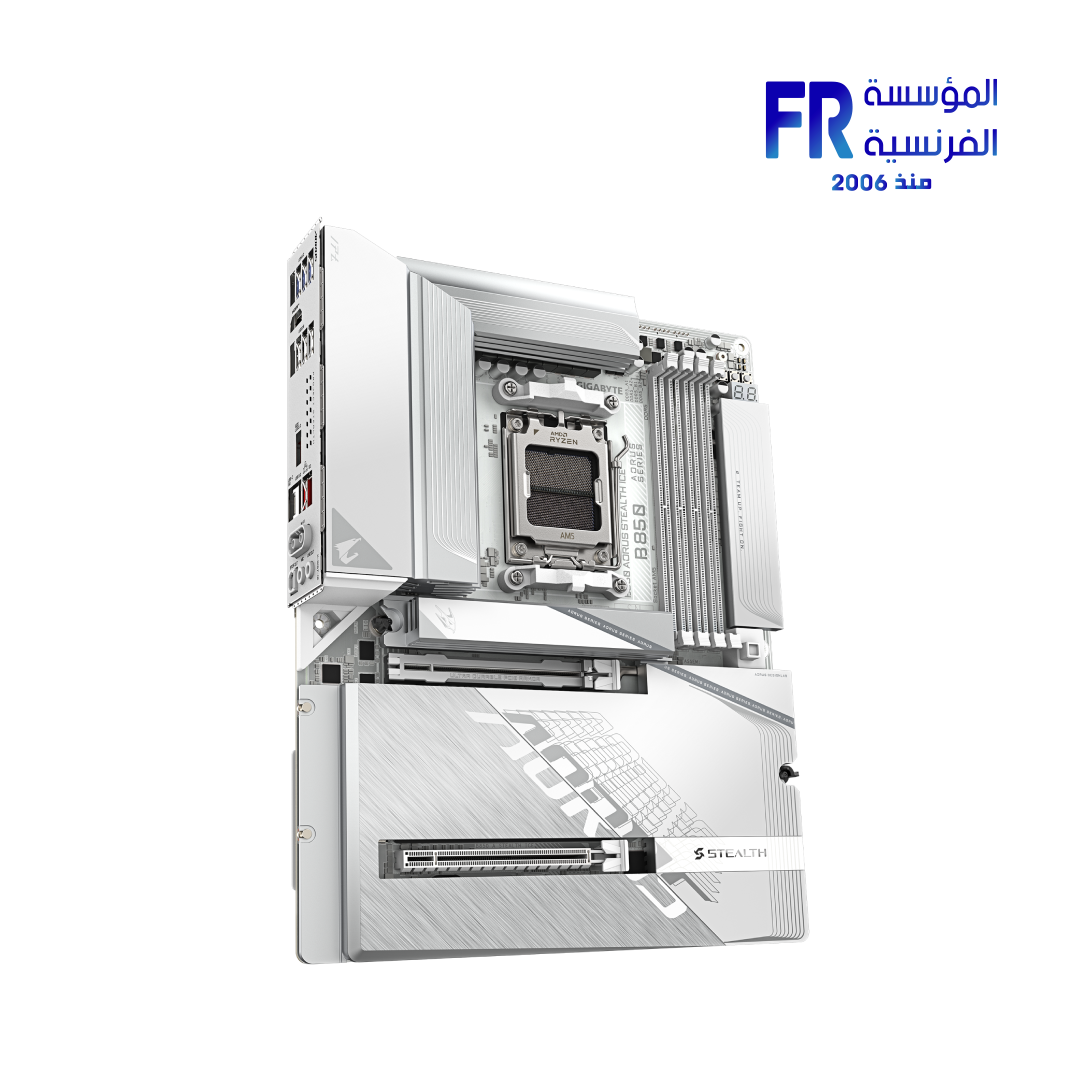

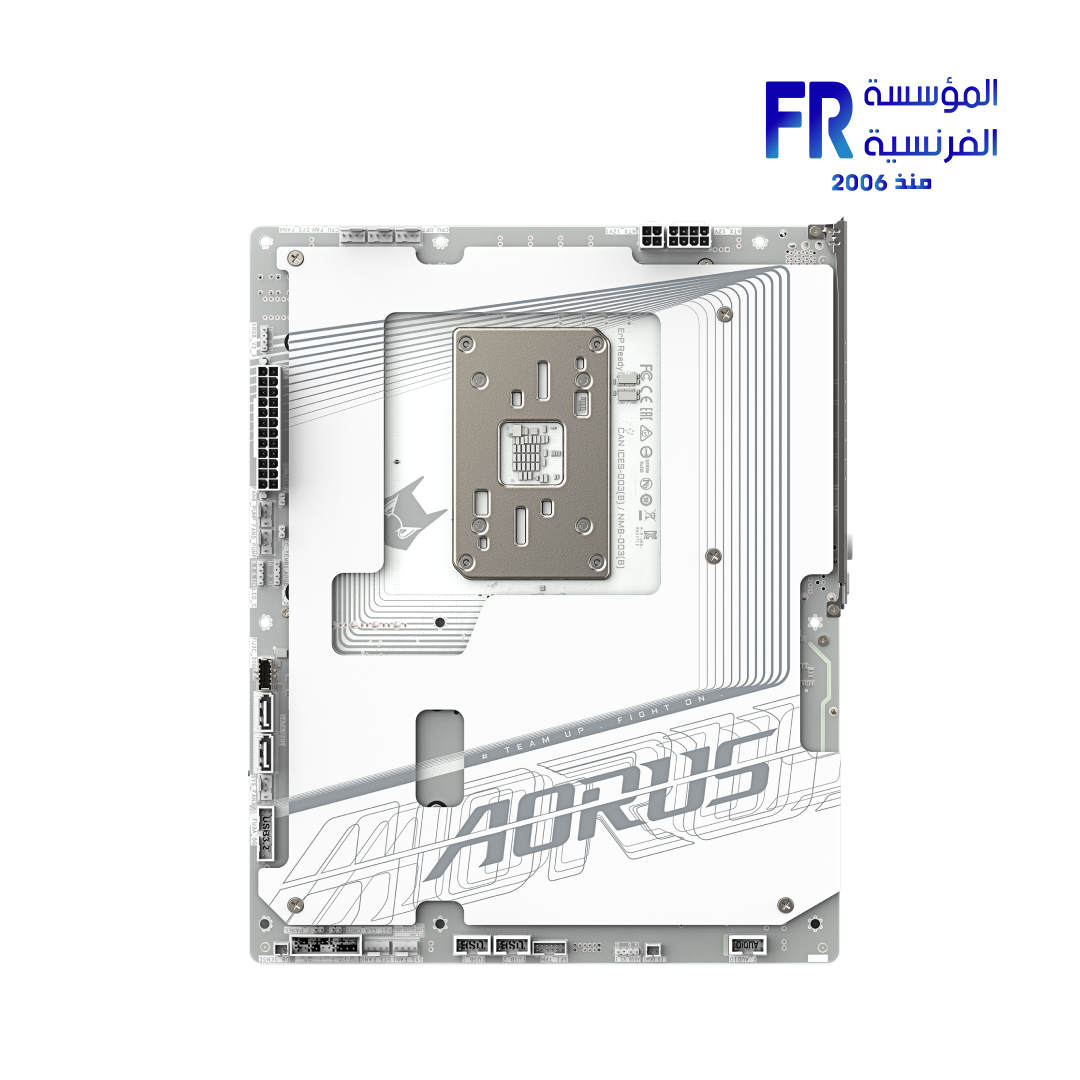

Gigabyte B850 Aorus Stealth with Wifi 7 Ice Motherboard

Experience next-generation performance with the Gigabyte B850 Aorus Stealth with Wifi 7 Ice Motherboard. Designed for the latest AMD processors on the Socket AM5 platform, it features cutting-edge Wi-Fi 7 and robust support for high-speed DDR5 memory.

Overview of the Gigabyte B850 Aorus Stealth with Wifi 7 Ice Motherboard

The Gigabyte B850 Aorus Stealth with Wifi 7 Ice Motherboard is engineered to be the cornerstone of your high-performance PC build. It harnesses the power of the AMD B850 chipset to provide a stable and feature-rich platform for AMD Ryzen™ 9000, 8000, and 7000 series processors. With support for memory overclocking up to 8200(O.C) MT/s and a dual-channel architecture, it ensures your system runs at peak efficiency. Connectivity is state-of-the-art, featuring a Realtek® 5GbE LAN and the latest Realtek® Wi-Fi 7 module for unparalleled network speeds. For storage, it offers multiple M.2 connectors with PCIe 5.0 support, enabling lightning-fast data access for your games and applications.

Key Features:

Broad CPU Compatibility: Supports AMD Ryzen™ 9000, 8000, and 7000 Series Processors on the AMD Socket AM5 platform.
Extreme Memory Performance: 4 x DDR5 DIMM sockets supporting up to 256 GB of system memory with speeds up to 8200(O.C) and AMD EXPO™ / XMP profiles.
Next-Gen Connectivity: Features a Realtek® 5GbE LAN and the latest Wi-Fi 7 module with Bluetooth 5.4.
Ultra-Fast Storage: Multiple M.2 connectors supporting PCIe 5.0 x4/x2 SSDs for maximum throughput.
High-Definition Audio: Equipped with a Realtek® ALC1220 CODEC for immersive 7.1-channel high-definition audio.

Full Technical Specifications

For complete details, refer to the official product page.

Specification	Details
Part Number	9MB85STLE-00-G10
CPU	AMD Socket AM5, support for: AMD Ryzen™ 9000 Series Processors/ AMD Ryzen™ 8000 Series Processors/ AMD Ryzen™ 7000 Series Processors
Chipset	AMD B850
Memory	Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules. 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
Onboard Graphics	Integrated Graphics Processor with AMD Radeon™ Graphics support: – 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR.
Audio	Realtek® ALC1220 CODEC High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out
LAN	Realtek® 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)

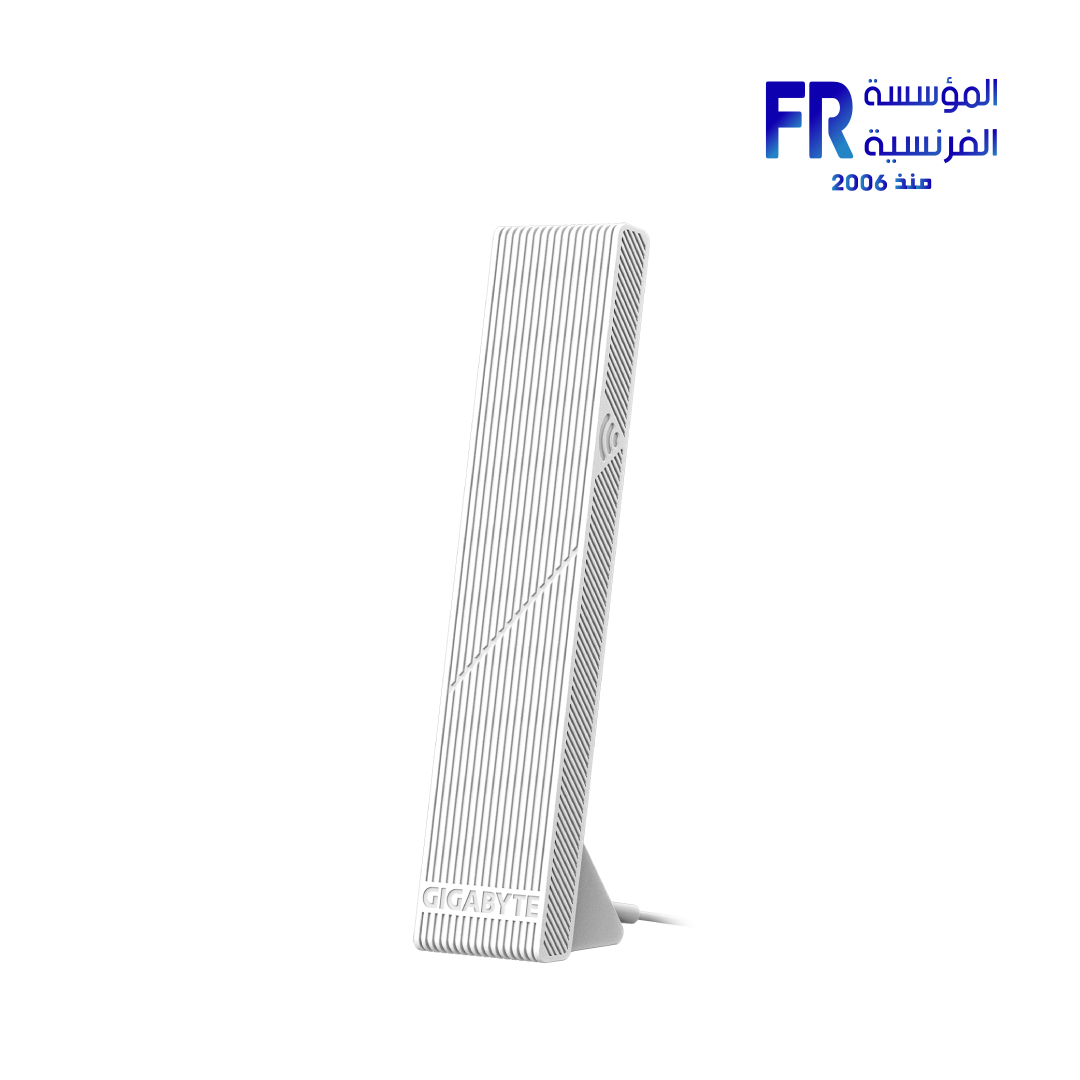

Wireless Communication module	Realtek® Wi-Fi 7 RTL8922AE – WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands – BLUETOOTH 5.4 – Support for 11be 160MHz wireless standard
Expansion Slots	1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: – AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode – AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode – AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode Chipset: – 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
Storage Interface	1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs 2 x M.2 connectors (M2C_SB, M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs 2 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0 and RAID 1 support for SATA storage devices
USB	CPU: – 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support CPU+USB 3.2 Gen 1 Hub: – 4 x USB 3.2 Gen 1 ports on the back panel CPU+USB 2.0 Hub: – 4 x USB 2.0/1.1 ports on the back panel Chipset: – 1 x USB Type-C® port with USB 3.2 Gen 2×2 support, available through the internal USB header – 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel – 2 x USB 3.2 Gen 1 ports available through the internal USB header – 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 4 x system fan headers 2 x system fan/water cooling pump headers 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x M.2 Socket 3 connectors 2 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2×2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x noise detection header 1 x Trusted Platform Module header 1 x Q-Flash Plus button 1 x power button 1 x reset button 1 x reset jumper 2 x temperature sensor headers 1 x Clear CMOS jumper

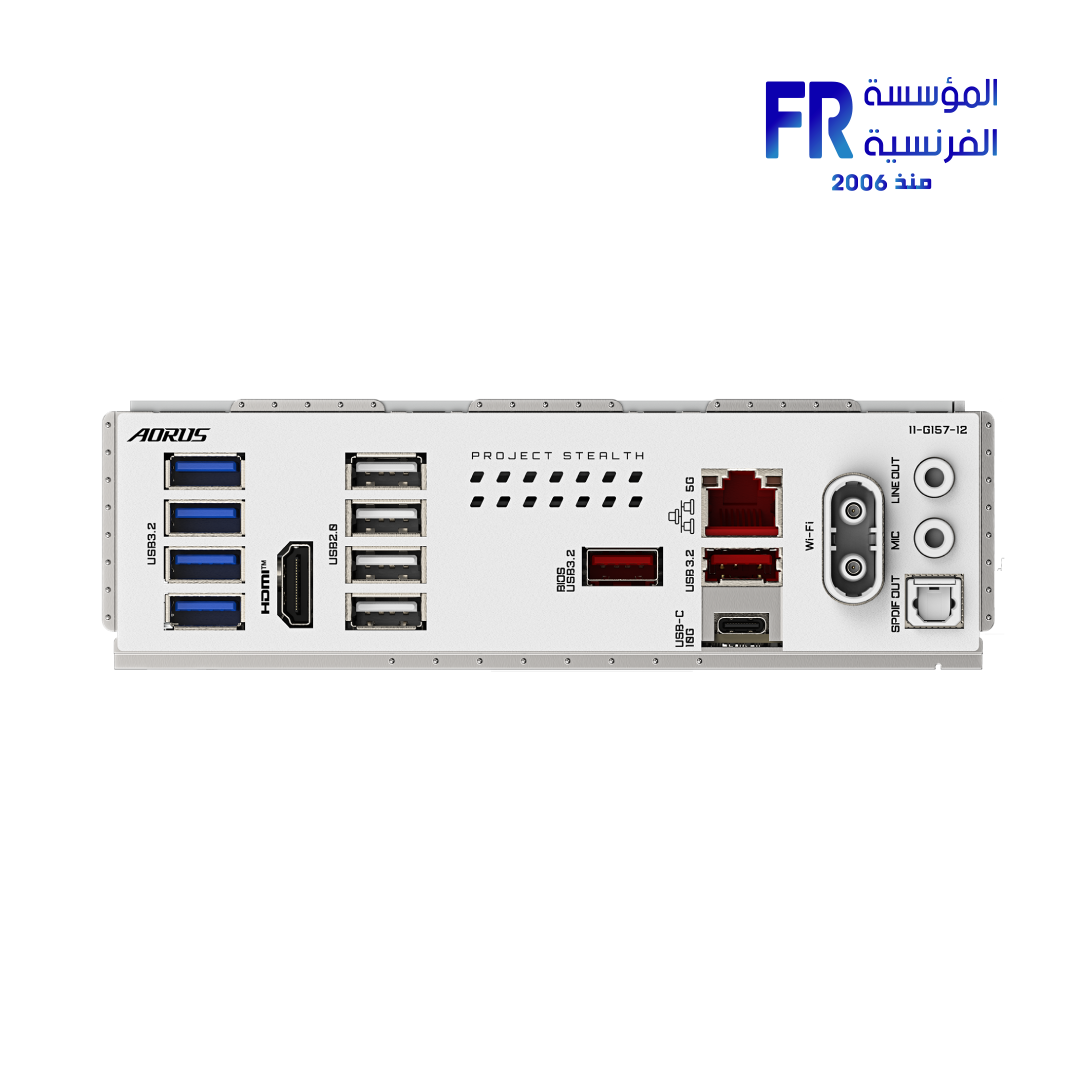

Back Panel Connectors	1 x HDMI port 2 x antenna connectors (2T2R) 1 x USB Type-C® header, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 2 Type-A ports (red) 4 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control
BIOS	1 x 512 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup
Bundled Software	Norton® Internet Security (OEM version)
Operating System	Support for Windows 11 64-bit
Form Factor	ATX Form Factor; 30.5cm x 24.4cm
Warranty	3 Years Limited Warranty

Product Summary

The Gigabyte B850 Aorus Stealth with Wifi 7 Ice Motherboard is a premium ATX motherboard for AMD’s AM5 socket, featuring DDR5 memory support up to 8200MHz, PCIe 5.0 slots for both graphics and storage, and next-generation Wi-Fi 7 connectivity. It is backed by a 3-year warranty.

MOTHERBOARD

MODEL	B850 Aorus Stealth
CHIPSET MANUFACTURERS	AMD
CPU Socket	AM5
Motherboard Chipset	B850
Motherboard Type	ATX
CPU SERIES	AMD Ryzen 7000 Series & Ryzen 8000 & Ryzen 9000 Series Processors
Technology	DDR5
Memory Speed	8200MHz
Max Memory Size	256GB
Memory Slot	4
PCI-E X16	YES
PCI-E GEN	PCIe 5.0
PCI-E Slots (M.2)	2
SATAIII	2 x SATA 6Gb/s
Communication module	Bluetooth, Wi-Fi
Part Number	9MB85STLE-00-G10
Warranty	3 Years
