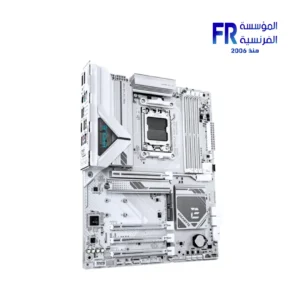

Gigabyte B850 Eagle Wifi7 Ice AMD B850 AM5 DDR5 ATX White Motherboard

Gigabyte B850 Eagle Wifi7 Ice AMD B850 AM5 DDR5 ATX White Motherboard

10200 EGP

Part Number B850 EAGLE WIFI7 ICE
CPU Socket AM5 (Ryzen 9000 / 8000 / 7000 Series)
Memory Support 4x DDR5 DIMM, up to 8200(O.C.) MT/s (256GB Max)
Primary Slots 1x PCIe 5.0 x16 & 1x M.2 Gen5 x4 (CPU Dependent)
Networking Wi-Fi 7 (802.11be) & 2.5GbE LAN
Storage 3x M.2 Slots (1x Gen5, 2x Gen4) & 4x SATA 6Gb/s
Warranty 3 Years

Only 2 left in stock

Price Match Guarantee

Gigabyte B850 Eagle Wifi7 Ice AMD B850 AM5 DDR5 ATX White Motherboard

The Gigabyte B850 Eagle Wifi7 Ice AMD B850 AM5 DDR5 ATX White Motherboard facilitates high-speed architectural workstation stability through its next-generation Wi-Fi 7 and AM5 connectivity. Specifically engineered for professionals who demand the aesthetic purity of an “ICE” white build paired with extreme PCIe 5.0 bandwidth, it bridges the gap between high-end productivity and reliable system longevity.

Wi-Fi 7

Ultra-Fast 6GHz

PCIe 5.0

Storage Ready

DDR5 8200

Extreme XMP/EXPO

3 Years

Local Warranty

Why the Gigabyte B850 Eagle Wifi7 Ice is the Elite Choice for Professionals

Next-Gen Wi-Fi 7 Connectivity

Specifically, the Realtek Wi-Fi 7 RTL8922AE module facilitates extreme wireless speeds on the 6GHz band. Furthermore, it supports 160MHz bandwidth and Bluetooth 5.4. Consequently, professional workstations benefit from lower latency and increased data throughput, essential for large-scale architectural file transfers.

DDR5 Extreme Overclocking Support

The B850 Eagle Ice architecture facilitates memory speeds up to 8200(O.C.) MT/s with full support for AMD EXPO and Intel XMP profiles. Moreover, with 4 DIMM slots supporting up to 256GB of total system memory, it provides the massive headroom required for intensive professional multitasking and 3D viewport rendering.

Comprehensive Technical Specifications

Feature	Detailed Specification
Model Name	B850 EAGLE WIFI7 ICE (UPC: 889523049730)
Chipset & Socket	AMD B850 / AMD Socket AM5 (Ryzen 9000/8000/7000)
Memory Support	4x DDR5 DIMM (Max 256GB), Up to 8200(OC) MT/s
Wireless Interface	Realtek® Wi-Fi 7 RTL8922AE + Bluetooth 5.4
Storage	1x M.2 (PCIe 5.0), 2x M.2 (PCIe 4.0), 4x SATA 6Gb/s
Expansion Slots	1x PCIe 5.0 x16 (Ryzen 9000/7000), PCIe 4.0/3.0 Secondary
Networking	Realtek® 2.5GbE LAN (2.5 Gbps/1 Gbps/100 Mbps)

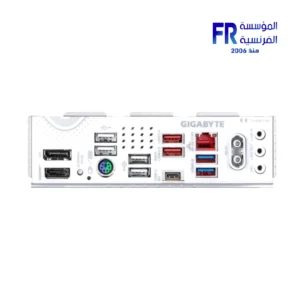

Video Output	1x DP 1.4 (4K 144Hz), 1x HDMI 2.1 (4K 60Hz)
Form Factor	ATX Form Factor (30.5cm x 24.4cm)
Internal I/O	3x ARGB Gen2, 1x RGB LED, 1x USB-C Header
Warranty	3 Years Limited Warranty

⚠️ Technical Note: Wi-Fi 7 Functionality

Specifically, Wi-Fi 7 features require Windows 11 SV3 and a compatible router architecture to function at rated speeds. Furthermore, the PCIe 5.0 x16 and M.2 support is dependent on the installed CPU (Ryzen 9000/7000 series). Please ensure you are utilizing the latest firmware from the Gigabyte Support Center to facilitate optimal hardware synchronization.

Expert FAQ & Insights

Is this motherboard compatible with Ryzen 9000 Series CPUs?

Specifically, the B850 Eagle Ice features an AM5 socket that supports Ryzen 9000, 8000, and 7000 series processors. Moreover, the architecture facilitates PCIe 5.0 connectivity when paired with 9000/7000 series chips, ensuring your professional workstation is ready for next-gen GPU and storage excursions.

How many M.2 NVMe slots are available for high-speed storage?

The board includes three M.2 connectors. Specifically, the primary M2A_CPU slot facilitates PCIe 5.0 bandwidth, while the secondary M2B_CPU and M2C_SB slots facilitate PCIe 4.0 speeds. This architectural redundancy allows for massive high-speed storage arrays required for professional media production.

What is the benefit of the Q-Flash Plus button?

The Q-Flash Plus feature allows you to update the BIOS without the requirement of installing a CPU, memory, or graphics card. This facilitates a technically seamless assembly process, ensuring the board is updated for new AM5 architectural revisions before the full system excursion begins.

Help us improve our product data accuracy. If you notice any error in this draft, please report it via our official feedback form:
Alfrensia.com – Website Feedback & Report Form.

MOTHERBOARD

MODEL	B850 EAGLE WIFI7 ICE
CHIPSET MANUFACTURERS	AMD
CPU Socket	AM5
Motherboard Chipset	B850
Motherboard Type	ATX
CPU SERIES	AMD Ryzen 7000 Series & Ryzen 8000 & Ryzen 9000 Series Processors
Technology	DDR5
Memory Speed	4400 MHz, 4800 MHZ, 5200MHZ, 5600 MHz, 6000MHz, 6400Mhz, 7200MHZ, 8000MHZ, 8200
Max Memory Size	256GB
Memory Slot	4
PCI-E X16	YES
PCI-E GEN	PCIe 3.0, PCIe 5.0, PCIe 4.0
PCI-E Slots (M.2)	3
SATAIII	4x SATA 6.0 Gb/s
Communication module	2.5G LAN, Bluetooth 5.4, Wi-Fi 7
Part Number	B850 EAGLE WIFI7 ICE
Warranty	3 Years
