Gigabyte B850M Aorus Elite WIFI6E AM5 ICE Gaming Motherboard

• AMD Ryzen™ 9000 Series Processors
• AMD Ryzen™ 8000 Series Processors
• AMD Ryzen™ 7000 Series Processors (Socket AM5)

• DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity)
• Dual channel memory architecture
• Supports speeds up to 8200 MT/s (O.C.)
• Supports AMD EXPO™ and XMP memory modules

• Integrated AMD Radeon™ Graphics
• 1 x DisplayPort (DisplayPort 1.4, 4K@144Hz)
• 1 x Front HDMI port (HDMI 1.4, 1920×1080@30Hz)

• Realtek® Audio CODEC
• High Definition Audio
• 2/4/5.1/7.1-channel support
• S/PDIF Out support

Networking:

• Realtek® 2.5GbE LAN chip
• Realtek® Wi-Fi 6E RTL8852CE (WIFI a/b/g/n/ac/ax, Bluetooth 5.3)

• 1 x PCI Express x16 slot (PCIEX16) integrated in the CPU:
  • PCIe 5.0 x16 for Ryzen 9000/7000 Series
  • PCIe 4.0 x8 for Ryzen 8000 Series-Phoenix 1
  • PCIe 4.0 x4 for Ryzen 8000 Series-Phoenix 2
• 1 x PCI Express x16 slot (PCIEX4) from chipset, running at x4

• 2 x M.2 connectors (M2A_CPU, M2B_CPU) supporting PCIe 5.0/4.0 x4/x2 SSDs
• 4 x SATA 6Gb/s connectors
• RAID 0, RAID 1, RAID 5, RAID 10 support for NVMe SSDs (RAID 5 only on Ryzen 9000 Series)
• RAID 0, RAID 1, RAID 10 support for SATA storage devices

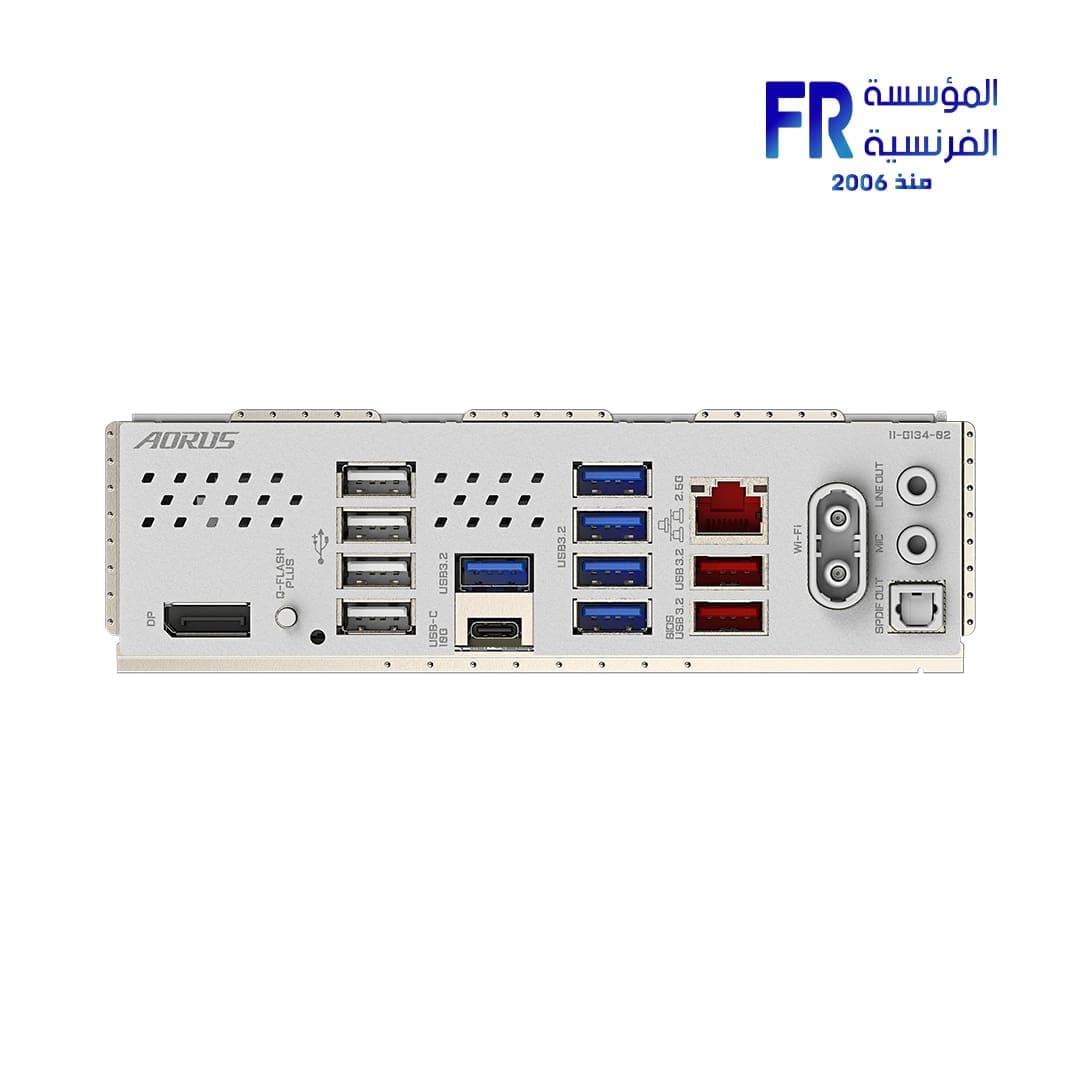

• Back Panel:
  • 1 x USB Type-C® (USB 3.2 Gen 2)
  • 2 x USB 3.2 Gen 2 Type-A ports (red)
  • 4 x USB 2.0/1.1 ports
  • 5 x USB 3.2 Gen 1 ports
• Internal Headers:
  • 1 x USB Type-C® (USB 3.2 Gen 2×2)
  • 3 x USB 3.2 Gen 1 ports
  • 4 x USB 2.0/1.1 ports

Internal I/O Connectors:

• Power connectors (24-pin ATX, 8-pin ATX 12V)
• Fan headers (CPU, system, water cooling pump)
• RGB LED headers
• SATA connectors, front panel headers

• 256 Mbit flash
• AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

• GIGABYTE Control Center (GCC)
• Q-Flash, Q-Flash Plus, Smart Backup

Bundled Software:

• Norton® Internet Security (OEM version)
• LAN bandwidth management software

• Windows 11 64-bit
• Windows 10 64-bit

• Micro ATX; 24.4cm x 24.4cm
